CN201968207U - Combined stool - Google Patents
Combined stool Download PDFInfo
- Publication number
- CN201968207U CN201968207U CN2011201038582U CN201120103858U CN201968207U CN 201968207 U CN201968207 U CN 201968207U CN 2011201038582 U CN2011201038582 U CN 2011201038582U CN 201120103858 U CN201120103858 U CN 201120103858U CN 201968207 U CN201968207 U CN 201968207U
- Authority
- CN
- China
- Prior art keywords
- stool
- panel
- lateral
- panels
- intermediate support
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Special Chairs (AREA)
Abstract
The utility model discloses a combined stool which is characterized in that: the combined stool comprises an intermediate stool panel; a right angled isosceles triangle-shaped intermediate support body is fixedly arranged below the intermediate stool panel; the right angled end of the intermediate support body is arranged right downwards; symmetrical hinges of two side ends of the intermediate stool panel are provided with two lateral stool panels; lateral support bodies with the shape the same as the shape of the intermediate support body are fixedly arranged below the lateral stool panels respectively; when the two lateral stool panels rotate to a plane the same as the intermediate stool panel, the right angled end of the intermediate support body and the right angled ends of the two lateral support bodies are located in the same plane; and when the two lateral stool panels rotate downwards to be vertical to the intermediate stool panel, the two side faces of the intermediate support body just abut against the side faces of the two lateral support bodies. The combined stool can have three combined styles, and the requirements for various occasions are met.
Description
Technical field
The utility model relates to a kind of stool, and especially relating to a kind ofly can have the multiple combination stool that is used in combination mode.
Background technology
Existing stool generally is made up of stool panel and the stool leg that is positioned at the stool panel below, and its structure is fixed, and can not change, and is difficult to adapt to the needs of different occasions.
The utility model content
At above-mentioned prior art deficiency, the technical problems to be solved in the utility model is: how a kind of combination stool that can have multiple compound mode to change is provided, can satisfies multiple occasion requirement.
In order to solve the problems of the technologies described above, adopted following technical scheme in the utility model:
A kind of combination stool, its characteristics are, stool panel in the middle of comprising one, middle stool panel below is set with the intermediate support of an isosceles right triangle, setting is downwards rectified at the right angle of intermediate support, two side symmetries of middle stool panel hinged is provided with two side stool panels, and the below of side stool panel respectively is set with a lateral support body identical with the intermediate supports body profile; When described two side stool panels turned to middle stool panel same level, the right angle end of intermediate support and the right angle end of two lateral support bodies were positioned at same plane; When two side stool panels were swung down between vertical centering control stool panel, pasted mutually with the side of two lateral support bodies just two sides of intermediate support.
Combination stool of the present utility model can have three kinds of combination shaping modes, is satisfied with multiple occasion requirement.
Description of drawings

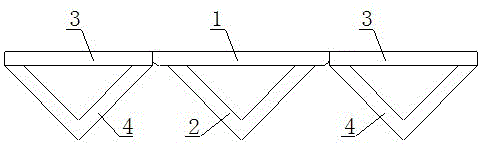

Fig. 1 is a structural representation of the present utility model.
Fig. 2 is the structural representation of second kind of combination shaping state of the utility model.
Fig. 3 is the structural representation of the third combination shaping state of the utility model.
The specific embodiment
Below in conjunction with the drawings and specific embodiments structure of the present utility model is described in further detail.
During concrete enforcement, as shown in Figure 1 to Figure 3: a kind of combination stool, stool panel 1 in the middle of comprising one, middle stool panel 1 below is set with the intermediate support 2 of an isosceles right triangle, setting is downwards rectified at the right angle of intermediate support 2, two side symmetries of middle stool panel 1 hinged is provided with two side stool panels 3, and the below of side stool panel 3 respectively is set with a lateral support body 4 identical with intermediate support 2 profiles; When described two side stool panels 3 turned to middle stool panel 1 same level, the right angle end of intermediate support 2 and the right angle end of two lateral support bodies 4 were positioned at same plane; When two side stool panels 3 were swung down between vertical centering control stool panel 1, pasted mutually with the side of two lateral support bodies 4 just two sides of intermediate support 2.
During concrete the use, the utility model can have three kinds of combination shaping states, first kind of state wherein, as shown in Figure 1, middle stool panel and two side stool panels are positioned at same plane, this state is suitable for need be to the requirement of stool face than the long seat stool or the occasion of tea table, for taking or place tea set, fruit etc.Second kind of state, as shown in Figure 2, middle stool panel and two side stool panels are in plumbness, and this state supports as firm, is particularly suitable for taking.The third state, as shown in Figure 3, middle stool panel and two side stool panels are in an angle, a side of two lateral support bodies is positioned at same horizontal plane just and is supported in ground, this structure, middle stool panel below has bigger space, can be used for the little desk of needs, perhaps occasion use such as small-sized tea table.In addition, when specifically implementing, the hinge that adopts between middle stool panel and two the side stool panels can adopt the hinge with angle positioning function, when Fig. 1 and Fig. 3 two states, can further increase its stability of strutting system like this.
Claims (1)
1. combination stool, it is characterized in that, stool panel in the middle of comprising one, middle stool panel below is set with the intermediate support of an isosceles right triangle, setting is downwards rectified at the right angle of intermediate support, two side symmetries of middle stool panel hinged is provided with two side stool panels, and the below of side stool panel respectively is set with a lateral support body identical with the intermediate supports body profile; When described two side stool panels turned to middle stool panel same level, the right angle end of intermediate support and the right angle end of two lateral support bodies were positioned at same plane; When two side stool panels were swung down between vertical centering control stool panel, pasted mutually with the side of two lateral support bodies just two sides of intermediate support.
