Abstract
The utility model relates to an air disinfecting, sterilizing and deodorizing device, in particular to an air environment optimization device which is characterized in that the air environment optimization device comprises an atomization unit, an ozone sterilization unit and an ultraviolet sterilization unit, wherein the atomization unit consists of an atomizer, an atomizing box, an atomizing pipe, an atomizer power supply and an atomizing box booster pump; the ozone sterilization unit consists of an ozone generator, an ozone booster pump, an ozone generator power supply and an ozone output pipe; and the ultraviolet sterilization unit consists of an ultraviolet sterilizer. The air environment optimization device integrates the functions of air humidification, disinfection, sterilization and deodorization into a whole, adopts a stereoscopic and mobile structure and performs improvement operations, such as disinfection, sterilization and deodorization on air inside a vehicle or a room, so that the quality of air inside a vehicle or a room is quickly improved, the device is easy to move and convenient to use, is suitable for four seasons and has good air improvement effect, in addition, the washing and cleaning work of automobiles and households become convenient, the working efficiency of the service industry is improved, and the living and market demands are met.
Description
Technical field
The utility model relates to a kind of device that is used for sterilization, sterilization or the deodorizing of air, and especially a kind of air ambient is optimized device.
Background technology
At present, along with the fast development of national economy and the raising day by day of living standards of the people, variation with rapid changepl. never-ending changes and improvements is also taking place in Domestic Automotive Industry and house decoration.The output of automobile grows with each passing day, add that people improve the requirement of family's living conditions, attention to hygiene, concern health have been an important content of average family life, family keep a public place clean the service quality also improving constantly, only can accomplish cleaning and towel wiping but family keeps a public place clean, can't handle at all the new furniture of the overwhelming majority or newly-decorated peculiar smell and bacterium; In addition, the cleaning of vehicle and the workload of maintenance are also increasing, and existing carwash is many based on towel scouring form, can't remove indoor bacterium and the peculiar smell of car substantially, and not only elapsed time but also cost were higher, did not also reach the good result of dealing with problems.Need a kind of air ambient that integrates humidification, sterilization, sterilization and the deodorization functions of air to optimize device for this reason, thereby can be so that the cleaning cleaning of automobile and the sanitary work of keeping a public place clean of family, improve the operating efficiency of service industry, thereby adapt to the needs in life and market.
The utility model content
A kind of air ambient of the present utility model is optimized device, it integrates humidification, sterilization, sterilization and the deodorization functions of air, adopt three-dimensional removable frame, can be in several ways to Che Nei or indoor air carry out disinfection, evolutionary operation such as sterilization and deodorizing, can improve in the car rapidly or indoor air regime, move easily, easy to use, the four seasons are suitable for, the air improved effect is good, be convenient to the cleaning cleaning of automobile and the sanitary work of keeping a public place clean of family, improve the operating efficiency of service industry, can adapt to the needs in life and market.
The technical scheme that the utility model adopted is:
A kind of air ambient is optimized device, it is characterized in that: comprise the atomization unit of forming by atomizing maker, atomizing case, mist pipe, atomizing maker power supply and atomizing case boost pump, the ozone sterilization unit of forming by ozone generator, ozone boost pump, ozone generator power supply and ozone efferent duct, and the ultraviolet sterilization unit of forming by ultraviolet sterilizer.The ozone boost pump can be accelerated the air improved speed and improve the air improved effect so that the ozone that ozone generator is produced can be transfused in the air ambient that needs improvement rapidly like this.
Described air ambient is optimized device, and the outside of atomization unit, ozone sterilization unit and ultraviolet sterilization unit is provided with shell, and outer casing underpart is provided with base plate, and shell upper is provided with guidance panel.
Described air ambient is optimized device, and atomizing boost pump and ozone boost pump are arranged on the top of atomizing case and ozone generator; Atomizing maker power supply is connected with guidance panel with the atomizing maker, and atomizing case boost pump is connected with guidance panel with the atomizing case; Mist pipe is arranged on the upper position of atomizing case one end, and the atomizing outlet is moved along with moving of mist pipe; Ultraviolet sterilizer is arranged on an end of its atomizing outlet of mist pipe, and the atomizing particle of atomizing case output is imported in the working space environment after ultraviolet sterilizer carries out sterilization.
Described air ambient is optimized device, and the ozone boost pump is connected with ozone generator, and the ozonizer power supply is connected with ozone generator with guidance panel; Ozone efferent duct one end links to each other with ozone generator, and its other end directly inserts in the working space environment by the ozone outlet in use.
Described air ambient is optimized device, and the front of guidance panel is provided with the spill storing basket, the bottom of guidance panel and storing basket and be provided with material storage room in the top position, rear portion that whole air ambient is optimized device.Like this, can effectively under the prerequisite that does not influence equipment performance, equipment volume be tapered to minimum state, storing basket and material storage room can also be used for article such as various auxiliary equipment that splendid attire room air improved equipment is equipped with and running stores, conveniently use and help aesthetic.
Described air ambient is optimized device, and atomization unit and ozone sterilization unit are provided with time switch.
Described air ambient is optimized device, and atomizing case top is provided with the filler; The inside top of atomizing case is provided with the high water-level alarm device; One end of atomizing case is provided with delivery port and water level displaying tube, and the other end is connected with atomizing case boost pump; The top of atomizing maker is provided with ultramicrowave fog device, and the two ends, top of atomizing maker are respectively equipped with low water level alarm device.So in time the height of sensed water level guarantees service life.The shower nozzle exit of ultraviolet sterilizer is provided with the screen pack of internal or external strap clamp layer, adds dried flower or floral water or air freshener in the screen pack.Play like this and make pleasant effect with fresh air.
Described air ambient is optimized device, and guidance panel is provided with numeral and shows voltmeter, power switch, indicator lamp, time switch, sterilization and oxidation button.Use directly perceived more, convenient like this.
Be provided with the damping rubber cushion below the described air ambient optimization device, base plate, and the position at four angles is respectively equipped with running wheel below the base plate, wherein running wheel is made up of two universal wheels and two wheels of keeping straight on.The brake function of universal wheel can prevent that air ambient optimization device from moving the security performance when effectively raising its use voluntarily when the environment of ground injustice uses like this.
Described air ambient is optimized device, its built-in ultraviolet sterilization pipe of ultraviolet sterilizer, external stainless steel casing, bactericidal effect and the service life that can effectively improve ultraviolet sterilizer like this; The top of atomizing case and ozone generator, and in the lower position of guidance panel, be provided with single fan and open the door, operation and device maintenance can conveniently be used like this; The shell both sides are provided with handle.Controlling and using in the time of to make things convenient for air ambient optimization device to move like this.
A kind of air ambient of the present utility model is optimized device, it integrates humidification, sterilization, sterilization and the deodorization functions of air, adopt three-dimensional removable frame, can be in several ways to Che Nei or indoor air carry out disinfection, evolutionary operation such as sterilization and deodorizing, can improve in the car rapidly or indoor air regime, move easily, easy to use, the four seasons are suitable for, the air improved effect is good, be convenient to the cleaning cleaning of automobile and the sanitary work of keeping a public place clean of family, improve the operating efficiency of service industry, can adapt to the needs in life and market.
Description of drawings

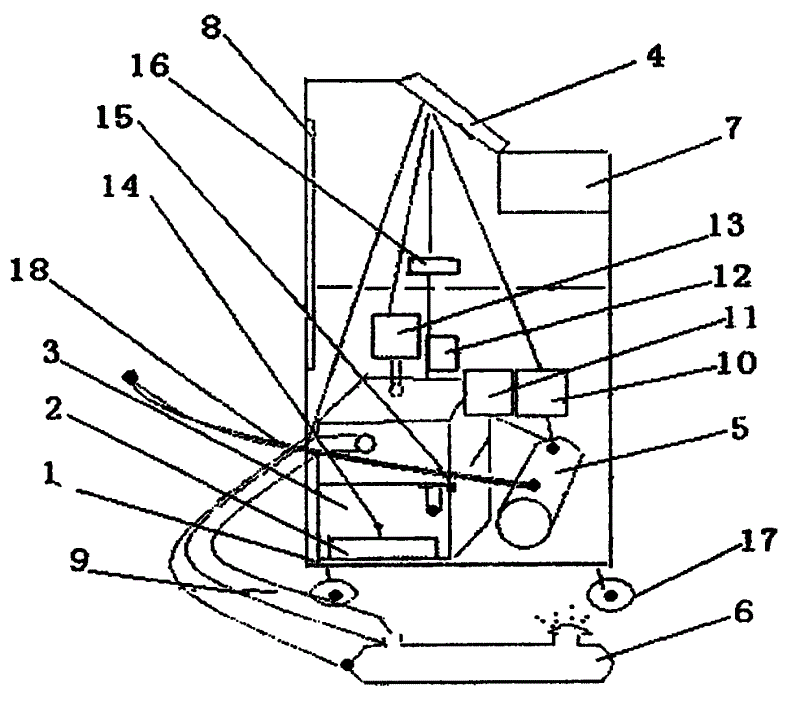

Fig. 1 is that a kind of air ambient of the utility model is optimized the apparatus structure schematic diagram;
Fig. 2 is that a kind of air ambient of the utility model is optimized the device appearance schematic diagram;
Fig. 3 is that a kind of air ambient of the utility model is optimized the device schematic top plan view;
Fig. 4 is that a kind of air ambient of the utility model is optimized device guidance panel schematic appearance;
Fig. 5 is that a kind of air ambient of the utility model is optimized the device schematic rear view.
Wherein, 1 is base plate, and 2 are the atomizing maker, and 3 are the atomizing case, 4 is guidance panel, and 5 is ozone generator, and 6 is ultraviolet sterilizer, and 7 is storing basket, 8 is material storage room, and 9 is mist pipe, and 10 is the ozone boost pump, and 11 is the ozonizer power supply, 12 are atomizing maker power supply, and 13 are atomizing case boost pump, 14 low water level alarm devices, and 15 is the high water-level alarm device, 16 is handle, and 17 is running wheel, and 18 is the ozone efferent duct, and 19 is the equipment cooling device, 20 are the atomizing outlet, and 21 are the ozone outlet, and 22 is shell.
The specific embodiment
Embodiment
Extremely shown in Figure 5 as Fig. 1, a kind of air ambient is optimized device, it is characterized in that: comprise the atomization unit of forming by atomizing maker 2, atomizing case 3, mist pipe 9, atomizing maker power supply 12 and atomizing case boost pump 13, the ozone sterilization unit of forming by ozone generator 5, ozone boost pump 10, ozone generator power supply 11 and ozone efferent duct 18, and the ultraviolet sterilization unit of forming by ultraviolet sterilizer 6.Ozone boost pump 10 can be accelerated the air improved speed and improve the air improved effect so that the ozone that ozone generator 5 is produced can be transfused in the air ambient that needs improvement rapidly like this.The outside of atomization unit, ozone sterilization unit and ultraviolet sterilization unit is provided with shell 22, and shell 22 bottoms are provided with base plate 1, and shell 22 tops are provided with guidance panel 4; Atomizing boost pump 13 and ozone boost pump 10 are arranged on the top of atomizing case 3 and ozone generator 5; Atomizing maker power supply 12 is connected with guidance panel 4 with atomizing maker 2, and atomizing case boost pump 13 is connected with guidance panel 94 with atomizing case 3; Mist pipe 9 is arranged on the upper position of atomizing case 3 one ends, and atomizing outlet 20 is moved along with moving of mist pipe 9; Ultraviolet sterilizer 6 is arranged on an end of mist pipe 9 its atomizing outlets 20, and the atomizing particle of atomizing case 3 outputs is imported in the working space environment after ultraviolet sterilizer 6 carries out sterilization; Ozone boost pump 10 is connected with ozone generator 5, and ozonizer power supply 11 is connected with ozone generator 5 with guidance panel 4; Ozone efferent duct 18 1 ends link to each other with ozone generator 5, and its other end directly inserts in the working space environment by ozone outlet 21 in use; The front of guidance panel 4 is provided with spill storing basket 7, the bottom of guidance panel 4 and storing basket 7 and be provided with material storage room 8 in the top position, rear portion that whole air ambient is optimized device.Like this, can effectively under the prerequisite that does not influence equipment performance, equipment volume be tapered to minimum state, storing basket 7 and material storage room 8 can also be used for article such as various auxiliary equipment that splendid attire room air improved equipment is equipped with and running stores, conveniently use and help aesthetic; Atomization unit and ozone sterilization unit are provided with time switch; Atomizing case 3 tops are provided with the filler; The inside top of atomizing case 3 is provided with high water-level alarm device 15; One end of atomizing case 3 is provided with delivery port and water level displaying tube, and the other end is connected with atomizing case boost pump 13; The top of atomizing maker 2 is provided with ultramicrowave fog device, and the two ends, top of atomizing maker 2 are respectively equipped with low water level alarm device 14.So in time the height of sensed water level guarantees service life; The shower nozzle exit of ultraviolet sterilizer 6 is provided with the screen pack of built-in strap clamp layer, adds dried flower in the screen pack.Play like this and make pleasant effect with fresh air.Guidance panel 4 is provided with numeral and shows voltmeter, power switch, indicator lamp, time switch, sterilization and oxidation button.Use directly perceived more, convenient like this; Be provided with the damping rubber cushion below the base plate 1, and the position at base plate 1 following four angles is respectively equipped with running wheel 17, wherein running wheel 17 is made up of two universal wheels and two wheels of keeping straight on.The brake function of universal wheel can prevent that air ambient optimization device from moving the security performance when effectively raising its use voluntarily when the environment of ground injustice uses like this; Ultraviolet sterilizer 6 its built-in ultraviolet sterilization pipes, external stainless steel casing, bactericidal effect and the service life that can effectively improve ultraviolet sterilizer 6 like this; The top of atomizing case 3 and ozone generator 5, and in the lower position of guidance panel 4, be provided with single fan and open the door, operation and device maintenance can conveniently be used like this; Shell 22 both sides are provided with handle 16.Controlling and using in the time of to make things convenient for air ambient optimization device to move like this.
A kind of air ambient of the present utility model is optimized device, it integrates humidification, sterilization, sterilization and the deodorization functions of air, adopt three-dimensional removable frame, can be in several ways to Che Nei or indoor air carry out disinfection, evolutionary operation such as sterilization and deodorizing, can improve in the car rapidly or indoor air regime, move easily, easy to use, the four seasons are suitable for, the air improved effect is good, be convenient to the cleaning cleaning of automobile and the sanitary work of keeping a public place clean of family, improve the operating efficiency of service industry, can adapt to the needs in life and market.
Obviously, the foregoing description of the present utility model only is for the utility model example clearly is described, and is not to be qualification to embodiment of the present utility model.For those of ordinary skill in the field, can also make other changes in different forms on the basis of the above description.Here can't give exhaustive to all embodiments.Everyly belong to the row that conspicuous variation that the technical solution of the utility model extends out or change still are in protection domain of the present utility model.
Claims (10)
1. an air ambient is optimized device, it is characterized in that: comprise the atomization unit of forming by atomizing maker (2), atomizing case (3), mist pipe (9), atomizing maker power supply (12) and atomizing case boost pump (13), the ozone sterilization unit of forming by ozone generator (5), ozone boost pump (10), ozone generator power supply (11) and ozone efferent duct (18), and the ultraviolet sterilization unit of forming by ultraviolet sterilizer (6).
2. air ambient according to claim 1 is optimized device, it is characterized in that: the outside of atomization unit, ozone sterilization unit and ultraviolet sterilization unit is provided with shell (22), shell (22) bottom is provided with base plate (1), and shell (22) top is provided with guidance panel (4).
3. air ambient according to claim 2 is optimized device, it is characterized in that: atomizing boost pump (13) and ozone boost pump (10) are arranged on the top of atomizing case (3) and ozone generator (5); Atomizing maker power supply (12) is connected with guidance panel (4) with atomizing maker (2), atomizing case boost pump (13) and atomizing case (3) and guidance panel 94) be connected; Mist pipe (9) is arranged on the upper position of atomizing case (3) one ends, and atomizing outlet (20) is moved along with moving of mist pipe (9); Ultraviolet sterilizer (6) is arranged on an end of its atomizing outlet (20) of mist pipe (9), and the atomizing particle of atomizing case (3) output is imported in the working space environment after ultraviolet sterilizer (6) carries out sterilization.
4. want 2 described air ambients to optimize device according to right, ozone boost pump (10) is connected with ozone generator (5), and ozonizer power supply (11) is connected with ozone generator (5) with guidance panel (4); Ozone efferent duct (18) one ends link to each other with ozone generator (5), and its other end directly inserts in the working space environment by ozone outlet (21) in use.
5. air ambient according to claim 2 is optimized device, it is characterized in that: the front of guidance panel (4) is provided with spill storing basket (7), the bottom of guidance panel (4) and storing basket (7) and be provided with material storage room (8) in the top position, rear portion that whole air ambient is optimized device.
6. air ambient according to claim 1 is optimized device, and it is characterized in that: atomization unit and ozone sterilization unit are provided with time switch.
7. air ambient according to claim 1 is optimized device, it is characterized in that: atomizing case (3) top is provided with the filler; The inside top of atomizing case (3) is provided with high water-level alarm device (15); One end of atomizing case (3) is provided with delivery port and water level displaying tube, and the other end is connected with atomizing case boost pump (13); The top of atomizing maker (2) is provided with ultramicrowave fog device, and the two ends, top of atomizing maker (2) are respectively equipped with low water level alarm device (14); The shower nozzle exit of ultraviolet sterilizer (6) is provided with the screen pack of internal or external strap clamp layer, adds dried flower or floral water or air freshener in the screen pack.
8. air ambient according to claim 2 is optimized device, it is characterized in that: guidance panel (4) is provided with numeral and shows voltmeter, power switch, indicator lamp, time switch, sterilization and oxidation button.
9. air ambient according to claim 2 is optimized device, it is characterized in that: base plate is provided with the damping rubber cushion below (1), and the position at following four angles of base plate (1) is respectively equipped with running wheel (17), and wherein running wheel (17) is made up of two universal wheels and two wheels of keeping straight on.
10. air ambient according to claim 2 is optimized device, it is characterized in that: its built-in ultraviolet sterilization pipe of ultraviolet sterilizer (6), external stainless steel casing; The top of atomizing case (3) and ozone generator (5), and in the lower position of guidance panel (4), be provided with single fanning and open the door; Shell (22) both sides are provided with handle (16).
