Abstract

The utility model relates to a notebook computer stand which is mainly used for solving the problem of heat radiation when the bottom part of a notebook computer is in contact with a desktop. The notebook computer stand comprises a notebook computer body; grooves are respectively arranged at four corners of the bottom part of the notebook computer body; supports are respectively hinged in the grooves, and each support comprises a support main body and a support extended body; and one end of each support main body is hinged in the groove, and the other end of each support main body is hinged with the support extended body. The notebook computer stand is in close combination with the notebook computer, thereby saving space and effectively solving the problem that heat radiation can not be performed normally when the bottom part of the notebook computer is in contact with the desktop through the opened support. According to the relative position of a user and the desktop, an included angle between the bottom part of the notebook computer and the desktop can be flexibly adjusted by adjusting the support extended bodies, and the combination area between the notebook computer stand and the desktop can also be adjusted. The notebook computer stand is not only simple in structure and convenient to use, but also more humanized.

Description

Notebook computer bracket

Technical field

The utility model relates to a kind of holder device, specifically a kind of notebook computer bracket.

Background technology

Notebook computer is as a kind of portable computer, and volume is little, easy to carry, for people's work and amusement bring great convenience.But because the bottom design of notebook computer is the plane, in use, when notebook computer was placed on the desktop, the air of notebook computer bottom can't circulate, and notebook computer can not normally be dispelled the heat, and caused the notebook computer deadlock easily or burnt out accessory.Also the someone proposes on four angles, notebook computer bottom the support of fixed measure to be set respectively at present, though alleviated the heat dissipation problem of notebook computer, not enough hommization.

The utility model content

For overcoming the deficiency that above-mentioned prior art exists, technical problem to be solved in the utility model is to provide a kind of support of combining closely with notebook computer, it can solve the problem of dispelling the heat when the notebook computer bottom contacts with desktop effectively, this support is not only simple in structure, easy to use, and more humane.

The technical scheme in the invention for solving the technical problem is: this notebook computer bracket, comprise the notebook computer body, on four angles of described notebook computer body bottom, be respectively arranged with groove, hinge is connected to support respectively in described groove, it is characterized in that, described support comprises rack body and stent expansion body, and described rack body one end hinge is connected in the described groove, and other end hinge connects the stent expansion body.

The beneficial effects of the utility model are that this notebook computer bracket and notebook computer are combined closely, and have saved the space, can solve the problem that can not normally dispel the heat when the notebook computer bottom contacts with desktop effectively by the support of opening.According to the relative position of user and desktop, by adjusting the stent expansion body, can adjust the angle angle of notebook computer bottom and desktop neatly, and the bonded area of notebook computer bracket and desktop.The utility model is not only simple in structure, easy to use, and has more hommization.

Description of drawings

Below in conjunction with accompanying drawing the utility model is further specified:

Fig. 1 is the structural representation of the utility model one embodiment;

Fig. 2 is the structural representation of another embodiment of the utility model;

Fig. 3 is the structural representation of another embodiment of the utility model;

Fig. 4 is the structural representation of another embodiment of the utility model;

Wherein: 1 notebook computer body, 2 grooves, 3 supports, 31 rack bodies, 32 stent expansion bodies.

Embodiment

As shown in Figure 1, Figure 2, Figure 3 and Figure 4, this notebook computer bracket, comprise notebook computer body 1, the groove 2 that on four angles of notebook computer body bottom, is provided with respectively and the support 3 that connects of hinge respectively in each groove, and support 3 comprises rack body 31 and stent expansion body 32, rack body 31 1 end hinges are connected in the groove 2, and other end hinge connects stent expansion body 32.

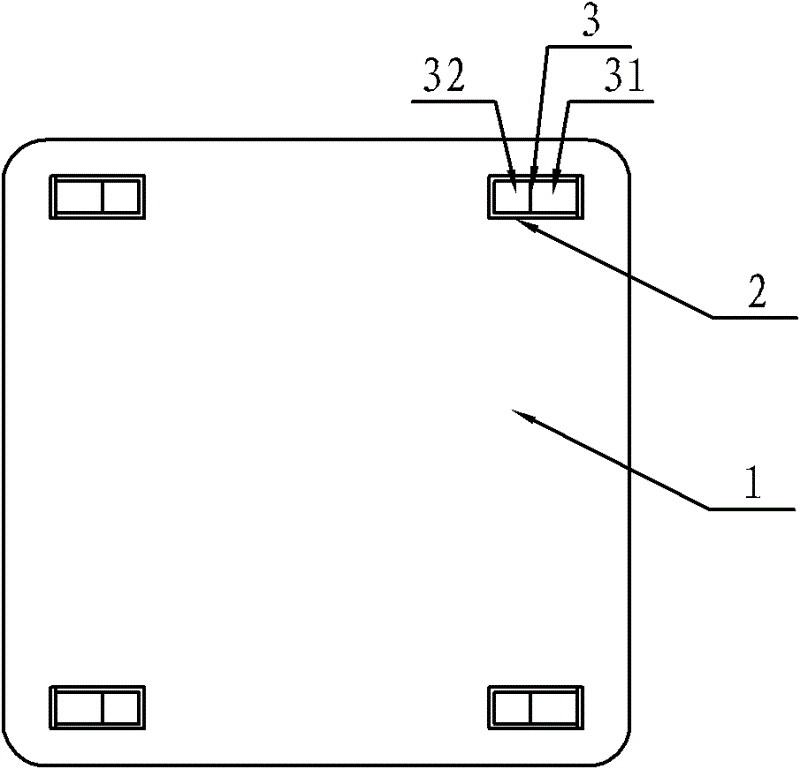

Fig. 1 is the structural representation of the utility model one embodiment.As shown in Figure 1, when not using notebook computer, in groove 2, this moment, a plane was formed on the notebook computer bottom support 3 folding and unfoldings.

Fig. 2 is the structural representation of another embodiment of the utility model.As shown in Figure 2,, four supports 3 of notebook computer body bottom are extracted in groove 2, allowed notebook computer pass through four supports 3 and support on the table when the user is placed on notebook computer when using on the desktop.Stent expansion body 32 makes that as the prolongation of rack body 31 space between notebook computer and the desktop is bigger at this moment, more helps the notebook computer heat radiation.

Fig. 3 is the structural representation of another embodiment of the utility model.As shown in Figure 3,, four supports 3 of notebook computer body bottom are extracted in groove 2, allowed notebook computer pass through four supports 3 and support on the table when the user is placed on notebook computer when using on the desktop.Stent expansion body 32 has increased the contact area of support 3 with desktop as the bottom of rack body 31 at this moment, plays a supporting role better.

Fig. 4 is the structural representation of another embodiment of the utility model.As shown in Figure 4,, four supports 3 of notebook computer body bottom are extracted in groove 2, allowed notebook computer pass through four supports 3 and support on the table when the user is placed on notebook computer when using on the desktop.The stent expansion body 32 of two angle upper brackets 3 of notebook computer body 1 bottom rear this moment is as the prolongation (or bottom) of rack body 31, the stent expansion body 32 of two the angle upper brackets 3 in front is as the bottom (or prolongation) of rack body 31, adjust notebook computer bottom and desktop angle angle according to the relative position of user and desktop like this, more comfortable during use, have more hommization.

Claims

1. notebook computer bracket, comprise notebook computer body (1), on four angles of described notebook computer body (1) bottom, be respectively arranged with groove (2), hinge is connected to support (3) respectively in described groove (2), it is characterized in that, described support (3) comprises rack body (31) and stent expansion body (32), and described rack body (31) one end hinges are connected in the described groove (2), and other end hinge connects stent expansion body (32).
