Abstract
An alkaline liquor jetting type smoke-eliminating and desulfurizing dust collector relates to a boiler smoke discharging dust collector, which comprises a smoke discharging pipe (1), a smoke charging pipe (2), a first nozzle (3), a second nozzle (4), a housing (5), a third nozzle (6), a filtering net (7), a water stopping plate (8), a waste discharging pipe (9) and an air introducing nozzle (10); the smoke discharging pipe (1) and the smoke charging pipe (2) are arranged at the left side of the housing (5); the waste discharging pipe (9) is arranged at the bottom of the housing (5); the water stopping plate (8) is arranged in the housing (5); the filtering net (7) is arranged at the right side of the water stopping plate (8); the first nozzle (3), the second nozzle (4) and the third nozzle (6) are respectively arranged on the entrance of the smoke charging pipe (2), the left top of the waste discharging pipe (9) and the top of the filtering net (7); and the air introducing nozzle (10) is arranged on the exit of the smoke discharging pipe (1). The alkaline liquor jetting type smoke-eliminating and desulfurizing dust collector is simple in structure and convenient to manufacture; and effective dedusting and desulfurization can be carried out so as to purify the smoke and reduce the pollution to the air.
Description
Technical field:
The utility model relates to a kind of boiler exhaust gas deduster, especially relates to a kind of injection alkali lye formula dust remover capable of eliminating smoke and desulphation that can reduce deleterious acidic gases such as sulfur dioxide in flue gas and flue dust.
Background technology:
The fume extractor of present coal-burning boiler, mostly directly enter the high-altitude by increasing chimney height, or establish an air-introduced machine and centrifugal dust collector at the outlet of chimney place, the flue gas that comes out from chimney enters centrifugal dust collector through air-introduced machine, the bulky grain flue dust in centrifugal dust collector because the effect of self gravitation sinks down into the deduster bottom discharges from the dust mouth, but still have a large amount of granule flue dust to be discharged in the air contaminated environment with pernicious gases such as flue gas and sulfur in smoke.
The utility model content:
The purpose of this utility model provides sprays alkali lye formula dust remover capable of eliminating smoke and desulphation, and it can remove the flue dust in the flue gas, particularly fine flue dust, and reduce deleterious acidic gas content such as sulfur dioxide.
In order to solve the existing problem of background technology, the utility model is by the following technical solutions: it is by pipe, smoke-intake pipe, first nozzle, second nozzle, housing, the 3rd nozzle, filter screen, water fender, blow-off pipe and bleed mouth are formed, the left side of housing is provided with pipe and smoke-intake pipe, the bottom of housing is provided with blow-off pipe, be provided with water fender in the housing, the right side of water fender is provided with filter screen, the smoke-intake pipe porch, the left side, top and the filter screen top of blow-off pipe are respectively arranged with first nozzle, second nozzle and the 3rd nozzle, the bleed mouth is arranged on the pipe exit.
Described filter screen is a del, and two summits on triangle base link to each other with the madial wall of water fender and housing respectively.
Operation principle of the present utility model is: when flue dust together enters in the housing flue dust humidification and impinging upon on the water fender gradually with the alkali lye of mouth of pipe place nozzle ejection, part flue dust is hunted down and injected liquid sweeps away, do not have captive fine particle flue dust in company with the alkali lye of the nozzle ejection of lower end, smoke-intake pipe porch together the flue through the water fender below enter the opposite side of water fender, the further humidification of some flue dust again, the up chance filter screen of tiny flue dust stops, and the alkali lye that is arranged on the nozzle ejection of filter screen top sweeps away, through injection repeatedly, collision, humidification, purify, particle flue dust wherein is washed elimination, and deleterious acidic gases such as sulfur dioxide are neutralized by alkaline jetting fluid; In order to increase the filter area of filter screen, improve filter dirt effect, said filter screen is a del; In order to simplify working process, the place does not re-use air-introduced machine at the smoke mouth of pipe, and the smoke mouth of pipe is established a bleed mouth.
The utility model simple structure is easy to make, and effectively dedusting, desulfurization are purified flue gas, reduce the pollution to atmosphere.
Description of drawings:

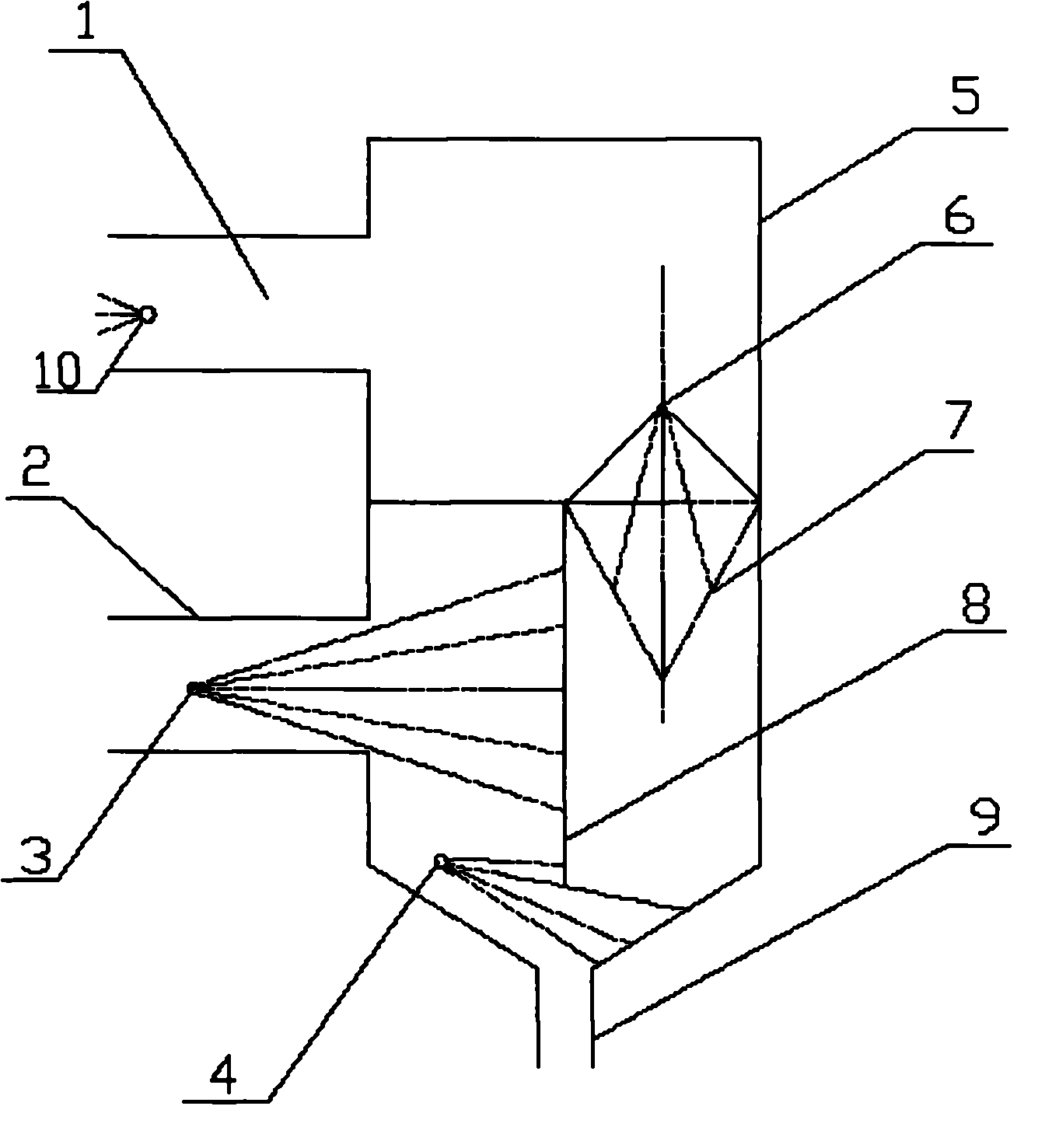

Fig. 1 is a structural representation of the present utility model.
The specific embodiment:
With reference to Fig. 1, this specific embodiment is by the following technical solutions: it is by pipe 1, smoke-intake pipe 2, first nozzle 3, second nozzle 4, housing 5, the 3rd nozzle 6, filter screen 7, water fender 8, blow-off pipe 9 and bleed mouth 10 are formed, the left side of housing 5 is provided with pipe 1 and smoke-intake pipe 2, the bottom of housing 5 is provided with blow-off pipe 9, be provided with water fender 8 in the housing 5, the right side of water fender 8 is provided with filter screen 7, smoke-intake pipe 2 porch, the left side, top and filter screen 7 tops of blow-off pipe 9 are respectively arranged with first nozzle 3, second nozzle 4 and the 3rd nozzle 6, bleed mouth 10 is arranged on pipe 1 exit.
Described filter screen 7 is a del, and two summits on triangle base link to each other with the madial wall of water fender 8 with housing 5 respectively.
The operation principle of this specific embodiment is: when flue dust together enters in the housing 5 flue dust humidification and impinging upon on the water fender 8 gradually with the alkali lye of mouth of pipe place nozzle ejection, part flue dust is hunted down and injected liquid sweeps away, do not have captive fine particle flue dust in company with the alkali lye of the nozzle ejection of lower end, smoke-intake pipe 2 porch together the flue through water fender 8 belows enter the opposite side of water fender 8, the further humidification of some flue dust again, the up chance filter screen 7 of tiny flue dust stops, and the alkali lye that is arranged on the nozzle ejection of filter screen 7 tops sweeps away, through injection repeatedly, collision, humidification, purify, particle flue dust wherein is washed elimination, and deleterious acidic gases such as sulfur dioxide are neutralized by alkaline jetting fluid; In order to increase the filter area of filter screen 7, improve filter dirt effect, said filter screen is a del; In order to simplify working process, the place does not re-use air-introduced machine at the smoke mouth of pipe, and the smoke mouth of pipe is established a bleed mouth 10.
This specific embodiment simple structure is easy to make, and effectively dedusting, desulfurization are purified flue gas, reduce the pollution to atmosphere.
Claims (2)
1. spray alkali lye formula dust remover capable of eliminating smoke and desulphation, it is characterized in that it is by pipe (1), smoke-intake pipe (2), first nozzle (3), second nozzle (4), housing (5), the 3rd nozzle (6), filter screen (7), water fender (8), blow-off pipe (9) and bleed mouth (10) are formed, the left side of housing (5) is provided with pipe (1) and smoke-intake pipe (2), the bottom of housing (5) is provided with blow-off pipe (9), be provided with water fender (8) in the housing (5), the right side of water fender (8) is provided with filter screen (7), smoke-intake pipe (2) porch, the left side, top and filter screen (7) top of blow-off pipe (9) are respectively arranged with first nozzle (3), second nozzle (4) and the 3rd nozzle (6), bleed mouth (10) are arranged on pipe (1) exit.
2. injection alkali lye formula dust remover capable of eliminating smoke and desulphation according to claim 1 is characterized in that described filter screen (7) is del, and two summits on triangle base link to each other with the madial wall of water fender (8) with housing (5) respectively.
