Abstract
The utility model aims to provide a floor drain with a brand-new structure. The floor drain comprises a floor drain frame (1) and a filter plate (2), the filter plate (2) is arranged at the bottom of the floor drain frame (1), and a plurality of holes (3) are disposed on the filter plate (2). The floor drain is characterized by further comprising a filter screen (4) disposed on the lower portion of the filter plate (2). The filter screen is additionally mounted on the floor drain to further filter small sundries, and accordingly probability of blockages of a sewer is reduced.
Description
Technical field
The utility model relates to a kind of sanitaryware accessory, specifically, is a kind of floor drain with filter screen.
Background technology
Floor drain is a kind of common household accessory, its significant feature is that the block object that filtered wherein before sewage is entered sewer stops up to avoid sewer, traditional floor drain comprises floor drain framework and filter of a column type, described filter is arranged on the bottom of floor drain framework, is provided with a circle on the top of floor drain framework and in order to floor drain is stuck in the sewer mouth it is dropped perpendicular to the outstanding of floor drain framework bearing of trend.Filter is provided with some holes in order to sewage is entered sewer, and the foreign material bigger than the hole are then stayed can be along with sewage is poured sewer in the floor drain.But floor drain only can filter bigger object, and is powerless as the small-sized foreign material floor drain of hair and so on, and how these small-sized foreign material have saved bit by bit the obstruction that still can cause sewer in sewer, make troubles to daily life.
The utility model content
The purpose of this utility model is to provide a kind of floor drain of brand new, and it realizes small-sized foreign material are further filtered by installing filter screen additional, thereby has reduced the probability that sewer blocks.
The utility model adopts following technical scheme to be realized:
A kind of floor drain comprises floor drain framework, filter, and described filter is arranged on the bottom of floor drain framework, and filter is provided with some holes, and described floor drain also comprises filter screen, and described filter screen is arranged on the filter bottom.
As a kind of improvement of the present utility model, described filter screen is fixed on the floor drain framework by hook.
Filter screen is hung on the framework, in other words exactly filter screen is made the form of movable dismounting, so be convenient to daily cleaning, and utilize in the hook fixing operation also very convenient.
Description of drawings

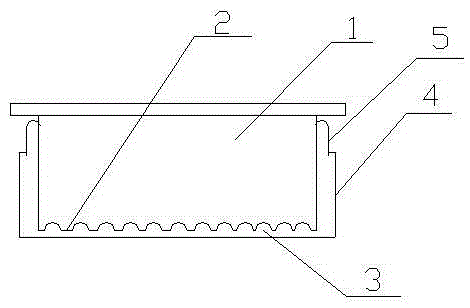

Fig. 1 is the utility model structural representation.
Wherein 1-floor drain framework, 2-filter, 3-hole, 4-filter screen, 5-link up with.
The specific embodiment
Below in conjunction with Figure of description the utility model is described in further detail:
The utility model relates to a kind of floor drain, include floor drain framework 1, in general be column type, on the bottom of floor drain framework 1, be provided with filter 2, filter 2 is the integrated design with floor drain framework 1, filter 2 is provided with some holes 3, by these holes 3 sewage is entered sewer, the top of floor drain framework 1 is provided with outstanding, the outstanding direction that extends upward perpendicular to the floor drain framework.Also include filter screen 4 at the floor drain described in the utility model, filter screen 4 is arranged on the below of filter, its effect is that the sewage that will handle from filter 2 carries out secondary filter, the less foreign material of volume that filter 2 can't be handled filter out from sewage, finally cause the obstruction of sewer thereby avoided these foreign material to deposit in sewer.
In the utility model, filter screen 4 is fixed on the floor drain framework 1 by linking up with 5, has the hole on floor drain framework 1, thereby hook 5 passes hole filter screen 4 is connected with floor drain, uses the advantage of hook 5 to be at first, and its dismounting is simple; The second, during owing to the filtration foreign material, sewage gives filter screen downward pulling force, just can bear these strength fully fully and link up with 5, so its effect is obvious.
Use an embodiment that workflow of the present utility model is described below:
When effluent stream is crossed floor drain, at first the foreign material that volume is bigger can not be trapped within by the hole 3 of filter on the floor drain 2 in the floor drain framework 1, and filter screen 4 is continued to flow downward in the hole 3 that sewage continues on filter 2, again that volume is the less foreign material of filter screen 4 are held back, and make sewage pass through, behind all logical filter screen 4 of sewage, floor drain is taken out, thereby Removable hook 5 makes it separate with floor drain framework 1 filter screen 4 is taken off, after again the foreign material in filter screen 4 and the floor drain framework 1 being removed, to link up with 5 and be suspended to again on the floor drain framework 1, floor drain can be come into operation again.
Claims (2)
1. floor drain, comprise floor drain framework (1), filter (2), described filter (2) is arranged on the bottom of floor drain framework (1), filter (2) is provided with some holes (3), it is characterized in that: described floor drain also comprises filter screen (4), and described filter screen (4) is arranged on filter (2) bottom.
2. floor drain according to claim 1 is characterized in that, described filter screen (4) is fixed on the floor drain framework (1) by hook (5).
