CN201848327U - Novel shower nozzle - Google Patents
Novel shower nozzle Download PDFInfo
- Publication number
- CN201848327U CN201848327U CN2010205653340U CN201020565334U CN201848327U CN 201848327 U CN201848327 U CN 201848327U CN 2010205653340 U CN2010205653340 U CN 2010205653340U CN 201020565334 U CN201020565334 U CN 201020565334U CN 201848327 U CN201848327 U CN 201848327U
- Authority
- CN
- China
- Prior art keywords
- head
- shower nozzle
- spray head
- control chip
- dryer
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Bathtubs, Showers, And Their Attachments (AREA)
Abstract
本实用新型公开了一种淋浴喷头，包括喷淋头和支架，所述的喷淋头设有若干小喷淋头，所述的小喷淋头中间设有感应头，所述的小喷淋头背面设有电磁阀，所述的电磁阀连接有控制芯片，所述的支架上设有电源，所述的感应头、电磁阀、控制芯片和电源电连接。小喷淋头上的感应口感应到人体时，感应信号传递给控制芯片，控制芯片控制电磁阀打开，小喷淋头就有水流出，这样能做到感应到人体的小喷淋头才可喷水，达到了节约水资源的目的。本实用新型使用方便，只有感应到人体的小喷淋头才有水流出，节约了水资源，功能多样，集合了喷淋头、取暖灯和烘干机，一次性完成从洗浴到烘干身体的全过程。
The utility model discloses a shower head, which comprises a shower head and a bracket. The shower head is provided with a plurality of small shower heads, and an induction head is arranged in the middle of the small shower heads. A solenoid valve is provided on the back of the head, the solenoid valve is connected with a control chip, the support is provided with a power supply, and the induction head, the solenoid valve, the control chip and the power supply are electrically connected. When the sensor port on the small sprinkler head senses the human body, the sensing signal is transmitted to the control chip, and the control chip controls the solenoid valve to open, and water flows out from the small sprinkler head, so that the small sprinkler head that can sense the human body can Water spraying achieves the purpose of saving water resources. The utility model is easy to use, and only the small shower head that senses the human body can have water flow out, which saves water resources and has various functions. the whole process.
Description
Technical field
The utility model relates to a kind of shower bath, and in particular, the utility model relates to a kind of bathroom spray head.
Background technology
At present, the modern pursues the life of comfort level more, but modern's life stress is also very big, and a lot of white collar working clans wash a hot bath after liking coming off duty, and body and mind is loosened in one day filth of flush away and tired out.But usually run into such problem, the spraying range of gondola water faucet is limited, total some meeting of health is in the outside of sprinkling zone, even warming lamp has been installed in the bathroom, because warming lamp is installed on the ceiling, also has a segment distance apart from human body, the effect of heating also is not fine, still can feel cold, has influenced the comfortable experience of having a bath, simultaneously can be easy to catch cold, cause unnecessary disease worry.
The Chinese patent notification number is CN2220810Y, Granted publication day is on February 28th, 1996, the name of utility model is called spray head, and this application case discloses and the utility model discloses a kind of shower head that can shower can make full use of the water smoke heating bath room temperature of shower head ejection again.It comprises a body and an end cap that is threaded with body, the center of end cap is provided with a spray orifice, be provided with a dividing plate that the shower head inner chamber is divided into intake antrum and shower chamber in the end cap, be provided with valve seat, spool that an action by shift fork is communicated with or closes water channel between shower chamber and the intake antrum in the shower chamber, shift fork is located at the back side of body.Wherein weak point is that the spray scope is little, and it is bad to add thermal effect, can't dry.
Summary of the invention
The utility model has solved that above-mentioned spray scope is little, and it is bad to add thermal effect, and the problem that can't dry provides a kind of new-type shower nozzle.
For realizing above purpose, the technical solution of the utility model is a kind of shower nozzle, comprise spray head and support, described spray head is provided with some little spray heads, be provided with inductive head in the middle of the described little spray head, the described little spray head back side is provided with magnetic valve, and described magnetic valve is connected with control chip, described support is provided with power supply, and described inductive head, magnetic valve, control chip and power supply are electrically connected.During the required human body of the induction mouthfeel on the little spray head, induced signal passes to control chip, and control chip control magnetic valve is opened, and little spray head just there are flowing out, and can accomplish that like this little spray head of sensing human body just can spray water, and has reached the purpose of conserve water resource.
As preferably, be provided with warming lamp around the spray head.Be provided with warming lamp around the spray head, the user gives heating in the bathroom when have a bath winter, the comfortable environment of having a bath is provided.
As preferably, support is provided with dryer.Support is provided with dryer, the user after a bath, can not use the towel body of rubbing one's body with a towel, and when perhaps towel is wiped the water of not doing on one's body, can use the water oven dry that dryer will be on one's body.
As preferably, the below of dryer is provided with dryer wind-force adjusting knob, and described dryer wind-force knob below is provided with the shower nozzle adjusting knob.Dryer wind-force adjusting knob can suitably be regulated the wind-force size of dryer according to the personal considerations, and the shower nozzle adjusting knob can be controlled the size of spray head discharge, and can close the water of spray head.
As preferably, support one side is provided with the warming lamp switch, and support one side is provided with the warming lamp switch, when using summer, just need not open warming lamp like this, thereby save electric energy.
As preferably, power supply is the 220V AC power.Power supply is the 220V AC power, because of domestic power supply all is 220V, can make things convenient for family to use.
The utlity model has following beneficial effect: easy to use, the little spray head of only sensing human body just there are flowing out, and has saved water resource, and diverse in function has been gathered spray head, warming lamp and dryer, the disposable overall process of finishing from bathing to the oven dry health.
Description of drawings

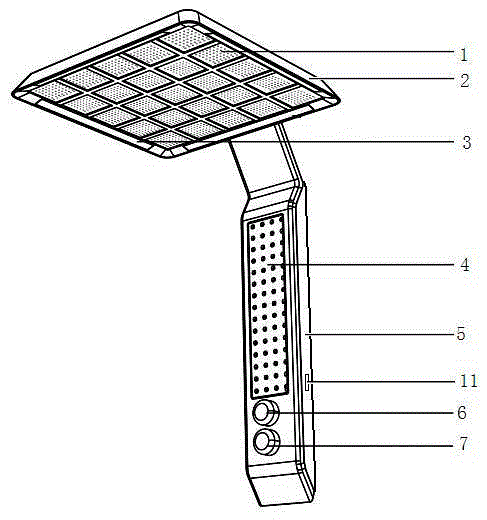

Fig. 1 is a kind of structural representation of the present utility model;
Fig. 2 is a kind of structural representation of the little spray head of the utility model;
Fig. 3 is a kind of cutaway view of the little spray head of the utility model.
1, little spray head; 2, spray head; 3, warming lamp; 4, dryer; 5, support; 6, dryer wind-force adjusting knob; 7, shower nozzle adjusting knob; 8, inductive head; 9, control chip; 10, magnetic valve; 11, warming lamp switch.
The specific embodiment
Below in conjunction with specific embodiment, and in conjunction with the accompanying drawings, the technical solution of the utility model is further described:
Embodiment: shower nozzle, comprise spray head 2 and support 5, spray head is provided with some little spray heads 1, be provided with inductive head 8 in the middle of the little spray head, the little spray head back side is provided with magnetic valve 10, magnetic valve is connected with control chip 9, be provided with warming lamp 3 around the spray head, support is provided with power supply, and inductive head, magnetic valve, control chip and power supply are electrically connected, and support is provided with dryer 4, the below of dryer is provided with dryer wind-force adjusting knob 6, dryer wind-force knob below is provided with shower nozzle adjusting knob 7, and support one side is provided with the warming lamp switch, and power supply is the 220V AC power.
Make when having a bath the user, open shower nozzle adjusting knob 7, the warming lamp switch 11(that opens warming lamp 3 simultaneously can not open warming lamp when using summer), when the inductive head 8 on the little spray head 1 is sensed human body, induced signal passes to control chip 9, under the control of control chip 9, magnetic valve 10 is opened, just there is water from little spray head, to flow out, according to the personal considerations, can regulate the size of discharge by shower nozzle adjusting knob 7, induction is less than the little spray head 1 of human body, just can not there are flowing out, save water resource like this.When the user have a bath finish after, close shower nozzle adjusting knob 7, towel off health, open dryer wind-force adjusting knob 6, dryer 4 is started working, do not dry on the health moisture oven dry, after finishing using, close shower nozzle adjusting knob 7.
Claims (6)
1. new-type shower nozzle, comprise spray head (2) and support (5), it is characterized in that, described spray head is provided with some little spray heads (1), be provided with inductive head (8) in the middle of the described little spray head, the described little spray head back side is provided with magnetic valve (10), and described magnetic valve is connected with control chip (9), described support is provided with power supply, and described inductive head, magnetic valve, control chip all are electrically connected with power supply.
2. new-type shower nozzle according to claim 1 is characterized in that, is provided with warming lamp (3) around the described spray head.
3. new-type shower nozzle according to claim 2 is characterized in that, described support is provided with dryer (4).
4. new-type shower nozzle according to claim 3 is characterized in that, the below of described dryer is provided with dryer wind-force adjusting knob (6), and described dryer wind-force knob below is provided with shower nozzle adjusting knob (7).
5. new-type shower nozzle according to claim 2 is characterized in that, described support one side is provided with warming lamp switch (11).
6. new-type shower nozzle according to claim 4 is characterized in that, described power supply is the 220V AC power.
