Abstract
The utility model discloses a product packaging box, comprising a square-shaped box body formed by sequential folding of a whole piece of paper; a bottom sealing structure is arranged at the bottom of the square-shaped box body; an encapsulating structure convenient to open and fasten is arranged at the top of the square-shaped box body; the square-shaped box body is internally provided with a buffer stopping piece; the encapsulating structure comprises a blocking piece, a foldable folding block and a box cover, wherein the blocking piece is folded inward from the right side surface at the upper part of the square box body; the foldable folding block is folded inward from the left side edge at the upper part of the square box body; the box cover is formed by extending upward from the rear side edge at the upper part of the square box body, and being cut and folded; an inserting tongue is cut at the tail end of the box cover and can be inserted into the square box body so as to realize package. The product packaging box can be made of a whole piece of paper material, has the function of buffer prevention, and is simple in structure and convenient to use.
Description
[technical field]
The utility model is a kind of packing box, further relates to a kind of a kind of product packing box of papery.
[background technology]
The current packaging box has generally adopted plastic material, not only pollute the environment and adopt plastic material to make packing box, and packing box costs an arm and a leg.Even some packing boxes adopts paper material packing, but it has plurality of sheets of paper to order very much to form together again, so also wastes paper.
In addition, the protection structure that existing product packing box is not all established product in the box body the inside in transportation, may cause the damage of product like this.Now a lot of product packing boxes the inside generally is equipped with major product and is made the side production of dispensing or accessory, and the packing effect of existing product packing box and bad.
The utility model is made under such background.
[utility model content]
The utility model purpose is to have overcome deficiency of the prior art and provide a kind of to adopt an entire paper material manufacturing to form, have safety damped effect, product packing box simple in structure, easy to use.
In order to solve the technical matters of above-mentioned existence, the utility model adopts following technical proposal:
A kind of product packing box, the square box body that it is characterized in that including the folding in proper order back of an entire paper and form, be provided with the bottom seal structure in described square box body bottom, be provided with at square box body top be easy to open with the encapsulating structure that fastens, in square box body, be provided with the buffering catch, described encapsulating structure includes from square box body upper right towards the interior catch that is folded to form and is inwardly folding and stick on the folded block of amounting on limit, left side and extend upward the lid that cutting and folding back form from square box body top back side edge from square box body upper left-hand limit, terminal cutting at lid has tongue, and described tongue can insert in the square box body to realize packing.
Aforesaid a kind of product packing box is characterized in that also folding the back after described folded block extends upward from square box body upper left-hand limit forms, and this folded block has bottom surface that can suppress product and the side that sticks on the square box body left side wall.
Aforesaid a kind of product packing box, it is characterized in that described buffering catch is folding in proper order and form behind the square box body extending out and form again by an entire paper, the end of this buffering catch can be free movable, and the head end of buffering catch sticks on the right flank of square box body.
Aforesaid a kind of product packing box, it is characterized in that described bottom seal structure by the left egative film that forms from the terminal cutting respectively of left and right two sides of square box body bottom and folding back and right egative film and from the terminal cutting of the front side edge of square box body bottom and folding after the preceding egative film that forms, preceding egative film covers left egative film and right egative film and inserts in the square box body.
The utility model compared with prior art has following advantage:
One, since the utility model on a single piece of cardboard, by cutting, be folded to form, the papery cost is lower, and is free from environmental pollution, can also reclaim to be used, and meets environmental protection requirement.
Two, whole paper is arranged again, make it have very practical a kind of product packing box, high-grade level that more can specific product by folding cleverly.
Four, because of making packing box with paper, so its printing effect can be better, better appearance is arranged, can make the box body stacked during transportation, it is stacked that lid outwards launches the back, leans against on the side plate and folded block is folded at the bottom of the box, and it is little to take up room, and transports very convenient.
But five, be provided with the buffering catch that can protect product and the folded block of roof pressure product in box body, it is as safe as a house that product is transported in packing box, and the product in the packing box is not easy to destroy.
Six, described buffering catch is folding in proper order and form behind the square box body extending out and forms again by an entire paper, and the end of buffering catch can be free movable, and the effect of buffer product impact is very good like this.
[description of drawings]

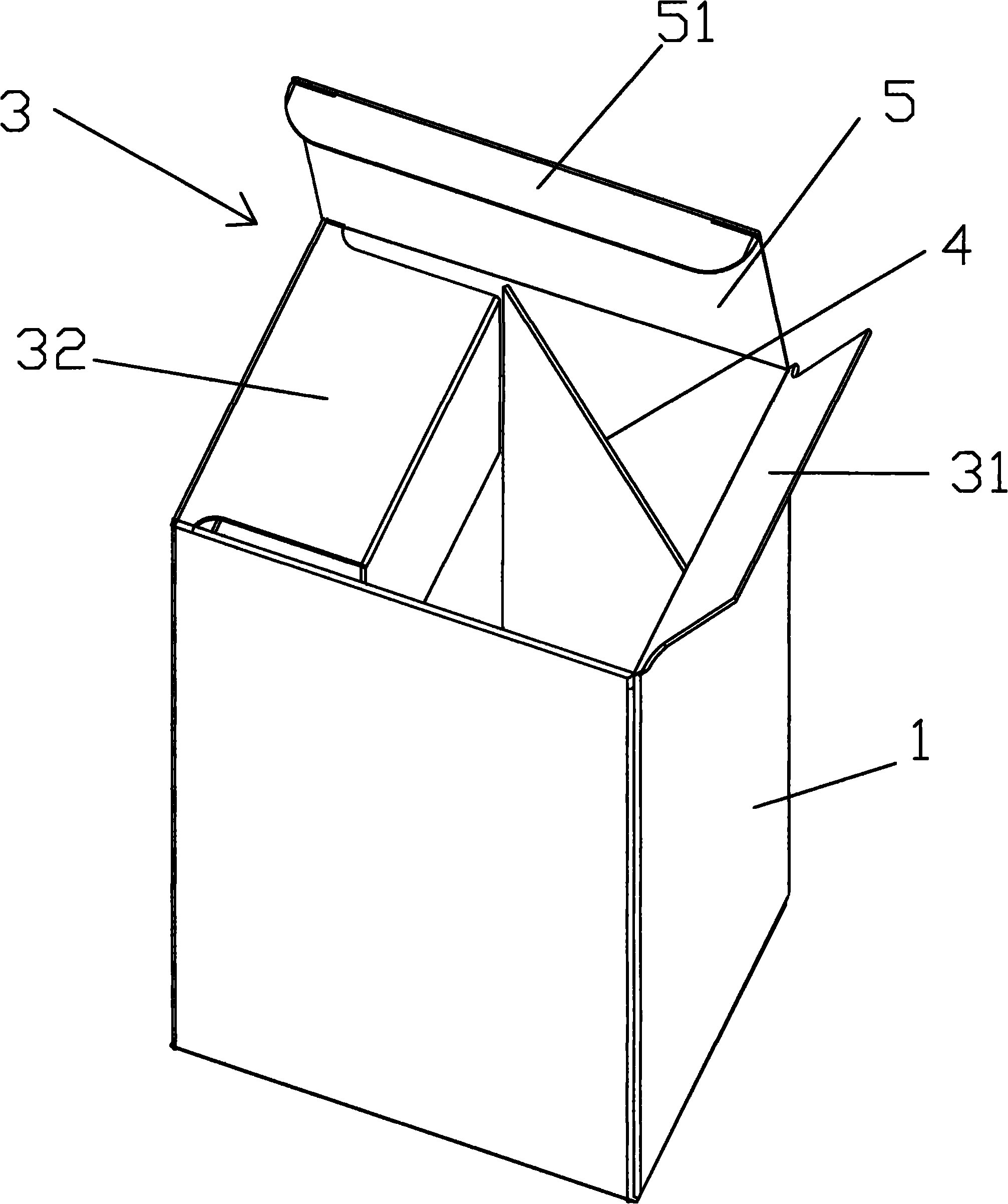

Fig. 1 is one of open mode figure of the present utility model;
Fig. 2 is two of open mode figure of the present utility model;
Fig. 3 is a section-drawing of the present utility model.
[specific embodiment]
Below in conjunction with accompanying drawing the utility model is described in detail:
As shown in the figure, a kind of product packing box includes the folding in proper order back of an entire paper and the square box body 1 of formation, and this square box body 1 is cuboid.Be provided with bottom seal structure 2 in described square box body 1 bottom.Described bottom seal structure 2 by the left egative film 21 that forms from the terminal cutting respectively of left and right two sides of square box body 1 bottom and folding back and right egative film 22 and from the terminal cutting of the front side edge of square box body 1 bottom and folding after the preceding egative film 23 that forms, preceding egative film 23 covers left egative film 21 and right egative film 22 and inserts in the square box body 1, realizes sealing of box body bottom.
Be provided with at square box body 1 top be easy to open with the encapsulating structure 3 that fastens.Described encapsulating structure 3 includes from square box body 1 upper right towards the interior catch that is folded to form 31 and is inwardly folding and stick on the folded block of amounting to 32 on limit, left side and extend upward the lid 5 that cutting and folding back form from square box body 1 top back side edge from square box body 1 upper left-hand limit.Terminal cutting at lid 5 has tongue 51, and described tongue 51 can insert in the square box body 1 to realize packing.
After described folded block 32 extends upward from square box body 1 upper left-hand limit and folding back forms, and this folded block 32 has bottom surface 321 that can suppress product and the side 322 that sticks on square box body 1 left side wall.
Be provided with buffering catch 4 in square box body 1, described 4 is folding in proper order and form behind the square box body extending out and forms again by an entire paper, and end of this buffering catch 4 can be free movable, and the head end that cushions catch 4 sticks on the right flank of square box body 1.
In use, will packaged products put in the box, buffering catch 4 can not only play the position of limits product in the box the inside, and can be up to buffer action.Product is put into after the box body, with folded block product is suppressed again, and the tongue 51 with lid 5 inserts in the box body again, realizes packing.
Claims (4)
1. product packing box, the square box body (1) that it is characterized in that including the folding in proper order back of an entire paper and form, be provided with bottom seal structure (2) in described square box body (1) bottom, be provided with at square box body (1) top be easy to open with the encapsulating structure (3) that fastens, in square box body (1), be provided with buffering catch (4), described encapsulating structure (3) includes from square box body (1) upper right towards the interior catch that is folded to form (31) and is inwardly folding and stick on the folded block of amounting to (32) on limit, left side and extend upward the lid (5) that cutting and folding back form from square box body (1) top back side edge from square box body (1) upper left-hand limit, terminal cutting at lid (5) has tongue (51), and described tongue (51) can insert in the square box body (1) to realize packing.
2. a kind of product packing box according to claim 1, it is characterized in that described folded block (32) extends upward the back from square box body (1) upper left-hand limit and folding back forms, this folded block (32) has the bottom surface (321) that can suppress product and sticks on side (322) on square box body (1) left side wall.
3. a kind of product packing box according to claim 1 and 2, it is characterized in that described buffering catch (4) is folding in proper order and form behind the square box body extending out and form again by an entire paper, the end of this buffering catch (4) can be free movable, and the head end of buffering catch (4) sticks on the right flank of square box body (1).
4. a kind of product packing box according to claim 3, it is characterized in that described bottom seal structure (2) by the left egative film (21) that forms from the terminal cutting respectively of left and right two sides of square box body (1) bottom and folding back and right egative film (22) and from the terminal cutting of the front side edge of square box body (1) bottom and the preceding egative film (23) that forms after folding, preceding egative film (23) covers left egative film (21) and right egative film (22) and inserts in the square box body (1).
