Abstract

A simple passenger carrying device for a large-sized hoisting facility comprises a basket. One end of a steel wire rope guide rail is fixedly connected to a suspension mechanism, the other end of the steel wire rope guide rail penetrates through a nylon guide sleeve on the basket to be fixedly connected to a bottom plate, one end of a main steel wire rope is fixedly connected to the suspension mechanism, the other end of the main steel wire rope penetrates through a hoister to be fixedly connected to the basket, one end of an auxiliary steel wire rope is fixedly connected to the suspension mechanism, the other end of the auxiliary steel wire rope penetrates through a safety lock to be fixedly connected to the basket, and a guide pulley is arranged on the safety lock and in close contact with the main steel wire rope. The simple passenger carrying device is a special simple and convenient lifting device for carrying a driver ascend and descend, can prevent the driver from consuming a large amount of time and physical strength due to long-term climbing, and simultaneously greatly improves safety and stability.

Description

The simple and easy manned device of large-scale lifting facility
Technical field:
The utility model relates to a kind of large-scale simple and easy manned device of lifting facility.
Background technology:
Aerial work basket is the indispensable manned equipment of external wall finishing, cleaning and maintenance activity, carries out lifting and operation aloft in the hanging basket that personnel hang in its work characteristics.Detailed regulation is arranged among the current required standard GB19155-2003; On current aerial work basket and tower crane market, the hanging basket of using for the driver down from tower crane boarding is specially also seldom arranged, really being one for current tower crane driver up and down by muscle power climbing not have the difficult problem that solves for a long time, so need find the product that can solve this class difficult problem to a great extent next and fill up certain market vacancy.
Summary of the invention:
The purpose of this utility model provides the simple and easy manned device of a kind of large-scale lifting facility, it is a kind of simple and convenient driver of specializing in jacking equipment up and down, can avoid the driver personnel to climb for a long time, consume a large amount of time and muscle power, also strengthen the safety and stability performance simultaneously greatly.
Technical scheme: the simple and easy manned device of large-scale lifting facility, it comprises the basket body, it is characterized in that: an end and the hitch of steel rope guide rail are connected and fixed, and nylon orienting sleeve and base plate that the other end of steel rope guide rail passes on the basket body are connected and fixed; One end and the hitch of main rope are connected and fixed, the other end of main rope passes gig and the basket body is connected and fixed, one end and the hitch of secondary steel rope are connected and fixed, the other end of secondary steel rope passes safety lock and the basket body is connected and fixed, safety lock is provided with leading sheave, leading sheave and main rope closed contact.
The beneficial effects of the utility model, the simple and easy manned device of large-scale lifting facility, owing to take steel rope as track, installation, dismounting, convenient, cost reduction also can improve running orbit according to the real-time jacking of tower crane; Adopt leading sheave, make that the basket running body is steady; Adopt safety lock, guarantee hanging basket basket body safety; It has saved the muscle power and the time of navigating mate, has increased operating efficiency greatly; Compact conformation, good looking appearance.
Description of drawings:

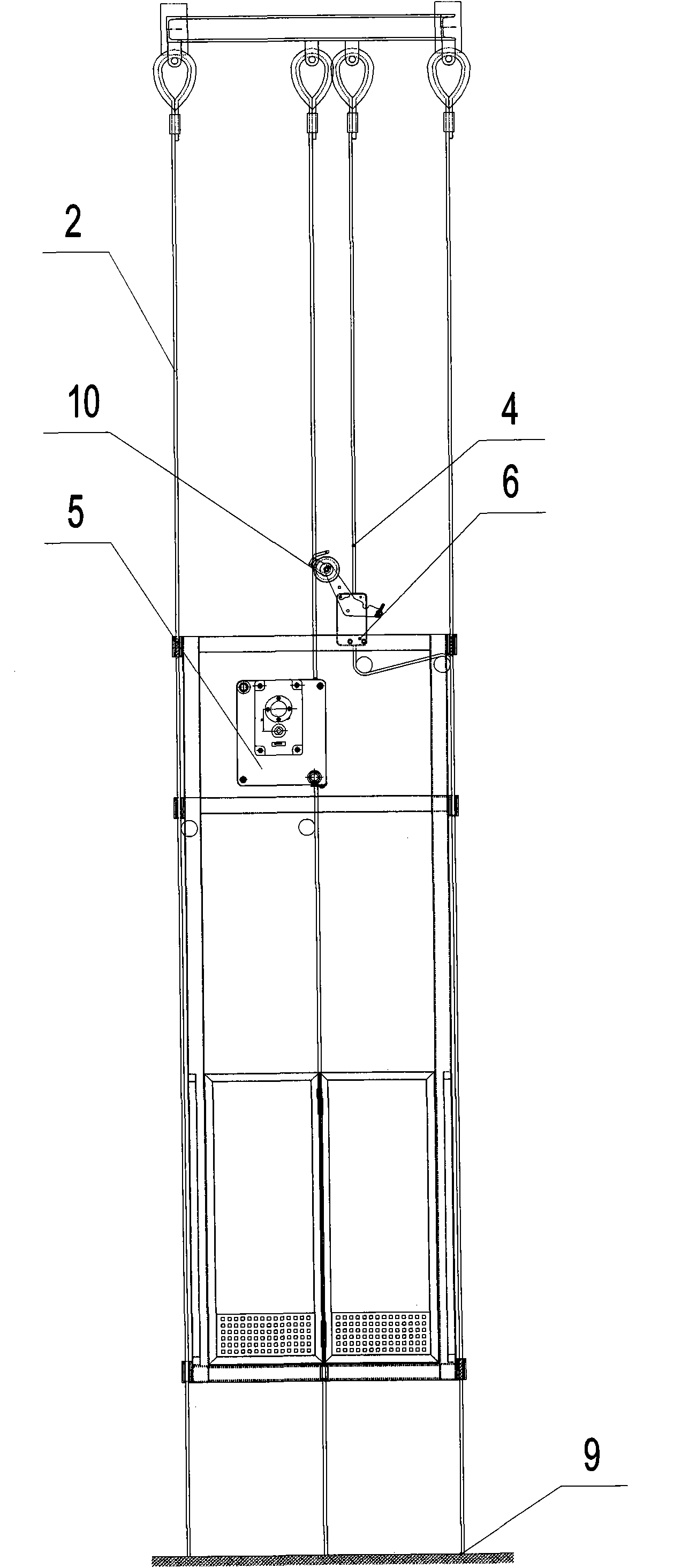

Fig. 1: be structural representation of the present utility model;
Fig. 2: be the left view of Fig. 1.
The specific embodiment:
Shown in Fig. 1-2, the simple and easy manned device of large-scale lifting facility, an end and the hitch 1 of steel rope guide rail 2 are connected and fixed, and nylon orienting sleeve 8 backs that the other end of steel rope guide rail 2 passes on the basket body 7 are connected and fixed with base plate 9; One end and the hitch 1 of main rope 3 are connected and fixed, the other end of main rope 3 passes gig 5 and is connected and fixed with basket body 7, one end and the hitch 1 of secondary steel rope 4 are connected and fixed, the other end of secondary steel rope 4 passes safety lock 6 and is connected and fixed with basket body 7, safety lock 6 is provided with leading sheave 10, leading sheave 10 and main rope 3 closed contacts.

Claims (1)

1. the simple and easy manned device of large-scale lifting facility, it comprises the basket body, it is characterized in that: an end and the hitch of steel rope guide rail are connected and fixed, and nylon orienting sleeve and base plate that the other end of steel rope guide rail passes on the basket body are connected and fixed; One end and the hitch of main rope are connected and fixed, the other end of main rope passes gig and the basket body is connected and fixed, one end and the hitch of secondary steel rope are connected and fixed, the other end of secondary steel rope passes safety lock and the basket body is connected and fixed, safety lock is provided with leading sheave, leading sheave and main rope closed contact.
