CN201775335U - Multifunctional bed - Google Patents
Multifunctional bed Download PDFInfo
- Publication number
- CN201775335U CN201775335U CN2010205082876U CN201020508287U CN201775335U CN 201775335 U CN201775335 U CN 201775335U CN 2010205082876 U CN2010205082876 U CN 2010205082876U CN 201020508287 U CN201020508287 U CN 201020508287U CN 201775335 U CN201775335 U CN 201775335U
- Authority
- CN
- China
- Prior art keywords
- cabinet
- bed
- folding table
- bed body
- user
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Abstract
The utility model discloses a multifunctional bed, which comprises a bed body, wherein a cabinet is arranged at one end of the bed body; the lower part of the cabinet and the bed body form a cavity with an opening; a folding table which is matched with the opening in length, height, and width is arranged in the cavity; tracks are respectively arranged on two sides of the bed body and extend to the rear wall of the cabinet by passing through the cavity; and clamping grooves matched with the tracks are formed on all legs of the folding table respectively. In the utility model, the cabinet is arranged on the bed body, the cabinet and the bed body form a space for accommodating the folding table, and the tracks matched with the folding table are configured for the folding table, so that the multifunctional bed is endowed with the functions of beds, cabinets and tables, occupies less space when being placed so as to further reduce the occupied space of a house and reduces the use cost of a user. When the table is used by the user, the user can pull out the table and sit in bed for working; and when not in use, the table can be placed in the space formed by the cabinet and the bed body. Therefore, convenience and comfortableness during the operation of the user are improved.
Description
Technical field
The utility model relates to a kind of furniture commonly used, relates in particular to a kind of multifunctional bed.
Background technology
Bed, desk and cabinet are the furniture of often using in people's daily life, and along with the progressively propelling of urbanization, people's living space is more and more narrower and small, and people have higher requirement to the utilization in space.
At present, the general employing of bed, desk and cabinet is split type, taken a large amount of living spaces, make more crowded that space in the people house becomes, reduced utilization rate to floor space, increased user's use cost, especially bed, desk relatively separate with the position that cabinet is put, and have reduced the convenience of user's operation.
This shows that prior art needs further improvement and develops.
The utility model content
The utility model provides a kind of multifunctional bed for solving above-mentioned defective of the prior art, by scientific and reasonable layout and stable mechanical connecting structure, bed, desk and cabinet are synthesized one, reduce its occupation space, improve the convenience and the comfortableness of user's operation.
In order to solve the problems of the technologies described above, the utility model scheme comprises:
A kind of multifunctional bed, it comprises a body, and wherein, this body one end is provided with a cabinet, and the bottom of cabinet and bed body form the cavity of a band opening, be provided with the length of opening in this cavity, highly, the suitable folding table of width; The both sides of bed body are respectively arranged with track, and this track transmission from one channel to another cavity extends to the cabinet rear wall, is respectively arranged with the draw-in groove suitable with track on each table leg of folding table.
Described multifunctional bed, wherein, the other end of above-mentioned bed body is provided with back cushion.
Described multifunctional bed, wherein, above-mentioned Foldable table comprises two desktops, and two desktops are hinged by folding.
Described multifunctional bed, wherein, above-mentioned cabinet rear wall and folding table corresponding position are provided with the spring that is used to eject folding table.
What the utility model provided is a kind of multifunctional bed, cabinet is arranged on the body, cabinet forms a space that is used to place folding table with the bed body, and be that folding table disposes suitable track, make it have bed, the function of cabinet and desk, take less space during placement, reduce it and taken the space in house, can vacate more space and make things convenient for the user to arrange, reduced user's use cost, the user is when using desk, desk can be pulled out, be sitting in and carry out work on the bed, when not using, desk can be placed in the space of cabinet and the formation of bed body, improve the convenience and the comfortableness of user's operation.
Description of drawings

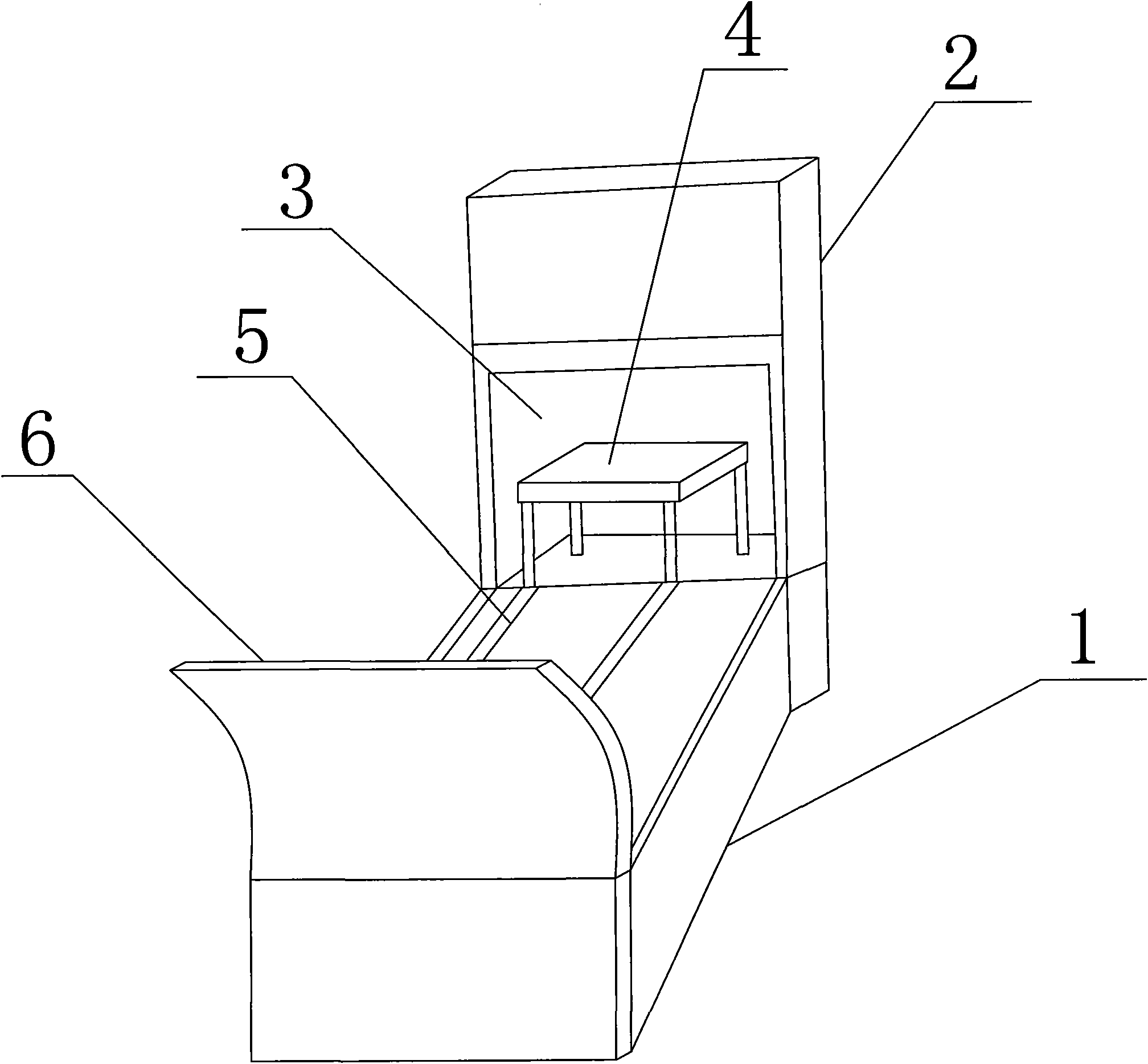

Fig. 1 is a stereochemical structure sketch multifunctional bed in the utility model;
Fig. 2 is a cross-section structure sketch multifunctional bed in the utility model.
The specific embodiment
It is a kind of multifunctional bed that the utility model provides, clearer, clear and definite in order to make the purpose of this utility model, technical scheme and advantage, below with reference to accompanying drawing and embodiment, the utility model further described.
That the utility model provides is a kind of multifunctional bed, has realized the combination of bed, cabinet, desk, has promptly saved its occupation space, has reduced user's use cost again.As Fig. 1 and shown in Figure 2, the multifunctional bed body 1 that comprises, these body 1 one ends are provided with a cabinet 2, the bottom of cabinet 2 and bed body 1 form the cavity 3 of a band opening, be provided with the length of opening in this cavity 3, highly, the suitable folding table 4 of width; The both sides of bed body 1 are respectively arranged with track 5, and this track 5 transmission from one channel to another cavitys 3 extend to the rear wall of cabinet 2, are respectively arranged with the draw-in groove suitable with track 5 on each table leg of folding table 4.The user is when using folding table 4, folding table 4 can be pulled out cavity 3 along track 5, and open folding table 4, the user is placed on related item on the folding table 4 then, cross one's legs seat in the 1 enterprising line correlation operation of bed body, bed, cabinet, desk are organically combined, saved its occupation space, improved the convenience that the user uses.
In order further to improve performance of the present utility model, as shown in Figure 1, the other end of bed body 1 is provided with back cushion 6, and the user can lean against back cushion 6 enterprising line correlation work, the level of comfort when having improved user job.Foldable table 4 comprises two desktops, and two desktops are hinged by folding, and is very ripe in the prior art about the structure of folding table 4, only enumerates a kind of mode at this and describes, and gives unnecessary details no longer one by one.As shown in Figure 2, cabinet 2 rear walls and folding table 4 corresponding positions are provided with the spring 7 that is used to eject folding table 4, have made things convenient for the user that folding table 4 is pulled out use, have improved the comfort level of user's operation.
Should be understood that; above-mentioned description at preferred embodiment is comparatively detailed; can not therefore think restriction to the utility model scope of patent protection; those of ordinary skill in the art is under enlightenment of the present utility model; do not breaking away under the scope situation that the utility model claim protected; can also make various deformation such as replacement, simple combination, these all fall within the protection domain of the present utility model, and the scope of asking for protection of the present utility model should be as the criterion with claims.
Claims (4)
- One kind multifunctional bed, it comprises a body, it is characterized in that: this body one end is provided with a cabinet, the bottom of cabinet and bed body form the cavity of a band opening, be provided with the length of opening in this cavity, highly, the suitable folding table of width; The both sides of bed body are respectively arranged with track, and this track transmission from one channel to another cavity extends to the cabinet rear wall, is respectively arranged with the draw-in groove suitable with track on each table leg of folding table.
- 2. according to claim 1 multifunctional bed, its special this is: the other end of above-mentioned bed body is provided with back cushion.
- 3. according to claim 1 and 2 multifunctional bed, it is characterized in that: above-mentioned Foldable table comprises two desktops, and two desktops are hinged by folding.
- 4. according to claim 3 multifunctional bed, it is characterized in that: above-mentioned cabinet rear wall and folding table corresponding position are provided with the spring that is used to eject folding table.
