Abstract
The utility model discloses a seat type body washer through dipping, which comprises a water containing tank. The water containing tank includes a water chamber and a motor chamber separated from the water camber; a wave wheel is arranged in the water chamber; a motor is arranged in the motor chamber; the wave wheel is connected with the motor in a transmission way; a body bearing net rack separated from the wave wheel is also arranged in the water chamber; and the bottom of the water chamber is provided with a drain valve. The seat type body washer through dipping not only can automatically clean each part of the body, but also has simple structure.
Description
Technical field
The utility model relates to the health Bath utensil, and especially a kind of chair type soaks the ablution machine.
Background technology
Bathing is a requisite thing in people's daily life, and people's bathing originally mainly is to carry out in publilc baths, bath institute.Along with the raising of people's life, residential level, family's bathing is also comparatively universal in the city.
At present, mostly bathing is to adopt shower nozzle or bathtub to carry out bathing, and the bathing mode that adopts shower nozzle is to adopt the shower nozzle limit to the parts of body spray water, and each position of health is rubbed on the limit with hand, oneself's chopping difficulty is big, powerless especially for overweight people or old man especially; Adopting the bathing mode of bathtub is to install water in bathtub, the bather is immersed in the water then, rub each position that the body instrument is rubbed health with the hands with hand or other then, there is the big problem of self-chopping difficulty equally in this kind bathing mode, and is powerless especially for overweight people or old man especially.Therefore, a kind of bathing apparatus that can clean up the person automatically is that people pursue.
The utility model content
The purpose of this utility model is to provide a kind of not only can clean parts of body automatically, and chair type simple in structure soaks the ablution machine.
For achieving the above object, the technical scheme that the utility model adopted is:
A kind of chair type soaks the ablution machine, comprise the dress water tank, described dress water tank comprises a hydroecium and a motor room that separates with hydroecium, in hydroecium, be provided with impeller, in the motor room, be provided with motor, impeller and motor are in transmission connection, and also are provided with in hydroecium with impeller separates and hold people's rack, and the bottom of hydroecium is provided with draining valve.
Further improving is that holding people's rack is the seat shape.
Further another improvement is, described impeller has two, erects for one to be provided with, and faces the seat that holds people's rack, and another is horizontally disposed with, and faces the placement of foot of putting that holds people's rack.
Another improvement is to be provided with antinose-dive leg in the bottom of dress water tank.
The utility model has the following advantages after adopting said structure:
At first, comprise by setting and the dress water tank of the motor room that a hydroecium and and hydroecium separate in hydroecium, be provided with impeller, in the motor room, be provided with motor, impeller and motor are in transmission connection, and also are provided with in hydroecium with impeller separates and hold people's rack, and the bottom of hydroecium is provided with draining valve; Therefore the user can be sitting in that to hold the people online, and the water that starting switch button, impeller just can drive in the hydroecium rotates, and produces eddy current, and human body is washed, and finishes automatic bathing, and simple in structure;
Secondly, adopt two impellers to have, erect setting for one, face the seat that holds people's rack, another is horizontally disposed with, and faces the placement of foot of putting that holds people's rack; Can satisfy pin, parts of body are washed comprehensively, the bathing better effects if.
Description of drawings
Below in conjunction with the drawings and specific embodiments the utility model is described in further detail:

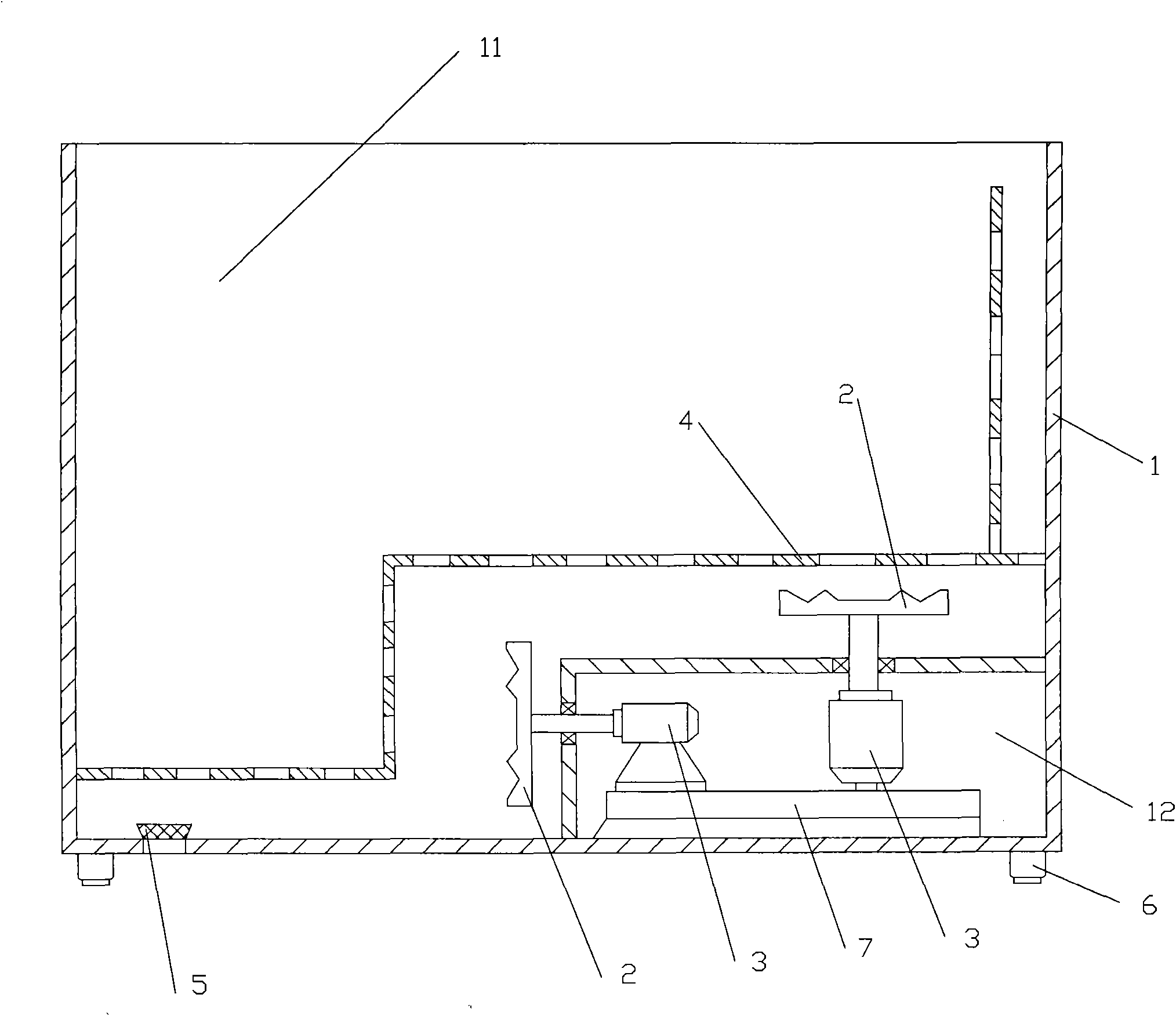

Fig. 1 is the utility model structure chart.
Among the figure: 1 dress water tank, 11 hydroeciums, 12 motor rooms, 2 impellers, 3 motors, 4 hold people's rack, 5 draining valves, 6 antinose-dive legs, 7 motor installing racks.
The specific embodiment
Shown in Figure 1, chair type of the present utility model soaks the ablution machine, comprise dress water tank 1, described dress water tank 1 comprises a hydroecium 11 and a motor room 12 that separates with hydroecium 11, in hydroecium 11, be provided with impeller 2, in motor room 12, be provided with motor 3, this motor 3 is installed in the motor room 12 by motor installing rack 7, impeller 2 is in transmission connection with motor 3, also be provided with in hydroecium 11 with impeller 2 separates and hold people's rack 4, the bottom of hydroecium 11 is provided with draining valve 5, and this draining valve 5 is a sealing plug, during use with its plug in the discharge outlet of hydroecium 11, when needing draining it is extracted and gets final product; In the technical program, hold people's rack 4 and be the seat shape, adopt two impellers 2, erect setting for one, face the seat that holds people's rack 4, another is horizontally disposed with, face the placement of foot of putting that holds people's rack 4, can carry out omnibearing flushing to pin, parts of body, the bathing better effects if.Be provided with antinose-dive leg 6 in bottom, will adorning water tank 1 and support and be convenient to draining at dress water tank 1.
The utility model is except satisfying the person automatic bathing, and structure is very simple, and is easy to utilize.
Claims (4)
1. a chair type soaks the ablution machine, comprise dress water tank (1), it is characterized in that: described dress water tank (1) comprises a hydroecium (11) and a motor room (12) that separates with hydroecium (11), in hydroecium (11), be provided with impeller (2), in motor room (12), be provided with motor (3), impeller (2) and motor (3) are in transmission connection, and also are provided with in hydroecium (11) with impeller (2) separates and hold people's rack (4), and the bottom of hydroecium (11) is provided with draining valve (5).
2. chair type according to claim 1 soaks the ablution machine, and it is characterized in that: the described people's of holding rack (4) is the seat shape.
3. chair type according to claim 1 and 2 soaks the ablution machine, and it is characterized in that: described impeller (2) has two, erects for one to be provided with, and faces the seat that holds people's rack (4), and another is horizontally disposed with, and faces the placement of foot of putting that holds people's rack (4).
4. chair type according to claim 1 soaks the ablution machine, it is characterized in that: be provided with antinose-dive leg (6) in the bottom of described dress water tank (1).
