Abstract
The utility model discloses a knife-net soya-bean milk machine which comprises a machine head that is internally provided with a motor; the knife-net soya-bean milk machine has the key points of the technical scheme that a knife-net component is arranged under the machine head, and comprises a whole blade which is arranged on the motor and extends downwards outside a motor shaft; and the whole blade is provided with a plurality of convex cutting edges which are arranged downwards and distributed in a net shape. The utility model overcomes the defects of the prior art, and provides the soya-bean milk machine which is provided with the knife-net component and is better in grinding effect.
Description
[technical field]
The utility model relates to a kind of soy bean milk making machine.
[background technology]
Existing soy bean milk making machine blade all is three vane types, and the effect of polishing is not ideal enough, wants to reach the effect of polishing preferably, need the long time, this just causes and loses time, the waste resource, and the soy bean milk making machine that needs a kind of better effects if of polishing offers consumers in general and uses.
[utility model content]
The utility model purpose is to have overcome the deficiencies in the prior art, and a kind of soy bean milk making machine in the polishing better effects if that has the cutter screen component is provided.
The utility model is achieved through the following technical solutions:
A kind of cutter net soy bean milk making machine, comprise head 1, in described head 1, be provided with motor 2, it is characterized in that: cutter screen component 3 is equipped with in described head 1 below, described cutter screen component 3 comprises the integral knife blade 4 that is installed on the motor shaft 201 that described motor 2 stretches out downwards, and described integral knife blade 4 is provided with a plurality of downward protruding cutting edges 401 that reticulate distribution.
Aforesaid cutter net soy bean milk making machine is characterized in that: described integral knife blade 4 is protruded downwards by the densely covered tool bore of the dull and stereotyped stamping-out of unitary circular becomes protruding cutting edge 401.
Aforesaid cutter net soy bean milk making machine, it is characterized in that: described cutter screen component 3 also comprises the turbulent flow cup 5 that is sleeved on outside the integral knife blade 4, be provided with the baffle plate 501 that is positioned at integral knife blade 4 belows in the described turbulent flow cup 5, described baffle plate 501 is provided with aperture 502, and the sidewall of described turbulent flow cup 5 is provided with tap hole 503.
Aforesaid cutter net soy bean milk making machine is characterized in that: described baffle plate 501 is provided with the convex tendon 505 that raises up.
Aforesaid cutter net soy bean milk making machine is characterized in that: described protruding cutting edge 401 is taper seat.
Aforesaid cutter net soy bean milk making machine is characterized in that: described convex tendon 505 is four, along the radially extension of baffle plate 501.
Compared with prior art, the utility model has following advantage:
The utility model utilizes the cutter screen component to replace traditional blade, the polishing better effects if, and energy savings, simple in structure, low cost of manufacture.
[description of drawings]
Fig. 1 is the utility model cutaway view;

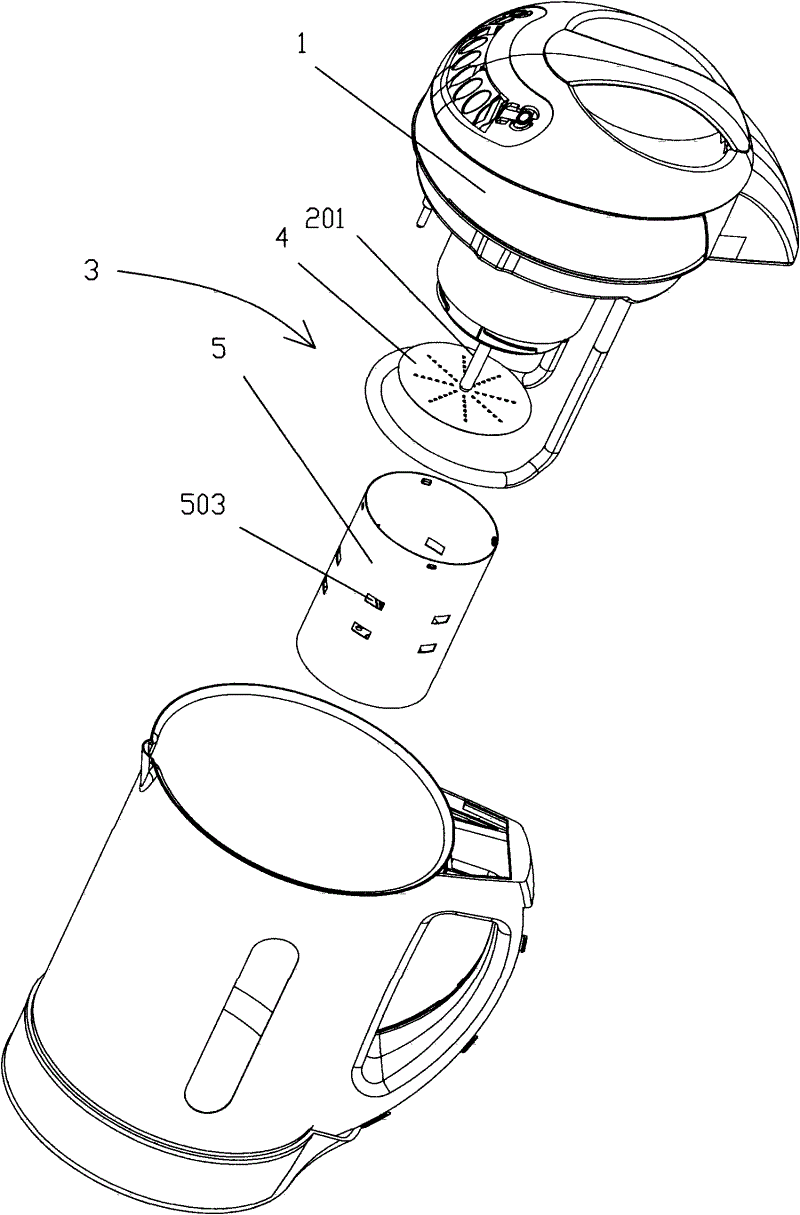

Fig. 2 is the utility model exploded view;
Fig. 3 is the utility model exploded view;
Fig. 4 is the utility model integral knife blade stereogram;
Fig. 5 is the utility model turbulent flow cup stereogram.
[specific embodiment]
A kind of cutter net soy bean milk making machine, comprise head 1, in described head 1, be provided with motor 2, cutter screen component 3 is equipped with in described head 1 below, described cutter screen component 3 comprises the plectane integral knife blade 4 that is installed on the motor shaft 201 that described motor 2 stretches out downwards, and described integral knife blade 4 is provided with a plurality of downward protruding cutting edges 401 and forms netted.
Described integral knife blade 4 is by dull and stereotyped stamping-out projection cutting edge 401, and described protruding cutting edge 401 is a taper seat.
Described cutter screen component 3 also comprises the turbulent flow cup 5 that is sleeved on outside the integral knife blade 4, is provided with the baffle plate 501 that is positioned at integral knife blade 4 belows in the described turbulent flow cup 5, and described baffle plate 501 is provided with aperture 502, and the sidewall of described turbulent flow cup 5 is provided with tap hole 503.
Described baffle plate 501 is provided with the convex tendon 505 that raises up, and strengthens turbulent effect.
The utility model utilizes the cutter screen component to replace traditional blade, the polishing better effects if, and energy savings, simple in structure, low cost of manufacture.
Claims (6)
1. cutter net soy bean milk making machine, comprise head (1), in described head (1), be provided with motor (2), it is characterized in that: cutter screen component (3) is equipped with in described head (1) below, described cutter screen component (3) comprises the integral knife blade (4) that is installed on the motor shaft (201) that described motor (2) stretches out downwards, and described integral knife blade (4) is provided with a plurality of downward protruding cutting edges (401) that reticulate distribution.
2. cutter net soy bean milk making machine according to claim 1 is characterized in that: described integral knife blade (4) is protruded downwards by the densely covered tool bore of the dull and stereotyped stamping-out of unitary circular becomes protruding cutting edge (401).
3. cutter net soy bean milk making machine according to claim 1, it is characterized in that: described cutter screen component (3) also comprises the turbulent flow cup (5) that is sleeved on outside the integral knife blade (4), be provided with the baffle plate (501) that is positioned at integral knife blade (4) below in the described turbulent flow cup (5), described baffle plate (501) is provided with aperture (502), and the sidewall of described turbulent flow cup (5) is provided with tap hole (503).
4. cutter net soy bean milk making machine according to claim 3 is characterized in that: described baffle plate (501) is provided with the convex tendon (505) that raises up.
5. cutter net soy bean milk making machine according to claim 1 is characterized in that: described protruding cutting edge (401) is a taper seat.
6. cutter net soy bean milk making machine according to claim 4 is characterized in that: described convex tendon (505) is four, along the radially extension of baffle plate (501).
