The utility model relates to a bolt-type fixed and freely detachable split type ultrasonic probe comprising an ultrasonic probe and a vagina expanding device; the ultrasonic probe is provided with protruding bolts while the upper swing and the lower swing of the vagina expanding device are provided with concave grooves matching the shapes of the protruding bolts. When used, the protruding bolts are inserted into the concave insertion grooves so as to make the two kinds of components firmly connected; when not used, the protruding bolts are detached by being pulled out of the grooves. The utility model greatly increases the stability of the combination of the probe passing the vagina and the vagina expanding device while the disinfected colloid sheath sleeved on the outer layer of the probe passing the vagina is well protected from being damaged. At the same time, simple in structure and easy to make, the utility model is very practical in use and substantially reduces the mental and physical pains caused to a patient by the over-pressing to the vagina wall during the surgery.
Description
Technical field
This utility model relates to the technical field of the extension product ultrasonic surveillance department of obstetrics and gynecology intrauterine surgical instrument of B ultrasonic, relates in particular to the split type ultrasonic probe of the fixed detachable of a kind of bolt-type.
Background technology
In the obstetrics and gynecology operation industry, in operation process, can accurate and effective carry out real-time supervision in order to solve the transvaginal intrauterine surgical of department of obstetrics and gynecology to operation process, guiding, increase the safety and the success rate of operation, reduce patient's misery, shorten operating time, each medical clinical mechanism has proposed many different schemes with medical apparatus and instruments manufacturing enterprise, mainly comprise two big classes, the first kind be exactly utilize the principle of optical imagery and design be called inner peeping type or micro-tubular clinically, its weakness be exactly after optical lens speckles with blood stains or steam image just smudgy, along with hemorrhage pollution camera lens causes image just to fall flat, this equipment must enter in the cavity of uterus simultaneously, must be through for a long time sterilization, and also brought patient physiological and psychological misery during operation.Second class is exactly the principle of utilization ultra sonic imaging, utilizes Ultrasonic-B probe transvaginal real time monitoring operation process, also by clinical being referred to as " superconductive visual ".The ultrasonic probe of this kind equipment need not enter uterine cavity, only isolates getting final product during use with disposable gum cover, does not need complicated disinfecting process.At present, for make intrauterine surgical can be safely, effectively, do not take simultaneously operative space to greatest extent, each medical institutions and medical equipment manufacturing enterprise have proposed the mode of various transvaginal probes and vaginal dilator combination, as: the patent No. is that 200420012332.3 " women's family planning operation Type B ultrasonic monitoring instrument " and the patent No. are " gynecilogical operation monitors the ultrasonic probe inside vagina of usefulness " (back application design patent, the patent No. is 200730026672.0) of 200620076977.2.
Wherein, the patent No. is that 200420012332.3 " women's family planning operation Type B ultrasonic monitoring instrument " transvaginal probe and vaginal dilator are that mode with clamping makes up, it is that ultrasonic probe is put upper limb or the bottom wing that is connected to vaginal dilator behind the aseptic sterilization gum cover, enters the ultrasonic real-time monitoring of process that undergos surgery in the women surname vaginal canal then.And the patent No. to be 200730026672.0 the ultrasonic probe inside vagina of usefulness " gynecilogical operation monitor " adopt transvaginal probe is fitted in the bottom wing of vaginal dilator in the mode of coincideing with probe, and transvaginal probe must put aseptic sterilization gum cover simultaneously.
Because department of obstetrics and gynecology intrauterine surgical and used operating theater instruments must be aseptic, in the patent No. is that 200420012332.3 " women's family planning operation Type B ultrasonic monitoring instrument " probe is to carry out in the mode of clamping with combining of dilator, and the aseptic gum cover of the actual use of each medical institutions at present is generally through the disinfectant condom, and clamping is one the two rigid combination that the thing contact surface is less, what this may bring is to break because of this rigid combination causes thin condom in operation process, causes patient's postoperative infection; The patent No. is that 200730026672.0 the ultrasonic probe inside vagina of usefulness " gynecilogical operation monitor " adopt is that transvaginal probe is put the bottom wing that is fitted in vaginal dilator behind the aseptic sterilization gum cover, itself not having physics between the two connects, during operation, for keeping transvaginal probe and vaginal dilator relative position not to change, vaginal dilator upper limb and bottom wing must be opened as far as possible, rely on the elasticity of vagina self will pop one's head in and the dilator applying, the sonde body of transvaginal probe own just has certain thickness simultaneously, this has just brought the misery on the patient physiological, particularly young women physiology and psychological misery.
Summary of the invention
The purpose of this utility model is to provide not cracky of a kind of aseptic sterilization gum cover, transvaginal probe is connected with vaginal dilator firmly, the dehiscing of upper wing and lower wing of vaginal dilator can be regulated size arbitrarily and be fit to operative space easily for operation process provides, alleviate the patient physiological misery greatly, had more the Ultrasonic-B probe of hommization.
For realizing above-mentioned utility model purpose, this utility model provides the split type ultrasonic probe of the fixed detachable of a kind of bolt-type, comprise ultrasonic probe and vaginal dilator, described ultrasonic probe has protruding latch, vaginal dilator upper limb or bottom wing have the matrix slot that is complementary with protruding latch shape, the protruding latch of ultrasonic probe injects the slot on the vaginal dilator during use, both are firmly connected, and the slot of during dismounting the protruding latch of ultrasonic probe being extracted on the vaginal dilator gets final product.
The projection latch can be distributed in the both sides of probe, bottom or top, it can be the both sides projection, it also can be one-sided projection, the both sides projection can be symmetric also can be asymmetrical, the matrix slot that is complementary with protruding latch shape can be poroid jack, so long as the Any shape that protruding latch energy and matrix slot are combined closely can.Preferably be provided with protruding latch in the probe two bottom sides, this mode is in conjunction with tightr, simple in structure.
The split type ultrasonic probe of the fixed detachable of a kind of bolt-type, comprise ultrasonic probe and vaginal dilator, described vaginal dilator upper limb or bottom wing have protruding latch, the matrix slot that is complementary with protruding latch shape is arranged on the ultrasonic probe, protruding latch during use on the vaginal dilator injects the slot of ultrasonic probe, both are firmly connected, and the slot of during dismounting the protruding latch on the vaginal dilator being extracted ultrasonic probe gets final product.
The projection latch can be distributed in vaginal dilator upper limb or bottom wing, it can be the both sides projection, it also can be one-sided projection, the both sides projection can be symmetric also can be asymmetrical, the matrix slot that is complementary with protruding latch shape can be poroid jack, jack can be positioned at the centre of ultrasonic probe, so long as the Any shape that protruding latch energy and matrix slot are combined closely can.
The split type ultrasonic probe of the fixed detachable of described bolt-type is characterized in that protruding latch shape is triangular in shape.
The split type ultrasonic probe of the fixed detachable of described bolt-type is characterized in that protruding latch shape takes the shape of the letter U.
The split type ultrasonic probe of the fixed detachable of described bolt-type is characterized in that protruding latch shape is trapezoidal.
The split type ultrasonic probe of the fixed detachable of described bolt-type is characterized in that protruding latch shape is rounded.
The split type ultrasonic probe of the fixed detachable of described bolt-type is characterized in that protruding latch shape semicircular in shape.
The split type ultrasonic probe of the fixed detachable of described bolt-type is characterized in that protruding latch shape is prismatic.
The split type ultrasonic probe of the fixed detachable of described bolt-type is characterized in that protruding latch shape is square.
The split type ultrasonic probe of the fixed detachable of described bolt-type is characterized in that protruding latch shape is polygon.
This utility model protrusions latch shape is including, but not limited to the above several shapes that exemplify, so long as the shape of taking the fixed mode of bolt-type ultrasonic probe and vaginal dilator can be combined all falls into protection domain of the present utility model.
Embodiment: before the operation, one holds the transvaginal endo-luminal ultrasound sonde body 1 that puts aseptic gum cover, another holds vaginal dilator bottom wing 4, then bilateral triangle cone 2 is inserted in the triangular form latch groove 3 from rear side probe wire cable-end, is inserted into the position and gets final product.This just makes transvaginal endo-luminal ultrasound probe and vaginal dilator carry out integrating fixing.Can reach the needs of department of obstetrics and gynecology intrauterine surgical.
The beneficial effects of the utility model owing to adopted the latch fixed model in this utility model, have improved the bonded steadiness of transvaginal probe body and vaginal dilator greatly.Because of it is a bolt-type, both composition surfaces are big, can not damage and be enclosed within the outer field aseptic sterilization gum cover of transvaginal probe because fixed-node is little, the utlity model has simple in structure simultaneously, easy to make, characteristics such as function is practical, especially the Transvaginal Ultrasound probe is positioned at the upper limb or the bottom wing of vaginal dilator, and Transvaginal Ultrasound probe is ultra-thin, has guaranteed that very big limit reserved the needed operative space of intrauterine surgical.Significantly alleviated the Physiological Psychology misery that the patient suffers because of exertin extruding vaginal wall when operation.
Description of drawings
Below in conjunction with accompanying drawing and embodiment this utility model is described in further detail.
Fig. 1 is that this utility model probe combines the back structural representation with vaginal dilator.
Fig. 2 is the vaginal dilator structural representation.
Fig. 3 is this utility model probe axonometric chart.

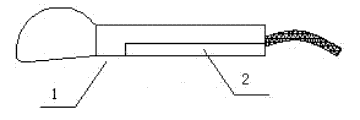

Fig. 4 is this utility model probe front view.

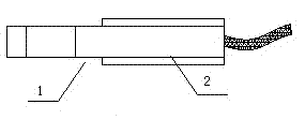

Fig. 5 is this utility model probe vertical view.
Fig. 6 is this utility model probe right side view.
Fig. 7 is the structural representation that this utility model vaginal dilator bottom wing has triangular form latch groove.
Fig. 8 is the enlarged diagram of this utility model vaginal dilator bottom wing triangular form latch groove.
Among the figure, 1, transvaginal endo-luminal ultrasound sonde body, 2, bilateral triangle cone, 3, triangular form latch groove, 4, the vaginal dilator bottom wing.
The specific embodiment
The split type ultrasonic probe of embodiment 1, the fixed detachable of a kind of bolt-type, comprise ultrasonic probe and vaginal dilator, described ultrasonic probe bottom bilateral has the triangular hill latch, the vaginal dilator bottom wing has the matrix slot that is complementary with triangular hill latch shape, the triangular hill latch of ultrasonic probe injects the slot on the vaginal dilator during use, both are firmly connected, and the slot of during dismounting the triangular hill latch of ultrasonic probe being extracted on the vaginal dilator gets final product.
The split type ultrasonic probe of embodiment 2, the fixed detachable of a kind of bolt-type, comprise ultrasonic probe and vaginal dilator, described ultrasonic probe bottom bilateral has the triangular hill latch, the vaginal dilator upper limb has the matrix slot that is complementary with triangular hill latch shape, the triangular hill latch of ultrasonic probe injects the slot on the vaginal dilator during use, both are firmly connected, and the slot of during dismounting the triangular hill latch of ultrasonic probe being extracted on the vaginal dilator gets final product.
The split type ultrasonic probe of embodiment 3, the fixed detachable of a kind of bolt-type, comprise ultrasonic probe and vaginal dilator, described vaginal dilator bottom wing has the triangular hill latch, the matrix slot that is complementary with protruding latch shape is arranged on the ultrasonic probe, triangular hill latch during use on the vaginal dilator injects the slot of ultrasonic probe, both are firmly connected, and the slot of during dismounting the triangular hill latch on the vaginal dilator being extracted ultrasonic probe gets final product.
The split type ultrasonic probe of embodiment 4, the fixed detachable of a kind of bolt-type, comprise ultrasonic probe and vaginal dilator, described vaginal dilator upper limb has the triangular hill latch, the matrix slot that is complementary with protruding latch shape is arranged on the ultrasonic probe, triangular hill latch during use on the vaginal dilator injects the slot of ultrasonic probe, both are firmly connected, and the slot of during dismounting the triangular hill latch on the vaginal dilator being extracted ultrasonic probe gets final product.
The split type ultrasonic probe of embodiment 5, the fixed detachable of a kind of bolt-type, comprise ultrasonic probe and vaginal dilator, described vaginal dilator upper limb has the cylindrical bump latch, the matrix jack that is complementary with protruding latch shape is arranged on the ultrasonic probe, cylindrical bump latch during use on the vaginal dilator injects in the jack of ultrasonic probe, both are firmly connected, and the slot of during dismounting the cylindrical bump latch on the vaginal dilator being extracted ultrasonic probe gets final product.
Claims (10)
1. the split type ultrasonic probe of the fixed detachable of bolt-type, comprise ultrasonic probe and vaginal dilator, it is characterized in that protruding latch is arranged on the ultrasonic probe, vaginal dilator upper limb or bottom wing have the matrix slot that is complementary with protruding latch shape, during use the protruding latch of ultrasonic probe injected the slot on the vaginal dilator, both are firmly connected, and the slot of during dismounting the protruding latch of ultrasonic probe being extracted on the vaginal dilator gets final product.
2. the split type ultrasonic probe of the fixed detachable of bolt-type, comprise ultrasonic probe and vaginal dilator, it is characterized in that vaginal dilator upper limb or bottom wing have protruding latch, the matrix slot that is complementary with protruding latch shape is arranged on the ultrasonic probe, during use the protruding latch on the vaginal dilator is injected the slot of ultrasonic probe, both are firmly connected, and the slot of during dismounting the protruding latch on the vaginal dilator being extracted ultrasonic probe gets final product.
3. the split type ultrasonic probe of the fixed detachable of bolt-type according to claim 1 and 2 is characterized in that protruding latch shape is triangular in shape.
4. the split type ultrasonic probe of the fixed detachable of bolt-type according to claim 1 and 2 is characterized in that protruding latch shape takes the shape of the letter U.
5. the split type ultrasonic probe of the fixed detachable of bolt-type according to claim 1 and 2 is characterized in that protruding latch shape is trapezoidal.
6. the split type ultrasonic probe of the fixed detachable of bolt-type according to claim 1 and 2 is characterized in that protruding latch shape is rounded.
7. the split type ultrasonic probe of the fixed detachable of bolt-type according to claim 1 and 2 is characterized in that protruding latch shape semicircular in shape.
8. the split type ultrasonic probe of the fixed detachable of bolt-type according to claim 1 and 2 is characterized in that protruding latch shape assumes diamond in shape.
9. the split type ultrasonic probe of the fixed detachable of bolt-type according to claim 1 and 2 is characterized in that protruding latch shape is square.
10. the split type ultrasonic probe of the fixed detachable of bolt-type according to claim 1 and 2 is characterized in that protruding latch shape is polygon.
