The utility model discloses an earmuff type MP4 player, including thin metal knee and the miniature MP4 player fixed on the metal knee, metal knee (5) on along its axial central point fixed with miniature MP4 player (1), the bottom of MP4 player is equipped with control button (2) and is used for adjusting and controlling, metal knee (5) axial right side arranges right earphone cord (2) connected to MP4 player (1), the earphone plug of one end is connected to right earphone cord (2), the earphone plug is cladded in right-hand member ear muff (4); the left earphone cord (6) connected to the MP4 player (1) is arranged on the left side of the axial direction of the metal bent rod (5), the left earphone cord (6) is connected with an earphone plug at one end, and the earphone plug is wrapped in an ear muff (7) at the left end. The utility model provides a can make things convenient for wear the earmuff formula MP4 player that uses, both can freely listen, also can put the splendid content of watching the screen before the eye at will, this player is convenient for leisure and uses, simple structure, practicality are strong.
Description
Technical field
The utility model relates to a kind of ear muff formula MP4 player, particularly relates to a kind of ear muff formula MP4 player that can arbitrarily see easily, listen of wearing.
Background technology
Existing MP4 player is that hand-held uses and is the master substantially, the special connection than long earphone cord to earplug, use inconvenience, particularly when user's sitting wait, recumbency rest, light exercise, need the hand-held MP4 player or the use of can only listening to the music separately, the inconvenient video capability of fully using the MP4 player.
The utility model content
Technical problem to be solved in the utility model provides a kind of ear muff formula of the wearing MP4 player that can arbitrarily see easily, listen.
In order to solve the problems of the technologies described above, the technical solution adopted in the utility model is: a kind of ear muff formula MP4 player, comprise thin metal knee and the miniature MP4 player that is fixed on the metal knee, its axial middle position is fixed with miniature MP4 player in described metal knee upper edge, the bottom of MP4 player is provided with control knob and is used for regulating and control, the axial right side of metal knee is furnished with the right earphone line that is connected to the MP4 player, the right earphone line connects the earphone plug of an end, and the earphone plug is covered by in the right-hand member earmuff; Metal knee axially left side is furnished with the left earphone cord that is connected to the MP4 player, and left earphone cord connects the earphone plug of an end, and the earphone plug is covered by in the left end earmuff.
As a kind of improvement of the present utility model, be fixed with miniature MP4 player in described metal knee central authorities, adjust the position of metal knee during use, place the user at the moment 5～10 centimetres play at a distance.
Adopt the ear muff formula MP4 player of technique scheme, except the basic function of player and earmuff, also provide wear-type to play the function of using this player, when being particularly suitable for user's sitting wait, recumbency rest, light exercise, this function uses, because volume is extra small, thereby make ear muff formula MP4 player stand-by time long, and guarantee the video playback effect in the same old way, convenience is used and is carried.
In sum, the utility model provides a kind of ear muff formula of the wearing MP4 player that can arbitrarily see easily, listen, and this player is convenient to leisure use, simple in structure, practical.
Description of drawings
Below in conjunction with the drawings and specific embodiments the utility model is described in further detail.

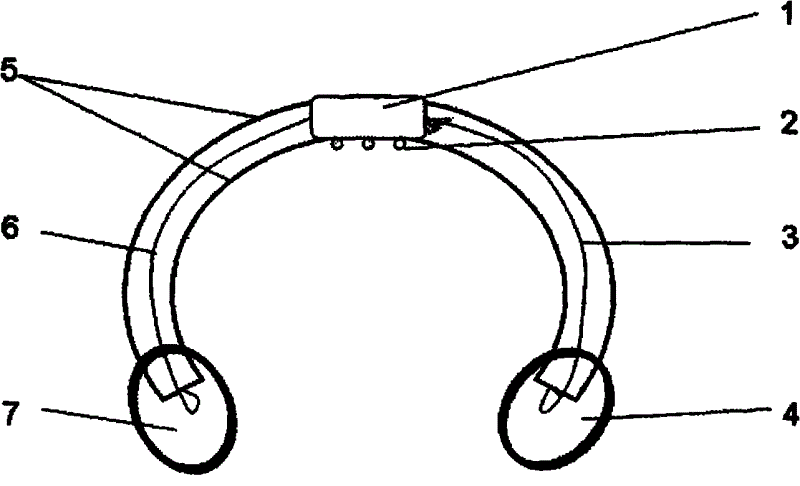

Accompanying drawing is the utility model structural representation.
Embodiment
Referring to accompanying drawing, its axial middle position is fixed with miniature MP4 player 1 in metal knee 5 upper edges, the control knob 2 of the bottom by control MP4 player, can regulate, use player, metal knee 5 axial right sides are furnished with the right earphone line 2 that is connected to MP4 player 1, right earphone line 2 connects the earphone plug of an end, the earphone plug is covered by in the right-hand member earmuff 4, metal knee 5 axially left side is furnished with the left earphone cord 6 that is connected to MP4 player 1, left side earphone cord 6 connects the earphone plug of an end, the earphone plug is covered by in the left end earmuff 7, and player can be worn use after opening.
Referring to accompanying drawing, except the basic function of player and earmuff, also provide wear-type to play the function of using this player, just can place the user at the moment this player by the angle of adjusting metal knee 5, right-hand member earmuff 4, left end earmuff 7 provide acoustic information, and miniature MP4 player 1 provides video information.
Claims (2)
1. ear muff formula MP4 player, comprise thin metal knee and the miniature MP4 player that is fixed on the metal knee, it is characterized in that: its axial middle position is fixed with miniature MP4 player (1) in described metal knee (5) upper edge, and the bottom of MP4 player is provided with control knob (2) and is used for regulating and control.
2. ear muff formula MP4 player according to claim 1, it is characterized in that: metal knee (5) axially is furnished with the right earphone line (2) that is connected to MP4 player (1) in the right side, right earphone line (2) connects the earphone plug of an end, and the earphone plug is covered by in the right-hand member earmuff (4); Metal knee (5) axially left side is furnished with the left earphone cord (6) that is connected to MP4 player (1), and left earphone cord (6) connects the earphone plug of an end, and the earphone plug is covered by in the left end earmuff (7).
