CN201686915U - Health care blind sidewalk - Google Patents
Health care blind sidewalk Download PDFInfo
- Publication number
- CN201686915U CN201686915U CN2010201663930U CN201020166393U CN201686915U CN 201686915 U CN201686915 U CN 201686915U CN 2010201663930 U CN2010201663930 U CN 2010201663930U CN 201020166393 U CN201020166393 U CN 201020166393U CN 201686915 U CN201686915 U CN 201686915U
- Authority
- CN
- China
- Prior art keywords
- sidewalk
- blind
- blind sidewalk
- visually impaired
- impaired people
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Abstract
The utility model discloses a health care blind sidewalk comprising a main blind sidewalk body, wherein the upper surface of the main blind sidewalk body is provided with even rubber bosses which are shaped like segments; and the main blind sidewalk body is provided with plug holes which are positioned among the rubber bosses. The design of the rubber bosses can realize the function of massaging feet when people walk on the blind sidewalk, blind people can walk on the blind sidewalk, and normal people can also walk on the blind sidewalk for physical activity when no blind people walk on the blind sidewalk, thus making full use of the blind sidewalk; and the design of the plug holes leads the water not to accumulate among the rubber bosses of the blind sidewalk in rainy days, thus ensuring the using environment of the blind sidewalk and being very practical and convenient.
Description
Technical field
The utility model relates to a kind of sidewalk for visually impaired people.
Background technology
The sidewalk for visually impaired people be special in the blind person guides the road that direction designs, and existing sidewalk for visually impaired people generally all is a strip, and function singleness, sole is not had the function of health care massage.
The utility model content
The purpose of this utility model is to overcome the deficiencies in the prior art, and a kind of health care sidewalk for visually impaired people with massage functions is provided.
For solving the problems of the technologies described above, the utility model is achieved through the following technical solutions: a kind of health care sidewalk for visually impaired people, comprise the sidewalk for visually impaired people main body, the upper surface of described sidewalk for visually impaired people main body is provided with uniform rubber bumps, described rubber bumps is the segment shape, offer leaking hole on the main body of described sidewalk for visually impaired people, leaking hole is between rubber bumps.
Compared with prior art, the beneficial effects of the utility model are: the design of rubber bumps, and the people walks the function that can realize massaging pin on the sidewalk for visually impaired people, and the blind person can walk, the normal person also can go to the sidewalk for visually impaired people and get on to take exercises when not having the blind person to walk, allow the sidewalk for visually impaired people be fully utilized; The design of leaking hole allows the sidewalk for visually impaired people can ponding between the rubber bumps when rainy, has guaranteed the environment for use of sidewalk for visually impaired people more, and is very practical and convenient.
Description of drawings

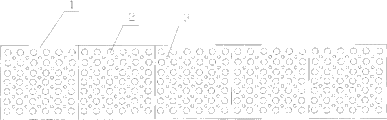

Fig. 1 is a structural representation of the present utility model.
The specific embodiment
The utility model is described in further detail below in conjunction with drawings and the specific embodiments.
As shown in Figure 1, a kind of health care sidewalk for visually impaired people comprises sidewalk for visually impaired people main body 1.The upper surface of described sidewalk for visually impaired people main body 1 is provided with uniform rubber bumps 2, and described rubber bumps 2 is the segment shape.Offer leaking hole 3 on the described sidewalk for visually impaired people main body 1, leaking hole 3 is between rubber bumps 2.
Claims (1)
- One kind the health care sidewalk for visually impaired people, comprise sidewalk for visually impaired people main body (1), it is characterized in that: the upper surface of described sidewalk for visually impaired people main body (1) is provided with uniform rubber bumps (2), described rubber bumps (2) is the segment shape, offer leaking hole (3) on the described sidewalk for visually impaired people main body (1), leaking hole (3) is positioned between the rubber bumps (2).
