Abstract
本实用新型公开了一种联动式集成环保灶，包括机体，在机体内安装有电磁阀、炉头、脉冲器、风机，在机体的内壁上安装有控制板，其中电磁阀通过管道与炉头连接，在电磁阀的旋转轴上安装有旋扭，在电磁阀上安装有一微动开关，在旋转轴上还安装有旋转片，该旋转片与微动开关配合使用，该微动开关通过导线与控制板连接，控制板通过导线与风机连接。采用上述结构后，本实用新型可以同时控制燃气灶与吸油烟机，即使用时，在点燃燃气灶上燃气的同时，可以打开吸油烟机，使吸油烟机开始吸烟排气；关闭时，在熄灭燃气灶上火焰的同时，又可以关闭吸油烟机。
The utility model discloses a linkage type integrated environment-friendly stove, which comprises a body in which a solenoid valve, a burner head, a pulser and a fan are installed, and a control panel is installed on the inner wall of the body, wherein the solenoid valve is connected to the burner head through a pipeline. Connection, a knob is installed on the rotating shaft of the solenoid valve, a micro switch is installed on the solenoid valve, and a rotating piece is installed on the rotating shaft, the rotating piece is used in conjunction with the micro switch, and the micro switch passes through the wire It is connected with the control board, and the control board is connected with the fan through wires. After adopting the above structure, the utility model can control the gas stove and the range hood at the same time, that is, when in use, the range hood can be turned on while the gas on the gas range is ignited, so that the range hood starts to smoke and exhaust; While the flame is on the gas stove, the range hood can be turned off.
Description
Technical field
The utility model discloses a kind of coordinated type integrated environment-friendly stove, belong to the cooking stove technical field.
Background technology
Integrated environment-friendly stove is to gather gas-cooker, disinfection cabinet, range hood etc. in a kind of cooking apparatus of one, and wherein gas-cooker mainly is made of burner, magnetic valve, blowout protection pin, and range hood mainly is made of blower fan, air channel.The problem that present integrated environment-friendly stove exists is, gas-cooker and range hood generally all carry out separate operation, generally after gas-cooker is lighted, open range hood again, so not only increased operating procedure, and after culinary art finishes, people generally only remember to close gas-cooker, and often forget and close range hood, make the range hood continuous firing, reduce its service life.
The utility model content
For addressing the above problem, the purpose of this utility model is to provide a kind of can control gas-cooker and range hood simultaneously, even the time spent in the combustion gas, can be opened range hood on a cooking stove burning, makes range hood begin the smoking exhaust; When closing, on extinguishing gas-cooker, in the flame, can close a kind of coordinated type integrated environment-friendly stove of range hood again.
In order to reach above-mentioned purpose, solution of the present utility model is:
A kind of coordinated type integrated environment-friendly stove, comprise body, magnetic valve, burner, pulser, blower fan are installed in body, on the inwall of body control panel are installed, wherein magnetic valve is connected with burner by pipeline, on the rotating shaft of magnetic valve, turn-knob is installed, one microswitch is installed on magnetic valve, revolving fragment also is installed on rotating shaft, this revolving fragment and microswitch are used, this microswitch is connected with control panel by lead, and control panel is connected with blower fan by lead.
The utility model in use, press and rotate turn-knob, can make solenoid valve conduction and spray combustion gas by rotating shaft, pulser produces pulse, thereby can on burner, light combustion gas, simultaneously, rotating shaft is in rotation process, and revolving fragment contacts with microswitch, make the microswitch closure, produce signal after the microswitch closure and give control panel, make blower fan work by control panel, range hood begins the smoking exhaust; When closing, the revolution turn-knob, closed electromagnetic valve, fray-out of flame on the burner, revolving fragment leaves microswitch, and microswitch is disconnected, microswitch disconnects the back and produces signal to control panel, by control panel blower fan is quit work, control panel quit work blower fan after can delaying time 1～3 minute generally speaking, can remaining oil smoke in the kitchen be discharged so as far as possible.Therefore, the utility model can be controlled gas-cooker and range hood after adopting said structure simultaneously, reaches the effect of interlock, has so not only reduced operating procedure, and after culinary art finished, people did not again worry the problem that range hood does not close.
Description of drawings
Below in conjunction with the accompanying drawing and the specific embodiment the utility model is described in further detail.

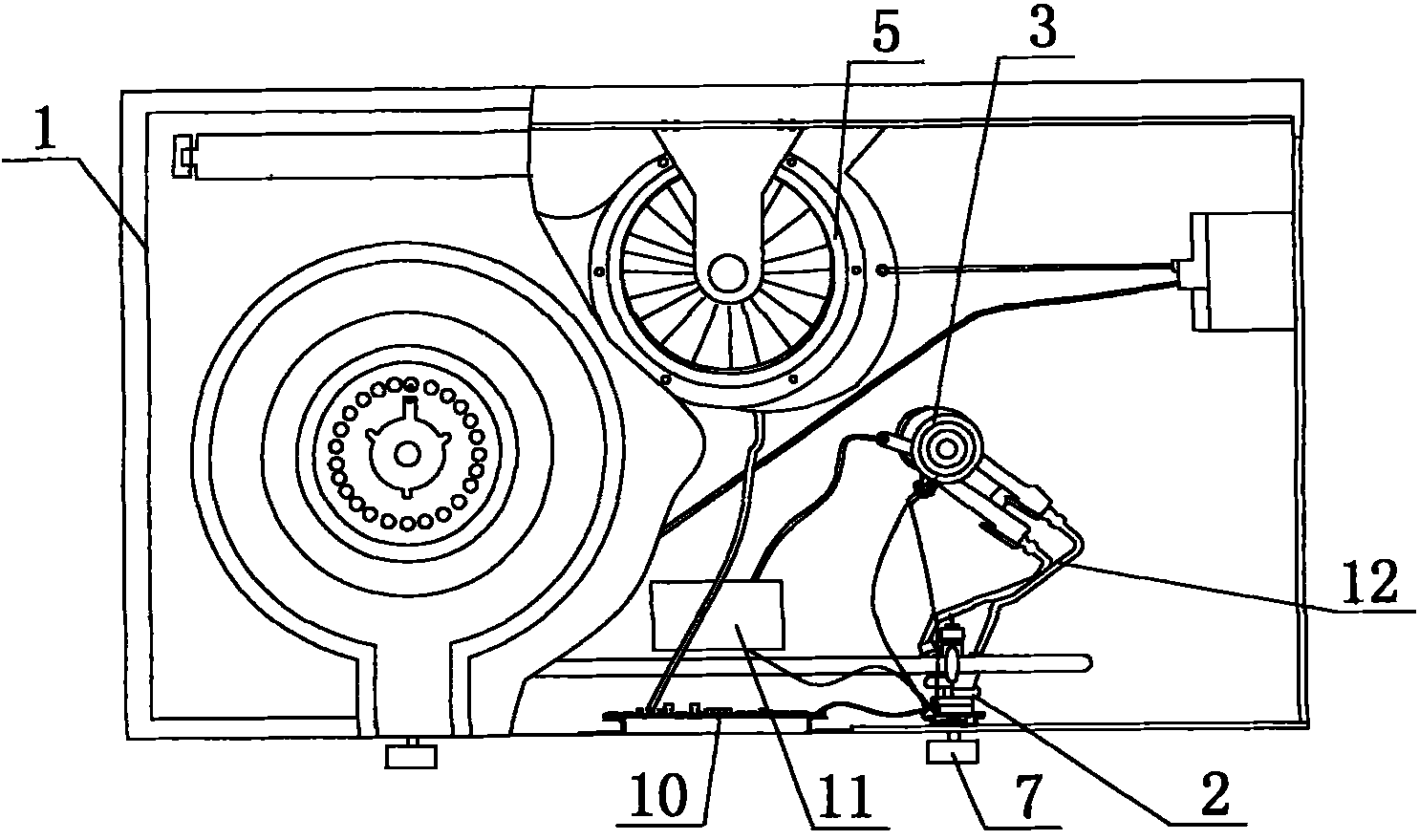

Fig. 1 is a structural representation of the present utility model;
Fig. 2 is the plan structure schematic diagram of Fig. 1;
Fig. 3 is the Facad structure schematic diagram of the utility model magnetic valve;
Fig. 4 is the reverse side structural representation of the utility model magnetic valve.
The specific embodiment
With reference to Fig. 1, Fig. 2, Fig. 3, shown in Figure 4, a kind of coordinated type integrated environment-friendly stove, comprise body 1, magnetic valve 2 is installed in body 1, burner 3, pulser 11, blower fan 5, control panel 10 is installed on the inwall of body 1, wherein magnetic valve 2 is connected with burner 3 by pipeline 12, on the rotating shaft 4 of magnetic valve 2, turn-knob 7 is installed, one microswitch 8 is installed on magnetic valve 2, revolving fragment 9 also is installed on rotating shaft 4, this revolving fragment 9 is used with microswitch 8, and this microswitch 8 is connected with control panel 10 by lead, and control panel 10 is connected with blower fan 5 by lead.
In use, press and rotate turn-knob 7, can make magnetic valve 2 conductings and spray combustion gas, and make pulser 11 produce pulse by rotating shaft 4, thereby can on burner 3, light combustion gas, simultaneously, rotating shaft 4 is in rotation process, and revolving fragment 9 contacts with microswitch 8, make microswitch 8 closures, microswitch 8 closed backs produce signal and give control panel 10, make blower fan 5 work by control panel 10, and range hood begins the smoking exhaust; When closing, revolution turn-knob 7, magnetic valve 2 cuts out, the fray-out of flame on the burner 3, revolving fragment 9 leaves microswitch 8 simultaneously, and microswitch 8 is disconnected, and produces signal after microswitch 8 disconnects and gives control panel 10, by control panel 10 blower fan 5 is quit work.
Claims (1)
1. coordinated type integrated environment-friendly stove, comprise body (1), magnetic valve (2) is installed in body (1), burner (3), pulser (11), blower fan (5), control panel (10) is installed on the inwall of body (1), wherein magnetic valve (2) is connected with burner (3) by pipeline, on the rotating shaft (4) of magnetic valve (2), turn-knob (7) is installed, it is characterized in that: a microswitch (8) is installed on magnetic valve (2), revolving fragment (9) also is installed on rotating shaft (4), this revolving fragment (9) is used with microswitch (8), this microswitch (8) is connected with control panel (10) by lead, and control panel (10) is connected with blower fan (5) by lead.
