Abstract
The utility model discloses a cup capable of displaying liquid temperature and reporting the temperature with voice. In the technical scheme, a temperature reporting voice switch and a micro semiconductor temperature sensor are connected with the input end of a microcontroller, the output end of the microcontroller is connected with an LCD display and a temperature reporting voice module arranged on a cup body, a battery is arranged on a groove-shaped battery case on the bottom of the cup body and is respectively connected with the microcontroller, the LCD display and the temperature reporting voice module to be as a power supply. The LCD display can display temperature information. When the utility model is used, the visually impaired user can press the temperature reporting voice switch to learn about the liquid temperature in the cup, since the temperature reporting voice switch can generate a control signal, the microcontroller can receive the control signal, and the temperature reporting voice module can output the temperature information collected by the micro semiconductor temperature sensor in the form of voice. Compared with the prior art, the utility model has dual functions of displaying and temperature reporting with voice, thereby fully satisfying the use demands of people without the normal temperature sensing capability or with visual impairment. Moreover, the utility model has the advantages of simple structure, low cost and convenient use.
Description
Technical field
The utility model relates to a kind of cup, particularly a kind of can the demonstration and the cup of voice output fluid temperature.
Background technology
Scientific research shows that the human perception ambient temperature mainly is by the periphery thermoreceptor, and it conducts to nerve center with the variations in temperature of skin and environment.The people generally can hold roughly water temperature of water tumbler elder generation perception when drinking water, the thermoreceptor by on the skin passes to nerve center with temperature signal, thereby makes human body make concrete behavior based on the sense of cold or the sense of heat.Receptor depauperation or impaired people owing to self physiological defect, often are difficult to the perception water temperature, in case after making false judgment, just very easily scalded.Essential other people help when therefore receptor depauperation or impaired patient drink water, relatively inconvenience.Existing patent solves this type of problem, mainly be by the temperature measuring equipment thermometric, the user directly reads graduation of thermometer or display screen reading, and these methods have no doubt solved the measurement problem of temperature, but for some personages, then lost effect with vision disorder.
The utility model content
The technical problems to be solved in the utility model is: at prior art can't separate perfectly must not normally perception ambient temperature the personage or the problem of vision disorder personage perception water temperature, the utility model discloses a kind of cup that can show fluid temperature and realize the voice reporting temperature.
At above-mentioned technical problem, the utility model proposes following technical scheme.
A kind of cup that can show fluid temperature and voice reporting temperature, the micro semiconductor temperature sensor that comprises cup and be arranged on bottom of cup, the cup side is provided with the warm voice switch of newspaper, report warm voice switch and micro semiconductor temperature sensor to link to each other with the microcontroller input, the microcontroller output be arranged on cup on LCD display and report warm voice module to link to each other, battery is arranged in the groove shape battery case of bottom of cup, battery as power supply respectively with microcontroller, LCD display and report warm voice module to link to each other.
Described newspaper temperature voice switch is a microswitch.
Described microcontroller and micro semiconductor temperature sensor, LCD display and report between the warm voice module and adopt serial i
2C interface connects.
Described cup is provided with a glass handle.
The beneficial effects of the utility model are embodied in: the utility model compared with prior art, have the dual-use function of demonstration and voice reporting temperature concurrently, suitable crowd is more extensive, practical more, fully satisfied no normal temperature perception or vision disorder personage's user demand, simultaneously, the utlity model has characteristics simple in structure, with low cost, easy to use.
Description of drawings

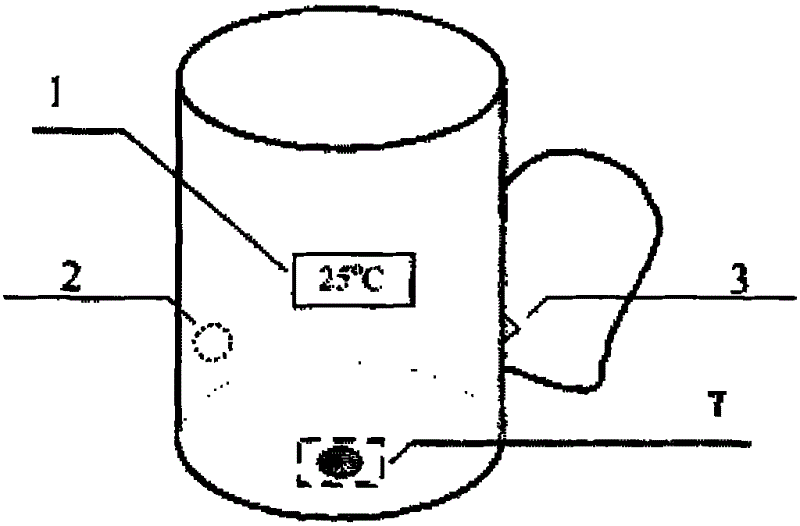

Fig. 1 is the structural representation of the utility model embodiment;
Fig. 2 is the utility model structured flowchart.
The specific embodiment
Below in conjunction with drawings and Examples the utility model is described further.
Embodiment
Referring to Fig. 1, Fig. 2, a kind of cup that can show fluid temperature and voice reporting temperature comprises cup 1 that has glass handle and the micro semiconductor temperature sensor 4 that is arranged on cup 1 bottom, and micro semiconductor temperature sensor 4 passes through serial i
2C interface links to each other with microcontroller 5 inputs, cup 1 side is provided with the warm voice switch 3 of newspaper, report warm voice switch 3 to adopt microswitch structures and link to each other, microcontroller 5 outputs and be arranged on the LCD display 6 on the cup 1 and report warm voice module 2 to pass through serial i with microcontroller 5 inputs
2C interface links to each other, and battery 7 is arranged in the groove shape battery case of cup 1 bottom, battery 7 as power supply respectively with microcontroller 5, LCD display 6 and report warm voice module 2 to link to each other.
The utility model adopts the minicell power supply, during use battery 7 is installed in the battery case, and the lid of battery case opening part setting that closes.For personage that can not normally perception ambient temperature, the utility model utilization is arranged on the micro semiconductor temperature sensor 4 of cup 1 bottom, the accurate temperature of liquid in the measuring cup, and show by LCD display 6, what obtain during no splendid attire thing in cup is the temperature of cup environment of living in, uses thereby can be used as common thermometer; When the vision disorder personage uses, know a glass interior fluid temperature as need, can press the warm voice switch 3 of newspaper and produce control signal, microcontroller 5 will be exported in the mode of voice by the warm voice module 2 of newspaper by the temperature information that micro semiconductor temperature sensor 4 is gathered after receiving control signal.
Claims (4)
1. cup that can show fluid temperature and voice reporting temperature, the micro semiconductor temperature sensor (4) that comprises cup (1) and be arranged on cup (1) bottom, it is characterized in that: cup (1) side is provided with newspaper warm voice switch (3), report warm voice switch (3) and micro semiconductor temperature sensor (4) to link to each other with microcontroller (5) input, microcontroller (5) output be arranged on cup (1) on LCD display (6) and report warm voice module (2) to link to each other, battery (7) is arranged in the groove shape battery case of cup (1) bottom, battery (7) as power supply respectively with microcontroller (5), LCD display (6) and report warm voice module (2) to link to each other.
2. according to the described a kind of cup that can show fluid temperature and voice reporting temperature of claim 1, it is characterized in that: described newspaper temperature voice switch (3) is a microswitch.
3. according to the described a kind of cup that can show fluid temperature and voice reporting temperature of claim 1, it is characterized in that: described microcontroller (5) and micro semiconductor temperature sensor (4), LCD display (6) and report between the warm voice module (2) and adopt serial i
2C interface connects.
4. according to the described a kind of cup that can show fluid temperature and voice reporting temperature of claim 1, it is characterized in that: described cup (1) is provided with a glass handle.
