Abstract
本实用新型涉及一种矿业在煤岩中钻孔作业应用中钻杆，尤其是一种高压水密封钻杆。高压密封钻杆主体由公接头、中间管、母接头三部分焊接而成，置于公接头直轴段的O型密封圈与下一钻杆母接头直轴孔段的轴面紧密接触实现径向密封，与旋紧的锥螺纹共同作用下可以承受50MPa的高压水而不发生泄漏。具有弹性的O型密封圈在钻杆连接前紧贴放置于公接头的环形沟槽，不易脱落，使得操作更加简便。另外，公接头直轴段轴面与母接头直轴孔段轴面间距离相对固定，连接后O型密封圈不会因过渡挤压而损坏。较其它高压密封钻杆具有结构简单，操作方便，成本低等优点。同时，本高压水密封钻杆适应性强，也适用于风排等其它钻孔作业。
The utility model relates to a drilling rod used in drilling operations in coal rocks in the mining industry, in particular to a high-pressure water-sealed drilling rod. The main body of the high-pressure sealed drill pipe is welded by three parts: the male joint, the intermediate pipe, and the female joint. It can withstand 50MPa high-pressure water without leakage under the joint action of the tightened tapered thread. The elastic O-shaped sealing ring is placed in the annular groove of the male joint before the drill pipe is connected, and it is not easy to fall off, which makes the operation easier. In addition, the distance between the axial surface of the direct shaft section of the male joint and the axial surface of the direct shaft hole section of the female joint is relatively fixed, and the O-ring will not be damaged due to excessive extrusion after connection. Compared with other high-pressure sealed drill pipes, it has the advantages of simple structure, convenient operation and low cost. At the same time, the high-pressure water-sealed drill pipe has strong adaptability, and is also suitable for other drilling operations such as wind exhaust.
Description
Technical field
The utility model relates to a kind of drilling rod that is applied in bore operation in the coal petrography, especially a kind of water under high pressure sealing drilling rod.
Background technology
The water under high pressure sealing drilling rod is used for drilling in coal and rock operations such as the auxiliary bit bore of high-pressure water jet, wind gang drill hole technology, its effect is the rotary power of transmission rig and feeds power, and entered the passage at subdrilling head place, hole as media such as water, wind by power-equipment outside the hole.General mining drilling rod adopts the interference fit of taper thread or end face that the male joint top is connected with female joint to seal mostly.
At present, generally only depend on the drilling rod of taper thread sealing can bear the hydraulic pressure of 0.5～3MPa, but because taper thread has wearing and tearing under the situation of dismounting drilling rod constantly, so its sealability can reduce with the increase of the degree of wear.And the end face that is connected with female joint at the male joint top is put into sealing ring and is sealed, and sealability is improved, but sealing ring lost efficacy in the easy deformation of forcing down of sealing two sections, frequently changes sealing ring drilling efficiency is reduced, and increased the boring cost.Because higher to required precision, and serious wear in the work progress makes that industrial generalization is relatively poor for the sealing means of special processing.
The utility model content
The purpose of this utility model is at above-mentioned the deficiencies in the prior art, and a kind of water under high pressure sealing drilling rod is provided, again can be so that operation is easier when improving voltage endurance capability and prolonging sealing ring application life.
In order to realize the foregoing invention purpose, the technical solution of the utility model is:
A kind of water under high pressure sealing drilling rod, described drilling rod main body is welded successively by male joint, intervalve and female joint three parts.The link that described male joint is connected with the female joint of next drilling rod is connected to form by d-axis section and outer cone thread successively, on described d-axis section a ring-shaped groove is arranged, and is provided with the O RunddichtringO in the groove;
Described female joint is connected to form by d-axis hole section and inside tapered thread successively with the link that the male joint of a last drilling rod is connected;
Described drilling rod connects the d-axis section axial plane of back male joint and the female joint d-axis hole section axial plane appropriateness extruding O RunddichtringO of next drilling rod forms radial seal, and the inside tapered thread of the outer cone thread of male joint and the female joint of next drilling rod screws and is connected; The male joint d-axis section axial plane appropriateness extruding O RunddichtringO of the d-axis hole section axial plane of female joint and a last drilling rod also forms radial seal, the inside tapered thread of female joint screws with the outer cone thread of the male joint of a last drilling rod and is connected, and both actings in conjunction can be born the water under high pressure of 30～50MPa down and do not revealed.
The tapering of the outer cone thread of described male joint and the inside tapered thread of female joint is 3.5 °～4.5 °, and pitch is 4.5～5.5mm.
The beneficial effects of the utility model are:
1. compare with the general drilling rod that only depends on the taper thread sealing, its pressure that bears water is brought up to present 50MPa by 0.5 original～3MPa.
2. adopt the drilling rod of end face seal to compare with other, the O RunddichtringO life-span is improved about 20 times, draws materials easily.
3. adopt the drilling rod of end face seal to compare with other, operate easier.
4. compare simple in structure, handling ease, durable in use with the sealing drilling rod of the special processing of needs.
5. this water under high pressure sealing drilling rod compliance is strong, also is applicable to the hole operation of wind gang drill.
Description of drawings

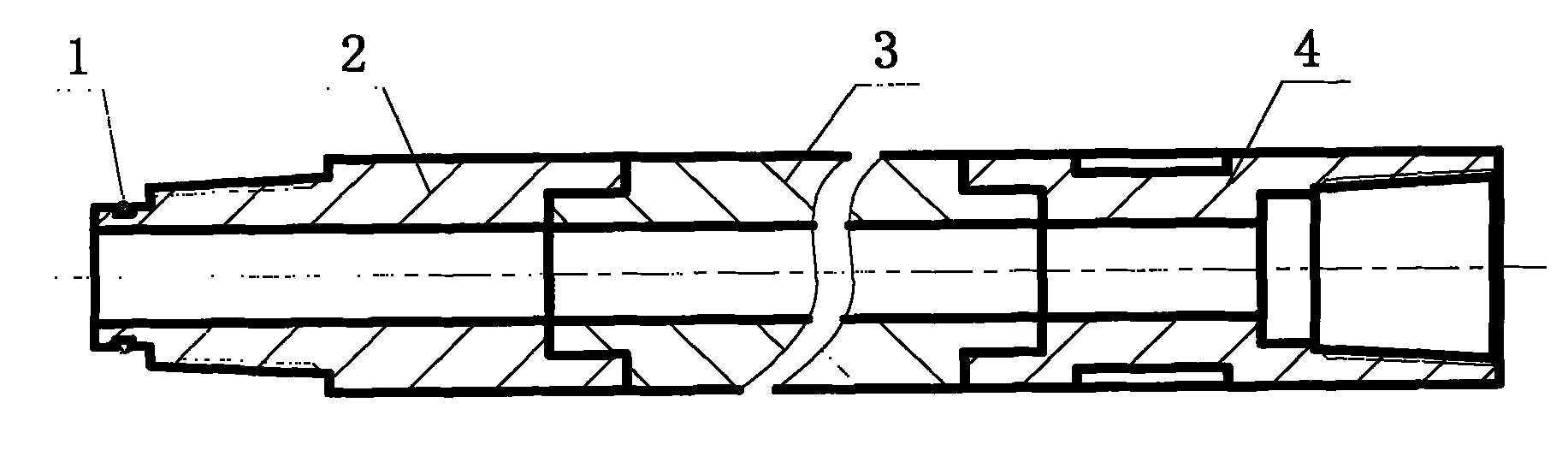

Fig. 1 is a water under high pressure sealing drilling rod axial section.
Fig. 2 is that axial vane surface figure is cutd open in male joint
Fig. 3 female joint axial section
Among the figure: 1.O RunddichtringO 2. male joints 3. intervalves 4. female joint 2-1. male joint d-axis section 2-2. ring-shaped groove 2-3. outer cone thread 2-4. male joint soldering opening 4-1. female joint welding section 4-2. hexahedron section 4-3. female joint d-axis hole section 4-4. inside tapered threads
The specific embodiment
Below in conjunction with drawings and Examples the utility model is further specified.
Referring to Fig. 1, this water under high pressure sealing drilling rod external diameter is 50mm, and length is 750mm, and the drilling rod main body is welded by male joint 2, intervalve 3 and female joint 4, and 2-4 is the male joint soldering opening.4-1 is the female joint welding section.The centre of female joint 4 is hexahedron section 4-2.The d-axis hole section 4-3 length of the d-axis section 2-1 of male joint and female joint is 12mm, and they are connected with the female joint d-axis hole section of next drilling rod and the d-axis section of a last fillet of tool joint pins respectively, and connecting back two axial plane separations is 0.5mm.Be arranged at ring-shaped groove 2-2 on the section 4-3 of d-axis hole, width is 2.5mm, and the degree of depth is 1.2mm.Ring-shaped groove 2-2 puts into O RunddichtringO 1 before drilling rod connects, thereby drilling rod connects back male joint d-axis section axial plane, female joint d-axis hole section axial plane appropriateness extruding O RunddichtringO 1 is realized radial seal.The tapering of the outer cone thread 2-3 of male joint 2 and the inside tapered thread 4-4 of female joint 4 is 3.5 °～4.5 °, screw thread be length be 38mm 5 teeth/time taper pipe thread made in Great Britain.The inside tapered thread of the outer cone thread 2-3 of male joint 2 and the female joint of next drilling rod screws and is connected, and the inside tapered thread 4-4 of female joint 4 screws with the outer cone thread of the male joint of a last drilling rod and is connected.
Above-mentioned drilling rod can bear the water under high pressure of 50MPa in the synergy of the auxiliary seal of radial seal and taper thread, and does not leak.Because rubber-like O RunddichtringO 1 closely is connected with ring-shaped groove 2-2, difficult drop-off is easy and simple to handle.Two drilling rods connect back male joint d-axis section axial plane and female joint d-axis hole section axial plane separation relative fixed, can not cause O RunddichtringO 1 because of excessive compression lost efficacy, and make the sealing ring life-span improve 20 times.O RunddichtringO 1 adopts the General Purpose Rubber standard component, has to draw materials conveniently low cost and other advantages.
Claims (2)
1. water under high pressure sealing drilling rod, described water under high pressure sealing drilling rod main body is welded successively by male joint (2), intervalve (3) and female joint (4) three parts; It is characterized in that:
The link that described male joint (2) is connected with the female joint (4) of next drilling rod is connected to form by d-axis section (2-1) and outer cone thread (2-3) successively, and a ring-shaped groove (2-2) is arranged on described d-axis section (2-1), is provided with O RunddichtringO (1) in the groove;
The link that described female joint (4) is connected with the male joint (2) of a last drilling rod is connected to form by d-axis hole section (4-3) and inside tapered thread (4-4) successively;
Described drilling rod connects the d-axis section axial plane of back male joint (2) and the female joint d-axis hole section axial plane appropriateness extruding O RunddichtringO (1) of next drilling rod forms radial seal, and the inside tapered thread (4-4) of the outer cone thread (2-3) of male joint (2) and the female joint of next drilling rod screws and is connected; The male joint d-axis section axial plane appropriateness extruding O RunddichtringO (1) of the d-axis hole section axial plane of female joint (4) and a last drilling rod also forms radial seal, and the inside tapered thread of female joint (4-4) screws with the outer cone thread (2-3) of the male joint (2) of a last drilling rod and is connected.
2. water under high pressure sealing drilling rod according to claim 1 is characterized in that: the tapering of the outer cone thread (2-3) of described male joint (2) and the inside tapered thread (4-4) of female joint is 3.5 °～4.5 °, and pitch is 4.5～5.5mm.
