CN201626199U - Combined type pencil - Google Patents
Combined type pencil Download PDFInfo
- Publication number
- CN201626199U CN201626199U CN2010201232836U CN201020123283U CN201626199U CN 201626199 U CN201626199 U CN 201626199U CN 2010201232836 U CN2010201232836 U CN 2010201232836U CN 201020123283 U CN201020123283 U CN 201020123283U CN 201626199 U CN201626199 U CN 201626199U
- Authority
- CN
- China
- Prior art keywords
- connector
- pencil
- single head
- combined type
- nib seat
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Mechanical Pencils And Projecting And Retracting Systems Therefor, And Multi-System Writing Instruments (AREA)
Abstract
The utility model discloses a combined type pencil, which is characterized by consisting of a pen cap, a plurality of single pen tips and a plurality of connecting bodies for connecting the single pen tips; the single pen tips and the connecting bodies are orderly plugged together to form a pencil main body in the sequence of single pen tip-connecting body; the pen cap is sheathed at the front end of the pencil main body; and the single pen head is provided with a pen core. The utility model is simple and practical, can be used for a long term without using a pencil sharpener, and is convenient to carry.
Description
Technical field
The utility model relates to a kind of combined type pencil.
Background technology
Traditional pencil must cooperate with pencil sharpener and could use, and therefore, carries inconvenience, and the wood chip that rolls out also influences desk and indoor clean and tidy easily during volume.Therefore, be necessary to design a kind of use pencil more easily.
The utility model content
The utility model wants the technical solution problem to provide a kind of combined type pencil, and this combined type pencil is simple and practical, needn't use pencil sharpener just can use for a long time, and is easy to carry.
The utility model is to solve the problems of the technologies described above the technical scheme that is adopted to be:
A kind of combined type pencil is characterized in that, is made up of with a plurality of connectors that are used to be connected the single head a cap for brush, a plurality of single head; All single heads and connector are plugged on according to this and form the pencil body together according to single head-connector order; The cap for brush is sleeved on the front end of pencil body, on the described single head pen core is installed.
The single head is made up of pen core and nib seat; Described pen core is installed in nib seat front end, and written base rear end is provided with nib seat jack; Connector is made up of connector front end and connector rear end; The connector rear end is provided with the connector jack that matches with nib seat front end; Described connector front end is inserted in the nib seat jack.
The beneficial effects of the utility model:
The combined type pencil that the utility model is related is formed by a plurality of combination of components, and first single head is finished using, and the untapped single of the next one can be changed to first position first watch; Therefore, use very flexible, and, can not produce wood chip when changing the single head, therefore can keep the clean and tidy of working environment; In addition, when carrying, this combined type pencil needn't be equipped with pencil sharpener, and therefore easy to carry.
Description of drawings
Fig. 1 is the split structural representation of combined type pencil;

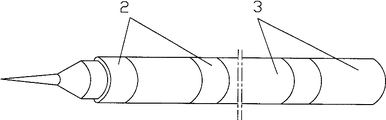

Fig. 2 is the structural representation after the pencil body of combined type pencil is assembled.
Label declaration: the 1-cap for brush, 2-single head, 3-connector, 21-pen core, 22-nib seat front end, 23-nib base rear end, 31-connector front end, 32-connector rear end.
The specific embodiment
The utility model is described in further detail below in conjunction with the drawings and specific embodiments.
Embodiment 1:
As Fig. 1-2, a kind of combined type pencil is made up of with a plurality of connectors 3 that are used to be connected the single head a cap for brush 1, a plurality of single head 2; All single heads 2 and connector 3 are plugged on according to this and form pencil body (see figure 2) together according to single head-connector order; The cap for brush 1 is sleeved on the front end of pencil body, on the described single head 2 pen core 21 is installed.
The single head is identical with connector quantity, is 5～10.
During use, the plug-in according to this formation pencil of single head and connector body.Because each single head and connector be plug-in mounting flexibly all, therefore, the position of single head can change flexibly.When the pen core of first single head has consumed, another untapped single can be changed to first position first watch, pencil just can have been reused, and used single head is placed on the rear end and still uses as the part of penholder, and is constant with the length that keeps the pencil body.
Claims (2)
1. a combined type pencil is characterized in that, is made up of with a plurality of connectors that are used to be connected the single head a cap for brush, a plurality of single head; All single heads and connector are plugged on according to this and form the pencil body together according to single head-connector order; The cap for brush is sleeved on the front end of pencil body, on the described single head pen core is installed.
2. combined type pencil according to claim 1 is characterized in that, the single head is made up of pen core and nib seat; Described pen core is installed in nib seat front end, and written base rear end is provided with nib seat jack; Connector is made up of connector front end and connector rear end; The connector rear end is provided with the connector jack that matches with nib seat front end; Described connector front end is inserted in the nib seat jack.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN2010201232836U CN201626199U (en) | 2010-03-04 | 2010-03-04 | Combined type pencil |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN2010201232836U CN201626199U (en) | 2010-03-04 | 2010-03-04 | Combined type pencil |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN201626199U true CN201626199U (en) | 2010-11-10 |
Family
ID=43057585
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN2010201232836U Expired - Fee Related CN201626199U (en) | 2010-03-04 | 2010-03-04 | Combined type pencil |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN201626199U (en) |
-
