Abstract
The utility model relates to a three-station isolation grounding switch electric connection device, which belongs to the field of power equipment, and is provided with a four-way barrel, a grounding cover plate and a disc type insulator which are respectively fixed on the four-way barrel by bolts, a grounding electric connection rod is fixed on the grounding cover plate through the bolts, an isolating electric connection rod is fixed on the disc type insulator through the bolts, the middle portion of a rotating electric connection rod and a through rotating shaft are connected into an integrated body, the two ends of the rotating shaft are connected with a support seat through a bearing, a three-phase connector is connected into an integrated body by the rotating shaft through a rotating insulator, a driving shaft and the rotating shaft are connected through the rotating insulator, the grounding electric connection rod, the rotating electric connection rod and the isolating electric connection rod are respectively provided with watch band sensing finger mounting slots, multiple contact type watch band sensing fingers are arranged in the watch band sensing finger mounting slots, and the rotating electric connection rod is respectively vertical to the grounding electric connection rod and the isolating electric connection rod. The three-station isolation grounding switch electric connection device has convenient mounting and more compact electric connection integral structure, saves the inner space of the insulating switch, and has higher electric connection reliability.
Description
Technical field
The utility model relates to carries electric apparatus field, says it is a kind of 72.5 kilovolt of three station isolation earthing switch electrical connection device in detail.
Background technology
As everyone knows: the gas insulated metal enclosed swit chgear isolation earthing switch is regenerated through bringing in constant renewal in, product develops towards simple, convenience, safety, integration direction, three station isolation earthing switch are also more and more had an optimistic view of by the user with it self advantage, but the conductive component complex structure of isolation earthing switch the inside, relatively harsher to installation requirement, difficult for the overall performance control ratio of switch; Originally the fingertip of Cai Yonging is the flap fingertip, because the demand of ampacity, the structure that electrically connects is huger, and is bigger for the barrel space dimensional requirement of switch, has restricted isolation earthing switch and has developed to the direction of oversimplifying miniaturization.
Summary of the invention
The purpose of this utility model just is to overcome the deficiency of existing technology, a kind of three station isolation earthing switch electrical connection devices are provided, simple in structure, easy for installation, satisfying under the situation of rated current, the overall structure that electrically connects is compact more, profile is littler, has saved the inner space of isolating switch, and the reliability that electrically connects is higher.
The utility model adopts following technical solution: a kind of three station isolation earthing switch electrical connection devices, be provided with the four-way cylindrical shell, ground connection cover plate and disk insulator are fixed by bolts to respectively on the four-way cylindrical shell, ground connection Electricity Federation bar is by being bolted on the ground connection cover plate, isolate the Electricity Federation extension bar by being bolted on the disk insulator, rotate extension bar centre, Electricity Federation and be connected as a single entity by rotating shaft, the rotating shaft two ends link to each other with bearing by bearing, rotating shaft is connected as a single entity three-phase conductor by rotating insulator, link to each other through rotating insulator between driving shaft and the rotating shaft, ground connection Electricity Federation extension bar, rotate the Electricity Federation extension bar, isolate on the extension bar of Electricity Federation and have watchband fingertip mounting groove, multiconductor formula watchband fingertip is housed in the watchband fingertip mounting groove, and rotation Electricity Federation extension bar is vertical with ground connection Electricity Federation extension bar and isolation Electricity Federation extension bar respectively.
The beneficial effects of the utility model are, and are simple in structure, easy for installation, satisfying under the situation of rated current, and the overall structure that electrically connects is compact more, and profile is littler, has saved the inner space of isolating switch, and the reliability that electrically connects is higher.
Description of drawings
Below in conjunction with drawings and Examples the utility model is further specified.

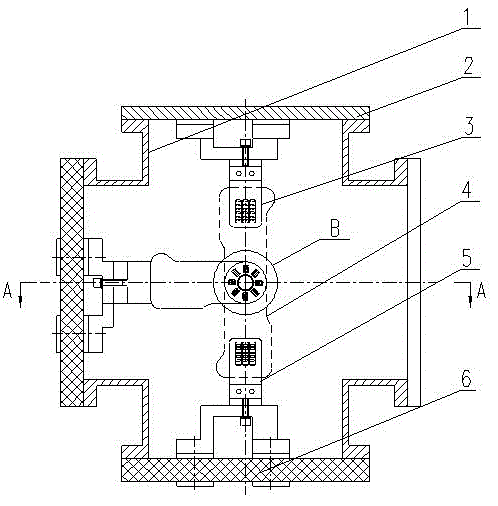

Fig. 1 is a structural representation of the present utility model.
Fig. 2 is the A-A cutaway view of Fig. 1.
Fig. 3 is the partial enlarged drawing of B portion among Fig. 1.
1. four-way cylindrical shells among the figure, 2. ground connection cover plate, 3. ground connection Electricity Federation extension bar 4. rotates the Electricity Federation extension bar, 5. isolates the Electricity Federation extension bar, 6. disk insulator, 7. bearing 8. rotates insulator, 9. bearing, 10. rotating shaft, 11. driving shafts, 12. watchband fingertips.
Embodiment
The utility model is described in further detail below in conjunction with the drawings and specific embodiments, to help understanding content of the present utility model
As Fig. 1, Fig. 2, shown in Figure 3, the utility model is provided with four-way cylindrical shell 1, ground connection cover plate 2 and disk insulator 6 are fixed by bolts to respectively on the four-way cylindrical shell 1, ground connection Electricity Federation bar 3 is by being bolted on the ground connection cover plate 2, isolate Electricity Federation extension bar 5 by being bolted on the disk insulator 6, rotate Electricity Federation extension bar 4 centres and be connected as a single entity by rotating shaft 10, rotating shaft 10 two ends link to each other with bearing 7 by bearing 9, rotating shaft 10 is connected as a single entity three-phase conductor by rotating insulator 8, link to each other through rotating insulator 8 between driving shaft 11 and the rotating shaft 10, can can guarantee insulation again by driving torque, ground connection Electricity Federation extension bar 3, rotate Electricity Federation extension bar 4, isolate on the Electricity Federation extension bar 5 and have watchband fingertip mounting groove, multiconductor formula watchband fingertip 12 is housed in the watchband fingertip mounting groove, and rotation Electricity Federation extension bar 4 is vertical with ground connection Electricity Federation extension bar 3 and isolation Electricity Federation extension bar 5 respectively.
Claims (1)
1. station isolation earthing switch electrical connection device, be provided with the four-way cylindrical shell, it is characterized in that: ground connection cover plate and disk insulator are fixed by bolts to respectively on the four-way cylindrical shell, ground connection Electricity Federation bar is by being bolted on the ground connection cover plate, isolate the Electricity Federation extension bar by being bolted on the disk insulator, rotate extension bar centre, Electricity Federation and be connected as a single entity by rotating shaft, the rotating shaft two ends link to each other with bearing by bearing, rotating shaft is connected as a single entity three-phase conductor by rotating insulator, link to each other through rotating insulator between driving shaft and the rotating shaft, ground connection Electricity Federation extension bar, rotate the Electricity Federation extension bar, isolate on the extension bar of Electricity Federation and have watchband fingertip mounting groove, multiconductor formula watchband fingertip is housed in the watchband fingertip mounting groove, and rotation Electricity Federation extension bar is vertical with ground connection Electricity Federation extension bar and isolation Electricity Federation extension bar respectively.
