Abstract
本实用新型公开了一种多功能杯，由杯身、杯盖组成，所述茶叶容器放入在杯身的底部位置，茶漏设置在茶叶容器的中间，吸管的一端插入茶叶容器顶部的圆孔中，杯盖安装在杯身的顶部，杯盖下部设有连接件，所述吸管穿过连接件卡接在杯盖中部的中空部位，在连接件上部的中空部位设有按键，所述吸管的管口顶部的一部分折叠放在按键的下面。上述多功能杯上所设的茶叶容器可以将茶叶封装在容器中，而且吸管在茶漏的上部，这样就不会在喝水的时候将茶叶饮入，另外吸管的管口卡在按键内，这样也不会把水流出，在行驶的汽车上饮水时可以通过吸管饮水，这样也不会使水撒在身上。该多功能杯结构简单，方便实用。
The utility model discloses a multifunctional cup, which consists of a cup body and a cup cover. The tea container is placed at the bottom of the cup body, a tea strainer is arranged in the middle of the tea container, one end of a straw is inserted into a round hole at the top of the tea container, and the cup cover is installed at the top of the cup body. A connecting piece is arranged at the lower part of the cup cover, and the straw passes through the connecting piece and is clamped in a hollow part in the middle part of the cup cover. A button is arranged in the hollow part at the upper part of the connecting piece, and a part of the top of the pipe mouth of the straw is folded and placed under the button. The tea container arranged on the multifunctional cup can encapsulate tea leaves in the container, and the straw is at the upper part of the tea strainer, so that tea leaves will not be drunk into the container when drinking water. In addition, the pipe mouth of the straw is clamped in the button, so that water will not flow out. When drinking water in a moving car, water can be drunk through the straw, so that water will not be spilled on the body. The multifunctional cup has a simple structure and is convenient and practical.
Description
Technical field
The utility model belongs to a kind of cup, particularly a kind of multifunction cup.
Background technology
Cup is the necessary article of family life, is used for drinking water, and existing most of cups are cylindrical, comprise glass body and bowl cover, function singleness simple in structure.If want in cup, to put into for example tealeaves and so on of certain solid thing, like this in the process of drinking water, easily the solids in the cup is drunk in the inlet, the solids that we can only drink these in inlet is told, and not only mouthfeel is bad has also just wasted solids under situation about not playing a role fully.In addition, most of cups all do not have suction pipe, if when going out by bus outside, want to drink water in vehicle travels, and water will be sprinkled upon the outside because of carelessness, have caused very big inconvenience for our life.
Summary of the invention
The purpose of this utility model is for a kind of solids that can avoid drinking in the cup is provided, and appoints the multifunction cup that so can drink water in the vehicle driving process.
To achieve these goals, solution of the present utility model is: a kind of multifunction cup, form by cup body, bowl cover, described tealeaves container is placed in the bottom position of glass body, tea leaks the centre that is arranged on the tealeaves container, one end of suction pipe inserts in the circular hole of tealeaves container top, bowl cover is installed in the top of glass body, the bowl cover bottom is provided with connector, described suction pipe passes the hollow part that connector is connected to the bowl cover middle part, hollow part on connector top is provided with button, the part at the mouth of pipe top of described suction pipe is folding be placed on button below.
Tealeaves container set on the above-mentioned multifunction cup can be encapsulated in tealeaves in the container, and suction pipe is on the top of tea leakage, so can be when not drinking water tealeaves do not drunk into, the mouth of pipe of suction pipe is stuck in the button in addition, so can not flow out water yet, drinking-water the time can be drunk water by suction pipe on traveling automobile, so also can not make on one's body water is sprinkling upon.This multifunction cup is simple in structure, and is convenient and practical.
Description of drawings

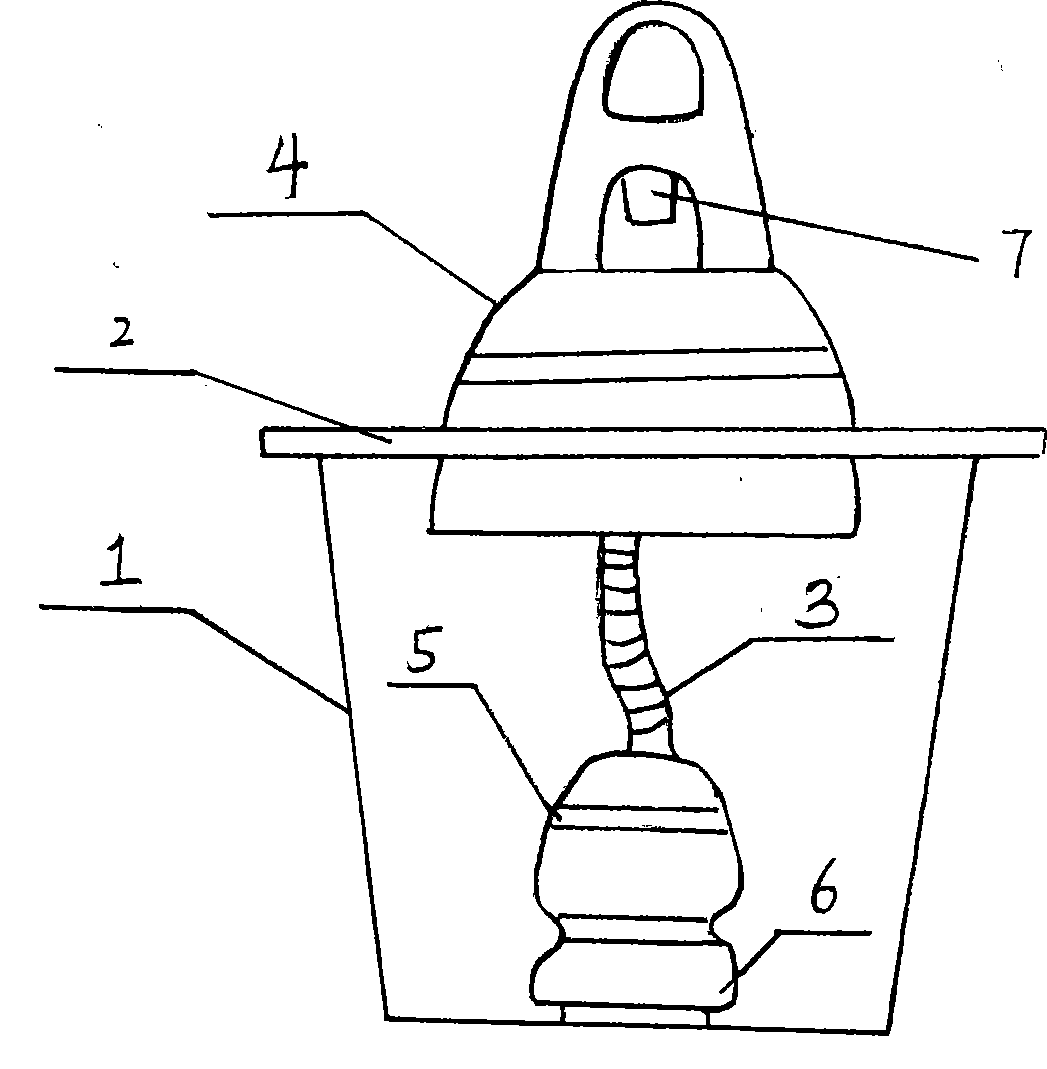

Fig. 1 is the structural representation of the utility model embodiment.
The specific embodiment
As shown in Figure 1, this multifunction cup, connect to form by cup body 1 and bowl cover 2, described tealeaves container 6 is placed in the bottom position of glass body 1, tea leakage 5 is arranged on the centre of tealeaves container 6, one end of suction pipe 3 inserts in the circular hole at tealeaves container 6 tops, bowl cover 2 is installed in the top of glass body 1, bowl cover 2 bottoms are provided with connector 4, described suction pipe 3 passes the hollow part that connector 4 is connected to bowl cover 2 middle parts, hollow part on connector 4 tops is provided with button 7, the part at the mouth of pipe top of described suction pipe 3 is folding be placed on button 7 below.
Claims (1)
1. multifunction cup, form by cup body (1) and bowl cover (2), it is characterized in that: described tealeaves container (6) is placed in the bottom position of a glass body (1), tea leaks the centre that (5) are arranged on tealeaves container (6), one end of suction pipe (3) inserts in the circular hole at tealeaves container (6) top, bowl cover (2) is installed in the top of a glass body (1), bowl cover (2) bottom is provided with connector (4), described suction pipe (3) passes the hollow part that connector (4) is connected to bowl cover (2) middle part, hollow part on connector (4) top is provided with button (7), the part at the mouth of pipe top of described suction pipe (3) is folding be placed on button (7) below.
