Abstract
本实用新型公开了一种家用太阳能照明装置，包括太阳能电池组件、充放电控制器、储能蓄电池、逆变控制器和照明灯具，所述太阳能电池组件1设置在房顶、外墙或阳台，所述充放电控制器、储能蓄电池和逆变控制器装在室内的组合箱中，所述太阳能电池组件、充放电控制器、储能蓄电池、逆变控制器和照明灯具电联。这种家用太阳能照明装置由太阳能供电，安装简单、价格合理、使用寿命长、环保无污染。
The utility model discloses a household solar lighting device, which comprises a solar battery assembly, a charging and discharging controller, an energy storage battery, an inverter controller and a lighting lamp. The solar battery assembly 1 is arranged on a roof, an outer wall or a balcony. The charging and discharging controller, energy storage battery and inverter controller are installed in a combination box indoors, and the solar cell assembly, charging and discharging controller, energy storage battery, inverter controller and lighting lamps are electrically connected. The household solar lighting device is powered by solar energy, has simple installation, reasonable price, long service life, environmental protection and no pollution.
Description
技术领域technical field
本实用新型涉及一种照明装置，特别涉及一种家用太阳能照明装置。The utility model relates to a lighting device, in particular to a household solar lighting device.
背景技术Background technique
目前家庭使用的灯都以市电为能源，国内缺电现象较为严重，所以人们花费大量人力、物理开发新能源；太阳能是一种绿色环保、可再生能源，取之不尽用之不竭。目前，我国太阳能产品主要是太阳能热水器、路灯，要想将太阳能广泛推广应用，必须发明一种安装简单、实用、价格合理的技术。At present, the lamps used in households all use mains electricity as the energy source, and the domestic power shortage phenomenon is more serious, so people spend a lot of manpower and physical development of new energy sources; solar energy is a kind of green environmental protection, renewable energy, which is inexhaustible. At present, my country's solar energy products are mainly solar water heaters and street lamps. In order to widely promote and apply solar energy, it is necessary to invent a technology that is simple to install, practical and reasonably priced.
实用新型内容Utility model content
本实用新型的目的就在于提供一种由太阳能供电，安装简单、价格合理、寿命长、环保无污染的家用太阳能照明装置。The purpose of the utility model is to provide a household solar lighting device powered by solar energy, simple to install, reasonable in price, long in life, environmentally friendly and pollution-free.
为了实现上述目的，本实用新型采用的技术方案是这样的：本实用新型的家用太阳能照明装置，包括太阳能电池组件、充放电控制器、储能蓄电池、逆变控制器和照明灯具，所述充放电控制器、储能蓄电池和逆变控制器装在室内的组合箱中，所述太阳能电池组件、充放电控制器、储能蓄电池、逆变控制器和照明灯具电联。In order to achieve the above purpose, the technical solution adopted by the utility model is as follows: the household solar lighting device of the utility model includes a solar battery assembly, a charging and discharging controller, an energy storage battery, an inverter controller and a lighting fixture. The discharge controller, the energy storage battery and the inverter controller are installed in the combination box indoors, and the solar cell assembly, the charge and discharge controller, the energy storage battery, the inverter controller and the lighting fixture are electrically connected.
与现有技术相比，本实用新型的优点在于：这种家用太阳能照明装置无需市电供电，完全由太阳能供电，安装简单、价格合理、使用寿命长、环保无污染，使用广泛。Compared with the prior art, the utility model has the advantages that the household solar lighting device does not need mains power supply, is completely powered by solar energy, has simple installation, reasonable price, long service life, environmental protection and no pollution, and is widely used.
附图说明Description of drawings

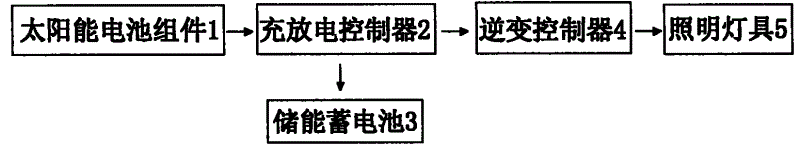

图1为本实用新型的框架示意图。Fig. 1 is a schematic diagram of the framework of the present utility model.
具体实施方式Detailed ways
下面将结合附图对本实用新型作进一步说明。The utility model will be further described below in conjunction with accompanying drawing.
参见图1，本实用新型的家用太阳能照明装置，包括太阳能电池组件1、充放电控制器2、储能蓄电池3、逆变控制器4和照明灯具5，所述太阳能电池组件1设置在房顶、外墙或阳台，所述充放电控制器2、储能蓄电池3和逆变控制器4装在室内的组合箱中，相当于一个配电柜，所述太阳能电池组件1、充放电控制器2、储能蓄电池3、逆变控制器4和照明灯具5电联。Referring to Fig. 1, the household solar lighting device of the present utility model includes a solar cell assembly 1, a charging and discharging controller 2, an energy storage battery 3, an inverter controller 4 and a lighting fixture 5, and the solar cell assembly 1 is arranged on the roof , external wall or balcony, the charge and discharge controller 2, the energy storage battery 3 and the inverter controller 4 are installed in an indoor combination box, which is equivalent to a power distribution cabinet, and the solar cell assembly 1, charge and discharge controller 2. The energy storage battery 3, the inverter controller 4 and the lighting fixture 5 are electrically connected.
太阳能电池组件1安装在屋顶上，接收太阳能并将太阳能转化为电能，经过充放电控制器2向储能蓄电池3充电，充放电控制器2对储能蓄电池3起保护作用，即起过充电、过放电保护；再通过逆变控制器4将储能蓄电池3的直流电逆变为220V交流电，为照明灯具5供电。The solar battery module 1 is installed on the roof, receives solar energy and converts the solar energy into electric energy, and charges the energy storage battery 3 through the charge and discharge controller 2, and the charge and discharge controller 2 protects the energy storage battery 3, that is, overcharge, Over-discharge protection; and then through the inverter controller 4, the DC power of the energy storage battery 3 is converted into 220V AC power to supply power for the lighting fixture 5.
