CN201577521U - Paper-making method thin plate crinkle shaping device - Google Patents
Paper-making method thin plate crinkle shaping device Download PDFInfo
- Publication number
- CN201577521U CN201577521U CN2009202894592U CN200920289459U CN201577521U CN 201577521 U CN201577521 U CN 201577521U CN 2009202894592 U CN2009202894592 U CN 2009202894592U CN 200920289459 U CN200920289459 U CN 200920289459U CN 201577521 U CN201577521 U CN 201577521U
- Authority
- CN
- China
- Prior art keywords
- paper
- crinkle
- making method
- roller
- thin plate
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 238000000034 method Methods 0.000 title claims abstract description 21
- 208000018999 crinkle Diseases 0.000 title abstract 5
- 238000007493 shaping process Methods 0.000 title abstract 5
- 238000010438 heat treatment Methods 0.000 claims abstract 2
- 230000005540 biological transmission Effects 0.000 claims description 2
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 abstract description 11
- 230000000694 effects Effects 0.000 abstract description 4
- 235000019504 cigarettes Nutrition 0.000 abstract description 3
- 238000010586 diagram Methods 0.000 description 3
- 238000001035 drying Methods 0.000 description 2
- 238000005516 engineering process Methods 0.000 description 2
- 238000007591 painting process Methods 0.000 description 2
- 241000208125 Nicotiana Species 0.000 description 1
- 235000002637 Nicotiana tabacum Nutrition 0.000 description 1
- 230000007812 deficiency Effects 0.000 description 1
- 238000004519 manufacturing process Methods 0.000 description 1
Images
Abstract
The utility model discloses a paper-making method thin plate crinkle shaping device, which belongs to the technical field of cigarette thin plates. The paper-making method thin plate crinkle shaping device consists of a pressing roller and a supporting roller which are mutually close, wherein the pressing roller with rapider rotation speed is located on the upper portion, and the supporting roller with slower rotation speed is located on the lower portion. The surface of the pressing roller is a flat surface, and convex grains evenly distributed along an axial direction are arranged on the surface of the supporting roller. The convex grains are continuous and in long strip shapes, or are separate and in short strip shapes. A hot water pipe for heating the surface of the supporting roller is arranged in the supporting roller. The paper-making method thin plate crinkle shaping device has reasonable design, simple structure, convenient use, easy implementation and excellent crinkle shaping effect, and can effectively improve the quality of paper-making method thin plates.
Description
Technical field
The utility model belongs to the tobacco slice technical field, and being specifically related to a kind of can be the device of wrinkling typing thin slice with the paper process wafer processes.
Background technology
In the prior art, the paper process thin slice has the good burnt characteristic of falling, and falls one of important means of burnt consumption reduction as cigarette product, and its application in cigarette product is increasingly extensive.The wrinkling typing of thin slice can improve its crimpness, improves filling capacity, further improves flammability, improves the aesthetic quality, reaches to reduce to consume the purpose of improving the quality of products.The technology that realizes the wrinkling typing of thin slice has different modes, at present, have only the roll-in method thin slice that creped product is arranged, but its corrugation effect is not ideal enough, and its device is not suitable for the wrinkling typing of paper process thin slice.
The utility model content
At the above-mentioned deficiency of prior art, the technical problems to be solved in the utility model provides the device of the wrinkling typing of a kind of paper process thin slice, with the wrinkling typing of paper process thin slice, thereby, the quality of raising paper process thin slice.
The technical solution of the utility model is: the device of the wrinkling typing of paper process thin slice contains organic frame, transmission mechanism, bearing, the wrinkling typing part of this device is made up of pressure roller that adjoins each other and carrying roller, wherein, velocity of rotation pressure roller faster is positioned at the top, and the slower carrying roller of velocity of rotation is positioned at the below; The surface of pressure roller is a tabular surface, and the surface of carrying roller is provided with the protruding line that distributes vertically uniformly.Described protruding line is continuous strip, or billet shape at interval.Be provided with the hot-water line that its surface is heated in the described carrying roller.
The utility model is reasonable in design, and is simple in structure, easy to use, implements easily, and wrinkling typing is effective, can improve the quality of paper process thin slice preferably.
Description of drawings

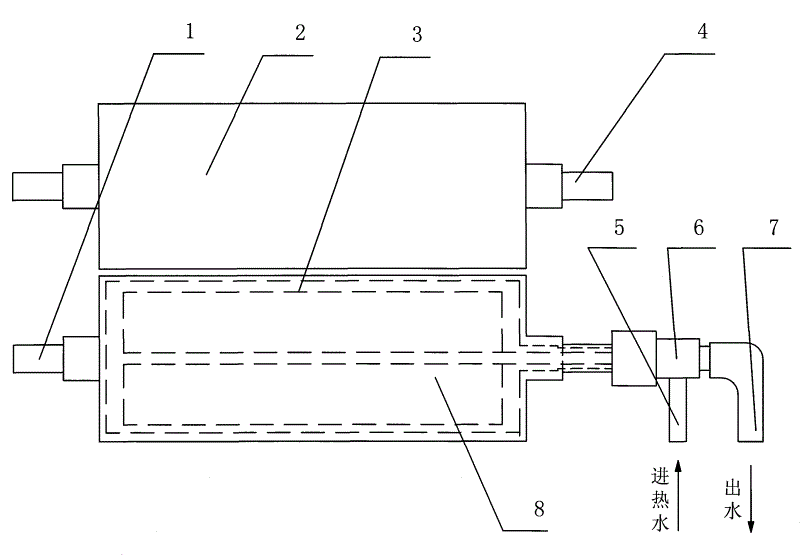

Accompanying drawing 2 is right TV structure schematic diagrames of accompanying drawing 1;
Accompanying drawing acceptance of the bid keep the score state as follows: the 1-roller carrier shaft; The 2-pressure roller; The 3-hot-water line; The 4-pressure roller shaft; The 5-hot water inlet; The 6-swivel joint; The 7-hot water outlet; The 8-carrying roller; The 9-thin slice; 10-projection line.
The specific embodiment
Below in conjunction with accompanying drawing the specific embodiment of the present utility model is described in further detail.At first explanation, for for simplicity, this device is fixed on the frame, and is not presented on the figure with contents such as control system are connected with motor, and because of these contents all are commonly used in the prior art, those of ordinary skill in the art all can finish voluntarily.As shown in Figure 1, this device is made up of pressure roller 2 and carrying roller 8, and pressure roller 2 surfaces that are positioned at the top are tabular surface, and carrying roller 8 surfaces that are positioned at the below are provided with protruding line 10, also are provided with the hot-water line 3 that its surface is heated in the inside of carrying roller 8.Hot water inlet 5 and the hot water outlet 7 of hot water in the hot-water line 3 on swivel joint 6 carried and output.Shown in the accompanying drawing 2, during the work of this device, be from process between pressure roller 2 and the carrying roller 8 with thin slice.Accompanying drawing 3 is depicted as protruding line 10, and this protruding line 10 can be consistent with carrying roller 8 length rectangular, also can be billet at interval, and billet can arranged in a crossed mannerly also can be arranged in parallel.When this device uses on production line, be arranged between painting process and the drying process, the thin slice that comes from painting process enters between the pressure roller 2 and carrying roller 8 of this device, and the pressure roller 2 and the carrying roller 8 of this device rotate in opposite directions, and thin slice passes through between two rollers with pressure roller 2 and carrying roller 8.Because the speed of pressure roller 2 is very fast, carrying roller 8 speed are slower, when rotating, protruding line 10 on the carrying roller 8 pushes into wrinkling state with thin slice, in carrying roller 8 under the heat effect of hot-water line 3, make wrinkling thin slice preliminarily dried and typing, the corrugation effect of the paper process thin slice of this device processing is fine.Thin slice after wrinkling is sent into drying process again and is dried to the setting index.
Claims (3)
1. the device of the wrinkling typing of a paper process thin slice, contain organic frame, transmission mechanism, bearing, it is characterized in that: the wrinkling typing part of described device is made up of pressure roller that adjoins each other (2) and carrying roller (8), wherein, velocity of rotation pressure roller (2) faster is positioned at the top, and the slower carrying roller (8) of velocity of rotation is positioned at the below; The surface of pressure roller (2) is a tabular surface, and the surface of carrying roller (8) is provided with the protruding line (10) that distributes vertically uniformly.
2. the device of the wrinkling typing of paper process thin slice according to claim 1 is characterized in that: described protruding line (10) is continuous strip, or at interval billet shape.
3. the device of the wrinkling typing of paper process thin slice according to claim 1 is characterized in that: be provided with the heating tube (3) that its surface is heated in the described carrying roller (8).
