Abstract
本实用新型公开了一种新型应用于电动汽车上的电池，其特征在于：所述电池包括外壳、上盖与下盖，上盖与下盖安装在外壳的两端且与外壳形成一内腔体，腔体内设有耐高温胶体支架结构，两边卡置圆柱磷酸铁锂电池，外壳的外表面上设有散热片；所述磷酸铁锂电池的正负极设有铜块，铜块与一连接柱连接，连接柱外围绝缘体固定在上盖的上面，铜块的周围设有耐高温绝缘胶。所述连接柱的外围部分设有内螺母。本实用新型具有效率高、性能良好、结构稳固、散热效果好的优点。
The utility model discloses a new type of battery applied to electric vehicles, which is characterized in that: the battery includes a casing, an upper cover and a lower cover, and the upper cover and the lower cover are installed at both ends of the casing and form an inner cavity with the casing body, the cavity is provided with a high-temperature-resistant colloidal bracket structure, and a cylindrical lithium iron phosphate battery is clamped on both sides, and a heat sink is provided on the outer surface of the shell; the positive and negative electrodes of the lithium iron phosphate battery are provided with copper blocks, and the copper block is connected with a The connection column is connected, the insulator around the connection column is fixed on the upper cover, and the copper block is provided with high temperature resistant insulating glue. The peripheral part of the connecting column is provided with an inner nut. The utility model has the advantages of high efficiency, good performance, stable structure and good heat dissipation effect.
Description
Technical field
The utility model relates to a kind of battery, and specifically a kind of efficient height, functional, structure are firm, the batteries of electric automobile of good heat dissipation effect.
Background technology
At present, the battery that generally uses on the electric automobile has lead-acid battery, Ni-MH battery and lithium ion battery etc.Lead-acid battery is cheap, but weight and volume are excessive, and energy density and power density are less, and environment is had pollution, does not re-use this battery on electric automobile substantially.Ni-MH battery energy density and power density are better than lead-acid battery, and the application on electric automobile is general.The lithium ion battery performance is better than Ni-MH battery, and is more and more noticeable at present, and the application on electric automobile is more and more.Lithium ion battery at present should be on electric automobile be mainly two kinds of lithium batteries: high energy LiMn2O4 and LiFePO4.There is the shortcoming that efficient is low, performance is bad, structure is firmly poor, radiating effect is bad in the traditional electric automobile battery.
Summary of the invention
The purpose of this utility model provides that a kind of efficient height, functional, structure are firm, the batteries of electric automobile of good heat dissipation effect.
The purpose of this utility model is achieved through the following technical solutions.
The battery of a kind of new application on electric automobile, it is characterized in that: described battery comprises shell, loam cake and lower cover, loam cake and lower cover are installed in the two ends of shell and form an inner chamber body with shell, be provided with high-temperature plastic body support frame structure in the cavity, both sides holding cylinder ferric phosphate lithium cell, the outer surface of shell is provided with fin; The both positive and negative polarity of described ferric phosphate lithium cell is provided with copper billet, and copper billet is connected with a joint pin, the peripheral insulator of joint pin be fixed on loam cake above, be provided with high-temperature insulation glue around the copper billet.
The periphery of described joint pin is provided with inner nut.
The utility model compared with prior art has the following advantages.
The utlity model has that efficient height, functional, structure are firm, the advantage of good heat dissipation effect.
Description of drawings

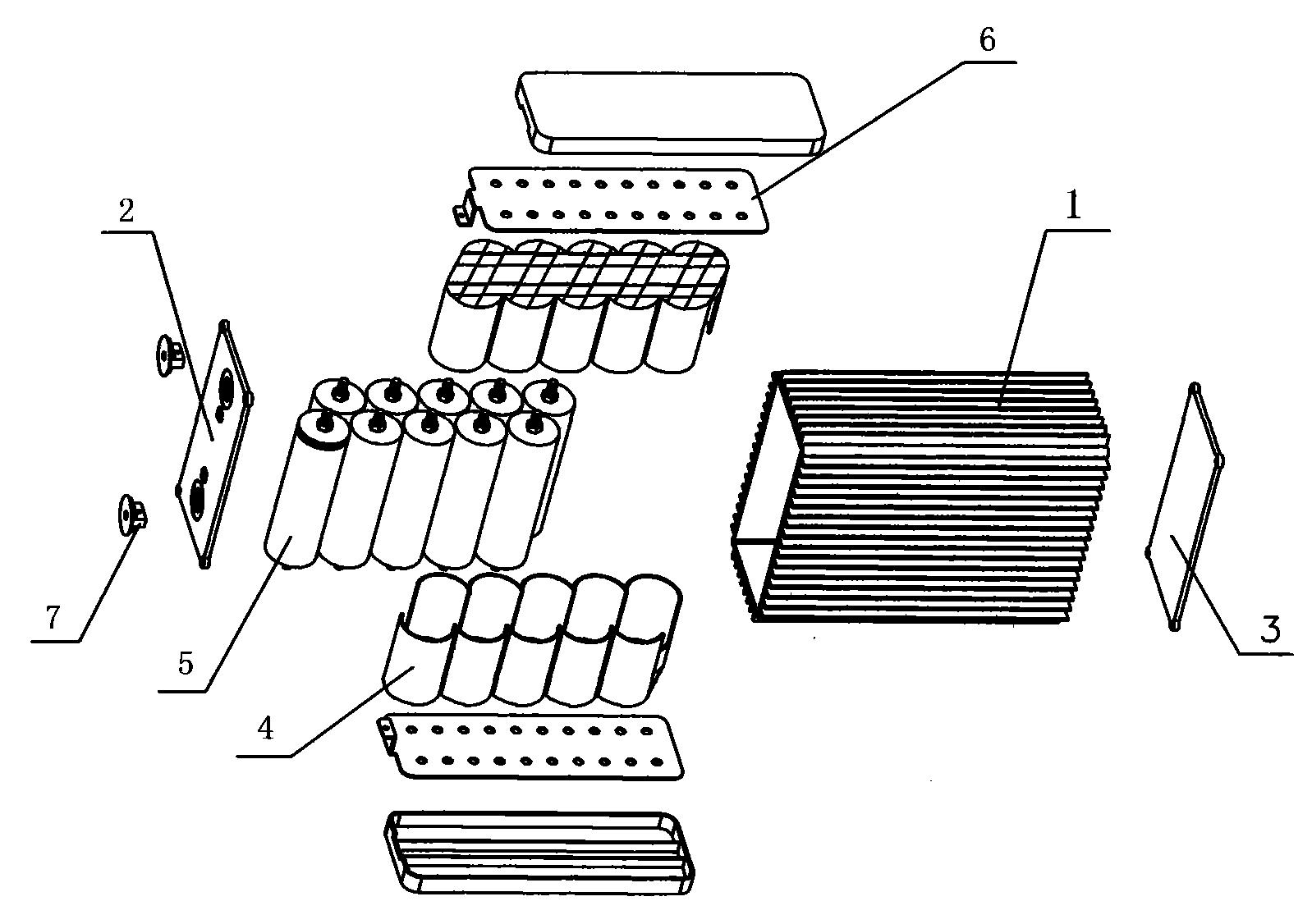

Fig. 1 is the decomposition texture schematic diagram of the utility model batteries of electric automobile.
Embodiment
Below in conjunction with accompanying drawing the utility model batteries of electric automobile is described in further detail.
As shown in Figure 1, batteries of electric automobile described in the utility model mainly is made up of with lower cover 3 shell 1, loam cake 2, loam cake and lower cover are installed in the two ends of shell and form an inner chamber body with shell, be provided with high-temperature plastic body support frame 4 in the cavity, both sides holding cylinder ferric phosphate lithium cell 5, single cylinder ferric phosphate lithium cell is 3.2V, 10AH.The outer surface of shell is provided with fin, plays the firm and thermolysis of structure.The both positive and negative polarity of ferric phosphate lithium cell is provided with copper billet 6, and copper billet is connected with a joint pin 7, the peripheral insulator of joint pin be fixed on loam cake above, be provided with high-temperature insulation glue around the copper billet.The periphery of joint pin is provided with inner nut, mainly is convenient to battery and series connection use.
Claims (2)
