Abstract
The utility model provides a smoke-free oven, which comprises an oven body, a switch, a burner and a barbecue screen plate. The smoke-free oven is characterized in that a heat insulation slot plate and an oil accumulation slot plate are arranged on the burner, an oil leaking plate is installed on the oil accumulation slot plate, the oil leaking plate, the heat insulation slot plate and the oil accumulation slot plate are distributed in a shape like a Chinese character 'pin', the barbecue screen plate is arranged on the oil leaking plate, the oil accumulation slot plate and the heat insulation slot plate are in parallel from top to bottom and are inclined to two sides or the middle with the same angle, a corresponding oil discharge hole is arranged on the lowest portion, an oil discharge slot or an oil storage disk are installed under the oil discharge hole, an outlet of the oil discharge slot is connected with an oil outlet pipe and an oil storage cup, and the smoke-free oven has the characteristics of simple structure, wide adaptability, high heat efficiency, energy conservation, environment protection and the like.
Description
Technical field
The utility model relates to a kind of machinery and equipment of food processing, particularly a kind of energy-conservation barbecuing oven causing no oil fume that belongs to the use of processing baked foods.
Background technology
Food roasting is one of daily food of liking of people, and its local flavor is other processing methods, as fry in shallow oil, boil, fry, the fried food of making is incomparable.But in methods of at present usually seeing some barbecue stalls barbecues on the market generally is can with a strip, the charcoal that is burning is loaded onto in inside, be placed on the can food such as a string meat of putting on, fish roasting, operating personnel constantly stir, because the oil smoke that skewer self is emerged in the process of baking drops on the charcoal that is burning, produce and contain CO, NO, NO in a large number
2Deng pernicious gas, form the people's that chokes dense smoke, influence appetite, nor met hygienic requirements, have also like serially adding into capsicum, pepper powder meat, fish roasted, and this dense smoke more makes us the nose of choking, and has had a strong impact on health, has polluted environment.Afterwards, the someone had invented ovens (case) such as electric oven and gas furnace, for example:
1. Chinese patent: smokeless roaster, application number: 02273101 applicant; Cai Mingcheng, summary: it provides a kind of smokeless roaster, and it is the good equipment of barbecue fowl, meat food.This stove is made up of body of heater, heat-generating pipe, driving chain, barbecue fork, temperature controller etc.Because the installation site of heat-generating pipe and barbecue fork can not be on same vertical plane, but staggered, avoid the barbecue grease directly to drop on the heat-generating pipe and produced smog, accomplished not have substantially oil smoke, do not pollute the environment.Because barbecue is stuck a gear is installed again, when chain drive, promptly driven gear rotates, thereby drives the constantly upset automatically of bilevel barbecue fork, food quality height.Also owing to being under airtight substantially condition, to roast, so meet sanitary standard.
2. Chinese patent: fuel baking oven, application number: 02262379, applicant: Li Xinquan, summary: it is characterized in that the frame that the flared tube in the combustion chamber places combustor outer casing, general mood plate, closure plate to surround, have the side that the combustion chamber is put in gas outlet, blower fan on the air dividing plate, be connected with ventilation duct, air vent is arranged on the draught tube walls, the heating board of erectting places the combustion chamber, and ventilation duct is positioned on the heating board, and on same vertical plane.The utility model barbecue is fast, and firepower is even, the grease of having avoided Broiled Dish to overflow, and the oil smoke that burning is produced has been eliminated the smoke pollution that the charcoal oven produces, and is subjected to liking of turnspit deeply.
3. Chinese patent: fuel baking oven, application number: 02249381, the applicant: multitude state lives; Li Weiguang; Gong Rizhao, summary: it discloses a kind of fuel baking oven, comprises having in housing, burner hearth, gas supply pipe, igniter, the burner hearth being no less than a burner, Broiled Dish hanging mechanism; Also comprise fuel gas mixer, fuel gas mixer has mixing chamber, air intake, fuel gas inlet and mixed gas outlet, and the mixed gas outlet place is provided with the baffle plate of band through hole, and air intake connects air blast, fuel gas inlet is connected with gas supply pipe, and mixed gas outlet is connected with burner; Described burner can be a combustion tube, and the two row's fire holes of arranging on the tube axial face of combustion tube are connected with the banking fire plate on the pipe face between two row's fire holes; Combustion tube is covered with the shelter-clad of band open-work.The utlity model has efficiency of combustion height, energy savings, the characteristics of environmental protection are suitable for the meats food applications in kitchen, Chinese and Western.
4. Chinese patent: fuel baking oven, application number: 02248433 applicant: Yan Tongfa, summary: it comprises housing, igniter, burner, barbecue rack and oil drip pan, above described burner, conductive cover is set, this conductive cover is provided with perforate, described conductive cover is microscler cambered surface lid, and described perforate is semicircle fenestration hole.Adopt the utility model structure, overcome effectively that former fuel baking oven rate of heat transfer is slow, the thermal efficiency low and the defective of easy cleaning not, be suitable for the food barbecue of food snack industry.
More than in the disclosed document, all adopted combustion gas as the energy, this is a kind of embodiment of technological progress, but, also there are some shortcomings in they, plant the structure more complicated as first three, need with transmissions such as chain, gears, or blow by means of air blast, this just needs to connect airduct, like this, and for many movable stands, it moves not too convenient, and the barbecue product is also undesirable; Though document four is simple in structure, and is provided with oil drip pan and contains oil, find that after the inventor investigates this kind device still can produce a large amount of dense smoke, can not solve the problem of fume pollution at all.
Summary of the invention
The purpose of this utility model is to overcome above-mentioned shortcoming, provide a kind of simple in structure, cost is lower, the barbecue process does not produce oil smoke, the energy-conservation barbecuing oven causing no oil fume of homogeneous heating.
Barbecuing oven causing no oil fume of the present utility model is realized in following mode:
This barbecuing oven causing no oil fume comprises body of heater, switch, burner and barbecuing mesh plate, be characterized in: the top of burner is provided with heat insulation frid and long-pending ditch plate, the top of long-pending ditch plate is equipped with the leakage of oil plate, the leakage of oil plate becomes Chinese character pin-shaped distribution with heat insulation frid, long-pending ditch plate, leakage of oil plate top is a barbecuing mesh plate, long-pending ditch plate parallel up and down with heat insulation frid and with identical angle to two ends or intermediate, inclined, lowest part has corresponding outage, the outage below is equipped with oil scupper or oil storage dish, and the oil scupper outlet picks out oil pipe and oil storage cup.
Above-described burner is a gas burner, and the gas pipeline interface is received burner through ignition switch.
Above-described burner is an electric heater, and power supply is received electric heater through switch.
Above-described burner can also be the charcoal burning device.
Above-described body of heater is provided with the platform of laying oily salt, flavouring or barbecue small tool, installation bracket on the platform edges.
Above-described heat insulation frid is one to two layer; The leakage of oil plate also can be made as one or more layers.
Above-described heat insulation frid and long-pending ditch plate are the structures of levels " ∨ " or " ∪ " shape; Described leakage of oil plate is the structure of " ∧ " or " ∩ " shape, when leakage of oil plate and heat insulation frid, when long-pending ditch plate becomes Chinese character pin-shaped distribution, the barbecue oil of leakage of oil plate flows down from " ∧ " or " ∩ " two ends, splash in " ∨ " or " ∪ " groove of long-pending ditch plate, just can not drip to burner surface, cause oil smoke.
Above-described heat insulation frid also can be dull and stereotyped, mainly can prevent the too high and over-emitting black exhaust of oil temperature.
Above-described burner is a disk burner or by plurality of rows or the molecular in-line burner of some tubulations, has many ventholes on the pipe.
Above-described heat insulation frid and long-pending ditch plate and leakage of oil plate are the branch body structures or make overall structure.
Above-described leakage of oil plate has several holes, makes heat be more evenly distributed.
The utility model has following advantage:
1. simple in structure, wide adaptability.The utility model only need be provided with two-layer up and down above heat insulation and leakage of oil plate, need not to increase other fume extractor, can reach the function of long-pending oil, oil extraction, whole stove conveniently moving, not only adapt to and be in or the fixed location baked foods, but also the stand barbecue that is particularly suitable for flowing.
2. thermal efficiency height, energy savings.The burner that the utility model adopts is made up of plurality of rows or some tubulations, and venthole is arranged above, shows that through result of the test it is more even than the flame of present plate-like burner on the market, and the furnace temperature height will be saved combustion gas about 1/3 than like product.
3. can use combustion gas or electric calorifie installation, outdoor barbecue adopts combustion gas or charcoal, and various occasions can be used.
4. environmental protection.The barbecue that in the past had only is provided with the leakage of oil plate, but, because produce a large amount of heats in the barbecue process, many oil have just splashed into the leakage of oil plate, these oil are just by the roasting warm of the stove of high temperature, become smog soon, be evaporated to the endoatmosphere, environment produced greatly pollute, the utility model is by the improvement to furnace construction, increased heat insulation frid and long-pending ditch plate, made the oil that drips in the barbecue at first splash into long-pending ditch plate and directly enter oil scupper and oil-out inflow oil storage cup from the leakage of oil plate; And the 3rd layer heat insulation frid, the heat that then plays burning keeps off between leakage of oil plate and leakage of oil plate, has solved the air-polluting problem that oil smoke causes, and has protected our healthy and the environmental sanitation of safeguarding the earth.
Description of drawings

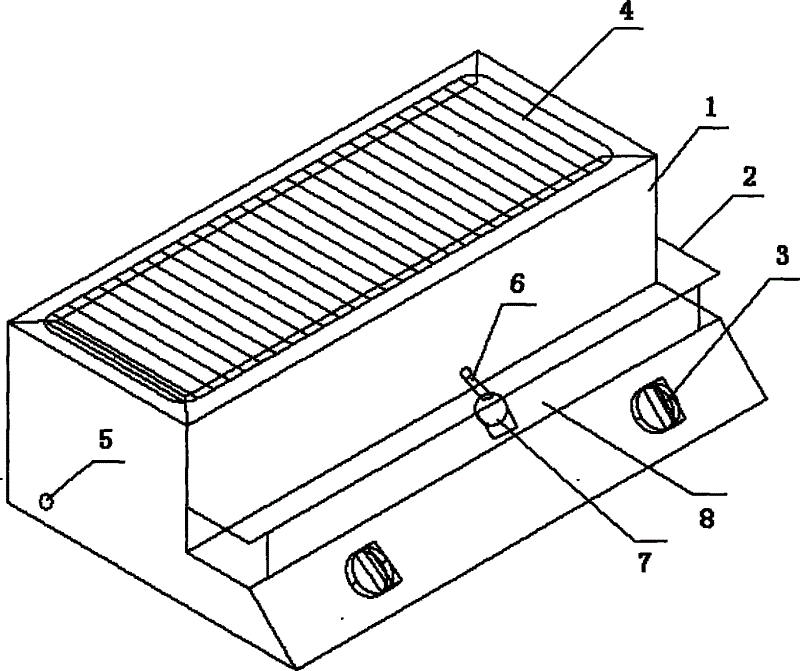

Fig. 1 is the perspective view of the utility model barbecuing oven causing no oil fume.
Fig. 2 is the vertical view of Fig. 1.
Fig. 3 is the internal structure schematic diagram of barbecuing oven causing no oil fume.
Fig. 4 is the schematic diagram of the A-A section of Fig. 3.
The specific embodiment
Below in conjunction with accompanying drawing, the utility model is further specified.
As accompanying drawing 1, shown in Figure 2, above-described body of heater 1 is provided with platform 8 on the body of heater 1 of this barbecuing oven causing no oil fume, and installation bracket 2 on the platform 8, and platform 8 is used to lay oily salt, flavouring or barbecue small tool; The below of platform 8 is provided with switch 3, and barbecuing mesh plate 4 places the top of body of heater 1, and the side of body of heater 1 has gas inlet 6, and there is the oily oil-out 6 of barbecue the front of body of heater 1, and the barbecue oil droplet is gone in the oil storage cup 7.
As shown in Figure 3, Figure 4, the body of heater 1 inner below install combustion device 9 of barbecuing oven causing no oil fume, the top of burner 9 is provided with heat insulation frid 10 and long-pending ditch plate 11, the top of long-pending ditch plate 11 is equipped with leakage of oil plate 12, leakage of oil plate 12 and heat insulation frid 10, long-pending 11 one-tenth Chinese character pin-shaped distributions of ditch plate, leakage of oil plate 12 tops are barbecuing mesh plate 4, long-pending ditch plate 11 and heat insulation frid about in the of 10 parallel and with identical angle to two ends or intermediate, inclined, the below is equipped with oil scupper 13, and oil scupper 13 outlets pick out oil pipe 6 and oil storage cup 7.
The described heat insulation frid 10 of Fig. 3, Fig. 4 is one or more layers; Leakage of oil plate 12 also can be made as one or more layers, heat insulation frid 10 and long-pending ditch plate 11, be about the structure of " ∨ " or " ∪ " shape; Described leakage of oil plate 12 is structures of " ∧ " or " ∩ " shape, when leakage of oil plate 12 and heat insulation frid 10, long-pending 11 one-tenth Chinese character pin-shaped distributions of ditch plate, the barbecue oil of leakage of oil plate 12 flows down from " ∧ " or " ∩ " two ends, splash in " ∨ " or " ∪ " groove of long-pending ditch plate 11, just can not drip to burner 9 surfaces, cause oil smoke.
The operation principle of the utility model barbecuing oven causing no oil fume is:
1. two-layer above plate carries out heat insulation and long-pending oil about inner the employing, make the oil that in baked foods, produces long-pending ditch plate temperature is cut apart, be reduced in combustion gas by thermal insulation board, barbecue oil can not drip to burner, the flame combustion of directly by rusting does not become smog, but drip to long-pending oiled-plate method oil is put aside on oil scupper or the oil storage dish, be discharged in the oil storage cup again by the leakage of oil plate.
2. the utility model burner adopts the burning tubulation, is made up of plurality of rows or some tubulations, and venthole is arranged above, and its burned flame is evenly distributed, and the barbecue quality improves greatly.
Below be Application Example:
Embodiment 1
Certain woman, 30 years old, the one barbecue shop front is arranged in the city, Guangdong Province, originally use oven on the market, because oil smoke problem, repeatedly criticized by neighbours and people upstairs, at the beginning of 2009 6 months, the barbecuing oven causing no oil fume that the trial edition inventor makes, body of heater 1 inner below install combustion device 9, the top of burner 9 is provided with heat insulation frid 10 and long-pending ditch plate 11, and the top of long-pending ditch plate 11 is equipped with leakage of oil plate 12, leakage of oil plate 12 and heat insulation frid 10, long-pending 11 one-tenth Chinese character pin-shaped distributions of ditch plate, leakage of oil plate 12 tops are barbecuing mesh plate 4, long-pending ditch plate 11 and heat insulation frid 10 about parallel and with identical angle to two ends or intermediate, inclined, lowest part has the outage of correspondence, the outage below is equipped with oil scupper 13, oil scupper 13 outlets pick out oil pipe 6 and oil storage cup 7, wherein heat insulation frid 10, long-pending ditch plate 11, leakage of oil plate 12 is some of dispersion, since using through two wheat harvesting periods, because seldom oil smoke produces, itself and neighbours and relation have upstairs become harmonious.
Embodiment 2
Certain woman, 25 years old, there is a mobile barbecue stand in one night market in Guangxi, August in this year, the barbecuing oven causing no oil fume that the trial edition inventor makes, body of heater 1 inner below install combustion device 9, the top of burner 9 is provided with heat insulation frid 10 and long-pending ditch plate 11, and the top of long-pending ditch plate 11 is equipped with leakage of oil plate 12, leakage of oil plate 12 and heat insulation frid 10, long-pending 11 one-tenth Chinese character pin-shaped distributions of ditch plate, leakage of oil plate 12 tops are barbecuing mesh plate 4, long-pending ditch plate 11 and heat insulation frid 10 about parallel and with identical angle to two ends or intermediate, inclined, lowest part has corresponding outage, and oil scupper 13 is installed below the outage, oil scupper 13 outlets pick out oil pipe 6 and oil storage cup 7, its heat insulation frid 10, long-pending ditch plate 11, leakage of oil plate 12 respectively for a fixing entire plate, has also been laid on the right and has been boiled slaughterhouse, since back one month, it is few when she feels to roast owing to producing oil smoke, the guest can also taste delicious soup, and save combustion gas also than having howed originally, cost has reduced, and profit has improved.
Claims (9)
1. barbecuing oven causing no oil fume, comprise body of heater (1), switch (3), burner (9) and barbecuing mesh plate (3), it is characterized in that: the top of burner (9) is provided with heat insulation frid (10) and long-pending ditch plate (11), the top of long-pending ditch plate (11) is equipped with leakage of oil plate (12), leakage of oil plate (12) and heat insulation frid (10), long-pending ditch plate (11) becomes Chinese character pin-shaped distribution, leakage of oil plate (12) top is barbecuing mesh plate (4), long-pending ditch plate (11) parallel up and down with heat insulation frid (10) and with identical angle to two ends or intermediate, inclined, lowest part has corresponding outage, the outage below is equipped with oil scupper (13) or oil storage dish, and oil scupper (13) outlet picks out oil pipe (6) and oil storage cup (7).
2. barbecuing oven causing no oil fume according to claim 1 is characterized in that: described burner (9) is gas burner, electric heater, or the charcoal burning device.
3. barbecuing oven causing no oil fume according to claim 1 is characterized in that: described body of heater (1) is provided with the platform (8) of laying oily salt, flavouring or barbecue small tool, installation bracket (2) on platform (8) limit.
4. barbecuing oven causing no oil fume according to claim 1 is characterized in that: described heat insulation frid (10) is one or more layers; Leakage of oil plate (12) is made as one or more layers.
5. barbecuing oven causing no oil fume according to claim 1 is characterized in that: described heat insulation frid (10) and long-pending ditch plate (11) are the structures of " ∨ " or " ∪ " shape; Described leakage of oil plate (12) is the structure of " ∧ " or " ∩ " shape, when.
6. barbecuing oven causing no oil fume according to claim 1 is characterized in that: described heat insulation frid (10) is the structure of " ∨ " or " ∪ " shape, or dull and stereotyped.
7. barbecuing oven causing no oil fume according to claim 1 is characterized in that: described burner (9) is a disk burner or by plurality of rows or the molecular in-line burner of some tubulations, has many ventholes on the pipe.
8. barbecuing oven causing no oil fume according to claim 1 is characterized in that: described heat insulation frid (10) and long-pending ditch plate (11) and leakage of oil plate (12) are the branch body structures or make overall structure.
9. barbecuing oven causing no oil fume according to claim 1 is characterized in that: described leakage of oil plate (12) has several holes.
