Abstract
The utility model relates to lamps, in particular to a dedicated desk lamp for students, which mainly solves the problem that a student cannot balance the time for study and rest after school. The dedicated desk lamp for the students comprises a base and a bulb, wherein a lampshade is arranged on the outer side of the bulb and connected with the base via a connecting rod; the dedicated desk lamp for the students is characterized in that an intelligent timer and a microphone are arranged on the base; the intelligent timer is electrically connected with the microphone and the bulb; and a voice memory chip is arranged in the base and electrically connected with the microphone. The dedicated desk lamp can facilitate the time setting, particularly, the microphone plays light music or music for eye exercises and the light of the dedicated desk lamp goes out at the same time when the set time for study is up, thereby reminding the student of the scheduled rest time. Accordingly, the student can better balance the time for study and rest after school and improves the study efficiency.
Description
Technical field
The utility model relates to a kind of light fixture, specifically a kind of Special table lamp for student.
Background technology
The utility model content
The purpose of this utility model is to provide a kind of Special table lamp for student, mainly solves the problem of extracurricular study of student and bad grasp of time of having a rest.
The technical scheme in the invention for solving the technical problem is: this kind Special table lamp for student, comprise pedestal and bulb, the bulb outside is provided with lampshade, link to each other by connecting rod between lampshade and the pedestal, it is characterized in that, described pedestal is provided with an intelligent timing device and a microphone, and the switch of described intelligent timing device and microphone and bulb is electrically connected; Be provided with the sound store chip in the pedestal, described sound store chip and microphone are electrically connected.
The beneficial effects of the utility model are: be provided with the intelligent timing device above the pedestal, can set study and time of having a rest easily, thereby remind student's time of having a rest to or learning time arrive, make it can better hold study and arrange in pairs or groups with the time of having a rest, improve learning efficiency.
Description of drawings

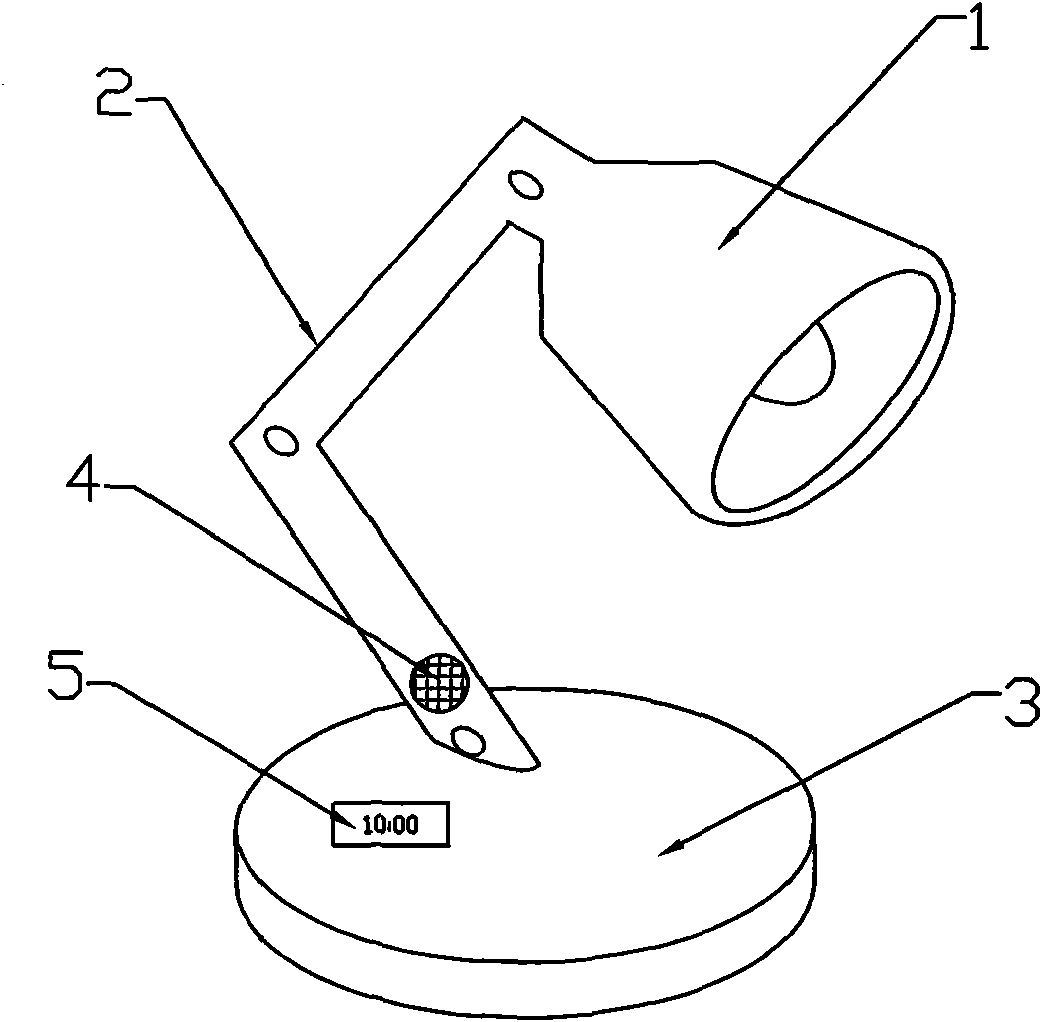

Fig. 1 is a structural representation of the present utility model;
Among the figure: 1 lampshade, 2 connecting rods, 3 pedestals, 4 microphones, 5 intelligent timing devices.
The specific embodiment
As Fig. 1, a kind of Special table lamp for student comprises pedestal 3 and bulb, the bulb outside is provided with lampshade 1, link to each other by connecting rod 2 between lampshade 1 and the pedestal 3, described pedestal 3 is provided with an intelligent timing device and a microphone 4, and the switch of described intelligent timing device 5 and microphone 4 and bulb is electrically connected; Be provided with the sound store chip in the pedestal 3, described sound store chip and microphone 4 are electrically connected.
Be provided with microphone 4 and intelligent timing device 5 above the described pedestal 3.When the student learns after class, configure study and time of having a rest by intelligent timing device 5, when the learning time of setting finishes, microphone 4 can be play light music or the eye exercises that are stored in the sound store chip, light can extinguish simultaneously, thereby remind the student to arrive the time of having a rest, can better hold study and the time collocation of having a rest outside class when the student learns like this, improve learning efficiency.
Claims (1)
1. a Special table lamp for student comprises pedestal and bulb, and the bulb outside is provided with lampshade, link to each other by connecting rod between lampshade and the pedestal, it is characterized in that described pedestal is provided with an intelligent timing device and a microphone, the switch of described intelligent timing device and microphone and bulb is electrically connected; Be provided with the sound store chip in the pedestal, described sound store chip and microphone are electrically connected.
