Abstract
The utility model provides a heat pipe-type solar power generating device. The solar power generating device comprises a slab-type heat collector and a thermocouple power generating device; the thermocouple power generating device is connected with the slab-type heat collector; the slab-type heat collector comprises a connecting box, a bottom bracket, a frame, a heat collecting pipe and a heat pipe exchanger; the connecting box and the bottom bracket are fixedly connected with the frame respectively; the heat collecting pipe is fixedly arranged on the connecting box and the bottom bracket; the heat pipe exchanger comprises a first main pipe, a second main pipe and a U-shaped heat-conducting pipe; the first main pipe and the second main pipe are arranged in the connecting box; the U-shaped heat-conducting pipe is in U-shape, is inserted into the heat collecting pipe and is communicated with the first main pipe and the second main pipe; the heat collecting pipe is a vacuum pipe; furthermore, the external surface of the vacuum pipe is coated with a heat-absorbing film layer; the first main pipe and the second main pipe of the slab-type heat collector, which are arranged in the connecting box, are provided with working sections extending out of the connecting box; and the working section is provided with the thermocouple power generating device. The heat pipe-type solar power generating device has simple structure and good power generation effect, and is economic and practical.
Description
Technical field
The utility model relates to a kind of Blast Furnace Top Gas Recovery Turbine Unit (TRT), relates in particular to a kind of heat pipe type solar Blast Furnace Top Gas Recovery Turbine Unit (TRT).
Background technology
Utilizing solar power generation at present is the problem of the very valuable and DEVELOPMENT PROSPECT of not only economy but also environmental protection, the thermocouple Blast Furnace Top Gas Recovery Turbine Unit (TRT) is simple and economic Blast Furnace Top Gas Recovery Turbine Unit (TRT), as long as can utilize solar energy just can solve the solar power generation problem by heat exchanger output heat energy, in the prior art, flat-plate collector is in an airtight box body metal heat-conducting pipe to be housed, be stamped transparent glass on the box body, this structure box body vacuumizes difficulty, heat insulation effect is poor, though someone covers one deck heat absorption plate at metal heat-conducting Guan Shangzai, but endotherm area is limited, still can not solve the problem that vacuumizes of box body, has directly influenced the generating effect.
Summary of the invention
The purpose of this utility model is to provide a kind of vacuum treatment that makes things convenient for, and increases heat-insulating property, collecting efficiency height, the effective heat pipe type solar Blast Furnace Top Gas Recovery Turbine Unit (TRT) of generating electricity.
In order to achieve the above object, the technical solution of the utility model is: a kind of heat pipe type solar Blast Furnace Top Gas Recovery Turbine Unit (TRT), comprise flat-plate collector and thermocouple Blast Furnace Top Gas Recovery Turbine Unit (TRT), thermocouple Blast Furnace Top Gas Recovery Turbine Unit (TRT) and flat-plate collector load, flat-plate collector comprises header, collet, framework, thermal-collecting tube and heat exchange of heat pipe, header is connected with frame fixation respectively with collet, thermal-collecting tube is fixedly mounted on header and the collet, its innovative point is: the heat exchange of heat pipe in the described flat-plate collector comprises first house steward, second house steward and U-shaped heat pipe, first house steward, second house steward is installed in the header, the U-shaped heat pipe is the U font, insert in the thermal-collecting tube, and first house steward and second house steward are communicated with; Described thermal-collecting tube is a vacuum tube, and the vacuum tube outer surface is coated with the heat absorption rete; First house steward and second house steward that described flat-plate collector is installed in the header are provided with the active section that stretches out outside the header, and the thermocouple Blast Furnace Top Gas Recovery Turbine Unit (TRT) is equipped with at the active section place.
Described thermal-collecting tube is provided with many, and word order is installed between header and the collet, and the outer surface of every thermal-collecting tube is coated with the heat absorption rete.
The quantity of described connection first house steward and second house steward's heat pipe equates with the quantity of thermal-collecting tube, and all is inserted with a heat pipe in every thermal-collecting tube.
Be provided with the heat-insulation layer that coats first house steward and second house steward in the described header that first house steward and second house steward be installed.
The thermocouple Blast Furnace Top Gas Recovery Turbine Unit (TRT) at described active section place is equipped with the cooling heat transferring pipe outward.
The utility model adopts the vacuum tube plate type solar energy heat collector, utilize hot pipe technique, working solution is housed in heat pipe, the solar heat of working solution absorbing sets heat pipe, provide heat energy to generate electricity for the displacement of thermocouple Blast Furnace Top Gas Recovery Turbine Unit (TRT), because the vacuum tube flat type solar heat collector heat exchange efficiency height that the utility model adopts, and the thermal-collecting tube of vacuum tube vacuumizes processing conveniently, and the header good heat insulating, heat pipe in the heat exchange of heat pipe adopts U type pipe simultaneously, every be coated with the heat absorption rete thermal-collecting tube in be inserted with U type heat pipe, increased endotherm area, further improve thermal conversion efficiency, therefore adopted heat pipe type solar generating device structure of the present utility model simple, economical and practical, it is effective to generate electricity.
Description of drawings

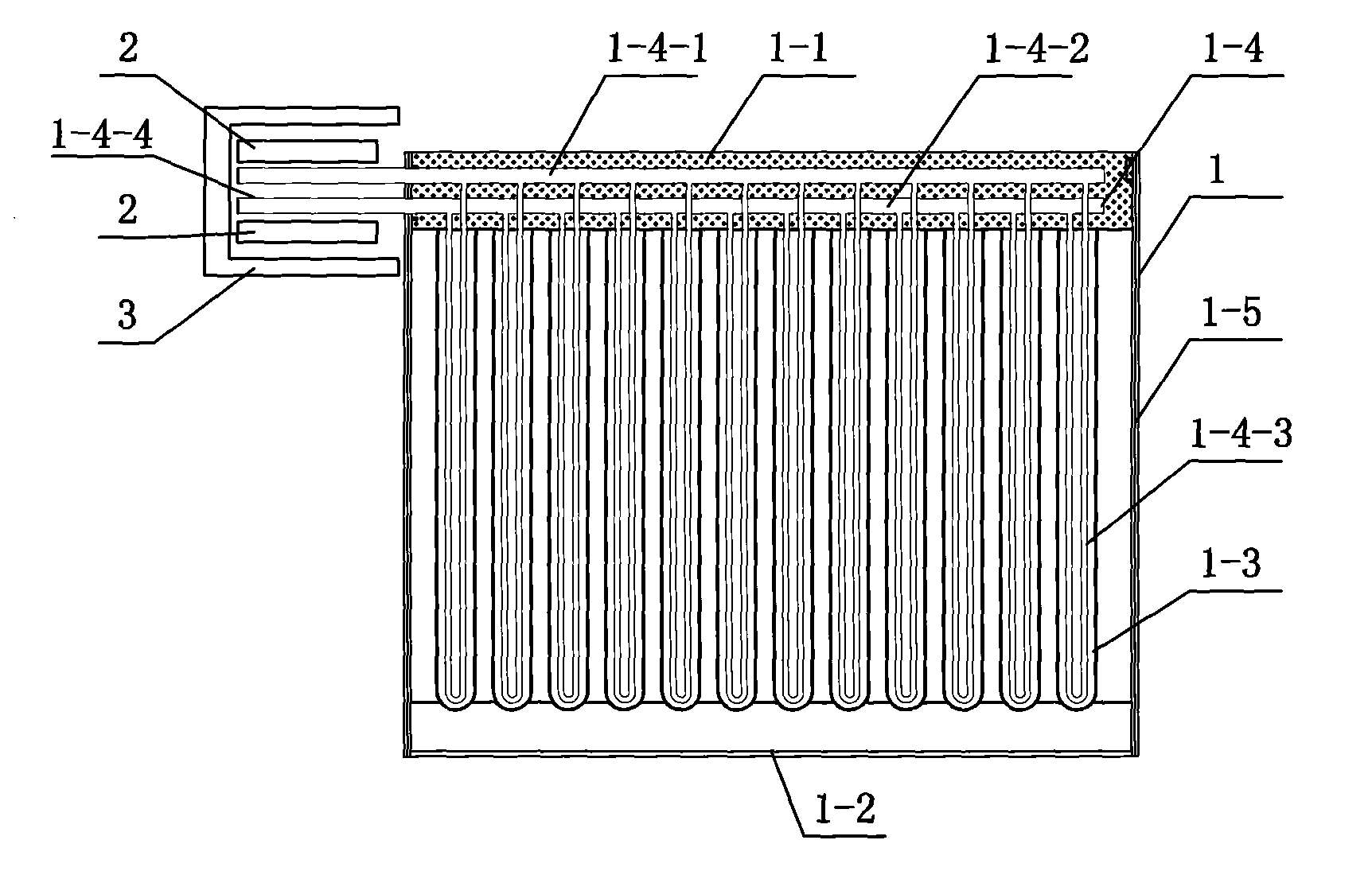

Fig. 1 is a kind of heat pipe type solar generating device structure schematic diagram of the present utility model;
Fig. 2 is the heat pipe line structure schematic diagram of vacuum tube flat type solar heat collector;
Fig. 3 is that heat pipe active section and thermocouple Blast Furnace Top Gas Recovery Turbine Unit (TRT) are installed and concerned schematic diagram among Fig. 1.
Embodiment
As Fig. 1,2, shown in 3, a kind of heat pipe type solar Blast Furnace Top Gas Recovery Turbine Unit (TRT) of the present utility model, comprise flat-plate collector 1 and thermocouple Blast Furnace Top Gas Recovery Turbine Unit (TRT) 2, flat-plate collector 1 comprises header 1-1, collet 1-2, framework 1-5, thermal-collecting tube 1-3 and heat exchange of heat pipe 1-4, header 1-1 is fixedlyed connected with framework 1-5 respectively with collet 1-2, thermal-collecting tube 1-3 is fixedly mounted on header 1-1 and the collet 1-2, thermocouple Blast Furnace Top Gas Recovery Turbine Unit (TRT) 2 and flat-plate collector 1 load, its innovative point is: the heat exchange of heat pipe 1-4 in the described flat-plate collector 1 comprises the first house steward 1-4-1, the second house steward 1-4-2 and U-shaped heat pipe 1-4-3, the first house steward 1-4-1, the second house steward 1-4-2 is installed in the header 1-1, U-shaped heat pipe 1-4-3 is the U font, insert among the thermal-collecting tube 1-3, and the first house steward 1-4-1 and the second house steward 1-4-2 are communicated with; Described thermal-collecting tube 1-3 is a vacuum tube, and the vacuum tube outer surface is coated with the heat absorption rete; Described flat-plate collector 1 is installed in the first house steward 1-4-1 and the second house steward 1-4-2 among the header 1-1, is provided with the active section 1-4-4 that stretches out outside the header 1-1, and active section 1-4-4 is equipped with thermocouple Blast Furnace Top Gas Recovery Turbine Unit (TRT) 2 in the place.
As shown in Figure 1, 2, in order to improve collecting efficiency, described thermal-collecting tube 1-3 is provided with many, and word order is installed between header 1-1 and the collet 1-2, and the outer surface of every thermal-collecting tube 1-3 is coated with the heat absorption rete.The quantity of the U-shaped heat pipe 1-4-3 of the described connection first house steward 1-4-1 and the second house steward 1-4-2 equates with the quantity of thermal-collecting tube 1-3, and all is inserted with a U-shaped heat pipe 1-4-3 among every thermal-collecting tube 1-3.Be provided with the heat-insulation layer that coats the first house steward 1-4-1 and the second house steward 1-4-2 in the described header 1-1 that the first house steward 1-4-1 and the second house steward 1-4-2 be installed.
The utility model is equipped with working solution in U-shaped heat pipe 1-4-3, the solar heat of working solution absorbing sets heat pipe 1-3 provides heat energy to generate electricity for thermocouple Blast Furnace Top Gas Recovery Turbine Unit (TRT) 2.Utilize solar energy in order more to fill part, the thermocouple Blast Furnace Top Gas Recovery Turbine Unit (TRT) 2 outer cooling heat transferring pipes 3 that are equipped with at described active section 1-4-4 place.As shown in Figure 3, in cooling heat transferring pipe 3, can connect cold water, utilize the heat heating of thermocouple Blast Furnace Top Gas Recovery Turbine Unit (TRT) 2, after the cold water in the cooling heat transferring pipe 3 is heated, can provide hot water to use.
Heat pipe type solar generating device structure of the present utility model is simple, economical and practical, and it is effective to generate electricity.
Claims (5)
1. heat pipe type solar Blast Furnace Top Gas Recovery Turbine Unit (TRT), comprise flat-plate collector (1) and thermocouple Blast Furnace Top Gas Recovery Turbine Unit (TRT) (2), thermocouple Blast Furnace Top Gas Recovery Turbine Unit (TRT) (2) and flat-plate collector (1) load, flat-plate collector (1) comprises header (1-1), collet (1-2), framework (1-5), thermal-collecting tube (1-3) and heat exchange of heat pipe (1-4), header (1-1) is fixedlyed connected with framework (1-5) respectively with collet (1-2), thermal-collecting tube (1-3) is fixedly mounted on header (1-1) and the collet (1-2), it is characterized in that:
Heat exchange of heat pipe (1-4) in a, the described flat-plate collector (1) comprises first house steward (1-4-1), second house steward (1-4-2) and U-shaped heat pipe (1-4-3), first house steward (1-4-1), second house steward (1-4-2) are installed in the header (1-1), U-shaped heat pipe (1-4-3) is the U font, insert in the thermal-collecting tube (1-3), and first house steward (1-4-1) and second house steward (1-4-2) are communicated with;
B, described thermal-collecting tube (1-3) are vacuum tube, and the vacuum tube outer surface is coated with the heat absorption rete;
First house steward (1-4-1) and second house steward (1-4-2) that c, described flat-plate collector (1) are installed in the header (1-1) are provided with the active section (1-4-4) that stretches out outside the header (1-1), and active section (1-4-4) locates to be equipped with thermocouple Blast Furnace Top Gas Recovery Turbine Unit (TRT) (2).
2. heat pipe type solar Blast Furnace Top Gas Recovery Turbine Unit (TRT) according to claim 1, it is characterized in that: described thermal-collecting tube (1-3) is provided with many, and word order is installed between header (1-1) and the collet (1-2), and the outer surface of every thermal-collecting tube (1-3) is coated with the heat absorption rete.
3. heat pipe type solar Blast Furnace Top Gas Recovery Turbine Unit (TRT) according to claim 1 and 2, it is characterized in that: the quantity of described connection first house steward (1-4-1) and second house steward's (1-4-2) U-shaped heat pipe (1-4-3) equates with the quantity of thermal-collecting tube (1-3), and all is inserted with a U-shaped heat pipe (1-4-3) in the every thermal-collecting tube (1-3).
4. heat pipe type solar Blast Furnace Top Gas Recovery Turbine Unit (TRT) according to claim 1 is characterized in that: be provided with the heat-insulation layer that coats first house steward (1-4-1) and second house steward (1-4-2) in the described header (1-1) that first house steward (1-4-1) and second house steward (1-4-2) be installed.
5. heat pipe type solar Blast Furnace Top Gas Recovery Turbine Unit (TRT) according to claim 1 is characterized in that: the outer cooling heat transferring pipe (3) that is equipped with of the thermocouple Blast Furnace Top Gas Recovery Turbine Unit (TRT) (2) that described active section (1-4-4) is located.
