CN201448920U - A solar heating device - Google Patents

A solar heating device Download PDF

Info

Publication number
CN201448920U
CN201448920U CN2009200428076U CN200920042807U CN201448920U CN 201448920 U CN201448920 U CN 201448920U CN 2009200428076 U CN2009200428076 U CN 2009200428076U CN 200920042807 U CN200920042807 U CN 200920042807U CN 201448920 U CN201448920 U CN 201448920U
Authority
CN
China
Prior art keywords
solar
heating
solar water
heating device
water heater
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Expired - Fee Related
Application number
CN2009200428076U
Other languages
Chinese (zh)
Inventor
张同伟
汪涌
孟海萍
祁国平
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Jiangsu Sunpower Solar Technology Co Ltd
Original Assignee
Jiangsu Sunpower Solar Technology Co Ltd
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Jiangsu Sunpower Solar Technology Co Ltd filed Critical Jiangsu Sunpower Solar Technology Co Ltd
Priority to CN2009200428076U priority Critical patent/CN201448920U/en
Application granted granted Critical
Publication of CN201448920U publication Critical patent/CN201448920U/en
Anticipated expiration legal-status Critical
Expired - Fee Related legal-status Critical Current

Links

Images

Classifications

    • Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
    • Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
    • Y02B—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO BUILDINGS, e.g. HOUSING, HOUSE APPLIANCES OR RELATED END-USER APPLICATIONS
    • Y02B10/00—Integration of renewable energy sources in buildings
    • Y02B10/70—Hybrid systems, e.g. uninterruptible or back-up power supplies integrating renewable energies
    • Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
    • Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
    • Y02B—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO BUILDINGS, e.g. HOUSING, HOUSE APPLIANCES OR RELATED END-USER APPLICATIONS
    • Y02B30/00—Energy efficient heating, ventilation or air conditioning [HVAC]
    • Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
    • Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
    • Y02E—REDUCTION OF GREENHOUSE GAS [GHG] EMISSIONS, RELATED TO ENERGY GENERATION, TRANSMISSION OR DISTRIBUTION
    • Y02E10/00—Energy generation through renewable energy sources
    • Y02E10/40—Solar thermal energy, e.g. solar towers

Landscapes

  • Heat-Pump Type And Storage Water Heaters (AREA)

Abstract

本实用新型涉及取暖设备，特别是家庭用的一种太阳能取暖装置。包括太阳能热水器、淋浴装置和管路及阀门等，太阳能热水器与淋浴装置通过管路及阀门等相连，其创新点在于：太阳能热水器的水箱内还装有电加热器，电加热器还连接有水温控制器。管路中还连接有热交换器和循环水泵。本实用新型由于利用太阳能辅以电能，既能洗浴，又能取暖，具有节约能源，不污染空气，使用方便的特点，扩大了太阳能热水器的使用功能，是没有集中供热地区的家庭理想的新型取暖装置。

Figure 200920042807

This utility model relates to heating equipment, particularly a solar heating device for home use. It includes a solar water heater, a shower unit, piping, and valves. The solar water heater and shower unit are connected via piping and valves. Its innovation lies in the fact that the solar water heater's tank also contains an electric heater, which is connected to a water temperature controller. A heat exchanger and a circulating water pump are also connected in the piping. This utility model, utilizing solar energy supplemented by electricity, provides both bathing and heating, offering energy savings, no air pollution, and ease of use. It expands the functionality of solar water heaters and is an ideal new heating device for homes in areas without centralized heating.

Figure 200920042807

Description

一种太阳能取暖装置 A solar heating device

技术领域technical field

本实用新型涉及取暖设备，特别是家庭用的一种太阳能取暖装置。The utility model relates to heating equipment, in particular to a solar heating device for household use.

背景技术Background technique

当前，家庭用冬天取暖都是由锅炉集中供暖，通过家庭的由暖气片及管道组成的暖气装置实现取暖，对于没有锅炉集中供热的家庭，有的安装“土暖气”取暖，其耗煤量大，污染空气，且使用不方便，而太阳能热水器提供的热水单纯用于洗澡和洗东西，用量少，大部分时间热水是储存在水箱内，对其热能没有充分利用，也是一种能源的浪费。At present, household heating in winter is centrally heated by boilers, and heating is realized through the heating device composed of radiators and pipes in the family. For families without central heating by boilers, some "earth heating" is installed for heating. Large, pollutes the air, and is inconvenient to use. The hot water provided by solar water heaters is only used for bathing and washing things, and the consumption is small. Most of the time, hot water is stored in the water tank, which does not make full use of its heat energy. Waste of energy.

发明内容Contents of the invention

本实用新型的目的是提供一种既能洗浴，又能取暖的太阳能取暖装置。The purpose of the utility model is to provide a solar heating device capable of bathing and heating.

为实现上述目的本实用新型采取的技术方案是：一种太阳能取暖装置，包括太阳能热水器、淋浴装置和管路及阀门等，太阳能热水器与淋浴装置通过管路及阀门等相连，其创新点在于：In order to achieve the above purpose, the technical solution adopted by the utility model is: a solar heating device, including a solar water heater, a shower device, pipelines and valves, etc., the solar water heater and the shower device are connected through pipelines and valves, etc., and its innovation points are:

a、太阳能热水器的水箱内还装有电加热器，电加热器还连接有水温控制器；a. The water tank of the solar water heater is also equipped with an electric heater, and the electric heater is also connected to a water temperature controller;

b、管路中还连接有热交换器和循环水泵。b. A heat exchanger and a circulating water pump are also connected to the pipeline.

所述太阳能热水器为平板式太阳能热水器。The solar water heater is a flat-plate solar water heater.

所述热交换器由多个暖气片串联组成。The heat exchanger is composed of a plurality of radiators connected in series.

本实用新型将太阳能热水器用于家庭取暖，只在一般太阳能热水器使用的回水管路系统中，增加循环水泵和由暖气片组成的热交换器，就实现了太阳能热水器的热水供家庭既能洗浴，又能取暖的目的，充分利用了太阳的能量，节能环保。The utility model uses solar water heaters for family heating, only adds a circulating water pump and a heat exchanger composed of radiators in the return water pipeline system used by general solar water heaters, and realizes that the hot water of solar water heaters can be used for family bathing , but also for the purpose of heating, making full use of the energy of the sun, energy saving and environmental protection.

附图说明Description of drawings

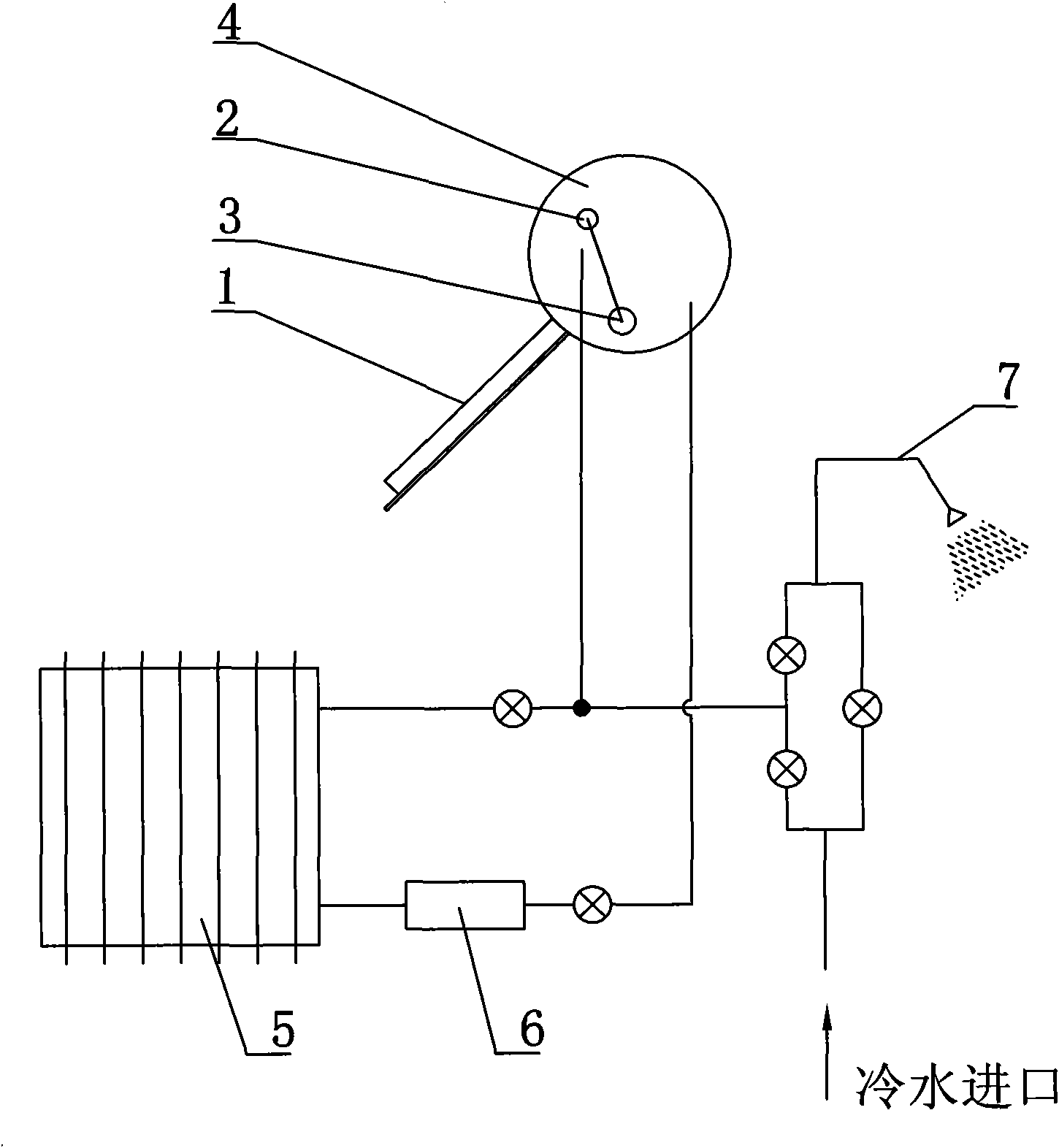

图1是本实用新型的太阳能取暖装置的结构示意图。Fig. 1 is a structural schematic diagram of a solar heating device of the present invention.

具体实施方式Detailed ways

以下结合附图给出的实施例对本实用新型作进一步描述。Below in conjunction with the embodiment that accompanying drawing provides, the utility model is further described.

参见图1，一种太阳能取暖装置，包括太阳能热水器1、淋浴装置7和管路及阀门等，太阳能热水器1的水箱4与淋浴装置7通过管路及阀门等相连，其创新点在于：Referring to Fig. 1, a solar heating device includes a solar water heater 1, a shower device 7, pipelines and valves, etc., the water tank 4 of the solar water heater 1 is connected to the shower device 7 through pipelines and valves, etc., and its innovations are:

a、太阳能热水器1的水箱4内还装有电加热器3，电加热器3还连接有水温控制器2；a, the water tank 4 of the solar water heater 1 is also equipped with an electric heater 3, and the electric heater 3 is also connected with a water temperature controller 2;

b、管路中还连接有热交换器5和循环水泵6。b. A heat exchanger 5 and a circulating water pump 6 are also connected to the pipeline.

所述太阳能热水器1为平板式太阳能热水器。所述热交换器5由多个暖气片串联组成。The solar water heater 1 is a flat plate solar water heater. The heat exchanger 5 is composed of a plurality of radiators connected in series.

当冬天需要取暖时，接通太阳能热水1与管道、阀门关闭淋浴阀门，打开循环水泵6，太阳能热水器1中水箱4的热水，在循环水泵6的作用下流进热交换器5，再经管道流回水箱，如此循环达到取暖目的，在阴天、下雨、下雪天或晚上，水箱中水的温度不够高时，可接通电加热器3的电源，使电加热器3加热水箱4中的水，加热温度由水温控制器2控制，即加热至所需温度时，水温控制器2使电加热器3停止加热，水温降至一定温度时，又自动启动电助热器3加热，可以使在管路中循环的热水保持一定温度，这样使热交换器5中的暖气片也可保持一定热量散热，使房间温暖舒适.When heating is needed in winter, connect the solar hot water 1 and the pipeline and valve to close the shower valve, open the circulating water pump 6, and the hot water in the water tank 4 in the solar water heater 1 will flow into the heat exchanger 5 under the action of the circulating water pump 6, and then pass through The pipeline flows back to the water tank, and the circulation reaches the purpose of heating in this way. When the temperature of the water in the water tank is not high enough in cloudy, rainy, snowy days or at night, the power supply of the electric heater 3 can be connected to make the electric heater 3 heat the water tank The heating temperature of the water in 4 is controlled by the water temperature controller 2, that is, when it is heated to the required temperature, the water temperature controller 2 stops the heating of the electric heater 3, and when the water temperature drops to a certain temperature, it automatically starts the electric heater 3 for heating , can keep the hot water circulating in the pipeline at a certain temperature, so that the radiator in the heat exchanger 5 can also keep a certain amount of heat to dissipate heat, making the room warm and comfortable.

本实用新型由于利用太阳能辅以电能，既能洗浴，又能取暖，具有节约能源，不污染空气，使用方便的特点，扩大了太阳能热水器的使用功能，是没有集中供热地区的家庭理想的新型取暖装置。Because the utility model uses solar energy supplemented by electric energy, it can not only bathe, but also heat, has the characteristics of energy saving, no air pollution, and convenient use, and expands the use function of solar water heaters. It is an ideal new type for families in areas without central heating. Heating device.

Claims (3)

1.一种太阳能取暖装置，包括太阳能热水器(1)、淋浴装置(7)和管路及阀门等，太阳能热水器(1)与淋浴装置(7)通过管路及阀门等相连，其特征在于：1. A solar heating device, comprising solar water heater (1), shower device (7) and pipeline and valve etc., solar water heater (1) links to each other with shower device (7) by pipeline and valve etc., it is characterized in that: a、太阳能热水器(1)的水箱(4)内还装有电加热器(3)，电加热器(3)还连接有水温控制器(2)；a, an electric heater (3) is also housed in the water tank (4) of the solar water heater (1), and the electric heater (3) is also connected with a water temperature controller (2); b、管路中还连接有热交换器(5)和循环水泵(6)。b. A heat exchanger (5) and a circulating water pump (6) are also connected to the pipeline. 2.根据权利要求1所述的太阳能取暖装置，其特征在于：所述太阳能热水器(1)为平板式太阳能热水器。2. The solar heating device according to claim 1, characterized in that: the solar water heater (1) is a flat-plate solar water heater. 3.根据权利要求1或2所述的太阳能取暖装置，其特征在于：所述热交换器(5)由多个暖气片串联组成。3. The solar heating device according to claim 1 or 2, characterized in that: the heat exchanger (5) is composed of a plurality of radiators connected in series.
