Abstract
本实用新型提供一种单玻璃丝铜包镁铝合金扁线，包括导体和绝缘层，所述导体为铜包镁铝合金扁线(1)；所述绝缘层为层状结构，沿所述铜包镁铝合金扁线的径向依次为聚酰亚胺薄膜(2)、云母带(3)、第一绝缘树脂漆层(4)、单层玻璃丝(5)、第二绝缘树脂漆层(6)、涤纶层(7)和第三绝缘树脂漆层(8)。本实用新型使用聚酰亚胺薄膜提高了绕包线的耐电压击穿性能；使用云母提高了绕包线的耐电晕性，使用玻璃丝提高绕包线的强度，增加柔韧性。
The utility model provides a single glass-filament copper-clad magnesium-aluminum alloy flat wire, comprising a conductor and an insulating layer, wherein the conductor is a copper-clad magnesium-aluminum alloy flat wire (1); the insulating layer is a layered structure, and along the radial direction of the copper-clad magnesium-aluminum alloy flat wire are polyimide film (2), mica tape (3), a first insulating resin paint layer (4), a single-layer glass filament (5), a second insulating resin paint layer (6), a polyester layer (7) and a third insulating resin paint layer (8). The utility model uses a polyimide film to improve the voltage breakdown resistance of the wrapped wire; uses mica to improve the corona resistance of the wrapped wire; and uses glass filament to improve the strength of the wrapped wire and increase its flexibility.
Description
Technical field
The utility model relates to a kind of wrapped copper-clad magnadure lenticular wire.
Background technology
Enamelled wire is a principal item of winding wire, is made up of conductor and two ones of insulating barriers, and bare wire forms through repeatedly painting, curing behind annealing softening again.But producing is the conformance with standard requirement, satisfy the product of customer requirement again and be not easy, it is subjected to raw material quality, technological parameter, production equipment, factor affecting such as environment, therefore, the mass property of various enamelled wires has nothing in common with each other, but all possesses mechanical performance, chemical property, electrical property, hot property four big performances.
Because motor manufacture level development both at home and abroad is rapid; particularly external high-output power, the try one's best small and exquisite electric machine structure and the environmental protectionization of production process have proposed harsh specification requirement for the lapped wire of motor stator parts: as require lapped wire to have proof voltage, anti-corona, high strength and the good performance of pliability.At present, also there is not to reach fully the lapped wire that as above requires.
Summary of the invention
The purpose of this utility model is to provide a kind of can satisfy proof voltage, anti-corona, high strength and the good lapped wire of pliability simultaneously.
The purpose of this utility model is achieved in that a kind of single glass fibre copper-clad magnadure lenticular wire, comprises conductor and insulating barrier, and described conductor is a copper-clad magnadure lenticular wire; Described insulating barrier is a layer structure, radially is followed successively by polyimide film, mica tape, the first insulating resin enamelled coating, single-glass silk, the second insulating resin enamelled coating, terylene layer and the 3rd insulating resin enamelled coating along described copper-clad magnadure lenticular wire.
The described first insulating resin enamelled coating is silk-covered wire lacquer 1448-2; The described second insulating resin enamelled coating is silk-covered wire lacquer 1448-2; Described the 3rd insulating resin enamelled coating is silk-covered wire lacquer 1448-2.
Described single-glass silk is an alkali-free glass wool.
The beneficial effects of the utility model are:
1, the utility model uses polyimide film to improve the proof voltage breakdown performance of lapped wire; Use mica to improve the corona resistance of lapped wire, use glass fiber to improve the intensity of lapped wire, increase pliability;
2, the utility model single glass fibre copper-clad magnadure lenticular wire is as high-performance motor, electrical equipment winding wire, has high-tech, new material characteristics cheaply; With behind the terylene layer, intensity height, good springiness, resistance to wear are good;
3, the utility model uses the partly copper metal of the alternative high price of magnadure of low price, saved a large amount of copper resources, in addition, the density of copper-clad magnadure is lower than the density of fine copper, thereby can alleviate the weight of wire rod unit length significantly, more help China's motor, transformer, and even client unit such as IT information industry uses conveniently and reduces cost;
4, the utility model is a kind of proof voltage, anti-corona, high strength and the good lapped wire of pliability, and simple in structure, easily manufactured, dependable performance, can be widely used in high-voltage motor, and its withstand voltage is 1.3～1.7 ten thousand Kv.
Description of drawings

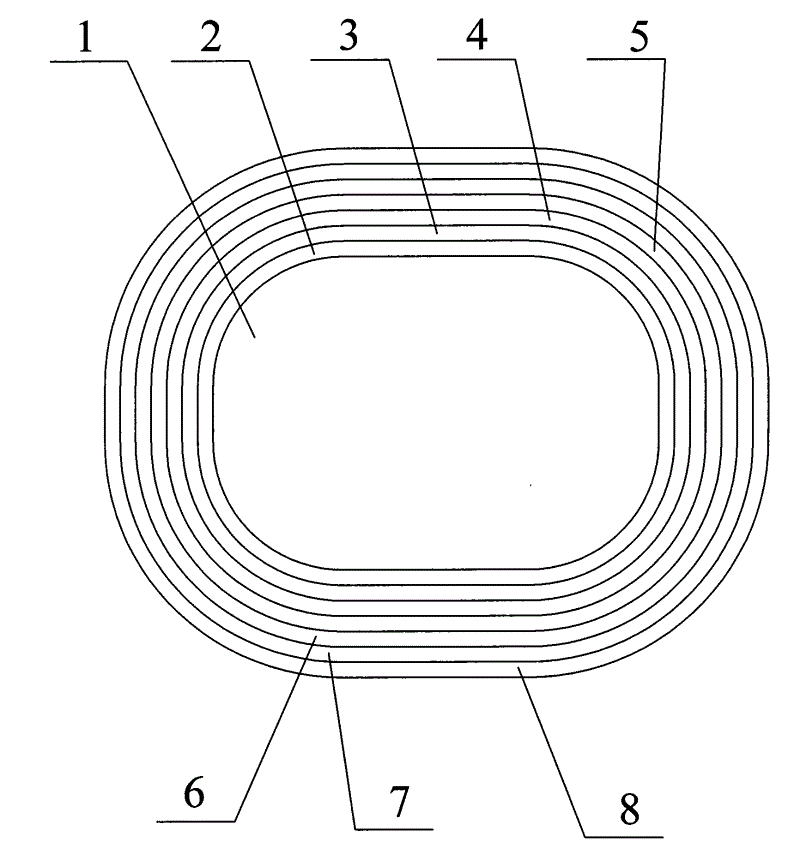

Fig. 1 is the structural representation of product of the present invention.
Embodiment
Below in conjunction with accompanying drawing, technical solutions of the utility model are elaborated, but protection range of the present utility model is not limited to described embodiment.
A kind of single glass fibre copper-clad magnadure lenticular wire comprises conductor and insulating barrier, and described conductor is a copper-clad magnadure lenticular wire 1; Described insulating barrier is a layer structure, radially is followed successively by polyimide film 2, mica tape 3, the first insulating resin enamelled coating 4, single-glass silk 5, the second insulating resin enamelled coating 6, terylene layer 7 and the 3rd insulating resin enamelled coating 8 along described copper-clad magnadure lenticular wire; The described first insulating resin enamelled coating 4 is silk-covered wire lacquer 1448-2; The described second insulating resin enamelled coating 6 is silk-covered wire lacquer 1448-2; Described the 3rd insulating resin enamelled coating 8 is silk-covered wire lacquer 1448-2; Described single-glass silk 5 is an alkali-free glass wool.The specification of conductor of the present utility model and insulating barrier can be handled by national standard.
