CN201404926Y - Recovery type decontaminating device - Google Patents
Recovery type decontaminating device Download PDFInfo
- Publication number
- CN201404926Y CN201404926Y CN2009200567153U CN200920056715U CN201404926Y CN 201404926 Y CN201404926 Y CN 201404926Y CN 2009200567153 U CN2009200567153 U CN 2009200567153U CN 200920056715 U CN200920056715 U CN 200920056715U CN 201404926 Y CN201404926 Y CN 201404926Y
- Authority
- CN
- China
- Prior art keywords
- tank
- decontaminating
- air
- pump
- separator box
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Abstract
A recovery type decontaminating device comprises a clean water tank, a water pump, a water pipe, an atomizing spray nozzle, a scouring head, an air return pipe, a separating tank, an air pump and a sewage tank. The water pump, the clean water tank and the atomizing spraying nozzle are communicated through the water pipe, and the sewage tank, the separating tank, the scouring head and the air pumpare communicated through the air return pipe. The recovery type decontaminating device is characterized in that a defoaming rotary disc is arranged in the separating tank, an air return opening of theseparating tank is arranged on one side inside the separating tank body, and an air outlet is arranged and fixed on the top portion of the defoaming rotary disc. Atomizing decontaminating fluid is sprayed to a decontaminating object to scour and decontaminate by utilizing the water pump and the atomizing spray nozzle, and decontaminating sewage after decontaminating is timely sucked into the sewage tank through the air return pipe by utilizing negative pressure generated by suction force of the air pump, thereby realizing the purpose of fast, safely and high-effectively decontaminating.
Description
Technical field
The utility model is a kind of washing sterilizer, particularly a kind of recovery type washing sterilizer that sewage is reclaimed synchronously automatic froth breaking in decontamination.
Background technology
Existing washing sterilizer, the one, complex structure, volume is big, and mobility is poor.The 2nd, existing washing sterilizer, in order to eliminate a large amount of foam of generation in decontamination process, main way is to add defoamer in decontamination solution, perhaps needs to increase special defoaming pump.Add defoamer,, and when increasing special defoaming pump, also increased the washing sterilizer complexity and weakened flexibility because the interaction of medicine directly has influence on the effect of decontamination solution sometimes.
The utility model content
At above-mentioned the deficiencies in the prior art, the purpose of this utility model has been to provide a kind of and has utilized water pump and spraynozzle that the decontamination solution of atomizing is sprayed onto on the decontamination object to wash away decontamination, utilize the negative pressure of the suction generation of air pump timely the decontamination sewage after the decontamination in time to be sucked back in the foul water tank, realize decontamination purpose efficiently fast and safely by backwind tube.
The utility model mainly includes filtered water tank, water pump, water pipe, spraynozzle, scrubs head, backwind tube, separator box, air pump, foul water tank; Wherein water pump, filtered water tank, spraynozzle are by cross current, and foul water tank, separator box and air pump are communicated with, and separator box is communicated with scrubbing by backwind tube; The spraynozzle that is connected with water pipe is arranged on to be scrubbed in the head, backwind tube simultaneously also with scrub head and link.Scrub head and connect the fur that true mouth periphery is provided with a circle with the decontamination object, both helpful scrubbing, also anti-the guarantee forms certain balance negative pressure between the surface of scrubbing head and decontamination object, help scrubbing a mobile flexibility.Then be provided with the froth breaking rotating disk in the separator box.
When device starts, water pump with the clean decontamination solution pressurization in the filtered water tank by water pipe deliver to the spraynozzle place of scrubbing in the head carry out atomized spray to decontamination object that the decontamination brush contacts on; Air in air pump work isolated at suction case and the foul water tank, make in two casings and generation negative pressure in the backwind tube, scrub and be ejected in the head that the decontamination sewage after scrubbing then is drawn onto in the separator box by backwind tube again on the decontamination object, and flow to storage in the foul water tank by connected entrance.The froth breaking rotating disk that is provided with in the separator box, when air pump start to produce negative pressure with decontamination sewage when backwind tube is drawn onto separator box, the power of sewage backflow drives the froth breaking dial rotation, and the foam that produces in the separator box is stirred the realization froth breaking.
The beneficial effect that the utility model compared with prior art has is a volume compact, easy to operate, in time the sewage after the decontamination is reclaimed synchronously, can not splash everywhere or trickle, significantly reduced to the treatment space-pollution with to healthcare givers's infection at cleaning and sterilizing process herb liquid; Be convenient to centralized and unified disposing of sewage simultaneously, reduced the workload of clean environment.Utilize the backflow power of self decontamination solution to stir froth breaking, reduce power consumption.
Description of drawings

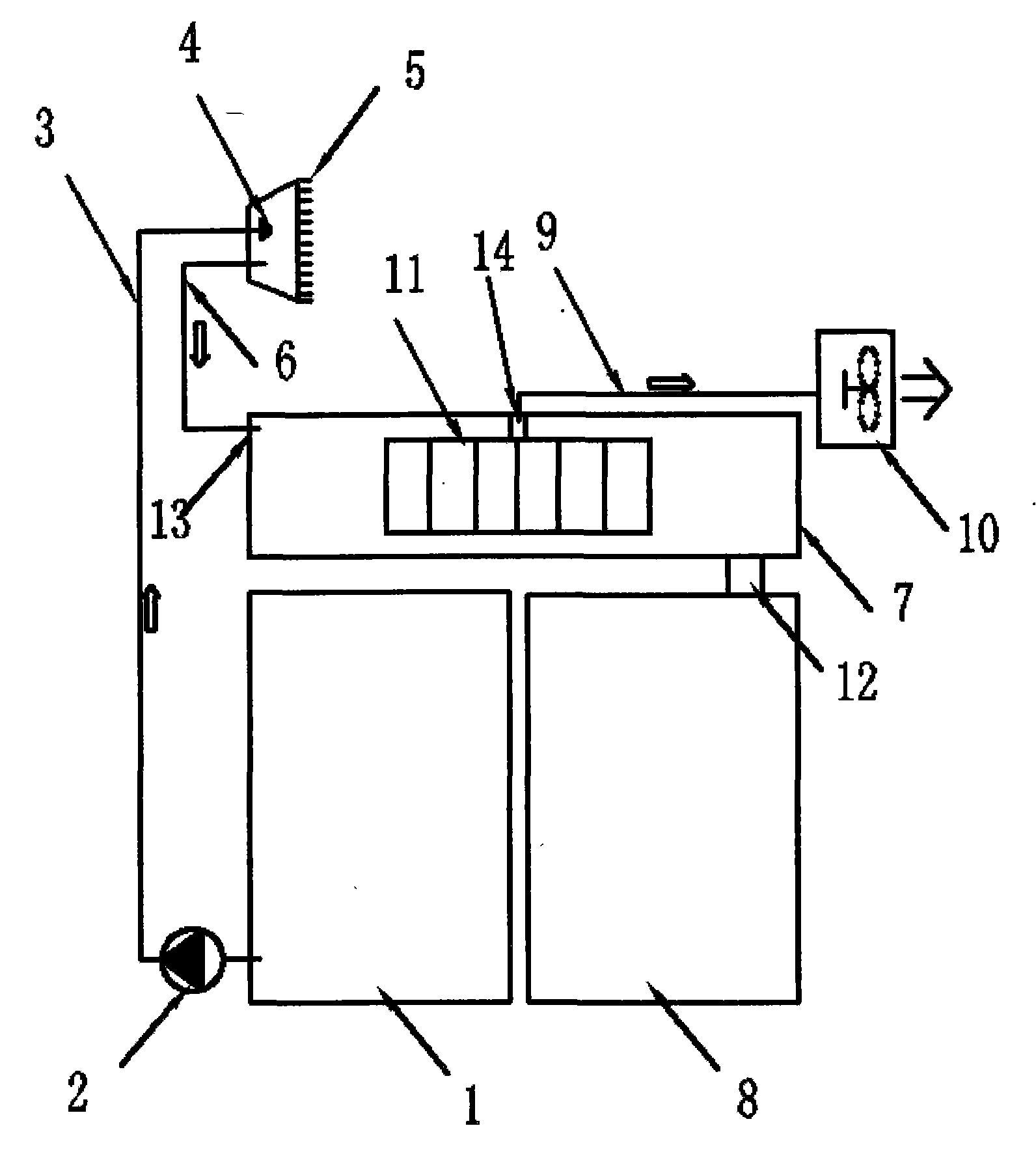

Fig. 1 is a structure cut-away view of the present utility model, comprising filtered water tank 1, water pump 2, water pipe 3, spraynozzle 4, scrub 5, backwind tube 6, separator box 7, backwind tube 9, air pump 10, froth breaking rotating disk 11, connected entrance 12, return air inlet 13, air outlet 14.
Fig. 2 is the vertical view of froth breaking rotating disk 11 of the present utility model.
The specific embodiment
Below in conjunction with drawings and Examples the utility model is further specified.
As shown in Figure 1, water pump 2, filtered water tank 1, spraynozzle 4 are communicated with by water pipe 3, foul water tank 8 is communicated with separator box 7 by connected entrance 12, separator box 7 is communicated with by backwind tube 9 with air pump 10 at the air outlet 14 at top, and separator box 7 is communicated with an end of scrubbing 5 by backwind tube 6 at air intake vent 13 places; The spraynozzle 4 that is connected with water pipe 6 is arranged on to be scrubbed in 5.Scrub the fur that a periphery of 5 ends that contact with the decontamination object is provided with a circle, purpose is both to have helped to scrub, also make and scrub the certain balance negative pressure of formation between head and the surface of decontamination object, help scrubbing 5 logical flexible movement on the decontamination object surface.Then be provided with froth breaking rotating disk 11 in the separator box 7, froth breaking rotating disk 11 places backwind tube 9 and separator box 7 connectors below, and what guarantee that backwind tube 9 sucks is air behind the froth breaking.
As shown in Figure 2, the return air inlet 13 of separator box 7 is arranged in casing one side, the decontamination sewage that helps reclaiming in separator box, form rotating flow to, help promoting the froth breaking rotating disk 11 realization froth breaking that rotatablely moves.The air outlet 14 of separator box 7 is arranged at the casing top, also is to be positioned at after the froth breaking rotating disk simultaneously, and what help backwind tube 9 suctions like this is air behind the froth breaking, otherwise bubble is sucked on the air pump, influences the performance of air pump.
When device starts, water pump 2 with the clean decontamination solution pressurization in the filtered water tank 1 by water pipe 3 deliver to spraynozzle 4 places of scrubbing in 5 carry out atomized spray to decontamination object that decontamination brush 5 contacts on carry out decontamination; Air pump 10 work, the backwind tube 9 isolated at suction casees 7 at top outlet inlet 14 places by connecting separator box 7 and the air in the foul water tank 8, make in two casings and in the backwind tube and all produce negative pressure, scrub and be ejected in 5 that the decontamination sewage after scrubbing then is drawn onto in the separator box 7 by backwind tube 6 again on the decontamination object, and flow to the recovery that storage in the foul water tank 8 gets up to realize sewage by connected entrance 12.When air pump 10 start produce negative pressure with decontamination sewage when backwind tube 6 is drawn onto separator box 7, the power of sewage backflow drives froth breaking rotating disk 11 and rotates, and the foams that produce in the separator box 7 are stirred the realization froth breaking.
Claims (2)
1, recovery type washing sterilizer includes filtered water tank, water pump, water pipe, spraynozzle, scrubs head, backwind tube, separator box, air pump, foul water tank; Wherein water pump, filtered water tank, spraynozzle be by cross current, foul water tank, separator box, scrubs head and air pump is communicated with by backwind tube; It is characterized in that being provided with in the separator box froth breaking rotating disk, the return air inlet of separator box is located at a side in the casing, and air outlet is located at the fixedly top of froth breaking rotating disk.
2, the formula washing sterilizer of adding as claimed in claim 1 is characterized in that the froth breaking rotating disk can be axial Wheel-type, also can be the helical runner formula.
