Abstract
本实用新型涉及洗碗机用新型喷水装置，解决了现有喷淋式洗碗机的喷水装置存在的喷淋死角问题。本实用新型包括倒T型水管，其上设有喷水孔，其中竖管内设有空心水管轴，空心水管轴的上端和下端侧壁分别设有泄水孔；空心水管轴一端伸至竖管外，其竖管外伸端上设有封盖顶帽；空心水管轴的另一端伸至横管外，其横管外伸端连接着进水管，进水管的另一端连接着水泵和电动机。本实用新型的有益技术效果是不仅能够提供上下竖向方位的旋转喷流，而且能够提供左右横向方位的旋转喷流，同时实现上下竖向和左右横向方位的组合旋转喷流，使洗碗机内处于竖向方位和横向方位的餐具面都能够得到直接的喷淋清洗，从而有利于提高餐具清洗的清洁度。
The utility model relates to a novel water spray device for a dishwasher, which solves the problem of the dead angle of spraying in the water spray device of the existing spray type dishwasher. The utility model comprises an inverted T-shaped water pipe, on which a water spray hole is arranged, wherein a hollow water pipe shaft is arranged in the vertical pipe, and the upper end and the lower end side wall of the hollow water pipe shaft are respectively provided with drain holes; one end of the hollow water pipe shaft extends to the vertical pipe In addition, the extended end of the vertical pipe is provided with a cap; the other end of the hollow water pipe shaft extends out of the horizontal pipe, and the extended end of the horizontal pipe is connected to the water inlet pipe, and the other end of the water inlet pipe is connected to the water pump and the motor. The beneficial technical effect of the utility model is that it can not only provide the rotating jet flow in the up and down vertical direction, but also provide the rotating jet flow in the left and right horizontal direction, and realize the combined rotating jet flow in the vertical direction and the left and right horizontal direction at the same time, so that the dishwasher The surface of the tableware in the vertical orientation and the horizontal orientation can be directly sprayed and cleaned, thereby helping to improve the cleanliness of the tableware.
Description
Technical field
The utility model relates to the supporting water injector of a kind of dish-washing machine.
Background technology
People's daily life three meals in a day, cleaning tablewares such as bowl, dish, basin becomes requisite thing in the life.For the housework and the loaded down with trivial details work that alleviate people, the mankind have carried out the development of various table-ware washing machines, wherein topmost a kind of be the fountain dish-washing machine, and water injector is the most important member of fountain dish-washing machine.The water injector of at present commercially available fountain dish-washing machine is the swing-arm type water injector, this water injector is by electrodynamic pump, the arm-type water jet of flat type transverse tube, the water pipe axle, water jet top cap, seal washer and the movable axle sleeve that have spilled water hole are formed, be provided with the arm-type water jet of flat type transverse tube of different directions inclination hole for water spraying, cover is positioned on the water pipe axle that has spilled water hole, the moment that the reaction force of ejection current produces during work, promote the arm-type water jet of transverse tube around water pipe axle fast rotational, thereby sprayed the rotation jet flow of three-dimensional to tableware.But the three-dimensional jet direction that this water injector provides all is in vertical or tiltedly vertical orientation up and down.Because the shape of tableware is diversified, the jet flow in vertical orientation can only directly spray on the tableware face that is in vertical orientation up and down, and to being in the tableware face of left and right sides lateral orientation, the tableware face of particularly dark mouthful lateral orientation, the jet flow water in vertical orientation but is difficult to spray comprehensively, and the spray less than the tableware face, certainly existing the problem that does not wash clean.
Summary of the invention
For the spray dead angle problem that the water injector that solves existing fountain dish-washing machine exists, the utility model provides a kind of use in dishwasher novel water injector.
Concrete structure design of the present utility model is as follows:
The novel water injector of use in dishwasher comprises the inverted T shape water pipe, and described inverted T shape water pipe is provided with hole for water spraying, wherein is provided with hollow water pipe axle in the vertical tube, and the top and bottom sidewall of hollow water pipe axle is respectively equipped with spilled water hole;
Hollow water pipe axle one end extends outside the vertical tube, and its vertical tube overhanging end is provided with capping top cap; The other end of hollow water pipe axle extends outside the transverse tube, and its transverse tube overhanging end is connecting water inlet pipe, and the other end of water inlet pipe is connecting the delivery port of water pump.
Be laid with spilled water hole respectively on the top and bottom sidewall of described hollow water pipe axle.
Be laid with hole for water spraying on the described inverted T shape water pipe.
The vertical tube port of described inverted T shape water pipe is provided with the vertical pivot sleeve pipe, and the transverse tube place that cooperates with hollow water pipe axle is provided with the transverse axis sleeve pipe.
Between the transverse tube overhanging end of described hollow water pipe axle and the water inlet pipe for being threaded.
The useful technique effect of the utility model water injector is that the rotation jet flow in vertical orientation up and down not only can be provided, and can provide the rotation jet flow of left and right sides lateral orientation, realize the combination rotation jet flow of vertical up and down and left and right sides lateral orientation simultaneously, make the tableware face that is in vertical orientation and lateral orientation in the dish-washing machine can both obtain direct spray Cleaning for High Capacity, thereby help improving the cleannes of wash dishes.
Description of drawings

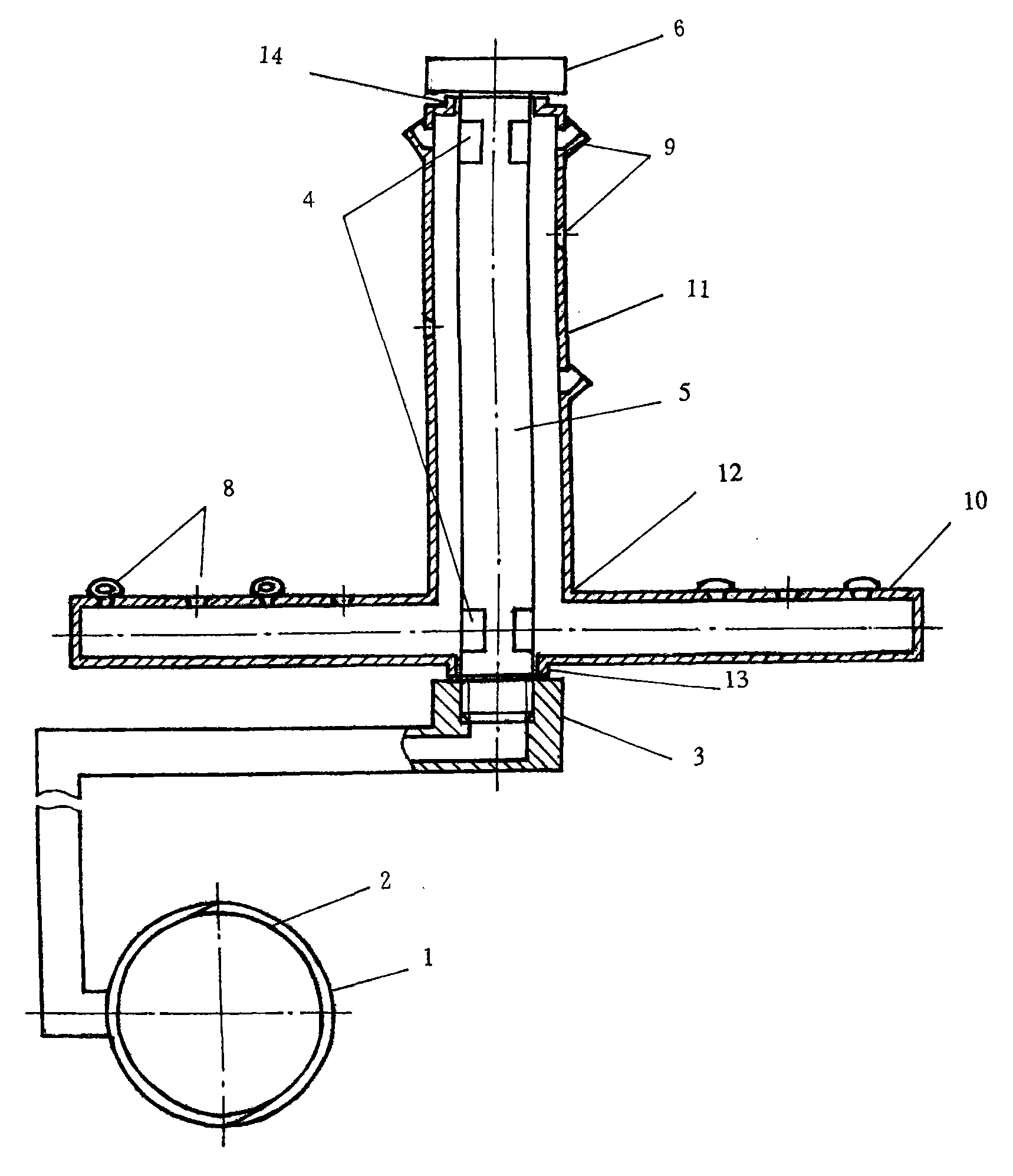

Fig. 1 is the utility model structural representation,
Fig. 2 is the vertical view of inverted T shape water pipe.
The specific embodiment
Below in conjunction with accompanying drawing, the utility model is further described by embodiment.
Embodiment:
Referring to Fig. 1 and Fig. 2, the novel water injector of use in dishwasher comprises inverted T shape water pipe 12, and inverted T shape water pipe 12 comprises vertical tube 11 and transverse tube 10, is laid with vertical tube hole for water spraying 9 on the vertical tube 11, is laid with transverse tube hole for water spraying 8 on the transverse tube 10; Be provided with hollow water pipe axle 5 in the vertical tube 11, the top and bottom sidewall of hollow water pipe axle 5 is respectively equipped with spilled water hole 4; Hollow water pipe axle 5 one ends extend outside the vertical tube 11, and capping top cap 6 is installed on its vertical tube overhanging end; The other end of hollow water pipe axle 5 extends outside the transverse tube, and its transverse tube overhanging end adopts thread connecting mode connecting water inlet pipe 3, and the other end of water inlet pipe 3 is connecting the delivery port of water pump 1.Vertical tube 11 ports of inverted T shape water pipe are equipped with vertical pivot sleeve pipe 14, and the transverse tube place that cooperates with hollow water pipe axle is equipped with transverse axis sleeve pipe 13.
Operation principle of the present utility model is: motor 2 drives the water liquid that water pump 1 will contain washing agent, advance hollow water pipe axle 5 through being input into water pipe 3 force feeds, in inverted T shape water pipe 12, and the transverse tube hole for water spraying 8 and the vertical tube hole for water spraying 9 of different directions sprays to tableware to spilled water hole 4 on hollow water pipe axle 5 on the transverse tube by the inverted T shape water pipe 10 and the vertical tube 11 by force feed again.At this moment, transverse tube hole for water spraying 8 sides on the transverse tube 10 have sprayed the jet flow in vertical up and down or tiltedly vertical orientation, utilize the moment of the reaction force output of the ejection current on the transverse tube 10 simultaneously, promote inverted T shape water pipe 12 round hollow water pipe axle 5 fast rotational; Vertical tube hole for water spraying 9 on the vertical tube 11 has then sprayed the jet flow with respect to the left and right sides lateral orientation in vertical orientation, and like this, inverted T shape water pipe 12 just can spray the combination rotation jet flow of vertical up and down orientation and left and right sides lateral orientation simultaneously to tableware.
