CN201384230Y - a medical cabinet - Google Patents
a medical cabinet Download PDFInfo
- Publication number
- CN201384230Y CN201384230Y CN200920143167U CN200920143167U CN201384230Y CN 201384230 Y CN201384230 Y CN 201384230Y CN 200920143167 U CN200920143167 U CN 200920143167U CN 200920143167 U CN200920143167 U CN 200920143167U CN 201384230 Y CN201384230 Y CN 201384230Y
- Authority
- CN
- China
- Prior art keywords
- cabinet
- cabinet body
- medical
- utility
- drawer
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 238000005192 partition Methods 0.000 abstract 2
- 238000002955 isolation Methods 0.000 description 2
- 230000002950 deficient Effects 0.000 description 1
- 239000003814 drug Substances 0.000 description 1
- 235000013399 edible fruits Nutrition 0.000 description 1
Images
Landscapes
- Accommodation For Nursing Or Treatment Tables (AREA)
- Drawers Of Furniture (AREA)
Abstract
本实用新型公开了一种医用柜，包括有柜体，柜体下安装有可滚动的轮子，所述柜体内固定有隔板，隔板将柜体分成上、中、下三层，上层、下层柜体内分别安装有抽屉，中层柜体的侧壁上铰接有柜门。本实用新型将各类物品有效的隔离开，方便使用，而且占地面积小，方便移动，适用于医院和家庭。
The utility model discloses a medical cabinet, which comprises a cabinet body. Rollable wheels are installed under the cabinet body. Partition boards are fixed inside the cabinet body. The partition boards divide the cabinet body into upper, middle and lower layers. Drawers are respectively installed in the lower cabinet body, and cabinet doors are hinged on the side walls of the middle cabinet body. The utility model effectively isolates various articles, is convenient to use, has a small footprint, and is convenient to move, and is suitable for hospitals and families.
Description
Technical field:
The utility model relates generally to a kind of medical apparatus, specifically is a kind of new medical cabinet.
Background technology:
Existing medical cabinet structure is simple, mainly includes the dividing plate in cabinet and the cabinet, when using, can not aptly various medical articles be kept apart, and function ratio is more single, and in addition, these cupboards are difficult for moving, and take bigger locational space.
Summary of the invention:
The novel purpose of this use is exactly in order to remedy the defective of prior art, a kind of medical cabinet to be provided, and it can just various medical article effective isolation be opened, and is more practical, more attractive in appearance.
The utility model is achieved through the following technical solutions:
A kind of medical cabinet includes cabinet, and rotatable wheel is installed under the cabinet, it is characterized in that: be fixed with dividing plate in the described cabinet, dividing plate is divided into upper, middle and lower-ranking with cabinet, is separately installed with drawer in upper strata, the lower floor's cabinet, is hinged with the cabinet door on the sidewall of middle level cabinet.
Described medical cabinet is characterized in that: the drawer of installing in the cabinet of described upper strata includes two little drawers arranged side by side.
Can be used for placing medicine and daily necessities in the cabinet of described upper strata, can be used for placing some fruit and tableware etc. in the cabinet of intermediate layer, lower floor's cabinet can be used for placing some books and clothes etc., all kinds of article can be separated.In addition, four movably wheels are installed below cupboard, can make things convenient for mobile cabinet.
The utility model has the advantages that:
The utility model is opened all kinds of article effective isolation, the convenient use, and also floor space is little, and convenient moving is applicable to hospital and family.
Description of drawings:

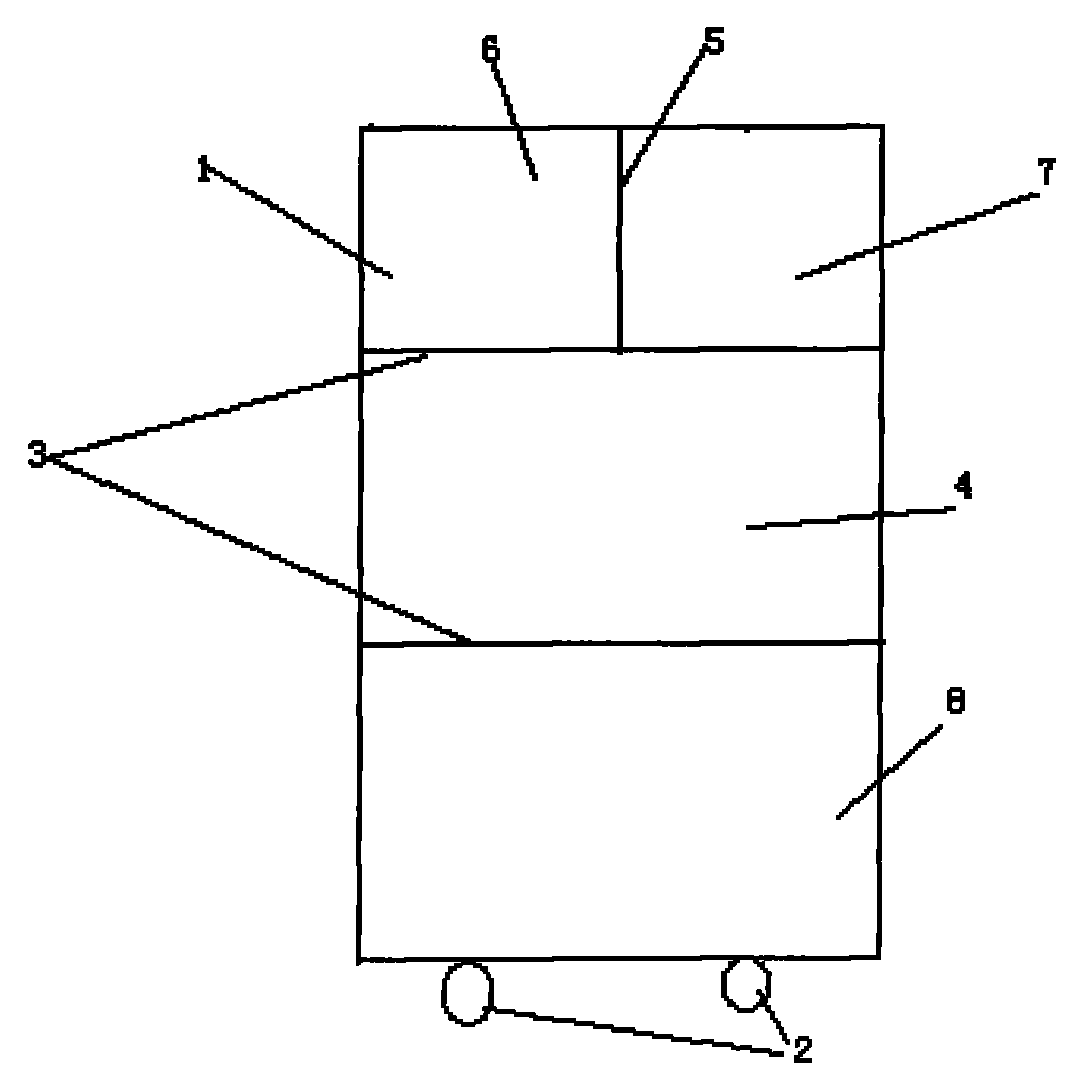

Accompanying drawing is a structural representation of the present utility model.
The specific embodiment:
A kind of medical cabinet, include cabinet 1, cabinet is equipped with rotatable wheel 2 for 1 time, be fixed with dividing plate 3 in the cabinet 1, dividing plate 3 is divided into upper, middle and lower-ranking with cabinet 1, is separately installed with drawer in upper strata, the lower floor's cabinet 1, and the drawer of installing in the upper strata cabinet 1 includes two little drawers arranged side by side 6,7, drawer 6,7 is separated by middle baffle plate 5, is hinged with cabinet door 4 on the sidewall of middle level cabinet 1.
Claims (2)
1, a kind of medical cabinet includes cabinet, and rotatable wheel is installed under the cabinet, it is characterized in that: be fixed with dividing plate in the described cabinet, dividing plate is divided into upper, middle and lower-ranking with cabinet, is separately installed with drawer in upper strata, the lower floor's cabinet, is hinged with the cabinet door on the sidewall of middle level cabinet.
2, medical cabinet according to claim 1 is characterized in that: the drawer of installing in the cabinet of described upper strata includes two little drawers arranged side by side.
