Abstract
本实用新型公开了一种风能、光能互补发电路灯，旨在提供一种结构简单、占用空间小的一种风能、光能互补发电路灯。本实用新型包括灯杆(1)、太阳能电池板(2)、风力发电系统、照明系统(4)、控制箱(5)，所述控制箱(5)内设有控制装置和蓄电池，所述灯杆(1)顶部设有平台(6)，所述太阳能电池板(2)设置于所述平台(6)上部，所述风力发电系统设置于所述平台(6)底部，所述风力发电系统包括立式螺旋风叶(3)，所述立式螺旋风叶(3)至少设有两片螺旋叶片，所述照明系统(4)设置所述风力发电系统底部。本实用新型可广泛应用于路灯照明领域。
The utility model discloses a wind energy and light energy complementary generating circuit lamp, aiming at providing a wind energy and light energy complementary generating circuit lamp with simple structure and small occupied space. The utility model comprises a light pole (1), a solar battery panel (2), a wind power generation system, a lighting system (4), and a control box (5). The control box (5) is provided with a control device and a storage battery. A platform (6) is arranged on the top of the light pole (1), the solar panel (2) is arranged on the upper part of the platform (6), the wind power generation system is arranged at the bottom of the platform (6), and the wind power generation system The system includes a vertical spiral wind blade (3), the vertical spiral wind blade (3) is provided with at least two spiral blades, and the lighting system (4) is arranged at the bottom of the wind power generation system. The utility model can be widely used in the field of street lighting.
Description
Technical field
The utility model relates to a kind of wind energy, luminous energy complemental power-generation street lamp.
Background technology
What existing street lamp used mostly is mains-supplied.Owing to reasons such as current energy scarcity and power grid construction input are too big, a lot of highways and municipal highway all also do not have street lamp.Therefore for addressing this problem, the solar electrical energy generation street lamp just occurred, but leaned on solar powered some obvious defects that also exist, when cloudy day or rainy day day after day, the solar panel collection is less than sunshine, and street lamp also just can not be worked.And wind energy power technology present stage is relatively ripe, wind electricity generating system is applied to street lamp then can solves the solar panel collection less than this problem of sunshine.
Though the patent No. " 200620016391.7 " patent name for the utility model patent of " gentle breeze solar energy complemental power-generation street lamp " and the patent No. " 200720084369.0 " patent name for the utility model patent of " solar electrical energy generation, wind-power electricity generation street lamp " has all been used solar electrical energy generation, wind-power electricity generation solves the street lamp power supply, road lamp power supply problem, complex structure, take up room big, noise is big.
The utility model content
Technical problem to be solved in the utility model is to overcome the deficiencies in the prior art, and a kind of simple in structure, wind energy little, that noise is little that takes up room, luminous energy complemental power-generation street lamp are provided.
The technical scheme that the utility model adopted is: the utility model comprises lamp stand, solar panel, wind generator system, illuminator, control cabinet, be provided with control device and battery in the described control cabinet, described control cabinet is arranged at described lamp stand bottom, described lamp stand top is provided with platform, described solar panel is arranged at described platform top, described battery by described control device respectively with described solar panel, described wind generator system, described illuminator is electrically connected, described wind generator system is arranged at described platform bottom, described wind generator system comprises the vertical helical fan blade, described vertical helical fan blade is provided with two helical blades at least, and described illuminator is provided with described wind generator system bottom.
Described wind generator system, described illuminator, described control cabinet are arranged between two parallel lamp stands.
The beneficial effects of the utility model are: because the utility model comprises wind generator system, described wind generator system is arranged at described platform bottom, described wind generator system comprises the vertical helical fan blade, described vertical helical fan blade is provided with three helical blades at least, described illuminator is provided with described wind generator system bottom, the contact area of described helical blade and air is little, thus the utility model simple in structure, take up room little, noise is little.
Because the utility model comprises the vertical helical fan blade, thus no matter wind direction at any angle can both make vertical helical fan blade rotation of the present utility model, the angle that does not also need to regulate fan blade, thus utilization ratio of wind energy improved.
Description of drawings

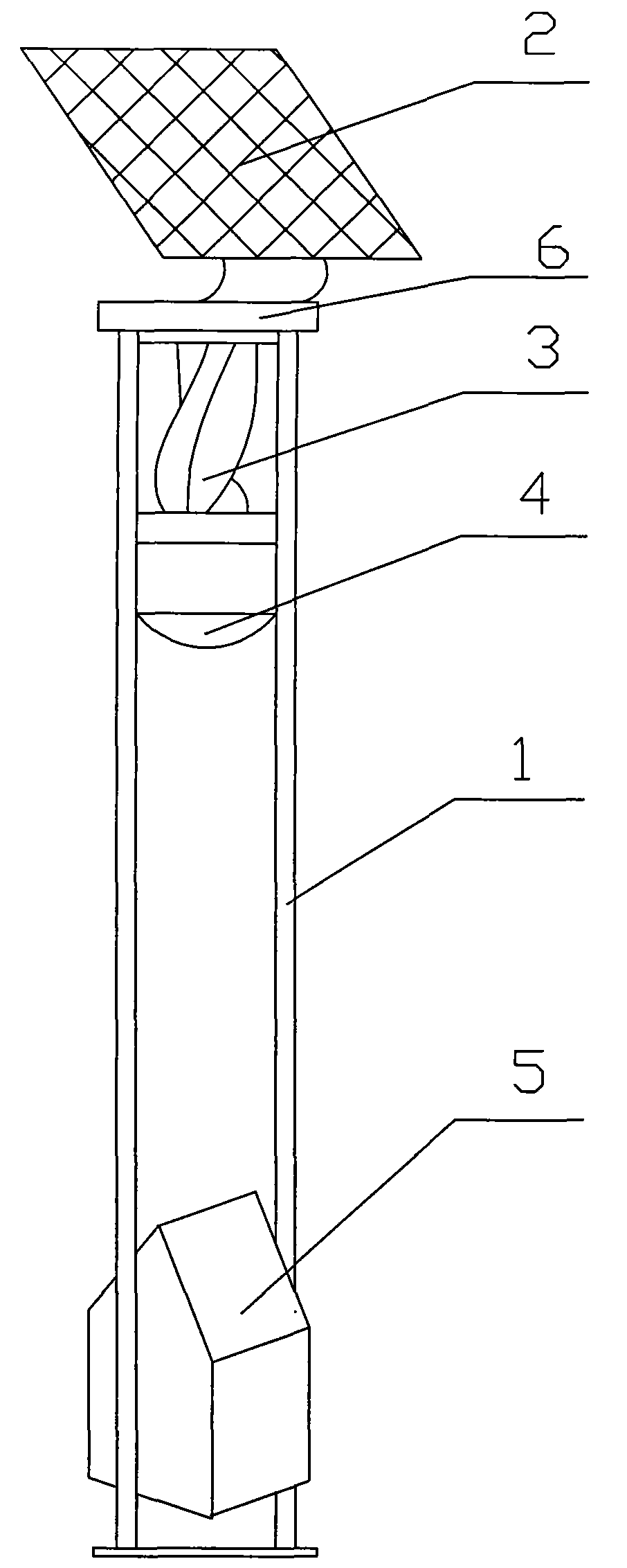

Fig. 1 is a structural representation of the present utility model.
The specific embodiment
As shown in Figure 1, the utility model comprises lamp stand 1, solar panel 2, wind generator system, illuminator 4, control cabinet 5, platform 6.The utility model comprises two lamp stands that are parallel to each other 1, described lamp stand 1 top is connected with described platform 6, described control cabinet 5 is arranged between described two lamp stands 1 and fixes with it, be provided with control device and battery in the described control cabinet 5, be connected between described control device and the described battery, described solar panel 2 is arranged at described platform 6 tops, described battery is electrically connected with described solar panel 2 by described control device, described wind generator system is fixed on described platform 6 bottoms and fixedly connected with two lamp stands 1 in the side, described wind generator system comprises vertical helical fan blade 3, described vertical helical fan blade 3 is provided with two helical blades at least, this helical blade is welded on the turning cylinder of described wind generator system, described illuminator 4 is provided with described wind generator system bottom, and described battery is also by described control device and described wind generator system, described illuminator 4 is electrically connected.
The utility model can be widely used in field of street lamp lighting.
Claims (2)
1, a kind of wind energy, luminous energy complemental power-generation street lamp, comprise lamp stand (1), solar panel (2), wind generator system, illuminator (4), control cabinet (5), described control cabinet is provided with control device and battery in (5), described control cabinet (5) is arranged at described lamp stand (1) bottom, described lamp stand (1) top is provided with platform (6), described solar panel (2) is arranged at described platform (6) top, described battery by described control device respectively with described solar panel (2), described wind generator system, described illuminator (4) is electrically connected, it is characterized in that: described wind generator system is arranged at described platform (6) bottom, described wind generator system comprises vertical helical fan blade (3), described vertical helical fan blade (3) is provided with two helical blades at least, and described illuminator (4) is provided with described wind generator system bottom.
2, a kind of wind energy according to claim 1, luminous energy complemental power-generation street lamp is characterized in that: described wind generator system, described illuminator (4), described control cabinet (5) are arranged between two parallel lamp stands (1).
