Abstract
The utility model discloses an inductive control LED lamp in a cabinet, which comprises a light guide lens, a luminous element, a lamp body bracket and a sensor, wherein the light guide lens is a strip light guide lens, the two sides of the light guide lens are outwards formed with location mounting ribs between which a lens body is arranged, the luminous element comprises a circuit board, a plurality of LED luminous bodies electrically connected to the circuit board, and a controller, the LED luminous bodies are welded on the circuit board at intervals, one side of the lamp body bracket is inwards provided with a strip groove used for holding the light guide lens and the luminous element, the side wall of the strip groove is provided with a first mounting groove and a second mounting groove, which are respectively used for holding the inserted light guide lens and the circuit board, the other side of the lamp body bracket is provided with an inductive locating hole, the senor is electrically connected to the circuit board, and the top end of the sensor is arranged in the inductive locating hole. The utility model has a simple integral structure, a few product components, and convenient production and assembly. The sensor adopted in the utility model realizes intelligent control and saves electric energy.
Description
Technical field
The utility model relates to a kind of LED light fixture, particularly relates to a kind of cabinet internal induction control LED lamp.
Background technology
Along with enriching constantly of people's material life, increasing people pursues comfortable life, but, the illumination of this space and convenient use of improving this space are become more and more important, and traditional cabinet intraoral illumination does not have as the confined spaces such as wardrobe of indoor use.
By being widely applied in the different lightings gradually, the LED lamp is also as a kind of new-type lighting and more and more general the appearing in the daily use of decorative lamp as the light emitting source of lighting for the LED light-emitting component.Though the LED luminescence unit has the luminous efficiency height, relatively conventional lamp has the effect of economize on electricity, and when use in the space in cabinet, light fixture need possess cabinet and turn on light bright, the function that cabinet is turned off the light and gone out, so loseing can saves energy consumption, and adopts convenient normal use of this automatic control mode.And the LED lighting does not also occur in present light fixture in this type of cabinet.
The utility model content
The purpose of this utility model is the defective that exists at above-mentioned prior art, for realizing energy-conservation purpose, and be user's convenient use, and the utility model provides a kind of cabinet internal induction LED lamp.
This cabinet internal induction control LED lamp comprises light guiding lens, illuminating part, lamp body support and inductor, wherein, light guiding lens is a strip, the light guiding lens both sides outwards form the location and installation rib, be lenticular body between the two location and installation ribs, this illuminating part comprises that circuit board is electrically connected on several LED illuminator and the controllers on this circuit board, the LED luminaire spacing is welded in circuit board, offer in order to install the bar-shaped trough of this light guiding lens and illuminating part in this lamp body support one side direction, this bar-shaped trough sidewall is offered and is formed first, second mounting groove, this is first years old, second mounting groove is light guiding lens and the circuit board in order to accommodate insertion respectively, lamp body support opposite side is offered an induction locating hole, inductor is electrically connected this circuit board, and the inductor top ends is arranged in the induction locating hole.
This lamp body support left end is inserted with left end cap, the circuit board left end forms a through wires hole, this left end cap one end forms a fairlead for lead insertion connection, lead passes fairlead, through wires hole and is electrically connected on the circuit board, the lamp body support is inserted with right end cap on the right side, this right end cap one side formation one is the control flume of strip, controller is electrically connected on the circuit board right-hand member, the slip operating key of controller slides and is installed in the control flume, regulates the slip operating key and makes this lamp can be in unlatching respectively, close and respond to automatically state of a control.
This lamp body frame bottom is offered one and is withheld locating hole, this is withheld locating hole and is communicated with this bar-shaped trough, lamp body support opposite side is offered an induction locating hole, this induction locating hole is communicated with this and withholds locating hole, installing one assembly in the induction locating hole, this assembly connects and forms accepting hole, and the inductor top ends is contained in the accepting hole of assembly, and buckling piece is withheld in withholding on the locating hole.
As mentioned above, the utility model cabinet internal induction control LED lamp overall structure is simple, and the product composition element is few, is convenient to production and assembly, and the inductor that the utility model adopts is realized intelligent control, saves energy.
Description of drawings
In Figure of description:
Fig. 1 is the schematic perspective view of the utility model cabinet internal induction control LED lamp;

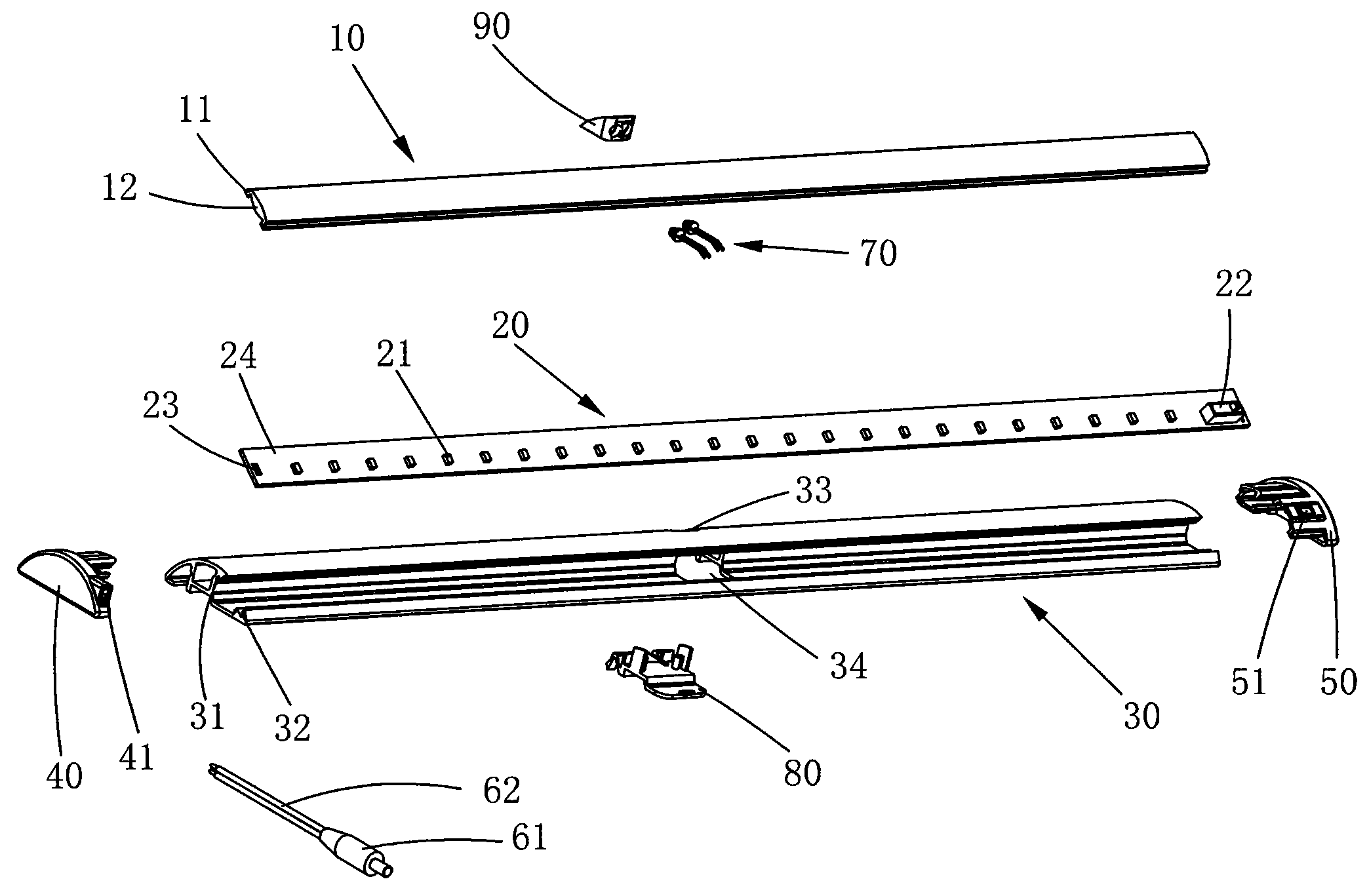

Fig. 2 is the three-dimensional exploded view of the utility model cabinet internal induction control LED lamp.
The description of reference numerals of each element is as follows among the figure:
Cabinet internal induction control LED lamp 100
Light guiding lens 10 location and installation ribs 11
Through wires hole 23 circuit boards 24
Lamp body support 30 first mounting grooves 31
Second mounting groove, 32 induction locating holes 33
Fairlead 41 right end caps 50
Control flume 51 plugs 61
Lead 62 inductors 70
The specific embodiment
For describing technology contents of the present utility model, architectural feature, the purpose that is realized and effect in detail, give explanation below in conjunction with embodiment and conjunction with figs. are detailed.
See also Fig. 1 and Fig. 2, this cabinet internal induction control LED lamp 100 comprises light guiding lens 10, illuminating part 20, lamp body support 30, left end cap 40, right end cap 50, inductor 70, buckling piece 80 and assembly 90.This cabinet internal induction control LED lamp 100 is mainly used in the confined space such as wardrobe, and when wardrobe is opened, inductor 70 feelings of passivity are answered human infrared signal, and then controls this illuminating part 20 and emit beam and illuminate the wardrobe inner space.
Fig. 2 is the three-dimensional exploded view of this cabinet internal induction control LED lamp 100, the further detailed structure that shows this cabinet internal induction control LED lamp 100.This light guiding lens 10 is a strip, and it is lenticular body 12 that light guiding lens 10 both sides outwards form between location and installation rib 11, the two location and installation ribs 11, and this light guiding lens 10 is made of leaded light materials such as PC, PMMA.This illuminating part 20 comprises circuit board 24 and is electrically connected on several LED illuminators 21 and controller 22 on this circuit board, LED illuminator 21 is welded on the circuit board 24 at interval, circuit board 24 1 ends form a through wires hole 23, and controller 22 is arranged at circuit board 24 other ends.But this controller 22 has three adjustment state " ON ", " OFF ", " AUTO ", and these three adjustment state are represented respectively to open, closed and induction control automatically.Offer in these lamp body support 30 1 side direction in order to install the bar-shaped trough of this light guiding lens 10 and illuminating part 20, offer first, second mounting groove 31,32 of formation in this bar-shaped trough sidewall, these lamp body support 30 bottoms are offered one and are withheld locating hole 34, this is withheld locating hole 34 and is communicated with this bar-shaped trough, lamp body support 30 opposite sides are offered an induction locating hole 33, this induction locating hole 33 is communicated with this and withholds locating hole 34, and this first, second mounting groove 31,32 is light guiding lens 10 and the circuit board 24 in order to accommodate insertion respectively.Left end cap 40 is plugged on lamp body support 30 left sides, and these left end cap 40 1 ends form a fairlead 41 for lead insertion connection.This right end cap 50 is inserted on lamp body support 30 right sides, and this right end cap 50 1 sides formation one is the control flume 51 of strip, and the slip operating key of controller 22 slides and is installed in the control flume 51.The lead 62 that the end is connected with plug 61 can pass fairlead 41 and through wires hole 23, and these lead 62 tail ends are electrically connected this circuit board 24.This buckling piece 80 is upwards withheld in withholding on the locating hole 34 from lamp body support 30 bottoms.Inductor 70 is the passive infrared induction tube in the present embodiment; this inductor 70 is electrically connected this circuit board 24; inductor 70 top ends are arranged in the induction locating hole 33; assembly 90 constitutes for plastic cement material; assembly 90 connects and forms two accepting holes; these inductor 70 top ends are contained in the accepting hole of assembly 90, and these assembly 90 main purposes are location and this inductor 70 of protection, are assembled in inductors 70 in the assembly 90 and can receive infrared signal from the outside.
This cabinet internal induction control LED lamp 100 is installed on the flat board of top of space to be illuminated, lamp body support 30 smooth being fixed on the flat board, and inductor 70 1 sides are equiped with LED illuminator 21 1 sides inwardly outwardly.Control button on adjustment control 22, it is adjusted to " ON " state, then this cabinet internal induction control LED lamp 100 is in lasting luminance; When it being adjusted to " OFF " state, this cabinet internal induction control LED lamp 100 is in and extinguishes state lastingly; When it being adjusted to " AUTO ", open cabinet board, the infrared radiation signal of the required human body of inductor 70 feelings of passivity, this cabinet internal induction control LED lamp 100 is in illuminating state, when cabinet board is closed, the source of infrared radiation disappears, and inductor 70 does not receive infrared radiation signal, and then this cabinet internal induction control LED lamp 100 is in and extinguishes state.
In the practical application, when this cabinet internal induction control LED lamp 100 length are longer, two inductors 70 can be set, these two inductors 70 are arranged at intervals in the lamp body support 30.This inductor 70 is not limited to the passive infrared induction tube in the present embodiment, also can be other devices that can respond to control.The utility model overall structure is simple, and the product composition element is few, is convenient to production and assembly, and the inductor that the utility model adopts is realized intelligent control, saves energy.
In sum, protection domain of the present utility model is not limited to the foregoing description, still all should belong to interest field of the present utility model as for the change of component count described in this specification or the replacement of equivalent elements etc.
Claims (3)
1. a cabinet internal induction is controlled the LED lamp, it is characterized in that: this cabinet internal induction control LED lamp comprises light guiding lens, illuminating part, lamp body support and inductor, wherein, light guiding lens is a strip, the light guiding lens both sides outwards form the location and installation rib, be lenticular body between the two location and installation ribs, this illuminating part comprises that circuit board is electrically connected on several LED illuminator and the controllers on this circuit board, the LED luminaire spacing is welded in circuit board, offer in order to install the bar-shaped trough of this light guiding lens and illuminating part in this lamp body support one side direction, this bar-shaped trough sidewall is offered and is formed first, second mounting groove, this is first years old, second mounting groove is light guiding lens and the circuit board in order to accommodate insertion respectively, lamp body support opposite side is offered an induction locating hole, and inductor is electrically connected this circuit board, and the inductor top ends is arranged in the induction locating hole.
2. cabinet internal induction control LED lamp according to claim 1, it is characterized in that: this lamp body support left end is inserted with left end cap, the circuit board left end forms a through wires hole, this left end cap one end forms a fairlead for lead insertion connection, lead passes fairlead, through wires hole and being electrically connected on the circuit board, the lamp body support is inserted with right end cap on the right side, this right end cap one side formation one is the control flume of strip, controller is electrically connected on the circuit board right-hand member, the slip operating key of controller slides and is installed in the control flume, regulates the slip operating key and makes this lamp can be in unlatching respectively, close and respond to state of a control automatically.
3. cabinet internal induction control LED lamp according to claim 2, it is characterized in that: this lamp body frame bottom is offered one and is withheld locating hole, this is withheld locating hole and is communicated with this bar-shaped trough, lamp body support opposite side is offered an induction locating hole, this induction locating hole is communicated with this and withholds locating hole, and installing one assembly in the induction locating hole, this assembly connect and form accepting hole, the inductor top ends is contained in the accepting hole of assembly, and buckling piece is withheld in withholding on the locating hole.
