CN201376734Y - A new type of packaging bag - Google Patents

A new type of packaging bag Download PDF

Info

Publication number
CN201376734Y
CN201376734Y CN200820182924U CN200820182924U CN201376734Y CN 201376734 Y CN201376734 Y CN 201376734Y CN 200820182924 U CN200820182924 U CN 200820182924U CN 200820182924 U CN200820182924 U CN 200820182924U CN 201376734 Y CN201376734 Y CN 201376734Y
Authority
CN
China
Prior art keywords
sheet
main
piece
buckle
new type
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Expired - Fee Related
Application number
CN200820182924U
Other languages
Chinese (zh)
Inventor
陈联斌
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Individual
Original Assignee
Individual
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Individual filed Critical Individual
Priority to CN200820182924U priority Critical patent/CN201376734Y/en
Application granted granted Critical
Publication of CN201376734Y publication Critical patent/CN201376734Y/en
Anticipated expiration legal-status Critical
Expired - Fee Related legal-status Critical Current

Links

Images

Classifications

    • Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
    • Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
    • Y02W—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO WASTEWATER TREATMENT OR WASTE MANAGEMENT
    • Y02W30/00—Technologies for solid waste management
    • Y02W30/50—Reuse, recycling or recovery technologies
    • Y02W30/80—Packaging reuse or recycling, e.g. of multilayer packaging

Landscapes

  • Purses, Travelling Bags, Baskets, Or Suitcases (AREA)

Abstract

一种新型的包装手提袋，它涉及一种由原有的袋子折叠而成的手提袋。手抓绳(1)的两端设置在卡扣(2)上且两端伸入卡扣(2)的内部，卡扣(2)设置在主片(3)的上端；侧边片(4)设置在主片(3)的一侧，与主片(3)是相连接的，主片(3)上设置有折痕(8)，底片(6)设置在主片(3)的最下端，且主片(3)的下端的侧边与底片(6)侧边的一端是相连接的；附加片(5)设置在底片(6)的上方，与底片(6)是相互平行的；它既可以二次使用，又可以一物多用、坚固耐用、结构简单、使用方便，成本低、且外观非常有吸引力。

Figure 200820182924

A new type of packaging handbag relates to a handbag folded from an original bag. The two ends of the hand rope (1) are arranged on the buckle (2) and the two ends extend into the inside of the buckle (2), and the buckle (2) is arranged on the upper end of the main piece (3); the side piece (4) ) is arranged on one side of the main sheet (3) and is connected with the main sheet (3). The main sheet (3) is provided with creases (8), and the bottom sheet (6) is arranged at the end of the main sheet (3). The lower end, and the side of the lower end of the main sheet (3) is connected to one end of the side of the bottom sheet (6); the additional sheet (5) is arranged on the top of the bottom sheet (6), and is parallel to the bottom sheet (6) ; It can not only be used twice, but also can be used for multiple purposes, durable, simple in structure, convenient to use, low in cost, and very attractive in appearance.

Figure 200820182924

Description

一种新型的包装手提袋 A new type of packaging bag

技术领域： Technical field:

本实用新型是涉及一种由原有的袋子折叠而成的手提袋。The utility model relates to a handbag which is folded from an original bag.

背景技术： Background technique:

手提袋是方便人们在超市购物，或日常生活其他场所使用现有包装袋有很多种，但由于其结构设计不合理，不便于折叠携带，用完后就直接仍掉，没有得到很好的应用因此，大量的废弃包装袋对环境造成严重污染。Handbags are convenient for people to shop in supermarkets or to use in other places in daily life. There are many kinds of existing packaging bags, but due to their unreasonable structural design, they are not easy to fold and carry, and they will be dropped directly after use, so they have not been well used. Therefore, a large amount of discarded packaging bags cause serious pollution to the environment.

实用新型内容： Utility model content:

本实用新型的目的是提供一种新型的手提袋，它能一物多用坚固耐用结构简单成本低 且外观非常有吸引力。为了解决背景技术所存在的问题，本实用新型是采用以下技术方案：它是由手抓绳卡扣、主片、侧边片、附加片、底片和折叠片组成；手抓绳的两端设置在卡扣上且两端伸入卡扣的内部，卡扣设置在主片的上端；主片上设置有折痕，侧边片设置在主片的一侧，与主片是相连接的，底片设置在主片的最下端，且主片的下端的侧边与底片侧边的一端是相连接的；附加片设置在底片的上方，与底片是相互平行的。The purpose of this utility model is to provide a new type of handbag, which can be multi-purpose, durable, simple in structure, low in cost and very attractive in appearance. In order to solve the problems existing in the background technology, the utility model adopts the following technical scheme: it is composed of a hand grip rope buckle, a main piece, a side piece, an additional piece, a bottom piece and a folding piece; On the buckle and both ends extend into the inside of the buckle, the buckle is set on the upper end of the main piece; the main piece is provided with creases, the side piece is set on one side of the main piece, and is connected with the main piece, and the bottom piece It is arranged at the lowermost end of the main sheet, and the side of the lower end of the main sheet is connected to one end of the side edge of the bottom sheet; the additional sheet is arranged above the bottom sheet and is parallel to the bottom sheet.

工作原理：将原来的包装带沿着折痕向下折叠一部分，就可以当手提袋了。How it works: Fold the original packing tape down a part along the crease, and it can be used as a handbag.

本实用新型具有以下有益效果：既可以二次使用，又可以一物多用坚固耐用结构简单使用方便，成本低且外观非常有吸引力。The utility model has the following beneficial effects: it can not only be used twice, but also can be used for multiple purposes. The utility model is simple and durable in structure, easy to use, low in cost and very attractive in appearance.

附图说明： Description of drawings:

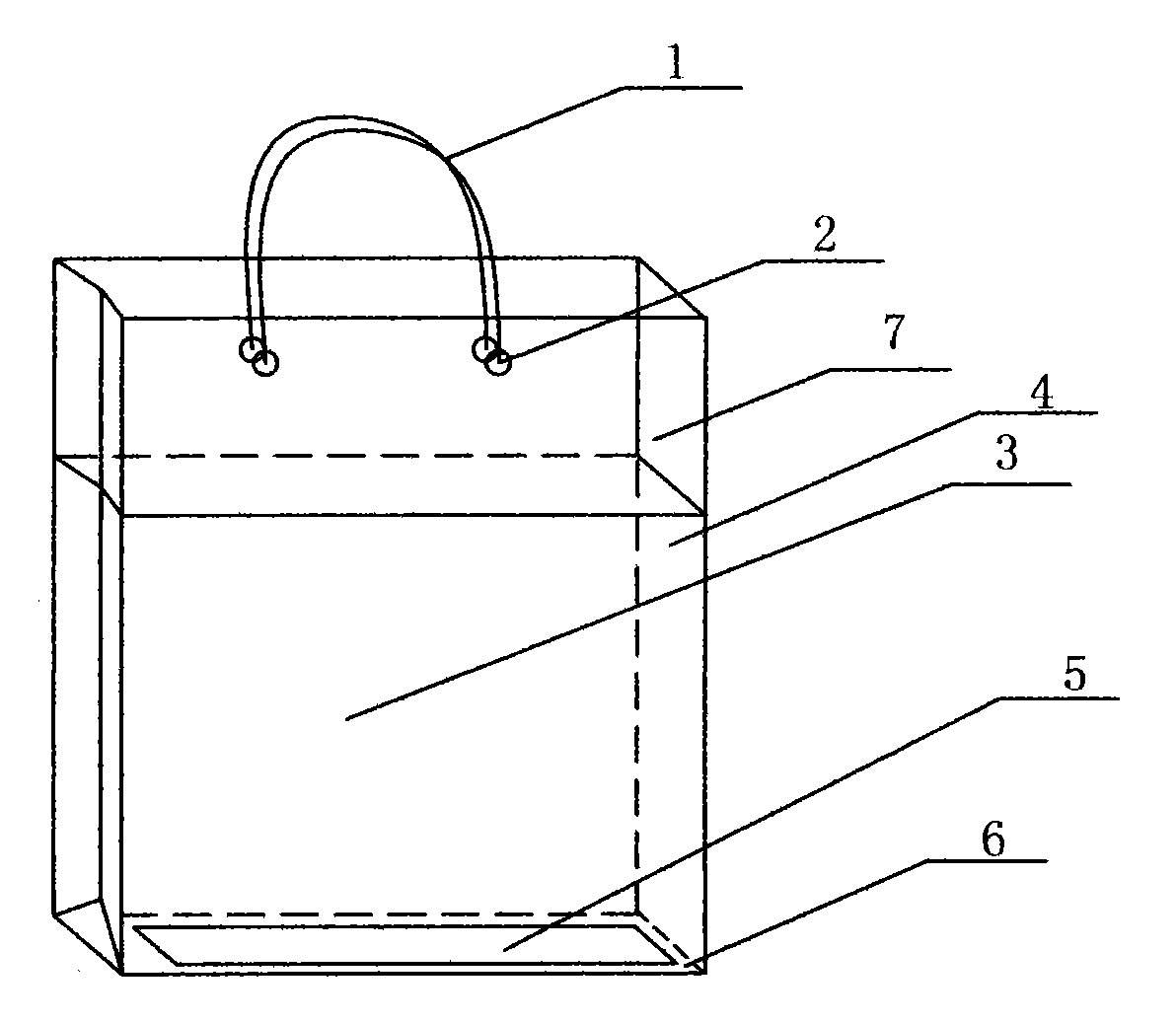

图1是原包装袋的结构示意图；图2是本实用新型的结构示意图Fig. 1 is the structural representation of former packing bag; Fig. 2 is the structural representation of the utility model

具体实施方式：Detailed ways:

本具体实施方式采用以下技术方案：它是由手抓绳1卡扣2主片3侧边片4附加片5底片6和折叠片7组成；手抓绳1的两端设置在卡扣2上且两端伸入卡扣2的内部，卡扣2设置在主片3的上端；主片3上设置有折痕8，侧边片4设置在主片3的一侧，与主片3是相连接的，底片6设置在主片3的最下端，且主片3的下端的侧边与底片6侧边的一端是相连接的；附加片5设置在底片6的上方，与底片6是相互平行的；既可以二次使用，又可以一物多用坚固耐用结构简单使用方便，成本低且外观非常有吸引力。This specific embodiment adopts the following technical scheme: it is composed of hand rope 1 buckle 2 main piece 3 side piece 4 additional piece 5 bottom piece 6 and folding piece 7; the two ends of hand rope 1 are arranged on the buckle 2 And the two ends extend into the inside of the buckle 2, the buckle 2 is arranged on the upper end of the main piece 3; the main piece 3 is provided with a crease 8, and the side piece 4 is arranged on one side of the main piece 3, and the main piece 3 is Connected, the bottom sheet 6 is arranged at the lowermost end of the main sheet 3, and the side of the lower end of the main sheet 3 is connected with one end of the bottom sheet 6 side; the additional sheet 5 is arranged on the top of the bottom sheet 6, and is Parallel to each other; both reusable and multipurpose, strong and durable structure, simple and convenient to use, low cost and very attractive in appearance.

工作原理：将原来的包装带沿着折痕8向下折叠一部分，就可以当手提袋了。Working principle: Fold the original packing tape down a part along the crease 8, and then it can be used as a handbag.

Claims (1)

1、一种新型的包装手提袋，其特征在于它是由手抓绳(1)、卡扣(2)、主片(3)、侧边片(4)、附加片(5)、底片(6)和折叠片(7)组成；手抓绳(1)的两端设置在卡扣(2)上且两端伸入卡扣(2)的内部，卡扣(2)设置在主片(3)的上端，主片(3)上设置有折痕(8)，侧边片(4)设置在主片(3)的一侧，与主片(3)是相连接的，底片(6)设置在主片(3)的最下端，且主片(3)的下端的侧边与底片(6)侧边的一端是相连接的；附加片(5)设置在底片(6)的上方，与底片(6)是相互平行的。1. A new type of packaging handbag is characterized in that it is composed of a hand grip rope (1), a buckle (2), a main piece (3), a side piece (4), an additional piece (5), a bottom piece ( 6) and a folded sheet (7); the two ends of the hand rope (1) are arranged on the buckle (2) and both ends extend into the inside of the buckle (2), and the buckle (2) is arranged on the main piece ( 3), the main sheet (3) is provided with a crease (8), the side sheet (4) is arranged on one side of the main sheet (3), and is connected with the main sheet (3), and the bottom sheet (6 ) is arranged at the lowermost end of the main sheet (3), and the side of the lower end of the main sheet (3) is connected to one end of the side of the bottom sheet (6); the additional sheet (5) is arranged on the top of the bottom sheet (6) , and the film (6) are parallel to each other.
