Abstract
一种采用热管冷却的平板型太阳能光伏电－热转换装置，属太阳能光伏电－热利用工程领域。主要由太阳能光伏电池模块、太阳能光伏电池板、玻璃盖板、玻璃侧封、吸液芯热管、导热材料、保温材料、冷却流体通道、冷却流体进出口联箱和接管组成。吸液芯热管的蒸发段与光伏电池板紧密接触，两者之间充满导热性能优良的导热材料；在吸液芯热管蒸发段和导热材料周围布置有保温材料；在吸液芯热管的冷凝段外表面布置有径向翅片；在吸液芯热管的蒸发段和冷凝段之间留有绝热段，且绝热段外表面布置有保温材料；整个装置可倾斜布置。本实用新型具有太阳能光伏电池板温度均匀、工作温度调节方便、光伏电－热转换效率高和运行可靠性好的特点。
The utility model relates to a flat-plate solar photovoltaic electric-heat conversion device which adopts heat pipe cooling, and belongs to the field of solar photovoltaic electric-heat utilization engineering. It is mainly composed of solar photovoltaic cell modules, solar photovoltaic panels, glass cover plates, glass side seals, liquid-absorbing core heat pipes, heat-conducting materials, thermal insulation materials, cooling fluid channels, cooling fluid inlet and outlet headers and connecting pipes. The evaporation section of the liquid-absorbing wick heat pipe is in close contact with the photovoltaic panel, and the gap between the two is filled with heat-conducting materials with excellent thermal conductivity; insulation materials are arranged around the evaporation section of the liquid-absorbing wick heat pipe and the heat-conducting material; in the condensation section of the liquid-absorbing wick heat pipe Radial fins are arranged on the outer surface; a heat insulation section is left between the evaporation section and the condensation section of the heat pipe of the liquid-absorbing core, and the outer surface of the heat insulation section is arranged with thermal insulation materials; the whole device can be arranged obliquely. The utility model has the characteristics of uniform temperature of the solar photovoltaic battery board, convenient adjustment of the working temperature, high photovoltaic electric-thermal conversion efficiency and good operation reliability.
Description
Technical field:
Title of the present utility model is a kind of plate type solar photovoltaic electricity-Re conversion equipment that adopts the heat pipe cooling, belongs to solar photovoltaic-heat utilization engineering field.
Background technology:
In the heat utilization mode of solar energy, it is one of at present more common a kind of mode that the photovoltaic of solar energy electricity utilizes.Photovoltaic electricity to solar energy utilizes existing more research at present, but the photovoltaic of solar energy electricity utilization ratio is low, generally have only 10～20%, therefore in the photovoltaic electricity transfer process of solar energy, can cause the thermal waste of very big solar energy on the one hand, the heat energy that does not convert electric energy simultaneously to also can cause the rising of photovoltaic battery temperature, and according to research, the conversion efficiency of solar-energy photo-voltaic cell reduces along with the rising of inversion temperature, thereby be unfavorable for the photovoltaic electricity conversion of solar energy more, according to the study, this unnecessary heat can cause conversion efficiency to descend 3～6% to the heating of solar-energy photo-voltaic cell, therefore be necessary to cool off, by cooling, can improve on the one hand the photoelectric transformation efficiency of solar energy, on the other hand by certain type of cooling the in addition heat utilization of getting up of unnecessary heat recovery, as refrigeration, heating, therefore the photovoltaic electricity-Re conversion equipment and the system of solar energy just appearred in desalination and produce steam etc.
From domestic and foreign literature and license situation, the cooling system of the present solar photovoltaic transfer process that adopts, mostly be forced convertion cooling and free convection cooling dual mode greatly, wherein utilize the forced convertion cooling of water and air to be proved to be and be effective and efficient manner comparatively at present.Yet should be noted that, cooling medium rises in flow process its temperature behind the heat of absorption solar photovoltaic cell panel, and by solar radiation etc. heat flow density, (there is heat conduction in the complexity that inhomogeneities that cooling fluid distributes and solar photovoltaic-Re internal system is conducted heat, three kinds of heat transfer modes of convection current and radiation heat transfer), this moment, the temperature of solar photovoltaic cell panel should not be uniform, the operating temperature that also is solar-energy photo-voltaic cell should increase on the flow direction of fluid, therefore cause the solar-energy photo-voltaic cell cooling effect inequality on the solar photovoltaic cell panel, sometimes even can produce " focus " problem, this is disadvantageous to photoelectric transformation efficiency of improving solar-energy photo-voltaic cell; Simultaneously because the inhomogeneities of solar-energy photo-voltaic cell operating temperature, the adjusting of solar photovoltaic-Re system works temperature has also been brought inconvenience; In addition, traditional type of cooling is when the cooling medium of employing such as classes such as air, owing to will improve the measure that cooling effect need adopt augmentation of heat transfer, and the mode such as fin that in coolant guiding channel, installs additional that adopts at present, can increase the complexity and the cost of investment of system obviously, this improvement to solar photovoltaic-Re systematic economy performance also is disadvantageous.Therefore be necessary to adopt a kind of new type of cooling, can reach efficient cooling effect, the operating temperature uniformity that can keep each solar-energy photo-voltaic cell on the solar photovoltaic cell panel again, and operating temperature is easy to adjust, this opto-electronic conversion performance to the overall performance, particularly solar energy of raising solar photovoltaic-Re system is very favourable.
The utility model content:
The technical problems to be solved in the utility model provides a kind of plate type solar photovoltaic electricity-Re conversion equipment that adopts the heat pipe cooling efficiently.Isothermal performance when making full use of on the one hand heat pipe work and operating temperature make things convenient for adjustability, utilize the efficient heat transfer performance of heat pipe itself on the other hand and outside pipe, install the characteristics that fin reinforcing conducts heat easily additional, not only can solve solar photovoltaic cell panel non-uniform temperature and " focus " problem in photovoltaic electricity-Re system, improve the conversion efficiency and the security performance of photovoltaic electricity-Re system, but also can realize the adjustability that makes things convenient for of solar-energy photo-voltaic cell operating temperature.
For solving the problems of the technologies described above, the utility model is achieved through the following technical solutions:

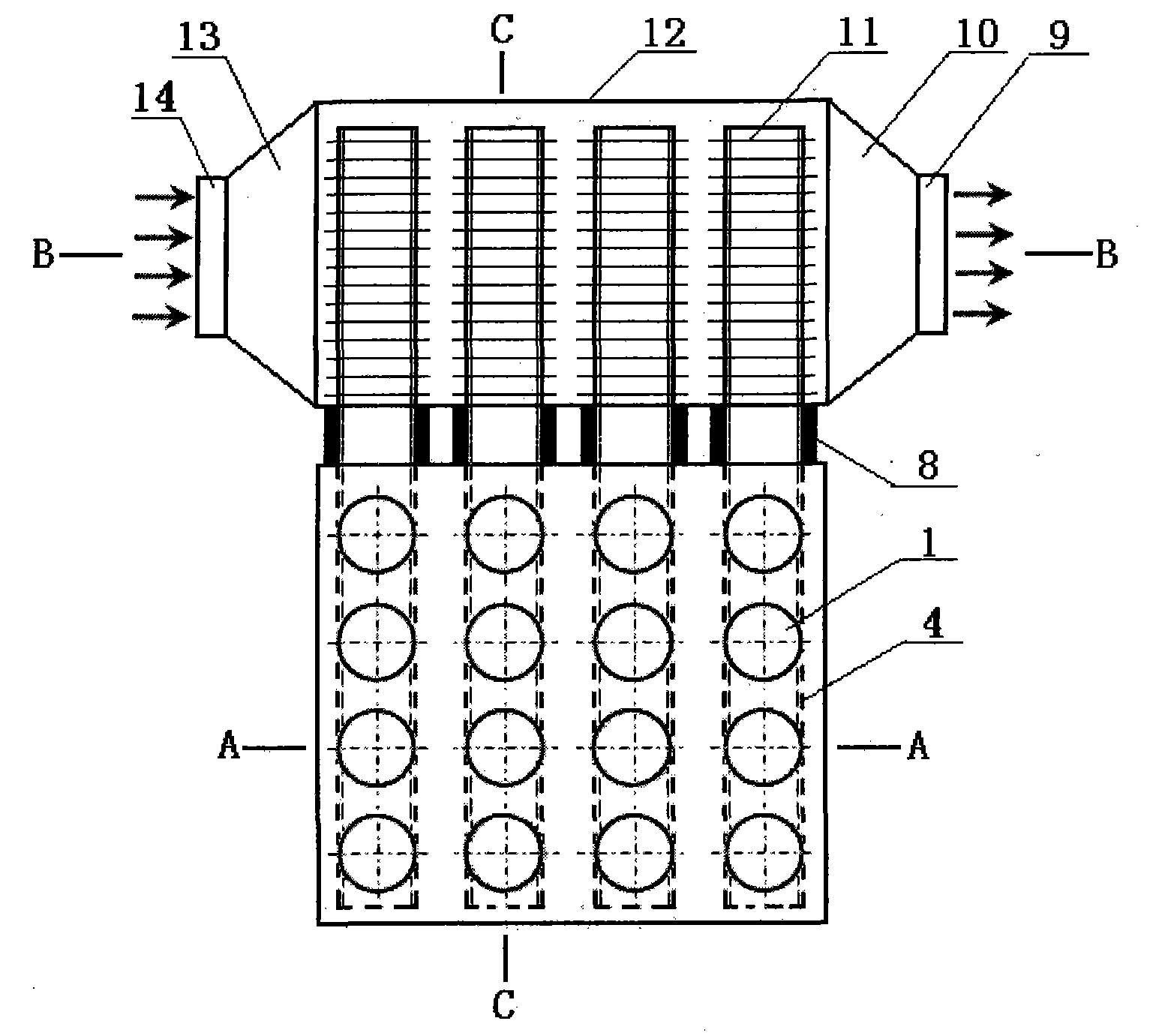

Mainly by solar-energy photo-voltaic cell module 1, solar photovoltaic cell panel 2, glass cover-plate 7, glass side seal 6, imbibition core heat pipe 4, Heat Conduction Material 3, imbibition core heat pipe evaporator section insulation material 5, imbibition core heat pipe adiabatic section insulation material 8, cooling channels 12, cooling fluid inlet header 13, cooling fluid outlet header 10, a kind of plate type solar photovoltaic electricity-Re conversion equipment that adopts the heat pipe cooling that cooling fluid entrance sleeve 14 and cooling fluid discharge connection 9 are formed, it is characterized in that: glass cover-plate 7 and glass side seal 6 are formed the enclosure space with greenhouse effect, solar-energy photo-voltaic cell module 1 is the rectangular arranged mode of rule on solar photovoltaic cell panel 2, below every row's solar-energy photo-voltaic cell module 1, arrange the evaporator section of imbibition core heat pipe 4, the evaporator section of imbibition core heat pipe 4 closely contacts with solar photovoltaic cell panel 2, between the two the Heat Conduction Material 3 of falling heat-transfer function admirable; At imbibition core heat pipe 4 evaporator sections and Heat Conduction Material 3 arranged around imbibition core heat pipe evaporator section insulation material 5 is arranged; Condensation segment outer surface cloth at imbibition core heat pipe 4 is equipped with radial fins 11; Leave the adiabatic section between the evaporator section of imbibition core heat pipe and condensation segment, and imbibition core heat pipe adiabatic section outer surface cloth is equipped with imbibition core heat pipe adiabatic section insulation material 8, the condensation segment of imbibition core heat pipe is arranged in the cooling channels 12; The cooling channels entrance point is furnished with cooling fluid inlet header 13 and cooling fluid entrance sleeve 14; The cooling channels port of export is furnished with cooling fluid outlet header 10 and cooling fluid discharge connection 9.
The utility model is equipped with radial fins 11 with effective heat-transfer effect that improves cooling fluid at the condensation segment outer surface cloth of imbibition core heat pipe, and whole device for the evaporator section accepting solar radiation better and can adopt imbibition core heat pipe 4 down, condensation segment is in last being in tilted layout.
The utility model compared with prior art has following characteristics: the isothermal performance when (1) utilizes heat pipe work makes that the operating temperature of each solar-energy photo-voltaic cell is identical, the temperature uniformity on solar photovoltaic cell panel surface, thereby improve the photoelectric transformation efficiency of whole device and effectively avoid " focus " problem on the solar photovoltaic cell panel, operational reliability is good.(2) utilize the convenient adjustable characteristics of heat pipe operating temperature, the operating temperature of the solar-energy photo-voltaic cell of whole device can be as required by changing the operate outside condition of heat pipe, wait as temperature, the flow of cooling fluid to reach the purpose of regulating the solar-energy photo-voltaic cell operating temperature.(3) heat exchange efficiency height: adopt efficient imbibition core heat pipe, simultaneously install radial fins additional at imbibition core heat pipe condenser section, and imbibition core heat pipe adiabatic section outer surface cloth is equipped with imbibition core heat pipe adiabatic section insulation material 8, and the condensation segment of imbibition core heat pipe is arranged in the cooling channels 12; The cooling channels entrance point is furnished with cooling fluid inlet header 13 and cooling fluid entrance sleeve 14; The cooling channels port of export is furnished with cooling fluid outlet header 10 and cooling fluid discharge connection 9.
The course of work of the present utility model is as follows: when solar radiation shines glass cover-plate 7 on photovoltaic electricity-Re conversion equipment, solar energy sees through glass cover-plate 7 and enters the enclosure space of being made up of glass cover-plate 7 and glass side seal 6, utilize the greenhouse effect of enclosure space, the solar energy that enters enclosure space is absorbed by solar-energy photo-voltaic cell module 1 on the one hand and converts electric energy to, the heating solar photovoltaic battery panel 2 on the other hand, and some heat scatters and disappears in the mode of convection current and radiation by glass cover-plate 7 and glass side seal 6 simultaneously; After solar photovoltaic cell panel 2 is heated, heat passes through solar photovoltaic cell panel 2 in the mode of heat conduction, this part heat removes sub-fraction and is lost to the external environment China and foreign countries by imbibition core heat pipe evaporator section insulation material 5, major part passes at the evaporator section of imbibition core heat pipe 4 and the good Heat Conduction Material 3 of the heat conductivility between the solar photovoltaic cell panel 2, passes to the tube wall of the evaporator section of imbibition core heat pipe 4 then; After the evaporator section of imbibition core heat pipe 4 is heated, working medium in heat pipe heat absorption vaporization, the working medium after the vaporization upwards flows through the condensation segment that arrives imbibition core heat pipe 4 behind the adiabatic section of imbibition core heat pipe 4; At condensation segment, the working medium of imbibition core heat pipe 4 discharges heat to condensing into liquid working medium behind the cooling fluid outside the condensation segment pipe, the suffered gravity effect of liquid refrigerant when the effect of the capillary suction force of the imbibition core in the liquid working medium dependence imbibition core heat pipe 4 and whole device tilt to place, be back to the evaporator section of imbibition core heat pipe 4 by the adiabatic section of imbibition core heat pipe 4, heat absorption vaporization again; And cooling fluid enters cooling channels 12 after entering cooling fluid inlet header 13 by cooling fluid entrance sleeve 14, in cooling channels 12, cooling fluid by and the radial fins 11 of the condensation segment of imbibition core heat pipe 4 between carry out heat convection mode absorb condenser heat from imbibition core heat pipe 4, flow out through cooling fluid discharge connection 9 by cooling fluid outlet header 10 after reaching desired temperature.
Claims (2)
1, a kind of plate type solar photovoltaic electricity-Re conversion equipment that adopts the heat pipe cooling, mainly by solar-energy photo-voltaic cell module (1), solar photovoltaic cell panel (2), glass cover-plate (7), glass side seal (6), imbibition core heat pipe (4), Heat Conduction Material (3), imbibition core heat pipe evaporator section insulation material (5), imbibition core heat pipe adiabatic section insulation material (8), cooling channels (12), cooling fluid inlet header (13), cooling fluid outlet header (10), flowing but fluid inlet adapter (14) and cooling fluid discharge connection (9) forms, it is characterized in that: glass cover-plate (7) and glass side seal (6) are formed enclosure space, solar-energy photo-voltaic cell module (1) is the rectangular arranged mode of rule on solar photovoltaic cell panel (2), below every row's solar-energy photo-voltaic cell module (1), arrange the evaporator section of imbibition core heat pipe (4), the evaporator section of imbibition core heat pipe (4) closely contacts with solar photovoltaic cell panel (2), between the two the Heat Conduction Material of falling heat-transfer function admirable (3); At imbibition core heat pipe (4) evaporator section and Heat Conduction Material (3) arranged around imbibition core heat pipe evaporator section insulation material (5) is arranged; Between the evaporator section of imbibition core heat pipe (4) and condensation segment, leave the adiabatic section, and the adiabatic section outer surface cloth of imbibition core heat pipe (4) is equipped with imbibition core heat pipe adiabatic section insulation material (8), and the condensation segment of imbibition core heat pipe (4) is arranged in the cooling channels (12); The cooling channels entrance point is furnished with cooling fluid inlet header (13) and cooling fluid entrance sleeve (14); The cooling channels port of export is furnished with cooling fluid outlet header (10) and cooling fluid discharge connection (9).
2, a kind of plate type solar photovoltaic electricity-Re conversion equipment that adopts the heat pipe cooling according to claim 1, it is characterized in that: the condensation segment outer surface cloth of imbibition core heat pipe (4) is equipped with radial fins (11), and the whole device evaporator section that can adopt imbibition core heat pipe (4) down, condensation segment is in last being in tilted layout.
