Abstract
A novel lumbar vertebra massager relates to a massager, and comprises a massager body, wherein a kneading ball and an infrared burner are mounted on the massager body; and a control box is connected outside the massager body for operation control. The novel lumbar vertebra massager is characterized in that the kneading ball comprises a massage head and a base which are fixedly mounted together through a centre shaft; and an elastic device for more joint and massage is arranged at the centre shaft. The novel lumbar vertebra massager has the advantages that through arranging the massage head and the elastic device, more comfortable feeling can be brought for massagers; and the massager has the massage and the percussion functions, effectively replaces the manual massage, and stretches the tense muscles and bones of the whole body, thereby reducing the tension and the pressure, simultaneously promoting the blood circulation of the whole body, and accelerating the metabolism.
Description
Technical field:
This utility model relates to masseur, specifically is a kind of masseur that can massage human body waist, ceruical uertebra part.
Background technology:
Waist and ceruical uertebra part are human bodies standing for a long time or tired easily position during sitting, it are not carried out activity for a long time, are easy to cause the stiff of these positions, will stay the disease of waist ceruical uertebra part after permanent.Therefore, necessaryly after the working and learning of carrying out a period of time, these positions are massaged with fatigue alleviating.And be mostly to massage by vibration mode owing to existing masseur at present, tend to do not feel like oneself on the health to user and answer, simultaneously for mid-aged population, cross strong or long the vibration and be easy to cause untoward reaction.
China Patent No. 200420072520.5, title be " a kind of multiple contact shoulder neck massager " patent disclosure a kind of masseur, comprise the groove of placing head, neck massaging contact and driving shaft thereof and fixing head, shoulder massage contact and driving shaft thereof and fixing head, base and motor, driving shaft is by motor-driven, and neck massaging driving shaft and shoulder massage driving shaft connect with motor output shaft by the gear that intercouples respectively.As shown in Figure 1, be not difficult to find out that this masseur is that shoulder is used different massage contacts respectively with cervical region, shoulder cervical region at human body is massaged simultaneously, function singleness is comparatively complicated on the structure, can not satisfy for the massage that goes out to take on position outside the cervical region, have certain limitation.
The utility model content:
Technical problem to be solved in the utility model provides a kind of simple in structure, easy to operate, the masseur that can massage waist, ceruical uertebra part.
This utility model for the technical scheme that the technical solution problem adopts is: a kind of waist cervical massager comprises fuselage, installation kneading ball and infra-red heat are processed on fuselage, the outside control box that connects of fuselage is operated control to masseur, it is characterized in that: described kneading ball is made of massage head and pedestal, be fixedly installed togather by axis between the two, at described axis place elastic device be set and be used for the massage of fitting more.
Described massage head and infra-red heat are processed all and are connected on the motor by power line, and motor is provided with one and gets final product.
Respectively be provided with one about described massage head, massage head is at least one massage contact.
The soft skin of outer wrap one deck of described fuselage, outer interior filling sponge body, spongy body wraps kneading ball, infra-red heat is processed and motor; Described spongy body is square, and arc, apple shape or butterfly shape are made in four corners of spongy body.
Described elastic device can be that compression spring or lifting spring constitute.
Described infra-red heat is processed the lower position that is distributed in kneading ball, the placement of can placing respectively or fuse.Shown in the infra-red heat shell of processing on also be provided with the round dot of projection, be used to increase the contact of massage.
This utility model is when operation, rotate by the driven by motor massage head, thereby massage contact also is rotated positions such as shoulder to human body, neck, waist and massages, and can rotate in the same way as required, counter-rotating, the simultaneous infra-red heat is processed and is sent infrared ray to the irradiation of massage position, strengthens the effect of massage.
Being provided with of beneficial effect massage contact that this utility model produces and elastic device brings more comfortable sensation can for massage person, make masseur have to massage and kowtow and hit function, effectively replace the manual massage, unfold the muscles and bones and the muscle of whole body anxiety, alleviate the anxiety and the constriction of human body, promote the blood circulation of whole body simultaneously, accelerate metabolism, thereby reach the effect that disease-prevention health is kept fit.Therefore can massage for positions such as arm, cervical region, waist, thigh and shanks.
Description of drawings:
Fig. 1 is the structural representation of existing multiple contact shoulder neck massager;
Fig. 2 is this utility model structural representation;
Fig. 3 is the structural representation of another kind of massage head among Fig. 2;

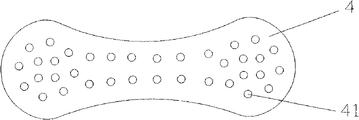

Fig. 4 is the profile sketch map that another kind of infra-red heat is processed among Fig. 2.
The specific embodiment:
Below in conjunction with drawings and the specific embodiments this utility model is done further introduction:
As shown in Figure 2, a kind of waist cervical massager comprises fuselage 1, the spongy body 2 of filled soft in fuselage 1, spongy body 2 is butterfly, apple shape or square, at spongy body 2 outer wrapping shells, on spongy body 2, have and place kneading ball 3 and infra-red heat and process 4 groove 10, kneading ball 3 is made of massage head 5 and pedestal 6, infra-red heat is processed 4 middle part installation motor 11, motor 11 also caves in the groove 10 with fuselage 1 inside, motor 11 respectively and kneading ball 3 and infra-red heat connect by power line between processing 3, and and the control box 7 that is connected of outside join masseur operated control.Massage head 5 and pedestal 6 are fixedly connected by axis 8, massage head 5 is rotated on pedestal 6 forward or backwards by the driving of motor 11, axis 8 outer mounting spring 9, spring 9 one ends lean against on the pedestal 6, one end leans against the bottom of massage head 5, fit more under the situation of massage head 5 at the pressurized like this force part of human body increases the comfort level of massage.
In conjunction with Fig. 2, as shown in Figure 3, massage head 5 is arranged in the front end of fuselage 1, about respectively install one, and about massage head 5 between be reserved with certain spacing, be fit to more kowtow and hit and massage.The top of massage head 5 is a massage contact 51, and massage contact 51 can adopt one massage contact, two massage contact and three massage contact, is fit to different massage position and crowds.
In conjunction with Fig. 2, as shown in Figure 4, infra-red heat is processed 4 lower ends that are arranged in massage head 5, the camber line shape of arranging respectively or fusing and being narrow between the alleviating distention in middle-JIAO of two ends, tactic round dot 41 on the outer surface system.
More than show and described ultimate principle of the present utility model and technical characterictic and major advantage.The technical staff of the industry can understand; this utility model is not restricted to the described embodiments; that describes in the foregoing description and the description just illustrates principle of the present utility model; under the prerequisite that does not break away from this utility model spirit and scope; this utility model also has various changes and modifications, and these changes and improvements all should fall in the claimed scope of the present utility model.The claimed scope of this utility model is defined by appending claims and equivalent thereof.
Claims (8)
1, a kind of waist cervical massager comprises fuselage, installation kneading ball and infra-red heat are processed on fuselage, the outside control box that connects of fuselage is operated control to masseur, it is characterized in that: described kneading ball is made of massage head and pedestal, be fixedly installed togather by axis between the two, at described axis place elastic device be set and be used for the massage of fitting more.
2, according to the described waist cervical massager of claim 1, it is characterized in that: described massage head and infra-red heat are processed all and are connected on the motor by power line.
3, according to claim 1 or 2 described waist cervical massagers, it is characterized in that: respectively be provided with one about described massage head, massage head is at least one massage contact.
4, according to the described waist cervical massager of claim 1, it is characterized in that: the soft skin of outer wrap one deck of described fuselage, outer interior filling sponge body, spongy body wraps kneading ball, infra-red heat is processed and motor.
5, according to the described waist cervical massager of claim 4, it is characterized in that: described spongy body is square, and arc, apple shape or butterfly shape are made in four corners of spongy body.
6, according to the described waist cervical massager of claim 1, it is characterized in that: described elastic device is made of compression spring or lifting spring.
7, according to claim 1 or 2 described waist cervical massagers, it is characterized in that: described infra-red heat is processed the lower position that is distributed in kneading ball, the placement of can placing respectively or fuse.
8, according to the described waist cervical massager of claim 7, it is characterized in that: shown in the infra-red heat shell of processing on also be provided with the round dot of projection, be used to increase the contact of massage.
