Abstract
具有自动循环通风抑菌功能的橱柜，包括具有开合门的箱体，其特点是在箱体的上部开设有进风口，箱体的底部开设有出风口，进风口和出风口处装设有静音排风机和过滤网罩，箱体内装设有紫外线杀菌灯和反光板，箱体的门框上与门对应处安装有二个碰撞开关，箱体顶部的前端面上装有紫外线工作指示灯和微电脑时控开关及电源开关。本实用新型与现有技术相比，由于在箱体内设置了通风装置和紫外线灭菌灯，因而具有灭菌、除异味功能。
The cabinet with automatic circulating ventilation and antibacterial function includes a box body with an opening and closing door. Silent exhaust fan and filter screen cover, ultraviolet germicidal lamps and reflectors are installed in the box, two collision switches are installed on the door frame of the box corresponding to the door, and ultraviolet working indicator lights and microcomputers are installed on the front surface of the top of the box Time control switch and power switch. Compared with the prior art, the utility model has the functions of sterilization and deodorization because a ventilation device and an ultraviolet sterilizing lamp are arranged in the box body.
Description
技术领域 technical field
本实用新型涉及一种橱柜，特别是涉及一种能自动循环通风抑菌功能的橱柜。The utility model relates to a cabinet, in particular to a cabinet capable of automatic circulating ventilation and antibacterial function.
背景技术 Background technique
随着人们生活水平的不断提高，人们对家庭卫生条件提出越来越多的要求，特别是与日常生活密切相关的橱房设备更是如此，如对橱柜要求卫生、防虫、排潮、美观实用等，而目前家庭橱房使用的橱柜由于潮湿和缝隙较多，易滋生蟑螂、蚂蚁和其它寄生虫及细菌，使用长久会产生异味。With the continuous improvement of people's living standards, people put forward more and more requirements for family hygiene conditions, especially for cabinet equipment that is closely related to daily life, such as cabinets that require hygiene, insect prevention, moisture removal, aesthetics and practicality etc., and the cabinets that family cabinets use at present are easy to breed cockroaches, ants and other parasites and bacteria due to moisture and gaps, and can produce peculiar smell after using for a long time.
发明内容 Contents of the invention
本实用新型的目的在于提供一种具有自动循环通风抑菌功能的橱柜。The purpose of the utility model is to provide a cabinet with the function of automatic circulating ventilation and antibacterial function.
采用的技术方案是：The technical solutions adopted are:
具有自动循环通风抑菌功能的橱柜，包括具有开合门的箱体，在箱体的上部开设有进风口，箱体的底部开设有出风口，进风口和出风口处装设有静音排风机和过滤网罩，箱体内装设有紫外线杀菌灯和反光板，箱体的门框上与门对应处安装有二个碰撞开关，箱体顶部的前端面上装有紫外线工作指示灯和微电脑时控开关及电源开关。The cabinet with automatic circulating ventilation and antibacterial function includes a box with an opening and closing door, an air inlet is opened on the upper part of the box, an air outlet is opened on the bottom of the box, and a silent exhaust fan is installed at the air inlet and the air outlet And the filter screen cover, the box is equipped with ultraviolet germicidal lamps and reflectors, two collision switches are installed on the door frame of the box corresponding to the door, and the front surface of the top of the box is equipped with an ultraviolet work indicator light and a microcomputer time control switch. and power switch.
本实用新型与现有技术相比，由于在箱体内设置了自动循环通风装置和紫外线灭菌灯，因而具有灭菌、除异味功能。Compared with the prior art, the utility model has the functions of sterilization and deodorization because an automatic circulation ventilation device and an ultraviolet sterilizing lamp are arranged in the box body.
附图说明 Description of drawings

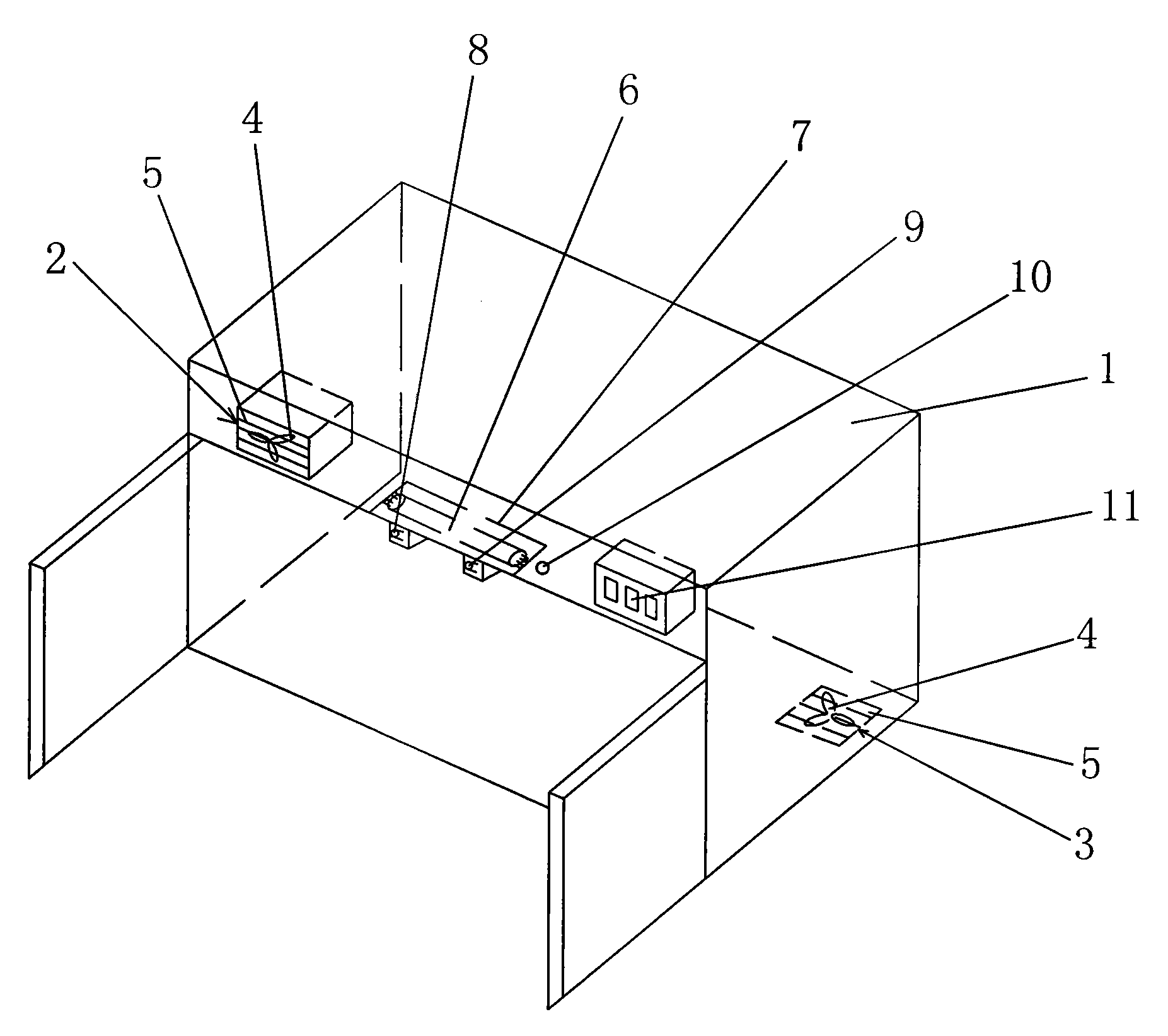

图1是本实用新型一种实施例的结构示意图。Fig. 1 is a schematic structural view of an embodiment of the utility model.
具体实施方式 Detailed ways
具有自动循环通风抑菌功能的橱柜，包括具有开合门的箱体，在箱体1的上部开设有进风口2，箱体的底部开设有出风口3，进风口2和出风口3处装设有静音排风机4和过滤网罩5，箱体1内装设有紫外线杀菌灯6和反光板7，杀菌灯6和反光板7均固定在箱体1的顶板上。箱体1的门框上与门对应处安装有二个碰撞开关8、9，当门打开时，碰撞开关8、9断开，紫外线杀菌灯6停止工作。箱体1顶部的前端面上装有紫外线工作指示灯10和微电脑时控开关11。微电脑时控开关11可以任意调节自动循环定时杀菌。The cabinet with automatic circulating ventilation and antibacterial function includes a box body with opening and closing doors, an air inlet 2 is opened on the upper part of the box body 1, an air outlet 3 is opened on the bottom of the box body, and the air inlet 2 and the air outlet 3 are installed. A silent exhaust fan 4 and a filter screen cover 5 are provided, and an ultraviolet germicidal lamp 6 and a reflector 7 are installed in the cabinet 1, and the germicidal lamp 6 and the reflector 7 are all fixed on the top plate of the cabinet 1. Two bump switches 8,9 are installed with the door corresponding position on the door frame of casing 1, and when the door was opened, bump switches 8,9 were disconnected, and ultraviolet germicidal lamp 6 stopped working. The front end face of casing 1 top is equipped with ultraviolet working indicator light 10 and microcomputer time control switch 11. The microcomputer time control switch 11 can arbitrarily adjust the automatic cycle timing sterilization.
