Abstract
本实用新型公开了一种定排蒸汽回收器系统，它是在立式回收器筒体的侧面装有液位信号输出器，液位信号输出器把液位信号输送给液位变送器，液位变送器电信号送给变频器，调节水泵流量，保持定排蒸汽回收器的液位，把凝结水送入除氧器。本实用新型的优点是结构简单，运行安全可靠，凝结水易于回收，节水、节能效果显著。
The utility model discloses a fixed-discharge steam recoverer system, which is equipped with a liquid level signal output device on the side of the vertical recovery device cylinder, and the liquid level signal output device transmits the liquid level signal to the liquid level transmitter. The electrical signal of the liquid level transmitter is sent to the frequency converter to adjust the flow rate of the water pump, maintain the liquid level of the fixed-row steam recovery device, and send the condensed water into the deaerator. The utility model has the advantages of simple structure, safe and reliable operation, easy recovery of condensed water, and significant water and energy saving effects.
Description
Technical field
The utility model relates to the recovery system of steam after the periodical blowdown flash vessel dilatation of a kind of power plant, especially a kind of vapor recovery device system of arranging surely.
Background technology
In all Thermal Power Stations, all the periodical blowdown flash vessel to be installed, sewer step-down, noise elimination, separation, sewage enters trench, and steam enters atmosphere.This part steam heat and water waste that enters atmosphere is very big, reclaims this part steam heat and condensate water, and the energy-saving and water-saving effect is remarkable, and domestic this part condensate water at present is a normal pressure because of recover, can only send into drain tank.
Summary of the invention
The purpose of this utility model is to reclaim this part steam heat and condensate water, proposes a kind of surplus steam reclamation system.With whole recovered steam heats and condensate water, send into oxygen-eliminating device, system equipment is simple in structure, security of operation.
The purpose of this utility model is to be realized by following technical scheme: the side of described vertical vapor recovery device cylindrical shell is equipped with the liquid level signal follower, and the liquid level signal follower is connected with fluid level transmitter, and fluid level transmitter is connected with water pump by frequency converter.
The utility model has the advantages that simple in structurely, safe and reliable to operation, condensate water is easy to reclaim, and water saving, energy-saving effect are remarkable.
Description of drawings
The utility model is described in further detail below in conjunction with drawings and Examples.

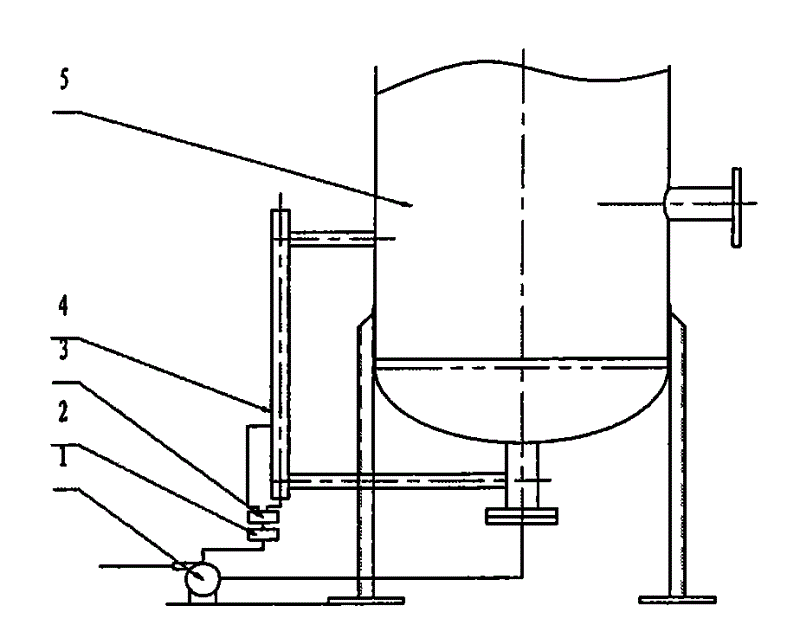

Fig. 1 is a structural representation of the present utility model.
Among the figure: 1. water pump; 2. frequency converter; 3. fluid level transmitter; 4. liquid level signal follower; 5 Steam Recovery devices.
The specific embodiment
Side at vertical vapor recovery device 5 cylindrical shells is equipped with liquid level signal follower 4, and liquid level signal follower 4 is connected with fluid level transmitter 3, and fluid level transmitter 3 is connected with water pump 1 by frequency converter 2.
The course of work of Steam Recovery device system is:
The liquid level signal that the liquid level signal follower 4 of Steam Recovery device 5 is sent, flow to fluid level transmitter 3, the fluid level transmitter signal of telecommunication is given frequency converter 2, and frequency converter is regulated water pump 1 flow, the liquid level that keeps Steam Recovery device 5 is sent into oxygen-eliminating device to the condensate water that flows out from Steam Recovery device 5.So far finish the overall process of Steam Recovery.
Claims (1)
1. arrange Steam Recovery device system surely for one kind, it is characterized in that: the side of described vertical vapor recovery device (5) cylindrical shell is equipped with liquid level signal follower (4), liquid level signal follower (4) is connected with fluid level transmitter (3), and fluid level transmitter (3) is connected with water pump (1) by frequency converter (2).
