CN201316432Y - Air sterilization device - Google Patents
Air sterilization device Download PDFInfo
- Publication number
- CN201316432Y CN201316432Y CNU2008201238286U CN200820123828U CN201316432Y CN 201316432 Y CN201316432 Y CN 201316432Y CN U2008201238286 U CNU2008201238286 U CN U2008201238286U CN 200820123828 U CN200820123828 U CN 200820123828U CN 201316432 Y CN201316432 Y CN 201316432Y
- Authority
- CN
- China
- Prior art keywords
- air
- hole
- air inlet
- lampshade
- holder
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Disinfection, Sterilisation Or Deodorisation Of Air (AREA)
Abstract
The utility model discloses an air sterilization device which is harmless to human and environment, and can sustainably clean the bacteria and chemical pollutants in the ambient air. The device comprises a casing with an air inlet and an air outlet and an ultraviolet lamp and a titanium dioxide net, which are arranged sequentially along the air flow direction, wherein, the ultraviolet lamp is mounted on the casing close to the air inlet; the titanium dioxide net is fixed on the casing, opposite to the ultraviolet lamp and positioned in the ultraviolet radiation area of the ultraviolet lamp; moreover, a zeolite deodorization and filter screen is arranged at the air inlet. By adopting the combined use of a zeolite air filter screen and the titanium dioxide net, the device not only has simple structure and convenient use, but also can run continuously and can effectively achieve the effects of sterilization, deodorization and air cleaning. The first-pass rate of the microbial cleaning is larger than or equal to 90 percent, sterilization rate in half an hour is larger than 94.2 percent, and purifying rate of benzene and formaldehyde in six hours is larger than 85 percent.
Description
Technical field
This utility model relate to a kind of to room air carry out disinfection, sterilization and deodorant device, particularly a kind of irradiation under ultraviolet ray and filter screen of utilizing carries out air sterillization, sterilization and deodorant device.
Background technology
Along with the requirement of people to high-quality life, and owing to global population constantly increases, comsumption of natural resources amount constantly increases, cause natural environment and environmental destruction, many new infectious disease constantly attack the mankind, and a lot of in addition construction materials and finishing material volatile matter cause people's living environment is polluted.These factors form serious threat to environment for human survival, therefore, improve our environmental health situation, reduce the influence of environmental pollution to health of people, are the problems that present people show great attention to.
Investigation shows that the major pollutants in the air-conditioning have four kinds: the one, and biological pollution comprises antibacterial, mycete, pollen, algae, plant, insecticide, protozoacide, virus etc., can cause allergy, acariasis; The 2nd, chemical contamination comprises volatile organic matter, carbon monoxide, ozone etc.; The 3rd, physical contamination comprises extraneous dust coal ash, flue dust, heavy metal, concrete grey, greasy dirt, inorfil, lubricating oil and oil etc.; The 4th, other microorganism.The water tank of air conditioning system is the main breeding spot of legionella especially.Can spread all over the bed rearrangement building through pipeline, along with flowing of air, dirt in these pipelines propagates into various antibacterials, mycete, fungus, virus and biological pollutant indoor, and infringement is active people in the air conditioning chamber for a long time, and the time has been grown and just caused so-called " sick building syndrome " easily.I.e. " sick building syndrome " or other relevant diseases.EPA was done similarly investigation, proved that the pollution from air conditioner ventilation accounts for the over half of room air gross contamination degree.
In the past in decades, the scientific research personnel has made unremitting effort for solving air sterillization and air cleaning problem, has developed multiple air to be purified and the disinfectant device, and more widely used have ozonization equipment and a ultraviolet circulated air sterilizing equipment decontaminating apparatus.
For example, notification number is to disclose a kind of " ultrathin room air sterilizer " in the utility model patent of CN2209529Y, this device produces ozone by increase anion generator in existing air cleaner, ozone is delivered to wind channel by blower fan and discharge, thereby reach the effect of removing foreign flavor indoors and sterilization from air outlet.
In addition, notification number is to disclose a kind of " dedusting and purifying air disinfector " in the utility model patent of CN2549370Y, is applicable to the ventilation shaft inside that is arranged on central air conditioner system.Its primary structure is that the side near air inlet is installed electrostatic precipitator in housing, the outlet of electrostatic precipitator is connected with ozonator, end near air outlet in housing is provided with the ozone decomposer, in housing, the position that is positioned at air inlet is provided with centrifugal blower, and the outlet of centrifugal blower utilizes guide duct to be connected with electrostatic precipitator.This device can utilize electrostatic precipitation, utilizes the ozone with high concentration generation technique that air is carried out the taste removal sterilization processing, and air is purified.
Above-mentioned equipment adopts ozone generating-device to discharge ozone, ozone is a kind of strong oxidizer, carry out very rapid reacted in deactivation to antibacterial, by reacting with the two keys of bacteria cell wall lipid, penetrate thalline inside, act on albumen and lipopolysaccharide, change the permeability of cell, thereby cause antibacterial death, its shortcoming is: a little less than the penetration power of ozone, low to object vertical-depth killing bacteria ability; And the demonstration of scientist's current research, ozone has negative effect to the cholesterol in the human blood, and it can promote arteriosclerotic formation, and then causes cardiopathic burst.
In addition, publication number is to disclose a kind of " air sterillization sterilization purification device " in the utility model patent of CN264231Y, is provided with the high-pressure mercury Burdick lamp in this device, and inwall scribbles photocatalyst of titanium dioxide, also is provided with drainage screen and anion generator.The intravital air of access to plant shell, at first it is shone by the high-pressure mercury Burdick lamp, bacterial micro-organism is killed, making air ionization produce ozone by ultraviolet simultaneously sterilizes, air fully contacts with the photocatalyst of titanium dioxide that is coated in inner walls under the irradiation of high-pressure mercury Burdick lamp, and Organic substance and photocatalyst carry out decomposition reaction, so that the elimination harmful gas, and reach deodorization, taste removal and sterilization effects; Subsequently, through drainage screen filtration and interpolation anion air is further purified again.
By ultraviolet to the technology of air sterillization be utilize the ultraviolet of suitable wavelength in can the destroy microorganisms body cell DNA (DNA (deoxyribonucleic acid)) or the molecular structure of RNA (ribonucleic acid), cause the growth cell death and (or) the reproducibility cell death, reach the effect of sterilizing.Its shortcoming is: ultraviolet only shines body surface and reaches certain exposure rate standard just bactericidal effect, and it is invalid substantially to surpass in 1.5 meters scopes in addition of ultraviolet light source; The ultraviolet radiation sterilization needs long action time, generally will shine more than 6 hours; And ultraviolet can not be removed airborne chemical pollutant such as formaldehyde etc.
The utility model content
The purpose of this utility model is at above problem, propose a kind of harmless fully to human and environment, the sustainable again air sterilization decontaminating apparatus that antibacterial in the surrounding air and chemical pollutant is had clean effect.
For realizing this utility model purpose, a kind of disinfection apparatus is provided, comprise housing, have air inlet and air outlet, also comprise: Burdick lamp, have the lampshade of settling quartz burner, lampshade is fixed on the housing by mounting structure, and near air inlet; The titanium dioxide net is fixed on the housing relatively with Burdick lamp, is positioned at the Burdick lamp irradiation area, and near air outlet.
In addition, also be provided with the zeolite deodorization drainage screen that is fixed in air inlet.Zeolite deodorization drainage screen is fixed on the air inlet by the air inlet cover piece.
Wherein, mounting structure comprise the holder that is fixed on the housing and with the carriage assembly of holder socket, carriage assembly is connected with lampshade.Carriage assembly comprises lamp bracket that is fixed on the lampshade and the support that is connected with lamp bracket, and the support of carriage assembly and holder carry out socket.Particularly, belled support is fixedlyed connected by the pin that inserts wherein with holder.
Wherein, lamp bracket has orthogonal lampshade fixing head and rack connecting plate, and support has orthogonal adjusting portion and axial region, and lampshade fixing head and lampshade are fixed, and is connected by screw between rack connecting plate and the adjusting portion, and axial region inserts in the axis hole of holder.Particularly, adjusting portion is provided with the installation adjustment hole that extends longitudinally, and screw passes across the installation adjustment hole and is tightened on the rack connecting plate.
Wherein, holder has and is used for described belled axis hole, has the radially pin-and-hole that runs through the axis hole wall on the wall of axis hole, and axial region is offered fixing hole with the position that radially pin-and-hole is corresponding, and pin-and-hole and fixing hole are aimed at and also inserted pin so that interfix between axial region and the holder.
In addition, and offer access hole on the wall of the vertical housing of air inlet, access hole is sealed by cover piece.
Advantage of the present utility model:
1, this utility model adopts zeolite airstrainer and titanium dioxide net to be used in combination, not only simple in structure, and have effective sterilization, sterilization, deodorization and an air cleaning effect, microbial cleaning First Pass Yield 〉=90%, sterilization rate reached more than 94.2% in 30 minutes, purifying rate＞85% in benzene and the formaldehyde 6 hours.
2, this utility model is safe in utilization and the life-span is long.Owing to use the titanium dioxide net to promote chemical reaction, so himself do not change, can make to reach 10 years service life; In addition, the chemical action thing of this chemical reaction generation is OH
+And H
+, therefore safe in utilization to human body without any side effect.
3, this utility model adopts the ultraviolet light spool irradiation titanium dioxide net surface of specific wavelength, and the ozone wavelength is isolated, and causes the outer ozone of machine to be tending towards 0.
4, this utility model is applicable to and is arranged in the air circulation duct, in the ventilation shaft inside of central air conditioner system, common air-conditioning machine, can moves continuously and carry out sterilization, and is therefore easy to use.
Description of drawings

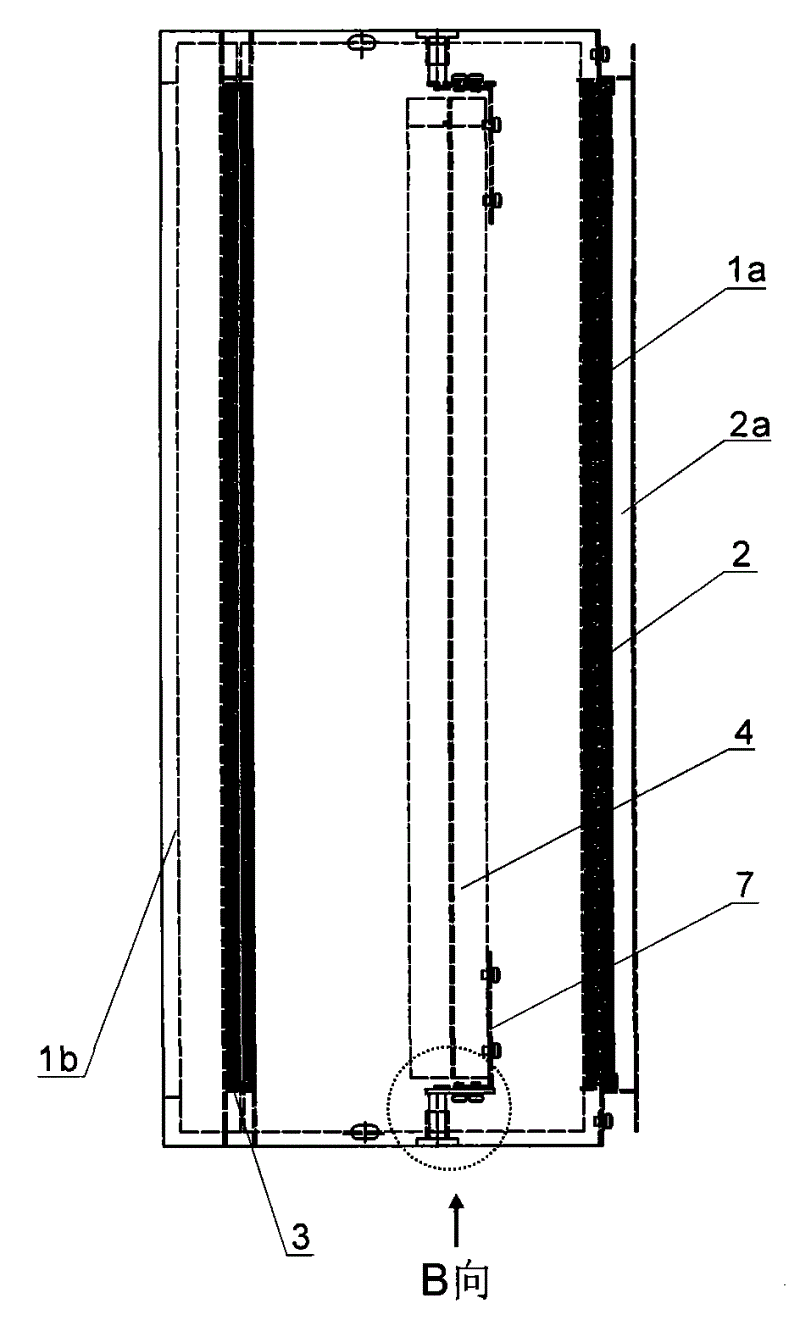

Fig. 1 is the structural representation of this utility model air sterilization decontaminating apparatus;
Fig. 2 is the partial enlarged view of Fig. 1 middle-ultraviolet lamp lamp mounting portion;
Fig. 3 a is the profile along A-A line among Fig. 2;
To be Burdick lamp be rotated counterclockwise view after 90 ° from state shown in Fig. 3 a around axial region 12b to Fig. 3 b;
Fig. 4 be along B among Fig. 1 to partial view.
Description of reference numerals: 1, housing; 1a, air inlet; 1b, air outlet; 2, drainage screen; 2a, air inlet cover piece; 3, titanium dioxide net; 4, Burdick lamp; 4a, lampshade; 5, support; 5a, installation adjustment hole; 6, holder; 7, lamp bracket; 7a, lampshade fixing head; 7b, rack connecting plate; 8, cover plate; 8a, access hole; 12a, bracket adjustment portion; 12b, support axial region; 13, steady pin; 14, adjustment screw
The specific embodiment of the present utility model is described with reference to the accompanying drawings.
The specific embodiment
As shown in Figure 1, disinfection apparatus of the present utility model has housing 1, has air inlet 1a and air outlet 1b.Be provided with zeolite airstrainer 2, Burdick lamp 4 and titanium dioxide net 3 successively along air inlet 1a to air outlet 1b direction in the housing 1, wherein titanium dioxide net 3 is arranged in the ultraviolet radiation zone of Burdick lamp 4, and zeolite airstrainer 2 is fixed on air inlet 1a place by air inlet cover piece 2a.
On near housing 1 wall that air inlet 1a is and air inlet 1a face is perpendicular, also offer an opening 8a as access hole, by cover plate 8 sealings, as shown in Figure 4, air inlet 1a and access hole 8a can exchange.Cover plate 8 can be fixed on the access hole 8a housing wall on every side by screw.Air intake at disinfection apparatus of the present invention is provided with the access hole 8a and the air inlet 1a that can change mutually, has made things convenient for maintenance and maintenance.
Shown in Fig. 2,3, Burdick lamp 4 has lampshade 4a, lamp bracket 7 and the support 5 of settling quartz burner, and it is fixed on by support 5 on the wall of housing 1, and lamp bracket 7 fixes by screw with lampshade 4a, and as shown in Figure 1, lampshade 4a two ends respectively are fixed with a lamp bracket 7.As shown in Figure 2, lamp bracket 7 has two plate portions of mutual vertical fixing, and one of them is lampshade fixing head 7a, and it is by the fixing (see figure 1) of screw and lampshade 4a; Another is rack connecting plate 7b, and the tabular 12a of bracket adjustment portion that also is of itself and support 5 fits, and interfixes by adjustment screw 14.
Support axial region 12b is placed on the housing 1 by inserting holder 6, and axial region 12b can rotate in holder 6, rotates around holder 6 so that drive lampshade 4a, is convenient to change fluorescent tube and maintenance.The axis hole wall of holder 6 is along offering locating hole perpendicular to axis direction, on the axial region 12b and the corresponding position of locating hole on the axis hole wall, along the circumferential direction offer a plurality of adjustment holes, be at least two, as shown in Figure 2, one of locating hole and adjustment hole are aimed at, and insert and sell 13, axial region 12b is fixed in the axis hole on the holder 6, (uviol lamp can be from Fig. 1 when needs rotate Burdick lamp 4, operating position inhour shown in the 3a is rotated 0-180 ° at least) time, extract pin 13, rotate axial region 12b certain angle, such as shown in Fig. 3 b, in order to change quartz burner, make lampshade 4a inhour rotate 90 ℃ after lampshade 4a opening surface downwards, and make locating hole and axial region 12b go up another adjustment hole aligning and insertion pin 13, thereby axial region 12b is fixed in the axis hole of holder 6.
The housing 1 of this utility model air sterilization decontaminating apparatus can link to each other by the housing of flange arrangement with central air-conditioning fan coil device, perhaps is set directly at the air intake of fan coil device or aircondition.
The following describes operation principle of the present utility model: by extractor fan or air-supply arrangement, room air is entered by disinfection apparatus air inlet 1a, filter the back by zeolite deodorization drainage screen 2 and remove abnormal flavour, then enter in the housing 1 of disinfection apparatus, then by titanium dioxide net 3, wherein, titanium dioxide on the titanium dioxide net 3 is under certain wavelength irradiation under ultraviolet ray effect of being sent by uviol lamp 4, bring out the energy that is equivalent to ten thousand times of sunlight natural lights, airborne steam is dissociated into OH
+And H
+, with antibacterial and virus, formaldehyde and benzene oxidation or resolve into nontoxic H
2O and CO
2Afterwards, the air after sterilization and deodorization is discharged by air outlet 1b, thereby room air is filtered removal abnormal flavour and sterilization.
Claims (10)
1. an air sterillization bactericidal unit comprises housing (1), has air inlet (1a) and air outlet (1b), it is characterized in that also comprising with lower member:
Burdick lamp (4) near air inlet (1a), has the lampshade (4a) of settling quartz burner, and lampshade (4a) is fixed on the housing (1) by mounting structure;
Titanium dioxide net (3) near air outlet (1b), is fixed on the housing (1), and it is towards Burdick lamp (4) and be positioned at the ultraviolet radiation zone that Burdick lamp (4) sends.
2. air sterillization bactericidal unit as claimed in claim 1 is characterized in that also having the zeolite deodorization drainage screen (2) that is fixed in air inlet (1a).
3, air sterillization bactericidal unit as claimed in claim 1 or 2, it is characterized in that described mounting structure comprise the holder (6) that is fixed on the housing (1) and with the belled carriage assembly of holder (6) (5,7), carriage assembly is connected with lampshade (4a).
4, air sterillization bactericidal unit as claimed in claim 3, it is characterized in that described carriage assembly (5,7) comprises lamp bracket (7) that is fixed on the lampshade and the support (5) that is connected with lamp bracket (7), the support (5) of described carriage assembly (5,7) carries out described socket with described holder (6).
5, air sterillization bactericidal unit as claimed in claim 4 is characterized in that described belled described support (5) and described holder (6) fixedly connected by the pin (13) that inserts wherein.
6, air sterillization bactericidal unit as claimed in claim 4, it is characterized in that described lamp bracket (7) has orthogonal lampshade fixing head (7a) and rack connecting plate (7b), described support (5) has orthogonal adjusting portion (12a) and axial region (12b), described lampshade fixing head (7a) is fixing with described lampshade (4a), be connected by screw (14) between described rack connecting plate (7b) and the described adjusting portion (12a), described axial region (12b) inserts in the axis hole of holder (6).
7, air sterillization bactericidal unit as claimed in claim 6 is characterized in that described adjusting portion (12a) is provided with the installation adjustment hole (5a) that extends longitudinally, and described screw (14) passes across installation adjustment hole (5a) and is tightened on the rack connecting plate (5).
8, air sterillization bactericidal unit as claimed in claim 6, it is characterized in that described holder (6) has is used for described belled axis hole, have the radially pin-and-hole that runs through the axis hole wall on the wall of described axis hole, described axial region (12b) is offered fixing hole with the position that radially pin-and-hole is corresponding, and pin (13) is aimed at and inserted to described pin-and-hole and fixing hole so that interfix between axial region (12b) and the holder (6).
9, air sterilization decontaminating apparatus as claimed in claim 6 is characterized in that described zeolite deodorization drainage screen (2) is fixed on the described air inlet (1a) by air inlet cover piece (2a).
10, air sterillization bactericidal unit as claimed in claim 6 is characterized in that: with offer access hole (8a) on the vertical housing of air inlet (1a) (1) wall, described access hole (8a) is sealed by cover piece (8).
