本实用新型涉及一种纵向翅片扁管换热器，由扁管(1)和一组矩形翅片(2)焊接而成，扁管(1)为两头圆弧中间直线的跑道形，翅片(2)围绕扁管(1)直边段并沿换热器的纵向平行分布。本实用新型使得高温腐蚀性气体沿扁管轴向方向与翅片同向方向流动，流动通道为轴向直通的，且与换热介质的流动路径平行，强化传热，减小烟气阻力，增大断面流通面积，不易积灰结垢，维护方便；采用钢—铝复合板材扁管，不仅提高了抗腐蚀性能，同时避免了使用高昂价格的材料，降低了成本，在有限温度区域内，相同的温度环境，纵向翅片椭圆扁管换热器比一般常规传统的换热器换热效果明显加大，节能效果显著提高。
The utility model relates to a flat tube heat exchanger with longitudinal fins, which is welded by a flat tube (1) and a group of rectangular fins (2). The sheets (2) surround the straight section of the flat tube (1) and are distributed in parallel along the longitudinal direction of the heat exchanger. The utility model makes the high-temperature corrosive gas flow along the axial direction of the flat tube and the same direction as the fins, and the flow channel is straight in the axial direction and parallel to the flow path of the heat exchange medium, thereby enhancing heat transfer and reducing the resistance of the flue gas. Increase cross-sectional flow area, not easy to accumulate dust and scale, and easy to maintain; the use of steel-aluminum composite plate flat tubes not only improves corrosion resistance, but also avoids the use of expensive materials and reduces costs. In a limited temperature area, In the same temperature environment, the heat exchange effect of the longitudinal finned elliptical flat tube heat exchanger is significantly greater than that of the general conventional heat exchanger, and the energy saving effect is significantly improved.
Description
技术领域 technical field
本实用新型属于高温腐蚀性含尘烟气余热回收技术领域，特别是涉及一种烟气余热回收利用的换热装置。The utility model belongs to the technical field of high-temperature corrosive dust-containing flue gas waste heat recovery, in particular to a heat exchange device for flue gas waste heat recovery and utilization.
背景技术 Background technique
新型高效换热器的开发和制造技术一直是能源利用领域研究的热点，它直接关系到化工、电力、石化等行业的能源利用率。新近开发的各种强化技术无非涉及两个方面：管内或管外。管内通常采用改变管壁状况或加入各种插入物的方法，管外则多采用改变折流方式的方法。但他们只能使管内或管外单方面得到强化，工业应用的现状并不理想。The development and manufacturing technology of new high-efficiency heat exchangers has always been a hot spot in the field of energy utilization, which is directly related to the energy utilization rate of chemical, electric power, petrochemical and other industries. The various strengthening techniques that have been developed recently involve nothing more than two aspects: inside or outside the tube. The method of changing the condition of the pipe wall or adding various inserts is usually used inside the pipe, and the method of changing the baffle method is often used outside the pipe. But they can only strengthen the inside or outside of the tube, and the status quo of industrial application is not ideal.
目前针对化工、电力、石化等行业的腐蚀性含尘高温气体的换热器，普遍使用壳管式换热器，其换热管内以水作为传热介质，为强化气侧的传热，通常在换热管管束外面加装翅片，采用错排布置方式，这种烟气换热装置的缺点是气侧阻力较大，很难对含尘气体换热有效，容易积灰堵塞，清灰吹灰也较困难，强烈影响换热效果，并且结构不紧凑，造成设备成本和运行成本都比较高；另外多采用圆形截面管，因受制造工艺条件限制，一般壁厚较大，这样单位换热面积用材较多，设备价格高，同时热阻也较大。At present, shell and tube heat exchangers are generally used for heat exchangers for corrosive dusty high-temperature gases in chemical, electric power, petrochemical and other industries. Water is used as the heat transfer medium in the heat exchange tubes to enhance heat transfer on the gas side. Usually Fins are installed on the outside of the heat exchange tube bundle, and a staggered arrangement is adopted. The disadvantage of this flue gas heat exchange device is that the gas side resistance is relatively large, it is difficult to effectively exchange heat for dusty gas, and it is easy to accumulate dust and block it. The ash is also difficult, which strongly affects the heat transfer effect, and the structure is not compact, resulting in relatively high equipment costs and operating costs; in addition, circular cross-section tubes are often used. Due to the limitation of manufacturing process conditions, the wall thickness is generally large, so the unit exchange rate The thermal area uses more materials, the equipment price is high, and the thermal resistance is also relatively large.
发明内容 Contents of the invention
本实用新型所要解决的技术问题是提供一种高温腐蚀性含尘气体的纵向翅片扁管换热器，以解决现有技术中成本高，换热效率低的缺陷。The technical problem to be solved by the utility model is to provide a longitudinal fin flat tube heat exchanger for high-temperature corrosive dust-laden gas, so as to solve the defects of high cost and low heat exchange efficiency in the prior art.
一种纵向翅片扁管换热器，由扁管(1)和一组矩形翅片(2)焊接而成，扁管(1)为两头圆弧中间直线的跑道形，翅片(2)围绕扁管(1)直边段并沿换热器的纵向平行分布。A longitudinally finned flat tube heat exchanger, which is welded by a flat tube (1) and a set of rectangular fins (2). They surround the straight section of the flat tube (1) and are distributed in parallel along the longitudinal direction of the heat exchanger.
所述的扁管(1)的材料为钢铝复合材料，水侧为钢材料，气侧为铝覆层。The material of the flat pipe (1) is a steel-aluminum composite material, the water side is made of steel, and the air side is made of aluminum cladding.
有益效果Beneficial effect
本实用新型使得高温腐蚀性气体沿扁管轴向方向与翅片同向方向流动，流动通道为轴向直通的，且与换热介质的流动路径平行，强化传热，减小烟气阻力，增大断面流通面积，不易积灰结垢，维护方便；采用钢-铝复合板材扁管，不仅提高了抗腐蚀性能，同时避免了使用高昂价格的材料，降低了成本，在有限温度区域内，相同的温度环境，纵向翅片椭圆扁管换热器比一般常规传统的换热器换热效果明显加大，节能效果显著提高。The utility model makes the high-temperature corrosive gas flow along the axial direction of the flat tube and the same direction as the fins, and the flow channel is straight in the axial direction and parallel to the flow path of the heat exchange medium, thereby enhancing heat transfer and reducing the resistance of the flue gas. Increase cross-sectional flow area, not easy to accumulate dust and scale, and easy to maintain; the use of steel-aluminum composite plate flat tubes not only improves corrosion resistance, but also avoids the use of expensive materials and reduces costs. In a limited temperature area, In the same temperature environment, the heat exchange effect of the longitudinal finned elliptical flat tube heat exchanger is significantly greater than that of the general conventional heat exchanger, and the energy saving effect is significantly improved.
附图说明 Description of drawings

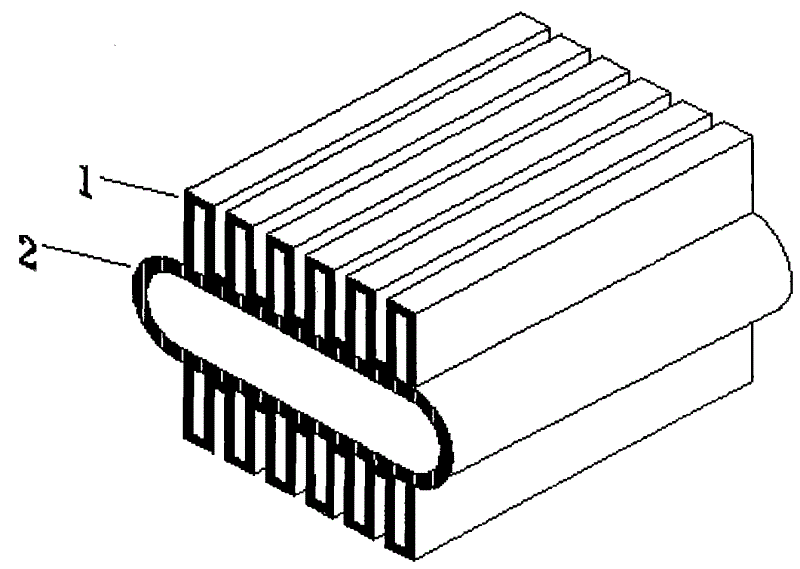

图1为纵向翅片扁管换热元件结构示意图；Fig. 1 is a structural schematic diagram of a longitudinally finned flat tube heat exchange element;
图2为纵向翅片扁管换热元件横向剖面图。Fig. 2 is a transverse sectional view of the longitudinally finned flat tube heat exchange element.
具体实施方式 Detailed ways
下面结合具体实施例，进一步阐述本实用新型。应理解，这些实施例仅用于说明本实用新型而不用于限制本实用新型的范围。此外应理解，在阅读了本实用新型讲授的内容之后，本领域技术人员可以对本实用新型作各种改动或修改，这些等价形式同样落于本申请所附权利要求书所限定的范围。Below in conjunction with specific embodiment, further set forth the utility model. It should be understood that these embodiments are only used to illustrate the present utility model and are not intended to limit the scope of the present utility model. In addition, it should be understood that after reading the content taught by the utility model, those skilled in the art can make various changes or modifications to the utility model, and these equivalent forms also fall within the scope defined by the appended claims of the application.
实施例1Example 1
一种纵向翅片扁管换热器，由扁管1和一组矩形翅片2焊接而成，扁管1为两头圆弧中间直线的跑道形，翅片2围绕扁管1直边段并沿换热器的纵向平行分布；所述的扁管的材料为钢铝复合材料，水侧为钢材料，气侧为铝覆层。A flat tube heat exchanger with longitudinal fins, which is welded by a flat tube 1 and a set of rectangular fins 2. Distributed in parallel along the longitudinal direction of the heat exchanger; the material of the flat tube is steel-aluminum composite material, the water side is made of steel, and the gas side is made of aluminum cladding.
