Abstract
本实用新型涉及一种饮料包装盒，特别是涉及一种撕口式无遗留方便饮料盒。它由封口条、吸管、盒体与吸管孔构成，其特征是：盒体的底部侧面开有一吸管孔，吸管的下端处于吸管孔中，吸管孔与吸管之间的缝隙有密封胶，吸管上端被封口条平压在盒体顶部并密封，封口条靠近吸管上端的一端翘起。本实用新型的吸管由封口条密封，在运输途中不会受到外界的污染，食用过程也更卫生，而且在饮料剩余较少的情况下，饮用者能方便地将盒内的饮料吸食干净，避免了浪费。
The utility model relates to a beverage packaging box, in particular to a tear-off convenient beverage box without leaving behind. It is composed of a sealing strip, a straw, a box body and a straw hole. Its characteristics are: a straw hole is opened on the bottom side of the box body, the lower end of the straw is in the straw hole, there is a sealant in the gap between the straw hole and the straw, and the upper end of the straw is The sealing strip is flatly pressed on the top of the box body and sealed, and the end of the sealing strip close to the upper end of the straw is lifted. The straw of the utility model is sealed by a sealing strip, so it will not be polluted by the outside during transportation, and the eating process is more hygienic, and in the case of less beverage remaining, the drinker can conveniently suck the beverage in the box clean, avoiding Wasted.
Description
Technical field
The utility model relates to a kind of beverage package box, and particularly relating to a kind of tearing notch formula does not have the sonvenient beverage of leaving over box.
Background technology
Existing carton beverage adopts during application suction pipe is contained in the plastic film tube mostly, film tube is bonded on the beverage cartridges again, do like this, use very inconveniently, when taking out suction pipe and inserting beverage cartridges, be easy to the bacterium in the external world is brought in the box by suction pipe.And in transit, suction pipe is easy to separate with beverage cartridges.In addition, in drinking process, beverage remains more after a little while, and the suction pipe end is difficult to aim at remaining liq and it is exhausted, and this has also caused waste to a certain degree.
The utility model content
The utility model is for solving the deficiencies in the prior art, and providing a kind of can exhaust the beverage in the box, and can not contact the tearing notch formula of under the situation of suction pipe suction pipe being taken out and puts into mouth at hand and do not have the sonvenient beverage of leaving over box.
The scheme that solves the utility model technical matters is: the tearing notch formula does not have the sonvenient beverage of leaving over box and is made of sealing strip, suction pipe, box body and sipper pore.The bottom sides of box body has a sipper pore, and the lower end of suction pipe is in the sipper pore, and there is sealant in the slit between sipper pore and the suction pipe, and the suction pipe upper end is by the also sealing at the box body top of sealing strip concora crush.Sealing strip is near an end perk of suction pipe upper end.When drinking, only need pinch an end of sealing strip perk, sealing strip be torn promptly drinkable.
Adopt such scheme, can reach following effect:
1. because suction pipe places box body, can not be subjected to external pollution in transit, more can not come off.
2. because the suction pipe mouth is protected by sealing strip, avoided hand to contact the pollution that brings with suction pipe, made more convenient, the health of drinking process.
3. because the lower end of suction pipe is in the bottom of box body all the time, beverage remains under the less situation, and drinking person can be sucked the beverage in the box totally easily, has avoided waste.
Description of drawings

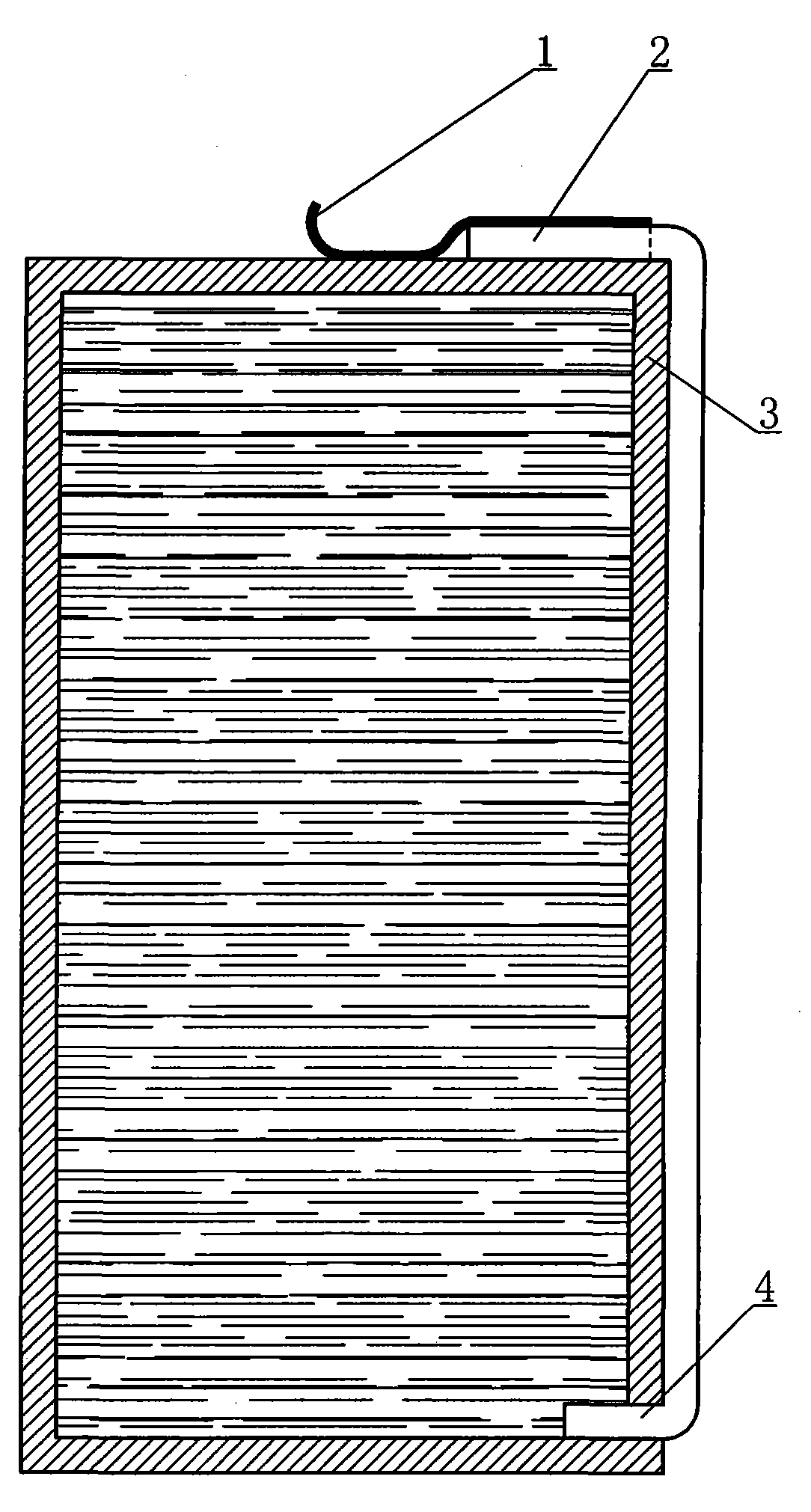

Fig. 1 does not have the structural representation of leaving over the sonvenient beverage box for the tearing notch formula;
Fig. 2 does not have the right elevation of leaving over the sonvenient beverage box for the tearing notch formula.
Among the figure: 1. sealing strip 2. suction pipes 3. box bodys 4. sipper pores
The specific embodiment
The tearing notch formula does not have the sonvenient beverage of leaving over box and is made of with sipper pore 4 sealing strip 1, suction pipe 2, box body 3.The bottom sides of box body 3 has a sipper pore 4, and the lower end of suction pipe 2 is in the sipper pore 4, and there is sealant in the slit between sipper pore 4 and the suction pipe 2, and suction pipe 2 upper ends are by the also sealing at box body 3 tops of sealing strip 1 concora crush.Sealing strip 1 is near an end perk of suction pipe 2 upper ends.When drinking, only need pinch an end of sealing strip 1 perk, sealing strip 1 be torn promptly drinkable.
Claims (1)
1. a tearing notch formula does not have the sonvenient beverage of leaving over box and is made of sealing strip, suction pipe, box body and sipper pore, it is characterized in that: the bottom sides of box body has a sipper pore, the lower end of suction pipe is in the sipper pore, there is sealant in slit between sipper pore and the suction pipe, the suction pipe upper end is by the also sealing at the box body top of sealing strip concora crush, and sealing strip is near an end perk of suction pipe upper end.
