Disclosed is a novel energy-conserving and environment-protective coating oven system, comprising an inlet manifold and a plurality of ovens, wherein, the inlet manifold is communicated with the inlet air blowers of the ovens. The coating oven system also provided with heat-energy recovery exchangers and a gas filtration unit; wherein, each heat-energy recovery exchanger is provided with a fresh air passage and an exhaust passage; the fresh air passage is separated from the exhaust passage by a metal wall; the inlet of the fresh air passage and the outlet of the exhaust passage are positioned at one end of the heat-energy recovery exchanger; the outlet of the fresh air passage and the inlet of the exhaust passage are positioned at the other end of the heat-energy recovery exchanger; the fresh air passage is communicated with the air inlet of the gas filtration unit; the air outlets of the outlet air blowers of the ovens positioned at the back part are also communicated with the inlet of the exhaust passage; and the air outlet of the gas filtration unit is communicated with the inlet manifold. The novel energy-conserving and environment-protective coating oven system can effectively conserve energy, reduce high-temperature gas emission and reduce air pollution.
Description
Technical field
The utility model belongs to the coater oven technical field, is specifically related to a kind of novel energy-saving environment-friendly coater oven system.
Background technology
The rapid development of economy of current China brings the high-speed development of packing industry, and coating apparatus is the main infrastructure device of the preceding production equipment of seal in the printing packaging industry.But there is the deficiency of following several respects in existing coating machine:
1, during the work of traditional coating machine, the fresh air that baking oven is outer is inhaled and is sent into electric heater unit, air heat intensification after-blow is carried out drying to the coating materials in the baking oven, all be discharged to hot blast in the baking oven outdoor afterwards, like this, cause the waste gas that contains a large amount of heat energy and volatile solvent gas directly to be discharged in the air, both caused the pollution of air, waste a large amount of heat energy again.
2, for above-mentioned reasons, people once attempted a part of air draft in the baking oven is taken back by bypath valve the air inlet of heat exchanger, though saved the energy like this, but cause dust granule, solvent crystal grain in the baking oven hot blast to get back in the baking oven with the hot blast secondary cycle again simultaneously, coating materials in the baking oven is caused secondary pollution, influenced coating quality.Simultaneously,, when the concentration of the volatile solvent gas in accumulating in baking oven and electric heater unit acquires a certain degree, may blast, therefore have serious potential safety hazard owing to recycling for a long time of the hot blast that contains volatile solvent gas.
3,, in order to finish heating in a short period of time, just must strengthen the power of electric heater unit, thereby increase the power capacity burden of factory because the air temperature difference of turnover electric heater unit is too big.In addition,, have influence on drying effect to a certain extent,, just must improve air velocity, film is dried with the hot blast of " powerful " therefore in order to reach drying effect owing in the indoor air certain humidity is arranged.And the flow velocity that passes through the air of heat exchange elements in the heat exchanger is too high, causes heat exchange elements and air very brief time of contact again, makes the heat exchanger effectiveness of electric heater unit low.
4, in the baking oven of existing coating machine, it is from being positioned at the strip blowing mouth air intake of baking oven roof central authorities, from being positioned at the return air inlet air draft of baking oven the right and left that the oven dry air-flow blows the air draft mode.This structure and working method have caused baking oven central authorities inconsistent with the blast of position, the baking oven left and right sides, and promptly the positive blast of baking oven central authorities is big, and the little and negative blast of the positive blast of the right and left of baking oven is big, therefore make the film in the baking oven produce shake up and down easily.In addition,, fail to form pneumatic shovel formula air-flow, reduced drying effect widely, make above-mentioned the 3rd problem aggravation at film surface because the airflow direction of working chamber is unreasonable in the baking oven.
Summary of the invention
The purpose of this utility model is to overcome above-mentioned shortcoming and a kind of novel energy-saving environment-friendly coater oven system is provided, it effectively energy savings, reduce the high-temperature gas discharging, reduce air pollution.
For achieving the above object, energy-conserving and environment-protective coater oven of the present utility model system comprises inlet manifold and some joint baking ovens; Every joint baking oven is provided with air inlet blower fan, air exhauster, and the passage between air inlet blower fan and air exhauster is provided with electric heater unit; The inlet manifold is communicated to the air inlet blower fan that respectively saves baking oven; Its main feature is, also is provided with energy recovery interchanger, gas-filtering device; Each energy recovery interchanger is provided with bright wind passage and exhaust steam passage, bright wind passage and exhaust steam passage are isolated by metallic walls, the inlet of bright wind passage and the outlet of exhaust steam passage are positioned at an end of energy recovery interchanger, and the outlet of bright wind passage and the inlet of exhaust steam passage are positioned at the other end of energy recovery interchanger; Bright wind channel connection is to the air inlet of gas-filtering device; The air outlet of air exhauster that is positioned at some joint baking ovens of back also is communicated to the air inlet of gas-filtering device, and all the other air outlets of air exhauster that are positioned at other some joint baking ovens of front are communicated to the inlet of exhaust steam passage; The air outlet of gas-filtering device is communicated to described inlet manifold.In the present specification, when the front and back position of considering each baking oven concerns, be to consider by the path that coating materials is advanced, during work, the baking oven of coating materials elder generation process is exactly the baking oven that is positioned at the front, after through baking oven be exactly the baking oven that is positioned at the back.So-called gas-filtering device is meant the device that the volatile solvent molecule in the gas, dust impurity, tiny crystal grains can be filtered.
Be preferably, described baking oven has 5～6 joints, and the air outlet that wherein is positioned at the air exhauster of front 2～3 joint baking ovens is communicated to exhaust steam passage, and the air outlet of air exhauster that all the other are positioned at the baking oven of back is communicated to the air inlet of gas-filtering device.
Be more preferably, every joint baking oven from top to bottom is divided into return air chamber, air-inlet cavity, working chamber three parts; Be furnished with many parallel coating materials deflector rolls in the working chamber; Diapire at air-inlet cavity offers some the strip blowing mouths towards working chamber, and the length of strip blowing mouth is to being parallel to the axial of coating materials deflector roll; Be communicated with by many return air short tubes between return air chamber and the working chamber, the tube wall of each bar return air short tube passes the intracavity space of air-inlet cavity, the opening of each bar return air upper end of short tube is positioned at the roof of air-inlet cavity and is communicated with the return air chamber, and the opening of each bar return air short tube lower end is positioned at the diapire of air-inlet cavity and is communicated with working chamber; The return air short tube is arranged in several rows, the length that the orientation of each row return air short tube is parallel to the strip blowing mouth to, and above-mentioned several rows return air short tube and several strip blowing mouths distribute alternately; The air outlet of described electric heater unit is communicated to the air inlet of air-inlet cavity; The air outlet in described return air chamber is communicated to air exhauster.
The shell of energy recovery interchanger can be tubular.
Described gas-filtering device comprises the casing of a sealing, at the box house that seals washable screen pack, multistage washable vegetable active carbon screen pack is housed, and low noise axial fan.
Described gas-filtering device also can be the photochemical catalyst air cleaning unit, and this photochemical catalyst air cleaning unit includes: the washable screen pack that is used to remove the antibacterial air filter of the bacterium in the air, is made of fibrage, be used to the deodorization filter removing the photochemical catalyst collector of trickle dust and VOC and be used to remove the volatile solvent molecule.
Every joint baking oven is provided with seven strip blowing mouths and 28 circular return air short tubes, and 28 circular return air short tubes are arranged as seven row, and every row is provided with four circular return air short tubes.
The utlity model has following advantage and effect:
1, the utility model is provided with the energy recovery interchanger, high-temp waste gas is discharged by exhaust steam passage, outdoor bright wind is sucked by bright wind passage, because bright wind passage and exhaust steam passage are only isolated by metallic walls, and the discharge currents of high-temp waste gas is opposite to the flow direction that enters with outdoor bright wind, so fresh air that sucks and the outdoor high-temp waste gas heat exchange fully of discharge, fresh air to firm intake system tentatively heats up, the outdoor bright wind-warm syndrome degree of suction is improved as much as possible, because most of hot blast is constantly recycling in the baking oven internal system, have only small amount of exhaust gas to discharge with the form of low temperature, so being coated with the energy consumption of big vast case is significantly descended, the a large amount of heats that contain in the high-temp waste gas are utilized once more, improve the heat energy utilization rate, save the energy, also can reduce insulation cost simultaneously pipeline.
2, the gas-filtering device in the utility model has following effect: a, realizes the purification of air by the multistage filtering net; B, can adsorption filtration fall the volatile solvent gas in the circulating air, simultaneously by the continuous supply of outdoor bright wind, the concentration that can guarantee volatile solvent gas in the baking oven gas is in safe range; C, filter of the present utility model improve hot blast velocity of liquid assets in pipeline by axial flow blower, thus also reduced indirectly blow in the baking oven air exhauster pressure loss, reduce in the baking oven and blow the air exhauster power capacity; D, screen pack can be unpicked and washed, and handled easily is increased work efficiency.
3, the utility model distributes alternately strip blowing mouth in the baking oven and return air short tube by rational oven interior fluid design.Like this, greatly reduce baking oven working chamber air pressure inside degree of irregularity.And, during work, the strip blowing mouth forms positive blast, and the return air short tube forms negative blast, after ejection in HTHP hot blast each strip blowing mouth from baking oven, siphoned away by the return air short tube rapidly, because the opening of strip blowing mouth and return air short tube lower end all is positioned at the diapire of air-inlet cavity, so the path of air-flow in working chamber is arc, the arc starting point is positioned at the strip blowing mouth, the arc terminal point is positioned at the opening of return air short tube lower end, thereby forms a kind of pneumatic shovel formula air-flow at film surface; Pneumatic shovel formula air-flow brushed film surface fast, promptly be expelled back into the return air chamber again, can fast and effeciently carry out drying, and the pressure that forms at film surface is very little film surface from the return air short tube, and each site pressure is even, thereby avoids causing the shake of film.So-called pneumatic shovel formula air-flow is meant that the path is the air-flow of arc, and the air-flow of this arc at film surface through out-of-date, it flows to basic parallel with film surface, as shoveling film surface, so title " pneumatic shovel formula air-flow ".
4, since the coater oven system in the course of the work, be arranged in the gas volatile solvent gas concentration height that the front baking oven is discharged, and the gas volatile solvent gas concentration that is arranged in back baking oven discharge is very low, so in the utility model, the air outlet that will be positioned at the air exhauster of the some joint baking ovens in front is communicated to exhaust steam passage, and the waste gas of this part is drained; All the other air outlets of air exhauster that are positioned at the baking oven of back then are communicated to the air inlet of gas-filtering device, make the waste gas of this part continue to recycle through filtering the back.Like this, both heat energy can be utilized fully circularly, and being controlled in certain safe range of volatile solvent gas concentration in the circulating air safety can be guaranteed again.
In a word, the utility model can energy savings, reduce the high-temperature gas discharging, reduce air pollution, increase work efficiency, guarantee product quality, solved existing coating apparatus energy consumption big, seriously polluted, have difficult problems such as potential safety hazard, the inconvenience of baking oven cleaning operation.
Description of drawings
Fig. 1 is traditional coater oven system architecture schematic diagram.
Fig. 2 is that the return air inlet of every joint baking oven in the traditional coater oven system and the plan-position of blowing mouth concern schematic diagram.

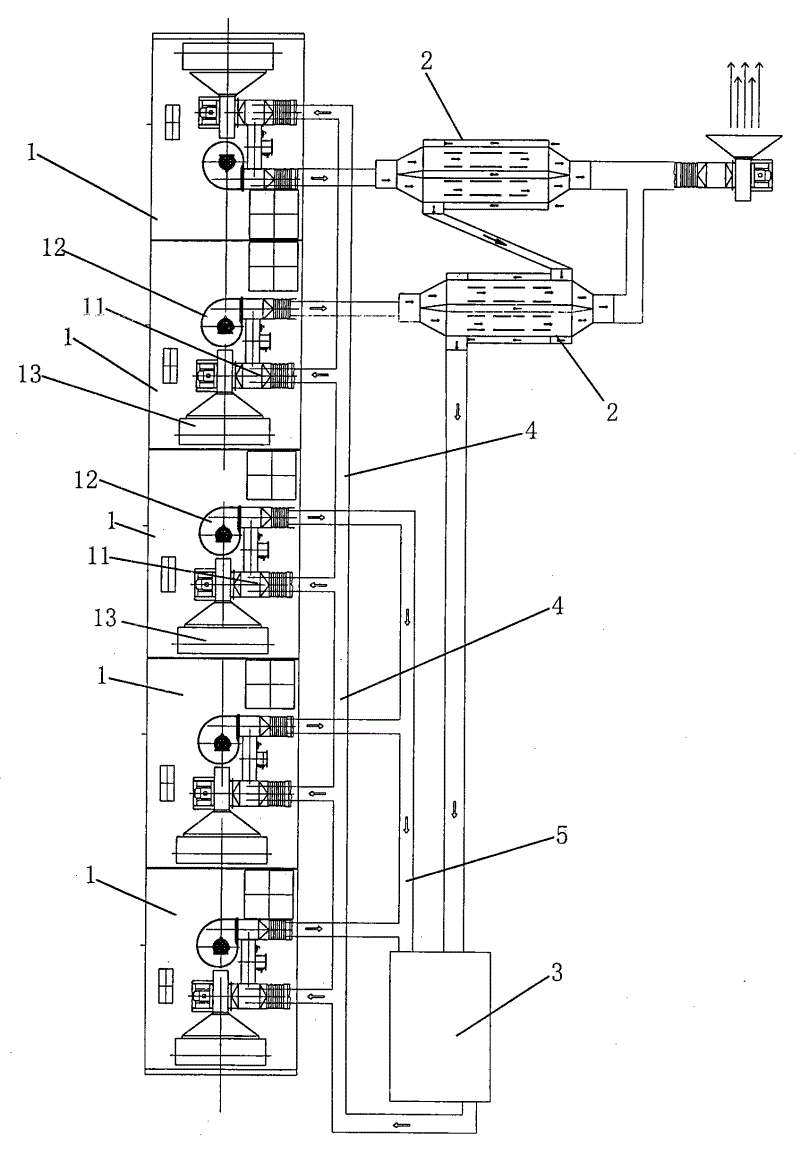

Fig. 3 is the coater oven system architecture schematic diagram of a kind of specific embodiment of the utility model.
Fig. 4 is the vertical structure and the operation principle schematic diagram of the utility model every joint baking oven air intake and air draft.
Fig. 5 is that the return air short tube of every joint baking oven working chamber among Fig. 4 and the plan-position of blowing mouth concern schematic diagram.
Fig. 6 is a gas-filtering device internal structure schematic diagram.
Fig. 7 is energy recovery exchanger arrangement and operation principle schematic diagram.
Fig. 8 is a B-B cross-sectional structure schematic diagram among Fig. 7.
The specific embodiment
Shown in Figure 1, during tradition coater oven system works, each saves directly that baking oven is the outer fresh air of baking oven and inhales the electric heater unit 13 that is fed into baking oven 1 inside, blows into behind the heat temperature raising in the working chamber of baking oven, and coating materials is carried out drying, the air exhauster 12 that respectively saves baking oven afterwards is discharged to hot blast outdoor, like this, cause the waste gas that contains a large amount of heat energy and a large amount of volatile solvent gases directly to be discharged in the air, shown in arrow among Fig. 1, both cause the pollution of air, wasted a large amount of heat energy again.
Shown in Figure 2, in traditional a kind of coater oven system, every joint baking oven has seven strip blowing mouths 17 and six rectangle return air inlets 181, and hot blast is by electric heater unit 13 heating, is blown to film material by strip blowing mouth 17 afterwards; Draw back by six rectangle return air inlets 181 then, the waste gas in the baking oven is discharged by air exhauster.This structure and working method have caused baking oven central authorities big with the blast difference degree of position, the baking oven left and right sides, the positive blast that is the baking oven central part is big, and the little and negative blast of positive blast of the left and right sides of baking oven is big, and because the airflow direction in the baking oven is unreasonable, fail to form pneumatic shovel formula air-flow at film surface, therefore make the film in the baking oven produce shake up and down easily, also reduced drying effect widely.
Shown in Figure 3, the energy-conserving and environment-protective coater oven system of a kind of specific embodiment of the utility model has five joint baking ovens 1; Every joint baking oven is provided with air inlet blower fan 11, air exhauster 12, electric heater unit 13; Whole system also is provided with inlet manifold 4, two energy recovery interchangers 2, a cover gas-filtering device 3, and wherein inlet manifold 4 is communicated to the air inlet blower fan 11 that respectively saves baking oven;
Shown in Figure 6, gas-filtering device 3 comprises the casing 31 of a sealing, casing 31 is provided with two air inlets, be bright wind air inlet 32 and cyclic high-temperature waste gas air inlet 33, also be provided with air outlet 34 in addition, box house in sealing is equipped with washable screen pack 35, the washable vegetable active carbon of two-stage screen pack 36, and low noise axial fan 37.
Fig. 3, Fig. 7, shown in Figure 8, the shell of each energy recovery interchanger 2 is tubular, each energy recovery interchanger is provided with bright wind passage 21 and exhaust steam passage 22, bright wind passage 21 and exhaust steam passage 22 are isolated by metallic walls 23, the inlet of bright wind passage 21 and the outlet of exhaust steam passage 22 are positioned at an end of energy recovery interchanger 2, and the inlet of the outlet of bright wind passage 21 and exhaust steam passage 22 is positioned at the other end of energy recovery interchanger 2; The bright wind main entrance of going into the interruption-forming whole system of the bright wind passage of first energy recovery interchanger 2 (being positioned at the energy recovery interchanger of drawing top among Fig. 3), the outlet of the bright wind passage of first energy recovery interchanger 2 is communicated to the inlet of the bright wind passage of second energy recovery interchanger 2; The outlet of the bright wind passage of second energy recovery interchanger 2 (being positioned at the energy recovery interchanger of drawing below among Fig. 3) is communicated to the bright wind air inlet 32 of gas-filtering device 3, the air outlet of air exhauster 12 that is positioned at three joint baking ovens 1 of back is communicated to the cyclic high-temperature waste gas air inlet 33 of gas-filtering device by circulation recovery channel 5, and the air outlet 34 of gas-filtering device is communicated to inlet manifold 4; The air outlet of air exhauster 12 that is positioned at the first segment baking oven of front is communicated to the inlet of the exhaust steam passage 22 of first energy recovery interchanger 2, second air outlet that saves the air exhauster 12 of baking oven that is positioned at the front is communicated to the inlet of the exhaust steam passage 22 of second energy recovery interchanger 2, and the outlet of the exhaust steam passage 22 of two energy recovery interchangers is communicated to the waste gas general export of whole system.
Fig. 4, shown in Figure 5, every joint baking oven from top to bottom are divided into return air chamber 14, air-inlet cavity 15, working chamber 16 3 parts; Be furnished with many parallel coating materials deflector rolls 19 in the working chamber 16; Diapire at air-inlet cavity 15 offers seven strip blowing mouths 17 towards working chamber, and the length of strip blowing mouth 17 is to being parallel to the axial of coating materials deflector roll 19; Be communicated with by 28 vertical circular return air short tubes 18 between return air chamber 14 and the working chamber 16, the tube wall of every return air short tube 18 passes the intracavity space of air-inlet cavity 15, the opening of each bar return air short tube 18 upper end is positioned at the roof of air-inlet cavity 15 and is communicated with return air chamber 14, and the opening of each bar return air short tube 18 lower end is positioned at the diapire of air-inlet cavity 15 and is communicated with working chamber 16; Article 28, return air short tube 18 is arranged in seven row, and every row is provided with four circular return air short tubes 18, the length that the orientation of each row return air short tube is parallel to strip blowing mouth 17 to; And above-mentioned seven row return air short tubes and seven strip blowing mouths distribute alternately; The air outlet of described electric heater unit 13 is connected to the air inlet of air-inlet cavity 15; The air outlet in described return air chamber 14 is communicated to air exhauster 12.
During the foregoing description work, process above the coating materials deflector roll 19 of film 6 from working chamber, gas flow is shown in Fig. 3, Fig. 4, Fig. 7, Fig. 6 arrow.Bright wind passage 21 preheatings that the bright wind of outdoor low temperature enters energy recovery interchanger 2 are heated after (shown in black among Fig. 7), enter gas-filtering device 3 by bright wind air inlet 32, carry out dust removal by filtration by 3 pairs of bright wind of gas-filtering device, import five joint baking ovens 1 respectively through inlet manifold 4 then; In every joint oven interior, air is carried through electric heater unit 13 by air inlet blower fan 11, behind electric heater unit 13 further heat temperature raisings, reach the temperature that sets, become the work hot blast, enter air-inlet cavity 15, through being positioned at the strip blowing mouth 17 of air-inlet cavity 15 diapires, be blown into working chamber 16, film surface in working chamber 16 forms pneumatic shovel formula air-flow (shown in curved arrow among Fig. 4), pneumatic shovel formula air-flow brushes through film 6 surfaces, be inhaled into return air short tube 18 then, enter return air chamber 14, discharge every joint baking oven 1 by air exhauster 12 then; After wherein the waste gas of two previous section baking oven 1 is discharged baking oven, exhaust steam passage 22 (shown in Fig. 7 hollow core) through the energy recovery interchanger, in exhaust steam passage 22, the fresh air of the heat energy of waste gas and bright wind passage 21 exchanges, it is the waste gas cooling in the exhaust steam passage 22, and the fresh air of bright wind passage 21 heats up, and afterwards, these waste gas are by the outlet of exhaust steam passage 22, through outside the waste gas general export discharge system of system; And behind the waste gas discharge baking oven of back three joint baking ovens 1, through circulation recovery channel 5, reenter gas-filtering device 3 by cyclic high-temperature waste gas air inlet 33, recyclegas by 3 pairs of these parts of gas-filtering device filters, dedusting, the removal of impurity, remove residual solvent gas, become clean hot blast, the bright wind that sucks at gas-filtering device 3 bright wind passages 21 inner and by energy recovery interchanger 2 mixes, air outlet 34 by gas-filtering device re-enters inlet manifold 4 then, redistribute by inlet manifold 4 and to enter each baking oven 1, so recycling.
Claims (7)
1. an energy-conserving and environment-protective coater oven system comprises inlet manifold and some joint baking ovens; Every joint baking oven is provided with air inlet blower fan, air exhauster, and the passage between air inlet blower fan and air exhauster is provided with electric heater unit; The inlet manifold is communicated to the air inlet blower fan that respectively saves baking oven; It is characterized in that: also be provided with energy recovery interchanger, gas-filtering device; Each energy recovery interchanger is provided with bright wind passage and exhaust steam passage, bright wind passage and exhaust steam passage are isolated by metallic walls, the inlet of bright wind passage and the outlet of exhaust steam passage are positioned at an end of energy recovery interchanger, and the outlet of bright wind passage and the inlet of exhaust steam passage are positioned at the other end of energy recovery interchanger; Bright wind channel connection is to the air inlet of gas-filtering device; The air outlet of air exhauster that is positioned at some joint baking ovens of back also is communicated to the air inlet of gas-filtering device, and all the other air outlets of air exhauster that are positioned at other some joint baking ovens of front are communicated to the inlet of exhaust steam passage; The air outlet of gas-filtering device is communicated to described inlet manifold.
2, energy-conserving and environment-protective coater oven according to claim 1 system, it is characterized in that: described baking oven has 5～6 joints, the air outlet that wherein is positioned at the air exhauster of front 2～3 joint baking ovens is communicated to exhaust steam passage, and the air outlet of air exhauster that all the other are positioned at the baking oven of back is communicated to the air inlet of gas-filtering device.
3, energy-conserving and environment-protective coater oven according to claim 1 and 2 system, it is characterized in that: every joint baking oven from top to bottom is divided into return air chamber, air-inlet cavity, working chamber three parts; Be furnished with many parallel coating materials deflector rolls in the working chamber; Diapire at air-inlet cavity offers some the strip blowing mouths towards working chamber, and the length of strip blowing mouth is to being parallel to the axial of coating materials deflector roll; Be communicated with by many return air short tubes between return air chamber and the working chamber, the tube wall of each bar return air short tube passes the intracavity space of air-inlet cavity, the opening of each bar return air upper end of short tube is positioned at the roof of air-inlet cavity and is communicated with the return air chamber, and the opening of each bar return air short tube lower end is positioned at the diapire of air-inlet cavity and is communicated with working chamber; The return air short tube is arranged in several rows, the length that the orientation of each row return air short tube is parallel to the strip blowing mouth to, and above-mentioned several rows return air short tube and several strip blowing mouths distribute alternately; The air outlet of described electric heater unit is communicated to the air inlet of air-inlet cavity; The air outlet in described return air chamber is communicated to air exhauster.
4, energy-conserving and environment-protective coater oven according to claim 1 and 2 system, it is characterized in that: the shell of energy recovery interchanger is tubular.
5, energy-conserving and environment-protective coater oven according to claim 1 and 2 system, it is characterized in that: described gas-filtering device comprises the casing of a sealing, box house in sealing is equipped with washable screen pack, multistage washable vegetable active carbon screen pack, and low noise axial fan.
6, energy-conserving and environment-protective coater oven according to claim 1 and 2 system, it is characterized in that: described gas-filtering device is the photochemical catalyst air cleaning unit, the washable screen pack that this photochemical catalyst air cleaning unit includes the antibacterial air filter that is used to remove the bacterium in the air, be made of fibrage, is used to the deodorization filter removing the photochemical catalyst collector of trickle dust and VOC and be used to remove the volatile solvent molecule.
7, energy-conserving and environment-protective coater oven according to claim 3 system, it is characterized in that: every joint baking oven is provided with seven strip blowing mouths and 28 circular return air short tubes, article 28, circular return air short tube is arranged as seven row, and every row is provided with four circular return air short tubes.
