The utility model relates to the sound technical field, in particular to a sound system with a'One Driving More' control mode, which comprises sound boxes and a master control box, wherein wireless receiving modules are arranged in the sound boxes, a wireless transmitting module is arranged in the master control box, the number of the sound boxes is at least two, a'One Driving More' control module is also arranged in the master control box, the'One Driving More' control module is electrically connected with the wireless transmitting module, and the sound system has the advantage that the using demands in places with bigger space can be satisfied.
Description
Technical field:
The utility model relates to the sound technique field, relates in particular to a kind of one sound system with many control models.
Background technology:
Sound system is the requisite sound device of modern society, has been widely used in various places, has increased the sound element of diversification to people's life.Existing sound system comprises audio amplifier and master control box, and described built in sound box has wireless receiving module, and the master control box is built-in with wireless transmitter module, and this sound system is the control model with, i.e. audio amplifier of a master control tape.The sound coverage of sending owing to an audio amplifier is limited, in bigger place, space, often audio amplifier can't cover the space, everywhere in this place, and therefore, this one sound system with a control model is difficult to satisfy the instructions for use in bigger place, space.
The utility model content:
The purpose of this utility model is at the deficiencies in the prior art, and a kind of one sound system with many control models is provided, and this sound system can satisfy the instructions for use in bigger place, space.
For achieving the above object, the utility model is achieved through the following technical solutions: a kind of one sound system with many control models, comprise audio amplifier and master control box, described built in sound box has wireless receiving module, the master control box is built-in with wireless transmitter module, the quantity of described audio amplifier is at least two, and described master control box also is built-in with one and is with many control modules, and this one is with many control modules to be electrically connected with wireless transmitter module.
Also comprise the remote controller that is used to control the work of master control box, described master control box also is provided with the remote control receiver module that adapts with remote controller.
The beneficial effects of the utility model: audio amplifier quantity of the present utility model is at least two, the master control box also is built-in with one and is with many control modules, this one is with many control modules to be electrically connected with wireless transmitter module, in bigger place, space, a plurality of audio amplifiers are placed in the diverse location in place respectively, under a effect with many control modules, the audio signal that wireless transmitter module sent can be received by the wireless receiving module of a plurality of audio amplifiers, guarantee in bigger place, this space, the sound that a plurality of audio amplifiers send can cover whole place, therefore, the utlity model has and to satisfy the advantage of in bigger place, space, using.
Description of drawings:

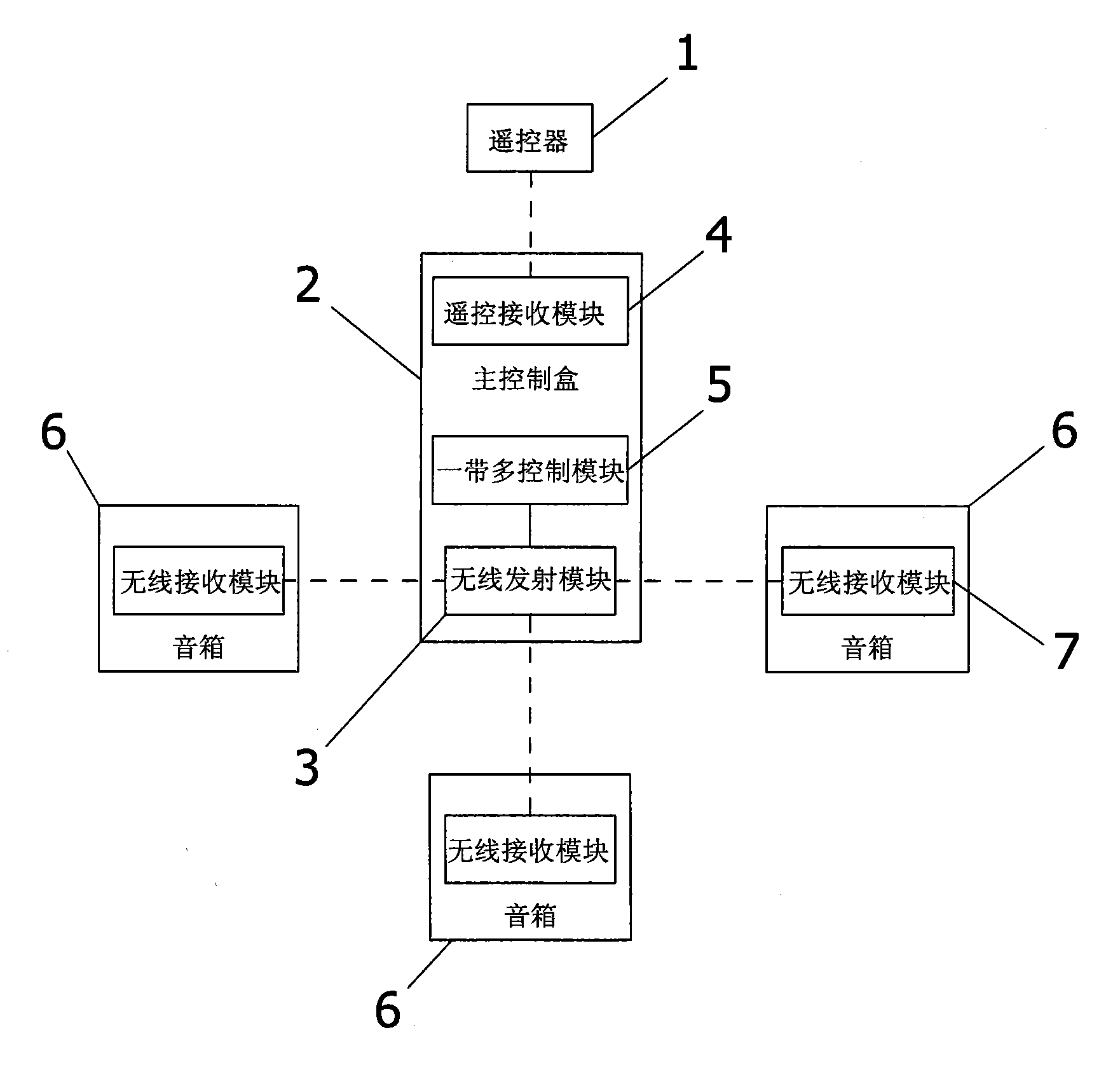

Accompanying drawing 1 is a control principle block diagram of the present utility model.
Embodiment:
Below in conjunction with accompanying drawing the utility model is further elaborated:
With reference to the accompanying drawings shown in 1, a kind of one sound system with many control models, comprise audio amplifier 6 and master control box 2, described audio amplifier 6 is built-in with wireless receiving module 7, master control box 2 is built-in with wireless transmitter module 3, the quantity of described audio amplifier 6 is at least two, and described master control box 2 also is built-in with one and is with many control modules 5, and this one is with many control modules 5 to be electrically connected with wireless transmitter module 3.
Described a kind of one sound system with many control models also comprises the remote controller 1 that is used to control 2 work of master control box, and described master control box 2 also is provided with the remote control receiver module 4 that adapts with remote controller 1.Remote controller can be controlled the feature operations such as volume adjusting of master control box 2.
In the present embodiment, what adopt between wireless transmitter module 3 and the wireless receiving module 7 is the 2.4G Radio Transmission Technology, and the quantity of audio amplifier 6 is three.In bigger place, space, three audio amplifiers 6 are placed in the diverse location in place respectively, under a effect with many control modules 5, the audio signal that wireless transmitter module 3 sent can be received by the wireless receiving module 7 of three audio amplifiers 6, guarantee in bigger place, this space, the sound that three audio amplifiers 6 send can cover whole place, therefore, the utlity model has the advantage that can satisfy the instructions for use in bigger place, space.
The above only is preferred embodiment of the present utility model, so all equivalences of doing according to the described structure of the utility model patent claim, feature and principle change or modify, is included in the utility model patent claim.
Claims (2)
1, a kind of one sound system with many control models, comprise audio amplifier (6) and master control box (2), described audio amplifier (6) is built-in with wireless receiving module (7), master control box (2) is built-in with wireless transmitter module (3), it is characterized in that: the quantity of described audio amplifier (6) is at least two, described master control box (2) also is built-in with one and is with many control modules (5), and this one is with many control modules (5) to be electrically connected with wireless transmitter module (3).
2, a kind of one sound system according to claim 1 with many control models, it is characterized in that: also comprise the remote controller (1) that is used to control master control box (2) work, described master control box (2) also is provided with the remote control receiver module (4) that adapts with remote controller (1).
