CN201266542Y - Suspended core stent of trestle type distribution transformer - Google Patents
Suspended core stent of trestle type distribution transformer Download PDFInfo
- Publication number
- CN201266542Y CN201266542Y CNU2008201901838U CN200820190183U CN201266542Y CN 201266542 Y CN201266542 Y CN 201266542Y CN U2008201901838 U CNU2008201901838 U CN U2008201901838U CN 200820190183 U CN200820190183 U CN 200820190183U CN 201266542 Y CN201266542 Y CN 201266542Y
- Authority
- CN
- China
- Prior art keywords
- distribution transformer
- steel pipe
- pipe beam
- steel tubular
- tubular beam
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 229910000831 Steel Inorganic materials 0.000 claims abstract description 36
- 239000010959 steel Substances 0.000 claims abstract description 36
- 238000012423 maintenance Methods 0.000 abstract 3
- XEEYBQQBJWHFJM-UHFFFAOYSA-N Iron Chemical compound [Fe] XEEYBQQBJWHFJM-UHFFFAOYSA-N 0.000 description 2
- 238000010276 construction Methods 0.000 description 1
- 238000005516 engineering process Methods 0.000 description 1
- 229910052742 iron Inorganic materials 0.000 description 1
- 238000000034 method Methods 0.000 description 1
Images
Abstract
The utility model provides a bench-typed distribution transformer suspended core bracket, which is a bench-typed distribution transformer suspended core maintenance tool and mainly comprises a fixed steel pipe beam and a movable steel pipe beam; the movable steel pipe beam is sheathed in the fixed steel pipe beam; the fixed steel pipe beam and the movable steel pipe beam are provided with a plurality of positioning holes; a length adjusting bolt is arranged in the positioning hole; the fixed steel pipe beam is also provided with a movable hook; and the movable steel pipe beam is connected with a single hoop. The bench-typed distribution transformer suspended core bracket has small space occupying at the distribution transformer bench, does not affect the normal charged running of the power line above the transformer during the maintenance operation of the bench-typed distribution transformer suspended core, can carry out the maintenance without shutdown, improves the working efficiency and reduces the loss due to shutdown.
Description
Technical field
The utility model relates to a kind of bench type distribution transformer suspended core service kit.
Background technology
Two kinds of construction methods are extensively adopted in bench type distribution transformer suspended core work in the past, the one, the crane lifting, the 2nd, utilize gin pole to stand into the triangular form lifting, the common ground of these two kinds of methods be need more than the fall insurance not charged, have only whole piece line outage and will make all to have a power failure more than the fall insurance, few amount of power supply loss and social influence that the back that has a power failure produces are very serious.
Summary of the invention
The purpose of this utility model provide a kind of do not need to have a power failure can finish the distribution transformer suspended core support of bench type distribution transformer suspended core upkeep operation.
The purpose of this utility model is achieved in that a kind of bench type distribution transformer suspended core support, comprise fixedly steel tubular beam and activity steel tubular beam, the activity steel tubular beam is sleeved on fixedly in the steel tubular beam, fixedly steel tubular beam and activity steel tubular beam are provided with a plurality of location holes, the length adjustment bolt places in the location hole, fixedly also be provided with Removable hook on the steel tubular beam, the activity steel tubular beam is connected with single anchor ear.
Distribution transformer suspended core support provided by the utility model, it is little to take up space on the distribution transformer stand, in carrying out bench type distribution transformer suspended core upkeep operation, can not influence the normal charging operation of power circuit above the transformer, do not need to have a power failure and overhaul, improve operating efficiency, reduced the loss that causes because of power failure.
Description of drawings
The utility model is described in further detail below in conjunction with drawings and Examples.

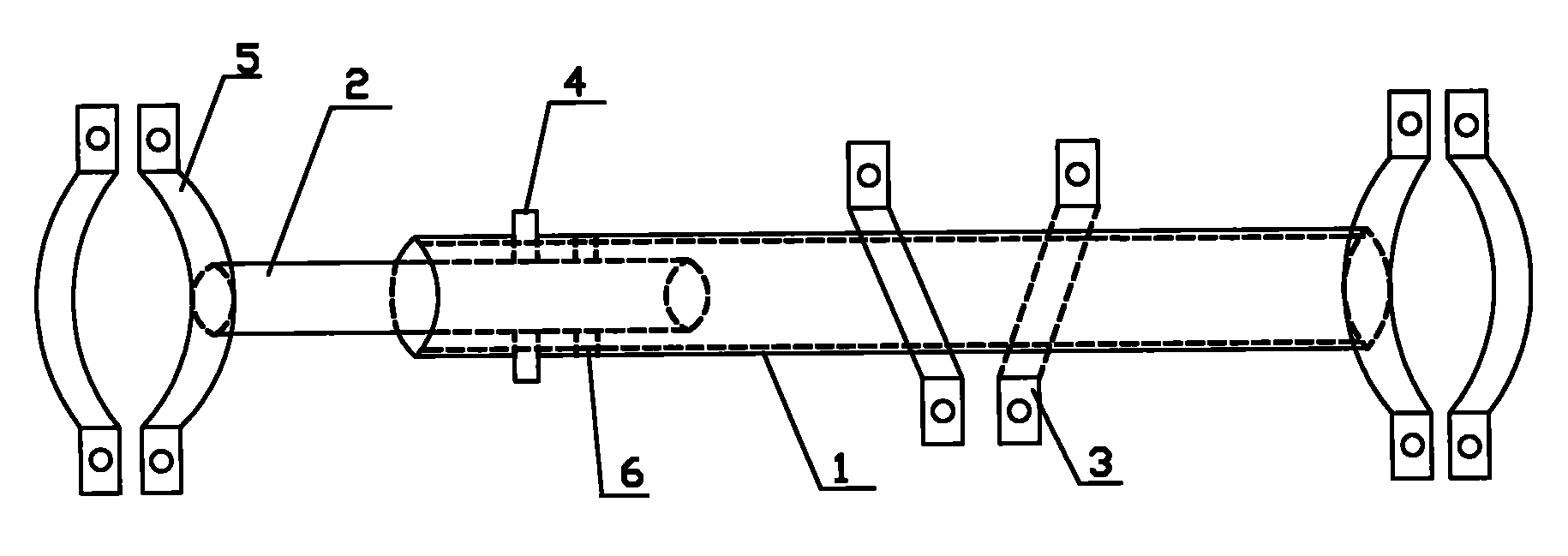

Fig. 1 is a structural representation of the present utility model.
Embodiment
Shown in Figure 1: a kind of bench type distribution transformer suspended core support, comprise fixedly steel tubular beam 1 and activity steel tubular beam 2, activity steel tubular beam 2 is sleeved on fixedly in the steel tubular beam 1, fixedly steel tubular beam 1 is provided with a plurality of location holes 6 with activity steel tubular beam 2, length adjustment bolt 4 places in the location hole, fixedly also be provided with Removable hook 3 on the steel tubular beam 1, activity steel tubular beam 2 is connected with single anchor ear 5.
When the utility model uses, because activity steel tubular beam 2 is sleeved on fixedly in the steel tubular beam 1, cooperation by location hole 6 and length adjustment bolt 4, with the width adjusting of entire bracket to and to place between two electric poles of distribution transformer stand width close, again the single anchor ear that is connected with activity steel tubular beam 25 of support both sides is installed and be located on the electric pole, like this, entire bracket is fixing on electric pole, Removable hook 3 is adjusted to directly over the distribution transformer, by aids such as iron double hook, steel wire rope, the transformer core of can easily slinging.
Claims (1)
1, a kind of bench type distribution transformer suspended core support, comprise fixedly steel tubular beam (1) and activity steel tubular beam (2), it is characterized in that: activity steel tubular beam (2) is sleeved on fixedly in the steel tubular beam (1), fixedly steel tubular beam (1) is provided with a plurality of location holes (6) with activity steel tubular beam (2), length adjustment bolt (4) places in the location hole, fixedly also be provided with Removable hook (3) on the steel tubular beam (1), activity steel tubular beam (2) is connected with single anchor ear (5).
