带助燃的燃烧装置，包括燃气灶，燃气灶上方设有助燃装置，所述的助燃装置包括支架，支架上设有一个圆形空心水管，空心水管与设置的供水槽连通，供水槽的水平高度高于空心水管的水平高度，空心水管上设有向中心延伸的滴水管，滴水管出口的下方对应设置铁片并固定在支架上；供水槽可以为环形并围绕燃气灶设置；供水槽可以为容器。本实用新型结构简单、实用，圆形空心水管可以吸收燃气灶的余热，滴水管间歇滴水到下方的铁片上，而且燃气灶燃烧的石油气会生成少量碳，附着在铁片上，这样在高温情况下可以与水发生反应生成氢气和一氧化碳，达到助燃目的。
Combustion device with combustion support, including a gas stove, a combustion support device is arranged above the gas stove, the combustion support device includes a bracket, a circular hollow water pipe is arranged on the bracket, the hollow water pipe communicates with the set water supply tank, and the horizontal height of the water supply tank is Higher than the horizontal height of the hollow water pipe, the hollow water pipe is provided with a drip pipe extending to the center, and an iron sheet is correspondingly set under the outlet of the drip pipe and fixed on the bracket; the water supply tank can be ring-shaped and set around the gas stove; the water supply tank can be container. The utility model is simple and practical in structure. The circular hollow water pipe can absorb the waste heat of the gas stove, and the drip pipe intermittently drips water onto the iron sheet below, and the petroleum gas burned by the gas stove will generate a small amount of carbon, which is attached to the iron sheet. It can react with water to generate hydrogen and carbon monoxide to achieve the purpose of combustion.
Description
Technical field
The utility model relates to a kind of with combustion-supporting burner.
Background technology
The current combustion device is wasted a lot of waste heats, and function singleness, and no auxiliary combustion equipment can not make full use of the burning resource.
The utility model content
It is a kind of with the combustion-supporting burner that can save energy that the utility model purpose is to provide.
To achieve these goals, the utility model adopts following technical scheme: with combustion-supporting burner, comprise gas-cooker, the gas-cooker top is provided with auxiliary combustion equipment, and described auxiliary combustion equipment comprises support, and support is provided with a circular hollow water pipe, hollow water pipe is communicated with the supply flume of setting, the level height of supply flume is higher than the level height of hollow water pipe, and hollow water pipe is provided with the weep pipe that extends to the center, and the below correspondence of weep pipe outlet is provided with iron plate and is fixed on the support.
Described supply flume can be for annular and around the gas-cooker setting.
Described supply flume can be container.
The utility model is simple in structure, practical, the circular hollow water pipe can absorb the waste heat of gas-cooker, weep pipe intermittently drips to the iron plate of below, and the oil gas of gas-cooker burning can generate small amount of carbon, on iron plate, under high-temperature condition, can react like this and generate hydrogen and carbon monoxide, reach combustion-supporting purpose with water.
Description of drawings

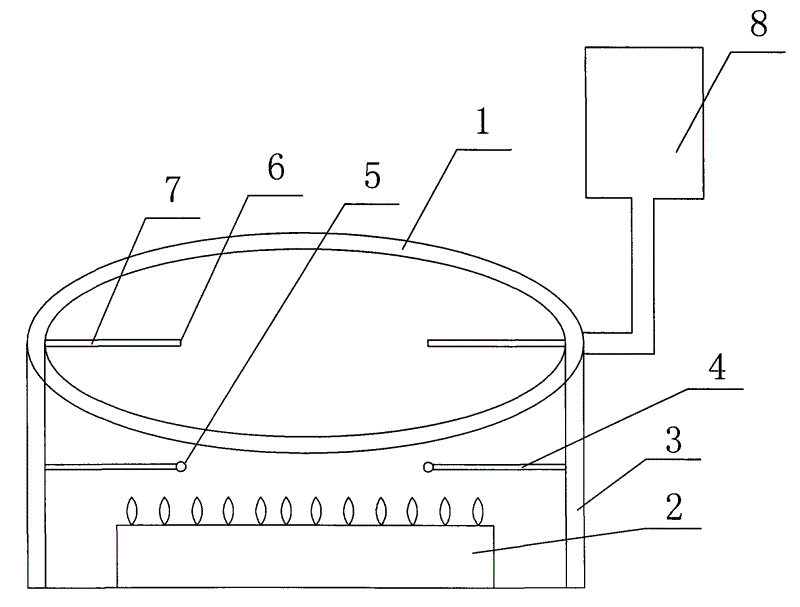

Fig. 1 is a structural representation of the present utility model.
The specific embodiment
Embodiment: as shown in Figure 1 with combustion-supporting burner, comprise gas-cooker 2, gas-cooker 2 tops are provided with auxiliary combustion equipment, auxiliary combustion equipment comprises support 3, support 3 is provided with a circular hollow water pipe 1, and hollow water pipe 1 is communicated with the supply flume 8 that is provided with, and the level height of supply flume 8 is higher than the level height of hollow water pipe 1, hollow water pipe 1 is provided with the weep pipe 7 that extends to the center, and the below correspondence of weep pipe outlet 6 is provided with iron plate 5 and is fixed on the support 3 by linking arm 4.Supply flume 8 can also can be the container in the present embodiment for annular and around the gas-cooker setting.
