本实用新型公开了一种太阳能照明装置，包括太阳能电池、发光设备，还包括与太阳能电池电连接的蓄电池，太阳能电池、蓄电池分别与电源控制处理器电连接，电源控制处理器电连接发光设备；太阳能电池包括太阳能板、充电单元、电池组；太阳能板、充电单元、电池组依次连接成回路；电源控制处理器包括电源控制器及与它分别电连接的声音控制器、光强控制器。本实用新型的优点在于，由于它采用了以太阳能为主要能源进行照明，就对环境基本没有污染，顺应了当前全球提倡的绿色环保的大环境；又因它使用了声控、光控的技术，就节省了大量的能源，为缓解全世界能源紧缺的危机提供了有利保障。本实用新型生产成本低，应用范围广，市场前景一片光明。
The utility model discloses a solar lighting device, which comprises a solar cell, a light-emitting device, and a storage battery electrically connected to the solar cell. The solar cell and the storage battery are respectively electrically connected to a power control processor, and the power control processor is electrically connected to the light-emitting device; The solar cell includes a solar panel, a charging unit, and a battery pack; the solar panel, the charging unit, and the battery pack are sequentially connected to form a loop; the power control processor includes a power controller, a sound controller, and a light intensity controller electrically connected to it. The utility model has the advantage that since it uses solar energy as the main energy source for lighting, there is basically no pollution to the environment, and it conforms to the current green environment advocated globally; and because it uses sound control and light control technologies, Just saved a large amount of energy, provided favorable guarantee for alleviating the crisis of energy shortage all over the world. The utility model has low production cost, wide application range and bright market prospect.
Description
Technical field
The utility model relates to the lighting field of public place, particularly a kind of solar illumination apparatus of energy-saving and environmental protection.
Background technology
At present, in the widely used lighting installation in most of public places, such as in urban road both sides, office building hall and the corridor, in the corridor of residential building etc., what all adopt mostly is the civil power that national grid provides, and often be the big zone that has a lot of illuminating lamps by one of a switch control, the person in charge is responsible a little inadequately, will cause very big energy waste.Let alone they are in the situation of forfeiture sense of responsibility.Even administrative staff make all-out efforts, also can be owing to the drawback of this lighting installation existence itself, promptly use civil power that national grid provides, illuminating lamp Chang Liang etc., especially on vast outskirts of a town road and the endless die Dorfstrasse, the not illumination that has, though power saving makes that the people that walk night are not only very dangerous but also very inconvenient; And the other side of lighting installation is being arranged, the do as usual situation of bright lamp of illuminating lamp Chang Liang even daytime often appears, the situation of having aggravated the national energy growing tension greatly.And providing of national grid no matter be to use the coal generating or utilize nuclear energy power generation, all can produce environment and pollute.For this reason, people expect to use not only environmental protection but also save the lighting installation of the energy very much.
The utility model content
Technical problem to be solved in the utility model is the solar illumination apparatus that a kind of energy-saving and environmental protection are provided at above-mentioned prior art present situation.
The utility model solves the problems of the technologies described above the technical scheme that is adopted: a kind of solar illumination apparatus, comprise a solar cell, a luminaire, it is characterized in that: also comprise a battery that is electrically connected with described solar cell, described solar cell, battery are electrically connected with power supply control processor respectively, and described power supply control processor is electrically connected described luminaire; Described solar cell comprises solar panels, charhing unit, battery pack; Described solar panels, charhing unit, battery pack are in turn connected into the loop.
In order to make the utility model more energy-conservation, described power supply control processor comprises power-supply controller of electric, voice controller, light intensity control; Described voice controller, light intensity control are electrically connected described power-supply controller of electric respectively; Described voice controller is electrically connected a sound pick-up; Described light intensity control is electrically connected a photoreceptor.Described luminaire is a LED illuminating lamp.
Compared with prior art, advantage of the present utility model is, is that main energy sources is thrown light on because the utility model has adopted with solar energy, just environment is not had to pollute substantially, has complied with the overall situation of the environmental protection of advocating in the current whole world; Because it has used acoustic control, light-operated technology, just saved a large amount of energy, again for the crisis of alleviating whole world energy scarcity provides favourable guarantee.The utility model production cost is low, applied range, market prospects a slice light.
Description of drawings

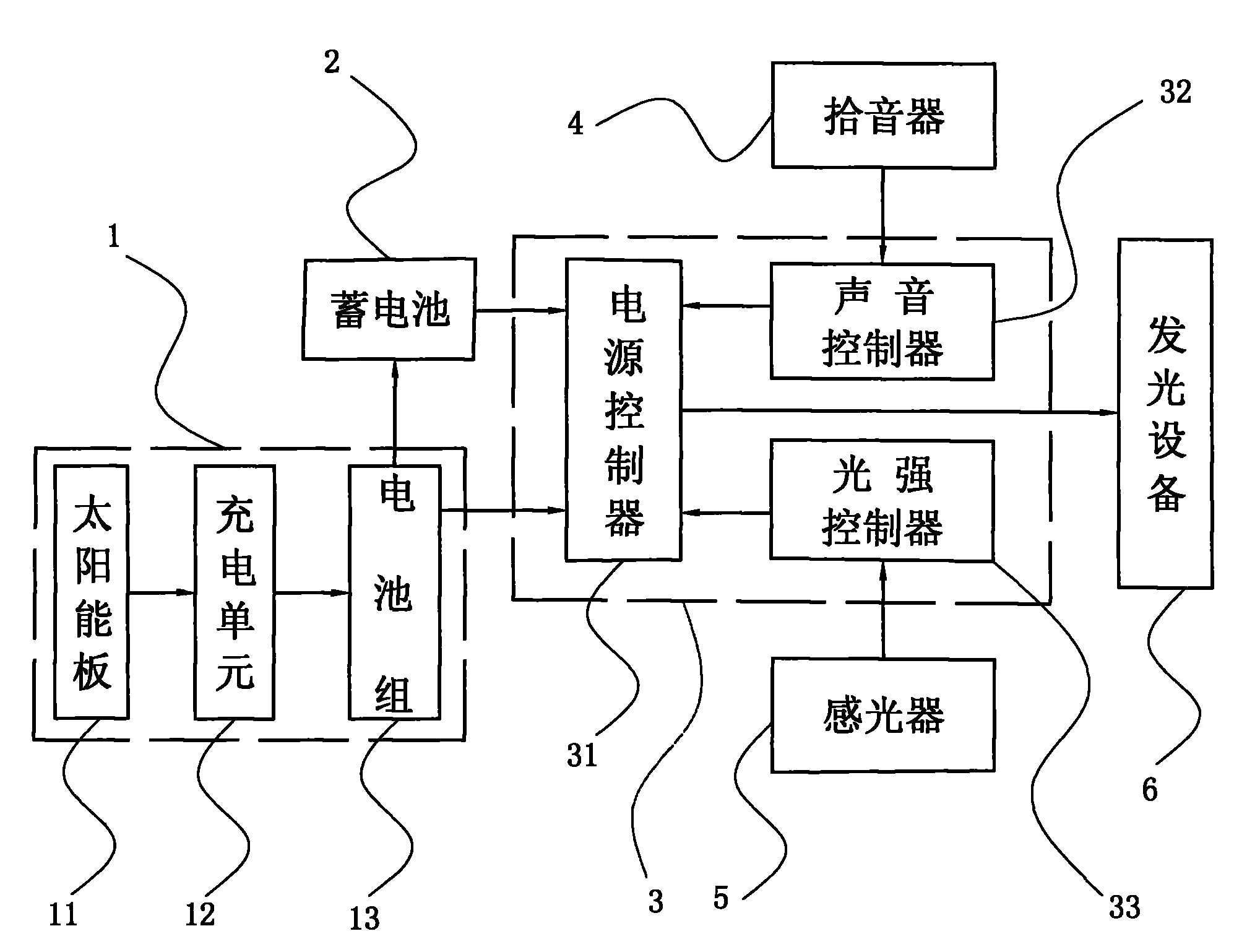

Fig. 1 is the block diagram of the utility model embodiment.
The specific embodiment
Embodiment describes in further detail the utility model below in conjunction with accompanying drawing.
As shown in Figure 1, a kind of solar illumination apparatus, comprise a solar cell 1, a luminaire 6, also comprise a battery 2 that is electrically connected with described solar cell 1, described solar cell 1, battery 2 are electrically connected with power supply control processor 3 respectively, and described power supply control processor 3 is electrically connected described luminaire 6.
Described solar cell 1 comprises solar panels 11, charhing unit 12, battery pack 13; Described solar panels 11 are electrically connected charhing unit 12, and charhing unit 12 is electrically connected battery pack 13, and battery pack 13 is electrically connected respectively with battery 2, power supply control processor 3.
Described power supply control processor 3 comprises power-supply controller of electric 31, voice controller 32, light intensity control 33; Described voice controller 32, light intensity control 33 are electrically connected described power-supply controller of electric 31 respectively; One sound pick-up 4 is electrically connected with described voice controller 32; One photoreceptor 5 is electrically connected with described light intensity control 33; Described luminaire 6 is a LED illuminating lamp.
The utility model operation principle is as follows:
Under the general situation, the utility model is converted into electric energy to solar energy by solar cell 1, implements illumination as main energy sources, be that battery 2 charges simultaneously.At rainy weather, if the solar energy deficiency that solar cell 1 absorbs, when causing the electric energy of its generation to promote luminaire 6, power-supply controller of electric 31 will be transformed into mains lighting supply battery 2, promotes luminaires 6 work by battery 2.
Daytime or when ambient brightness was big, the light intensity that photoreceptor 5 receives sent to light intensity control 33, light intensity control 33 just issues instructions to power-supply controller of electric 31, and power-supply controller of electric 31 is just cut off the electricity supply, and luminaire 6 is closed; When night or dim weather, because ambient brightness is reduced to a certain degree, the light intensity signal that photoreceptor 5 receives sends to light intensity control 33, and light intensity control 33 just issues instructions to power-supply controller of electric 31, power-supply controller of electric 31 is just connected power supply, and luminaire 6 is lighted again.
When environment is very quiet around, the weak output signal that sound pick-up 4 receives, sound pick-up 4 just sends to voice controller 32 to information, and voice controller 32 is just cut off the electricity supply, and luminaire 6 is closed; On the contrary, when sound occurring, it is big that the voice signal that sound pick-up 4 receives becomes, and sound pick-up 4 just sends to voice controller 32 to information, and voice controller 32 is just connected power supply, and luminaire 6 is bright again.
Claims (6)
1, a kind of solar illumination apparatus, comprise a solar cell (1), a luminaire (6), it is characterized in that: also comprise a battery (2) that is electrically connected with described solar cell (1), described solar cell (1), battery (2) are electrically connected with power supply control processor (3) respectively, and described power supply control processor (3) is electrically connected described luminaire (6).
2, solar illumination apparatus as claimed in claim 1 is characterized in that: described solar cell (1) comprises solar panels (11), a charhing unit (12), a battery pack (13); Described solar panels (11), charhing unit (12), battery pack (13) order successively are electrically connected.
3, solar illumination apparatus as claimed in claim 2 is characterized in that: described power supply control processor (3) comprises a power-supply controller of electric (31), a voice controller (32), a light intensity control (33); Described voice controller (32), light intensity control (33) are electrically connected described power-supply controller of electric (31) respectively.
4, solar illumination apparatus as claimed in claim 3 is characterized in that: the sound pick-up (4) that described voice controller (32) is electrically connected.
5, solar illumination apparatus as claimed in claim 4 is characterized in that: the photoreceptor (5) that described light intensity control (33) is electrically connected.
6, as the described solar illumination apparatus of arbitrary claim in the claim 1 to 5, it is characterized in that: described luminaire (6) is a LED illuminating lamp.
