The utility model discloses an electric connector, which comprises an insulation main body that is provided with a plurality of terminator accommodating grooves, a plurality of conducting terminators that are arranged inside the terminator accommodating grooves, and a frame body that is arranged on the insulation main body and forms an accommodating cavity with the insulation main body; and the insulation main body is provided with a fixing element that is matched with the frame body, and each fixing element is formed by a plurality of elastic hooks. When the frame body is removed, the frame body can be taken off by applying pushing force on the elastic hooks, so that the elastic hooks are deformed to raise the frame body upwards.
Description
[technical field]
The utility model relates to a kind of electric connector, especially a kind of electric connector that electrically connects between chip module and the circuit board of reaching.
[technical background]
Figure 1 and Figure 2 is a kind of electric connector relevant with the utility model 10, and it comprises insulating body 11 and is assembled in framework 13 on the insulating body 11 by screw 12.
Because insulating body 11 and framework 13 need link together the two by screw 12 is set in addition, so the electric connector 10 of this structure can increase manufacturing costs; Secondly needs are changed framework 13 in order to adapt to different big or small chip modules sometimes, at this moment then need to operate and screw 12 could be pulled down from the bottom surface of electric connector 10, and then take off framework 13, because at this moment electric connector 10 has been welded on the circuit board (not icon), so can't retract framework 13 at all.
Given this, be necessary to provide a kind of improved electric connector in fact, to overcome the defective of above-mentioned electric connector.
[utility model content]
The technical problem that the utility model solved provides a kind of electric connector, and it can reduce the manufacturing cost of electric connector, and pulls down than being easier to framework is assembled on the insulating body of electric connector and from this insulating body.
In order to realize solving the problems of the technologies described above, the utility model provides a kind of electric connector, comprising: be provided with the plurality of terminals accepting groove insulating body, be located at the plurality of conductive terminals in the terminal containing slot and be mounted on the insulating body and form the framework of a host cavity with insulating body; Wherein, insulating body is provided with the fixture with the framework secure fit, and each fixture is made up of the plurality of elastic trip, and this elastic clamping hook elastically deformable is so that take off framework on the body that insulate.
Compare with correlation technique, insulating body of the present utility model is provided with the fixture that cooperates with framework, each fixture is made up of at least one pair of elastic clamping hook, when needs are changed framework, only need promote elastic clamping hook gently and make its strain can open this fixture and framework is taken out.
[description of drawings]
Fig. 1 is the front assembly drawing of the electric connector relevant with the utility model.
Fig. 2 is the reverse side exploded view of the electric connector relevant with the utility model.
Fig. 3 is the stereogram of the utility model electric connector.

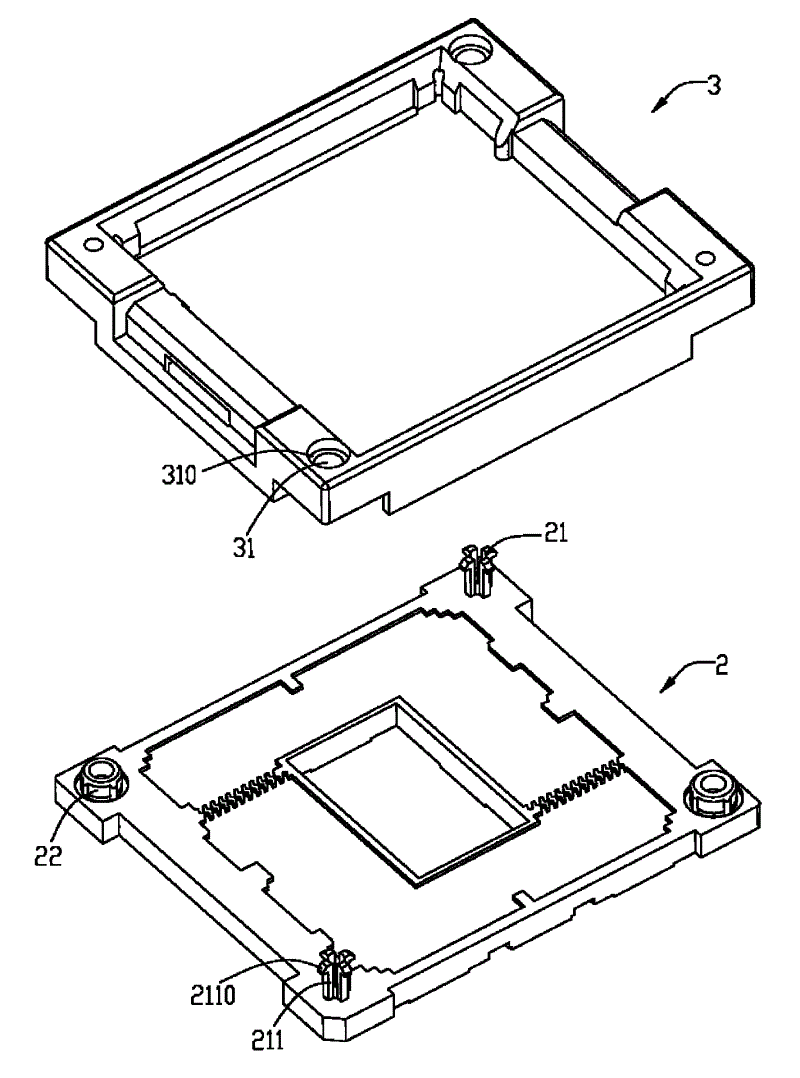

Fig. 4 is the front exploded view of the utility model electric connector.
Fig. 5 is the reverse side exploded view of the utility model electric connector.
Fig. 6 is the cross section view along A-A line shown in Figure 3.
[embodiment]
See also Fig. 3 to shown in Figure 6, the utility model is a kind of electric connector, in order to reach the electric connection between chip module (not icon) and the circuit board (not icon), this electric connector comprises insulating body 2, is located at the framework 3 that the plurality of conductive terminals (not shown) and in the insulating body 2 is fixed with insulating body 2 assemblings.
Insulating body 2 is roughly rectangular, and its middle part is provided with some terminal containing slots (not shown) that array is provided with that are, and is provided with the conducting terminal that can electrically connect chip module and circuit board in this terminal containing slot.Four corners of insulating body 2 are provided with the structure that can cooperate with framework 3.Wherein be provided with fixture 21 in a pair of diagonal two ends of insulating body 2, each fixture 21 is arranged on the insulating body 2 around the rounded hole 20, form four elastic clamping hooks 211 that evenly are provided with in extending upward of this hole 20 on every side, the holding part 2110 that this elastic clamping hook 211 cooperates with framework 3 is provided with in the opposite direction, and holding part 2110 tops also are provided with inclined plane 2111.In the present embodiment, hole 20 is the through hole on a perforation insulating body 2 upper and lower surfaces, elastic clamping hook 211 is arranged at the elastic force that can increase this elastic clamping hook 211 of operation all around in hole 20.Shape at the utility model mesopore 20 is not limited to circle, and it can one is square or other shape.Another is provided with the projection 22 that projects upwards insulating body 2 to cornerwise two ends.
The utility model fixture 21 can with insulating body 2 integrated injection moldings, can reduce manufacturing cost, and this elastic clamping hook 211 can be out of shape, framework 3 ratio when taking off is easier to.
Below only be preferred embodiment of the present utility model, other any improvement conversion of being done on the present embodiment basis also should not break away from the technical solution of the utility model.
Claims (9)
- [claim 1] a kind of electric connector comprises: be provided with the plurality of terminals accepting groove insulating body, be located at the plurality of conductive terminals in the terminal containing slot and be mounted on the insulating body and form the framework of a host cavity with insulating body; It is characterized in that: insulating body is provided with the fixture with the framework secure fit, and each fixture is made up of the plurality of elastic trip, and this elastic clamping hook elastically deformable is so that take off framework on the body that insulate.
- [claim 2] electric connector as claimed in claim 1 is characterized in that: described elastic clamping hook is symmetrical arranged, and the elastic clamping hook top is provided with holding part in the opposite direction.
- [claim 3] electric connector as claimed in claim 1 is characterized in that: described fixture is located at the corner of described insulating body.
- [claim 4] electric connector as claimed in claim 1 is characterized in that: described insulating body is provided with the hole, described elastic clamping hook be uniformly distributed in the hole around.
- [claim 5] electric connector as claimed in claim 1 is characterized in that: the holding part top of described elastic clamping hook is provided with the inclined plane.
- [claim 6] electric connector as claimed in claim 1 is characterized in that: the position of the corresponding fixture of described framework is provided with the accommodation hole of accommodating fixture.
- [claim 7] electric connector as claimed in claim 6 is characterized in that: be provided with boss in the described accommodation hole, after the assembling of described insulating body and described framework, described elastic clamping hook and described boss be buckle mutually.
- [claim 8] electric connector as claimed in claim 7 is characterized in that: described accommodation hole is provided with guide surface towards an end of fixture.
- [claim 9] electric connector as claimed in claim 1 is characterized in that: described fixture is located on a pair of diagonal of insulating body, and another of insulating body is provided with projection to diagonal, and described framework is provided with and the corresponding shrinkage pool of described projection.
