一种可以过滤空气并且吹出的冷风的温度可以自由控制的空调扇。空调扇是由于其外型酷似微型柜式空调，其中有水泵使空气在水循环中被冷却，吹出低于温室的冷风而被冠名为空调扇。它是在市场上的空调扇的基础上在空调扇上安装一个温度控制器和在空调扇的顶部设置一个装冰块的水箱，空调扇下部装水的水箱与空调扇顶部装冰块的水箱连接组成一个流水交换装置。
An air conditioner fan that can filter air and the temperature of the cold air blown out can be freely controlled. The air-conditioning fan is named as the air-conditioning fan because its appearance resembles a miniature cabinet air conditioner, and there is a water pump in it to cool the air in the water cycle and blow out cold air lower than the greenhouse. It installs a temperature controller on the air-conditioning fan on the basis of the air-conditioning fan on the market and sets a water tank containing ice cubes on the top of the air-conditioning fan. The connection forms a flow exchange device.
Description
所属技术领域Technical field
本实用新型涉及一种人们在夏天使用的可以过滤空气并且可以吹出冷风的吹风装置，尤其是吹出的冷风的温度可以控制的空调扇。The utility model relates to a blowing device which can filter air and blow out cold wind used by people in summer, in particular to an air conditioner fan whose temperature of the blown cold wind can be controlled.
背景技术 Background technique
目前公知的空调扇的构造是空调扇的内部有一个离心式风轮，吹出的风从前面的吹风窗口吹出，空调扇的下部有一个内部设置有水泵的装水的水箱，空调扇的顶部有一个机顶储冰盒，水泵把装水的水箱内的水通过流水管循环不断地抽到空调扇的机顶储冰盒内，流水再从机顶储冰盒底部的一排流水孔流到下面连接的滤网上，流水经过滤网再流下面的水箱中。使用时，空调扇内部的离心式风轮把空气从滤网吹过，空气经过有流水循环不断地流过的滤网冷却，再从吹风窗口吹出。空调扇是由于其外型酷似微型柜式空调，其中有水泵能使空气在水循环中被冷却，吹出低于室温的冷风而被冠名为空调扇。但是，空调扇吹出的冷风的温度不能根据人们的需要自由控制。The structure of the known air-conditioning fan is that the inside of the air-conditioning fan has a centrifugal wind wheel, and the wind blown out is blown out from the front blowing window. A set-top ice storage box, the water pump pumps the water in the water tank filled with water through the water pipe to the top ice storage box of the air-conditioning fan continuously, and the water flows from a row of water holes at the bottom of the top ice storage box to the On the filter screen connected below, running water flows in the water tank below through the filter screen again. When in use, the centrifugal wind wheel inside the air-conditioning fan blows air through the filter screen, and the air is cooled by the filter screen continuously flowing through the water circulation, and then blows out from the blowing window. The air conditioner fan is named as the air conditioner fan because its appearance resembles a miniature cabinet air conditioner, and there is a water pump in it to cool the air in the water cycle and blow out cold air below room temperature. But, the temperature of the cold wind that air-conditioning fan blows can not freely control according to people's needs.
发明内容 Contents of the invention
为了克服现有的空调扇吹出的冷风不能控制的缺点。本实用新型提供一种空调扇，该空调扇不仅能吹出冷风，而且吹出的冷风的温度还可以自由控制。In order to overcome the shortcoming that the cold wind blown out by the existing air-conditioning fan cannot be controlled. The utility model provides an air-conditioning fan, which can not only blow out cold air, but also freely control the temperature of the blown cold air.
本实用新型解决其技术问题所采用的技术方案是：空调扇的顶部设置一个装冰块的水箱，空调扇下部装水的水箱与空调扇顶部装冰块的水箱连接组成一个流水交换装置，即热量交换装置。空调扇下部装水的水箱内设置一个小水泵，小水泵的出水口连接一条流水管，流水管的另一端固定在空调扇顶部的装冰块的水箱内的最高水位处。装冰块的水箱上安装一条流水管，流水管的另一端放置在空调扇下部的装水的水箱中。装冰块的水箱用保温材料做成具有保温性，装冰块的水箱的顶部有一个水箱盖。空调扇上安装一个温度控制器(和电冰箱上的温度控制器工作原理相同)，温度控制器上的热敏电阻传感器放置在空调扇的吹风窗口处，温度控制器上的电磁开关串联在装水的水箱内设置的小水泵的电路上。离心式风轮的电机、装水的水箱内的水泵和小水泵之间的电路互相并联，共用一条电源线。空调扇上的温度控制器的电源用的是安装在其上面的两节小电池的电源。The technical scheme adopted by the utility model to solve the technical problem is: the top of the air-conditioning fan is provided with a water tank containing ice cubes, and the water tank containing water at the lower part of the air-conditioning fan is connected with the water tank containing ice cubes on the top of the air-conditioning fan to form a flowing water exchange device, namely heat exchange device. A small water pump is arranged in the water tank of the air conditioner fan bottom, and the water outlet of the small water pump is connected with a flow pipe, and the other end of the flow pipe is fixed at the highest water level in the ice cube water tank on the top of the air conditioner fan. A flow pipe is installed on the water tank of ice cubes, and the other end of the flow pipe is placed in the water tank of the air-conditioning fan bottom. The water tank of adorned ice cube is made with thermal insulation material and has thermal insulation, and the top of the water tank of adorned ice cube has a water tank lid. Install a temperature controller on the air-conditioning fan (the working principle of the temperature controller on the refrigerator is the same), the thermistor sensor on the temperature controller is placed at the blowing window of the air-conditioning fan, and the electromagnetic switch on the temperature controller is connected in series. On the circuit of the small water pump provided in the water tank. The motor of the centrifugal wind wheel, the water pump in the water tank and the small water pump are connected in parallel with each other and share a power line. The power supply of the temperature controller on the air-conditioning fan is the power supply of two small batteries installed on it.
空调扇在夏天使用时，装水的水箱内的水泵通过流水管把水循环不断地输送到机顶储冰盒中，流水从机顶储冰盒底部的一排流水孔流到下面的滤网上，然后再从滤网流到下面的装水的水箱中。空调扇内部的离心式风轮把空气吹入循环不断地有流水流过的滤网，再从吹风窗口吹出，当吹出的冷风的温度高于空调扇上的温度控制器设定的吹风窗口吹出的冷风的温度时，放置在吹风窗口的温度控制器上的热敏电阻传感器的阻值变小，半导体三级管饱和通导，串联在装水的水箱内的小水泵的电路上的电磁开关开通。这时，装水的水箱内的小水泵把装水的水箱内的水通过其出水口连接的一条流水管输送到空调扇顶部的装冰块的水箱中。当装冰块的水箱内的水快满时，流水经过冷却再从装冰块的水箱上安装的一条流水管输送到空调扇下部的装水的水箱中。装水的水箱内的水泵继续把水输送到有离心式风轮吹过的滤网上，低于设定温度的冷风从吹风窗口处的热敏电阻传感器上吹过时，热敏电阻传感器的阻值变大，温度控制器上的电磁开关关闭。装水的水箱内的小水泵的电路关闭，小水泵停止向空调扇顶部的装冰块的水箱输送水。从吹风窗口吹出的冷风的温度又保持在空调扇上的温度控制器设定的从吹风窗口吹出的冷风的温度，反复如此。When the air conditioner fan is used in summer, the water pump in the water tank circulates the water to the top ice storage box continuously through the water pipe, and the water flows from a row of water holes at the bottom of the top ice storage box to the filter below. Then it flows from the filter screen to the water tank below. The centrifugal wind wheel inside the air-conditioning fan blows the air into the filter screen with flowing water flowing through it continuously, and then blows it out from the blowing window. When the temperature of the blown cold air is higher than the blowing window set by the temperature controller on the air-conditioning fan When the temperature of the cold air is high, the resistance of the thermistor sensor placed on the temperature controller of the blowing window becomes smaller, the semiconductor triode is saturated and conducts, and the electromagnetic switch connected in series with the circuit of the small water pump in the water tank opened. At this time, the small water pump in the water tank of the water is delivered to the water tank of the ice cube on the top of the air-conditioning fan by a flow pipe connected by its water outlet to the water in the water tank of the water tank. When the water in the water tank of the ice cubes was almost full, the running water was delivered to the water tank of the air-conditioning fan bottom from a flow pipe installed on the water tank of the ice cubes through cooling. The water pump in the water tank filled with water continues to deliver the water to the filter screen blown by the centrifugal wind wheel. becomes larger, the electromagnetic switch on the temperature controller is turned off. The circuit of the small water pump in the water tank filled with water is closed, and the small water pump stops delivering water to the water tank filled with ice cubes on the top of the air-conditioning fan. The temperature of the cold wind blowing out from the blowing window remains on the temperature controller setting on the air-conditioning fan again, repeats like this.
本实用新型的有益效果是：空调扇吹出的冷风的温度可以根据自己的需要进行自由控制。空调扇上安装一个温度控制器，空调扇下部的装水的水箱与空调扇顶部设置的装冰块的水箱组成一个流水交换装置，结构简单，使用方便。The beneficial effect of the utility model is that: the temperature of the cold air blown by the air-conditioning fan can be freely controlled according to one's needs. A temperature controller is installed on the air-conditioning fan, and the water tank at the lower part of the air-conditioning fan and the water tank containing ice cubes arranged at the top of the air-conditioning fan form a flowing water exchange device, which has a simple structure and is easy to use.
附图说明 Description of drawings
下面结合附图和实施例对本实用新型进一步说明。Below in conjunction with accompanying drawing and embodiment the utility model is further described.

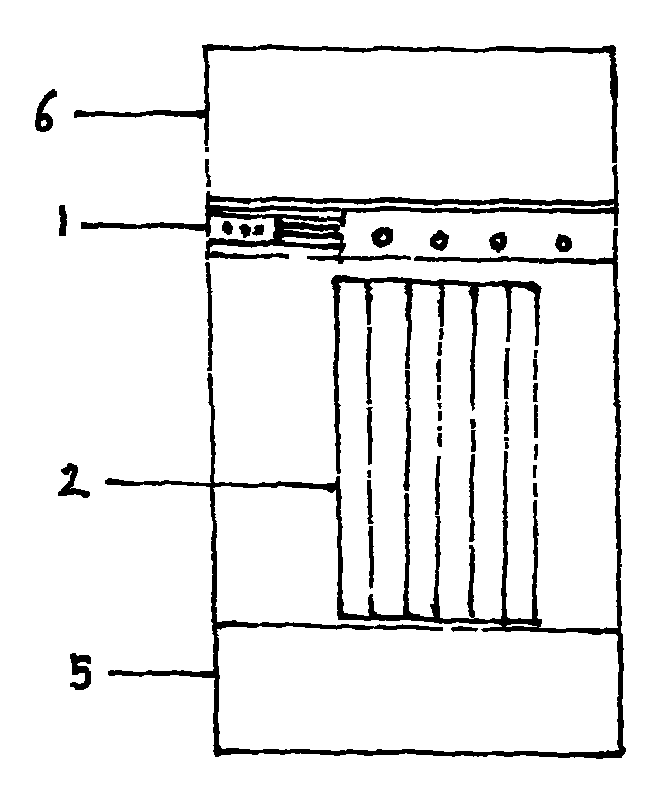

图1是本实用新型的外观图。Fig. 1 is the exterior view of the utility model.
图2是空调扇的实施例的内部构造示意图。Fig. 2 is a schematic diagram of the internal structure of an embodiment of the air-conditioning fan.
图中1、温度控制器，2、吹风窗口，3、流水管，4、流水管，5，装水的水箱，6，装冰块的水箱，7小水泵。Among the figure 1, temperature controller, 2, blowing window, 3, flow pipe, 4, flow pipe, 5, the water tank of adorned water, 6, the water tank of adorned ice cube, 7 small water pumps.
具体实施方式 Detailed ways
结合图1和图2对本实用新型详细说明。空调扇的顶部设置一个装冰块的水箱(6)，空调扇下部装水的水箱(5)与空调扇顶部装冰块的水箱(6)连接组成一个流水交换装置，即热量交换装置。空调扇下部装水的水箱(5)内设置一个小水泵(7)，小水泵(7)的出水口连接一条流水管(3)，流水管(3)的另一端固定在空调扇顶部的装冰块的水箱(6)内的最高水位处。装冰块的水箱(6)上安装一条流水管(4)，流水管(4)的另一端放置在空调扇下部的装水的水箱(5)中。装冰块的水箱(6)用保温材料做成具有保温性，装冰块的水箱(6)的顶部有一个水箱盖。空调扇上安装一个温度控制器(1)，温度控制器(1)上的热敏电阻传感器放置在空调扇的吹风窗口(2)处，温度控制器(1)上的电磁开关串联在装水的水箱(5)内设置的小水泵(7)的电路上。离心式风轮的电机、装水的水箱(5)内的水泵和小水泵(7)之间的电路互相并联，共用一条电源线。空调扇上的温度控制器(1)的电源用的是安装在其上面的两节小电池的电源。The utility model is described in detail in conjunction with Fig. 1 and Fig. 2. The top of the air-conditioning fan is provided with a water tank (6) filled with ice cubes, and the water tank (5) filled with water at the bottom of the air-conditioning fan is connected with the water tank (6) filled with ice cubes on the top of the air-conditioning fan to form a flowing water exchange device, i.e. a heat exchange device. A small water pump (7) is arranged in the water tank (5) at the bottom of the air-conditioning fan. The highest water level place in the water tank (6) of ice cube. A running water pipe (4) is installed on the water tank (6) of ice cubes, and the other end of the running water pipe (4) is placed in the water tank (5) of the air-conditioning fan bottom. The water tank (6) of adorned ice cubes is made with insulation material and has thermal insulation, and a water tank cover is arranged on the top of the water tank (6) of adorned ice cubes. A temperature controller (1) is installed on the air-conditioning fan, the thermistor sensor on the temperature controller (1) is placed at the blowing window (2) of the air-conditioning fan, and the electromagnetic switch on the temperature controller (1) is connected in series to the On the circuit of the small water pump (7) that is provided with in the water tank (5). The electric motor of the centrifugal wind wheel, the water pump in the water tank (5) filled with water and the circuits between the small water pumps (7) are connected in parallel with each other and share a power line. What the power supply of the temperature controller (1) on the air-conditioning fan used is the power supply of two small batteries installed on it.
空调扇在夏天使用时，空调扇下部的装水的水箱(5)内加满水，空调扇顶部的装冰块的水箱(6)内放满冰块再盖好水箱盖。把空调扇的电源插头插入电源，打开温度控制器(1)的电源开关，同时设定一个空调扇吹出冷风的温度，再打开装水的水箱(5)内的水泵和离心式风轮的电机的电源开关。这时，装水的水箱(5)内的水泵通过流水管把水循环不断地输送到机顶储冰盒中，流水从机顶储冰盒底部的一排流水孔流到下面的滤网上，然后再从滤网流到下面的装水的水箱(5)中。同时，空调扇内部的离心式风轮把空气吹向循环不断地有流水流过的滤网，空气冷却、过滤，最后从吹风窗口(2)吹出。当吹风窗口(2)吹出的冷风的温度高于空调扇上的温度控制器(1)设定的吹风窗口(2)吹出的冷风的温度时，放置在吹风窗口(2)的温度控制器(1)上的热敏电阻传感器的阻值变小，半导体三级管饱和通导，串联在装水的水箱(5)内的小水泵(7)的电路上的电磁开关开通。这时，装水的水箱(5)内的小水泵(7)把装水的水箱(5)内的水通过其出水口连接的一条流水管(3)循环不断地输送到空调扇顶部的装冰块的水箱(6)中。当装冰块的水箱(6)内的水快满时，流水经过冷却再从装冰块的水箱(6)上安装的一条流水管(4)输送到空调扇下部的装水的水箱(5)中。装水的水箱(5)内的水泵继续把水输送到有离心式风轮吹过的滤网上，当低于设定温度的冷风从吹风窗口(2)处的热敏电阻传感器上吹过时，热敏电阻传感器的阻值变大，温度控制器(1)上的电磁开关关闭。装水的水箱(5)内的小水泵(7)的电路关闭，小水泵(7)停止向空调扇顶部的装冰块的水箱(6)输送水。从吹风窗口(2)吹出的冷风的温度又保持在空调扇上的温度控制器(1)设定的从吹风窗口(2)吹出的冷风的温度，反复如此。When the air-conditioning fan was used in summer, the water tank (5) filled with water at the bottom of the air-conditioning fan was filled with water, and the water tank (6) filled with ice cubes at the top of the air-conditioning fan was filled with ice cubes and then covered with a water tank cover. Insert the power plug of the air-conditioning fan into the power supply, turn on the power switch of the temperature controller (1), and set the temperature of the cold air blown by an air-conditioning fan at the same time, and then turn on the water pump in the water tank (5) and the motor of the centrifugal wind wheel the power switch. At this time, the water pump in the water tank (5) filled with water circulates the water continuously to the top ice storage box through the water pipe, and the running water flows from a row of water holes at the bottom of the top ice storage box to the filter screen below, and then Flow in the water tank (5) of filling water below from filter screen again. Simultaneously, the centrifugal wind wheel inside the air-conditioning fan blows the air to the filter screen that the circulating water flows through continuously, the air is cooled, filtered, and finally blown out from the blowing window (2). The temperature controller ( 1) The resistance value of the thermistor sensor on the top becomes smaller, the semiconductor triode is saturated and conducts, and the electromagnetic switch on the circuit of the small water pump (7) connected in series in the water tank (5) filled with water is turned on. At this time, the small water pump (7) in the water-filled water tank (5) circulates the water in the water-filled water tank (5) to the device on the top of the air-conditioning fan through a flow pipe (3) connected to the water outlet. Ice cubes in the water tank (6). When the water in the ice cube water tank (6) was almost full, the running water was delivered to the water tank (5) at the bottom of the air-conditioning fan from a flow pipe (4) installed on the ice cube water tank (6) through cooling. )middle. The water pump in the water tank (5) filled with water continues to deliver the water to the filter screen blown by the centrifugal wind wheel. The resistance value of the thermistor sensor becomes larger, and the electromagnetic switch on the temperature controller (1) is turned off. The circuit of the small water pump (7) in the water tank (5) filled with water is closed, and the small water pump (7) stops delivering water to the water tank (6) of ice cubes on the top of the air-conditioning fan. The temperature of the cold wind blowing out from the blowing window (2) is maintained on the temperature controller (1) on the air-conditioning fan again from the temperature of the cold wind blowing out from the blowing window (2) on the air-conditioning fan, so repeatedly.
