CN201227243Y

CN201227243Y - Dust-collector head with wiping cloth function

Info

Publication number: CN201227243Y
Application number: CNU200820120065XU
Authority: CN
Inventors: 应远军
Original assignee: Panasonic Home Appliances Hangzhou Co Ltd
Current assignee: Panasonic Home Appliances R&D Center Hangzou Co Ltd
Priority date: 2008-06-18
Filing date: 2008-06-18
Publication date: 2009-04-29
Anticipated expiration: 2018-06-18

Abstract

The utility model relates to a dust collector suction head with the function of wiping rags, which comprises a suction head body. The bottom of the suction head body positioned at one side of a turning brush is provided with a clamping mechanism used for clamping a wiping rag, and the wiping rag is clamped by the clamping mechanism. The dust collector suction head realizes the goal of dust suction and cleaning the floor to improve the efficiency of cleaning the floor and has favorable cleaning effect; because the clamping mechanism is adopted to clamp and remove the wiping rag, the suction head has simple structure and convenient operation, and the wiping rag can be conveniently replaced and washed.

Description

Suction head of suction cleaner with cleaning wiping cloth function

Technical field

The utility model relates to a kind of suction head of suction cleaner with cleaning wiping cloth function, belongs to the dust catcher used unit and makes the field.

Background technology

The suction nozzle of existing dust catcher comprises suction nozzle body, revolution brush, preceding wiping brush, back wiping brush.The weak point of its objective reality: preceding wiping brush, the back wiping brush of existing suction nozzle all are the bottoms that is fixed on suction nozzle, and after long-term the use, wiping brushes with a lot of rubbish.Because the wiping brush can not remove, cause rubbish to be difficult to remove.

Summary of the invention

Purpose of design: avoid the disadvantages of background technology part, design a kind of cleaning wiping cloth function that both had, can easily the cloth after institute's wiping be taken off the suction head of suction cleaner of cleaning again.

Design: in order to realize above-mentioned purpose of design, being provided with the design of the clamping device that is used for the clamping cleaning wiping cloth in revolution brush one side draught head body bottom, is major technique feature of the present utility model.The purpose of doing like this is: be provided with simple removable lining cleaning wiping cloth clamping device in suction nozzle body bottom and be used for the clamping cleaning wiping cloth, when long-term use back cleaning wiping cloth has a lot of rubbish, as long as just cleaning wiping cloth can be removed removing by shirking button, perhaps when cleaning wiping cloth can not re-use, replace after can utilizing existing old towel to be cut into a certain size, and load onto use after can bedewing, play the function that ground is wiped on dust suction limit, limit, both economical, can improve cleaning efficient again.

Technical scheme: have the suction head of suction cleaner of cleaning wiping cloth function, it comprises the suction nozzle body, and the suction nozzle body bottom that is positioned at revolution brush one side is provided with the clamping device that is used for the clamping cleaning wiping cloth, and cleaning wiping cloth is held mechanisms grip.

The utility model is compared with background technology, and the one, realized the purpose that ground is wiped on the dust suction of dust catcher limit, limit, not only improved the efficient on cleaning wiping floor, and cleaning effect is good; The 2nd, adopt clamping device to be used for clamping and to shirk cleaning wiping cloth, not only simple in structure, easy to operate, and can change or clean cleaning wiping cloth easily.

Description of drawings

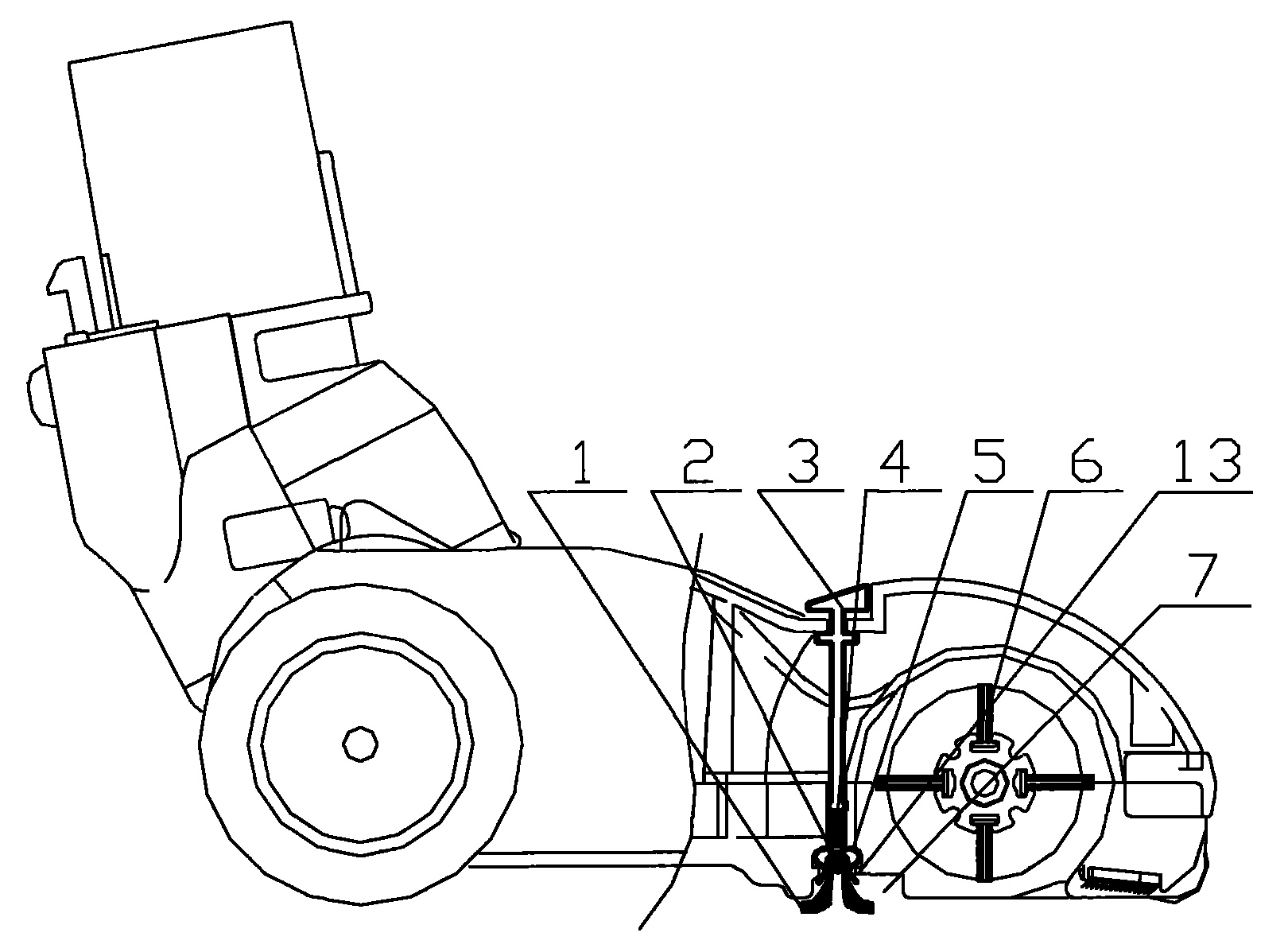

Fig. 1 is the side-looking structural representation with first kind of embodiment of suction head of suction cleaner of cleaning wiping cloth function.

Rag view when Fig. 2 is the suction head of suction cleaner reach with cleaning wiping cloth function.

Fig. 3 is the rag view that has when moving behind the suction head of suction cleaner of cleaning wiping cloth function.

Fig. 4 is the side-looking structural representation with second kind of embodiment of suction head of suction cleaner of cleaning wiping cloth function.

Fig. 5 is the structural representation of treadle 3.

Fig. 6 is the structural representation of zigzag treadle 12.

The specific embodiment

Embodiment 1: with reference to accompanying drawing 1～3.Suction head of suction cleaner with cleaning wiping cloth function, it comprises suction nozzle body 8, and suction nozzle body 8 bottoms that are positioned at revolution brush 6 one sides are provided with the clamping device that is used for clamping cleaning wiping cloth 1, and cleaning wiping cloth 1 is held mechanisms grip.Clamping device is by reducing groove, elastic opening holding piece 5, fixedly rod iron 2 constitutes, the notch face of reducing groove is the concave bottom surface of groove 7, the reducing groove is positioned at suction nozzle body 8 bottoms, elastic opening holding piece 5 is fixed in the reducing groove by fixed projection 13, and fixedly rod iron 2 cooperates with elastic opening holding piece 5.

Embodiment 2: on the basis of embodiment 1, the suction nozzle body 8 that is positioned at reducing groove middle part vertically has the treadle duct, and fixedly rod iron jacking mechanism is housed in the treadle duct.Fixedly the rod iron jacking mechanism by treadle duct, stage clip 4, and treadle 3 constitute, the upper and lower part of treadle 3 is provided with boss respectively, is positioned to be with boss that stage clip 4 and is located on the treadle duct and is positioned at treadle top on the treadle 3 under the lower convex platform and to be clamping with the edge of treadle opening of the channel and to cooperate.When long-term use back cleaning wiping cloth 1 during with a lot of rubbish, as long as press or step on treadle 3, treadle 3 directly fixedly rod iron eject elastic opening holding piece 5, can easily cleaning wiping cloth 1 be taken off; Unclamp treadle 3, treadle resets under the effect of stage clip 4, in order to next clamping cleaning wiping cloth 1.

As shown in Figure 2: when suction nozzle pushed away suction rubbish forward, ground refuse sucked from suction inlet 14, and cleaning wiping cloth 1 is carried out wiping to ground simultaneously because the frictional force effect is put backward.

As shown in Figure 3: when suction nozzle was inhaled rubbish toward post-tensioning, cleaning wiping cloth 1 was owing to be subjected to the frictional force effect to forward swing, because be made as groove 7, cleaning wiping cloth 1 is just ensconced in the groove 7, avoided rubbish to be stopped by cleaning wiping cloth 1 and can not suck from suction inlet 14.

Embodiment 3: with reference to accompanying drawing 4.On the basis of

embodiment

1 and 2, treadle 3 is replaced by zigzag treadle 12.Boom end adopts pedal gyroaxis 9 to be connected with 8 of suction nozzle bodies before the zigzag treadle 12, and bar below spacing is provided with two boss before the zigzag treadle 12, and front boss 10 touches mutually with rod iron 2, the rear boss below is pedal stage clip 11.When long-term use back cleaning wiping cloth 1 has a lot of rubbish, shirk treadle (zigzag treadle) 12 as long as press, shirk treadle and back down fixedly rod iron 2 by lever principle, can will take off cleaning wiping cloth 1 easily; Unclamp and shirk treadle 12, shirk treadle 12 and under the effect of stage clip 11, reset, in order to next clamping cleaning wiping cloth 1.

What need understand is: though the foregoing description is to the utility model detailed text description of contrasting; but these text descriptions; just the simple text of the utility model mentality of designing is described; rather than to the restriction of the utility model mentality of designing; any combination, increase or modification that does not exceed the utility model mentality of designing all falls in the protection domain of the present utility model.

Claims

1, a kind of suction head of suction cleaner with cleaning wiping cloth function, it comprises the suction nozzle body, it is characterized in that: the suction nozzle body bottom that is positioned at revolution brush one side is provided with the clamping device that is used for the clamping cleaning wiping cloth, and cleaning wiping cloth is held mechanisms grip.

2, the suction head of suction cleaner with cleaning wiping cloth function according to claim 1, it is characterized in that: clamping device is by reducing groove, opening resilient clamp sheet, fixedly rod iron constitutes, the reducing groove is positioned at suction nozzle body bottom, the elastic opening holding piece is positioned at the reducing groove, and fixedly rod iron cooperates with the elastic opening holding piece.

3, the suction head of suction cleaner with cleaning wiping cloth function according to claim 2 is characterized in that: the notch face of reducing groove is the concave bottom surface of groove.

4, the suction head of suction cleaner with cleaning wiping cloth function according to claim 2 is characterized in that: the suction nozzle body that is positioned at reducing groove middle part vertically has the treadle duct, and fixedly rod iron jacking mechanism is housed in the treadle duct.

5, the suction head of suction cleaner with cleaning wiping cloth function according to claim 4, it is characterized in that: fixedly the rod iron jacking mechanism by treadle duct, stage clip, and treadle constitute, the upper and lower part of treadle is provided with boss respectively, is positioned to be with boss that stage clip and is located on the treadle duct and is positioned at treadle top on the treadle under the lower convex platform and to be clamping with the edge of treadle opening of the channel and to cooperate.

6, the suction head of suction cleaner with cleaning wiping cloth function according to claim 2, it is characterized in that: boom end adopts the pedal gyroaxis to be connected with the suction nozzle body shaft before the zigzag treadle, bar below spacing is provided with two boss before the zigzag treadle, and front boss touches mutually with the elastic opening holding piece, the rear boss below is the pedal stage clip.
