CN201217219Y - Knife with circular hole - Google Patents

Abstract

The utility model relates to a daily knife, in particular to the knife for cutting meat or other things. The knife with a round hole comprises a knife body and a knife handle, and the knife handle is connected at one end of the knife body; the knife is characterized in that the round hole is arranged at the upper part of the knife body. A hole cushion is arranged at the lower part of the round hole; and the number of the round hole is no more than 4. The knife with the round hole can not only be used like prior knifes, but also can make the knife handle dismounted when cutting meat or other things through the fingers passing directly through the round hole on the knife body.

Description

Have the cutter of circular hole

Technical field

The utility model relates to the cutter of using in a kind of daily life, relates in particular to a kind ofly to be used to cut meat or the cutter of other things.

Background technology

People often can use cutter in the daily life, and housewifves are buying vegetables when cooking, and the cutter thing that is absolutely necessary is cut the dish and all will be used cutter when cutting meat.The employed cutter of people all is the handle of a knife that a cutter hub adds the back now, grasps handle of a knife during use and cuts thing, cuts thing.Use the cutter of this structure when cutting thing, not have very big problem, but when cutting thing, be not very convenient just.The one, relatively to require great effort, it two is because cutter hub is the structure that is connected with handle of a knife, and will use very big power when cutting thing, in case cutter hub is connected with handle of a knife and separates, cutter hub will fly out, and thing or people on every side caused damage.

Summary of the invention

The purpose of this utility model is the defective at the prior art existence, and a kind of cutter that uses when needs are cut thing is provided.

In order to achieve the above object, the utility model is achieved in that a kind of cutter that has circular hole, comprises cutter hub and handle of a knife, and handle of a knife is connected cutter hub one end, has circular hole on the top of cutter hub.

Comfortable and safe in order to guarantee that the user uses, be provided with the hole pad in the interior bottom of circular hole.

For making full use of of guarantee that the user uses time finger, the hole count of described circular hole is not more than 4.

The utility model adopts offers circular hole on used cutter, utilize the power of finger to operate cutter after finger is passed circular hole, thereby reach the effect of downward bat.Interior bottom at circular hole is provided with the hole pad, makes the bottom stress surface of circular hole increase, and the stress surface that makes the user point increases simultaneously, thereby alleviates the pain of finger; Maximum four of the circular hole number of offering, this is to consider five fingers on hand, utilizes four fingers just passable in the time of use at most.Adopt the cutter that has circular hole of the present utility model, can not only equally with original cutter use, and cutting meat or during other things, handle of a knife can pulled down, the circular hole that finger is passed on the cutter directly carries out.

Description of drawings

Below, in conjunction with the accompanying drawings, the utility model is further described:

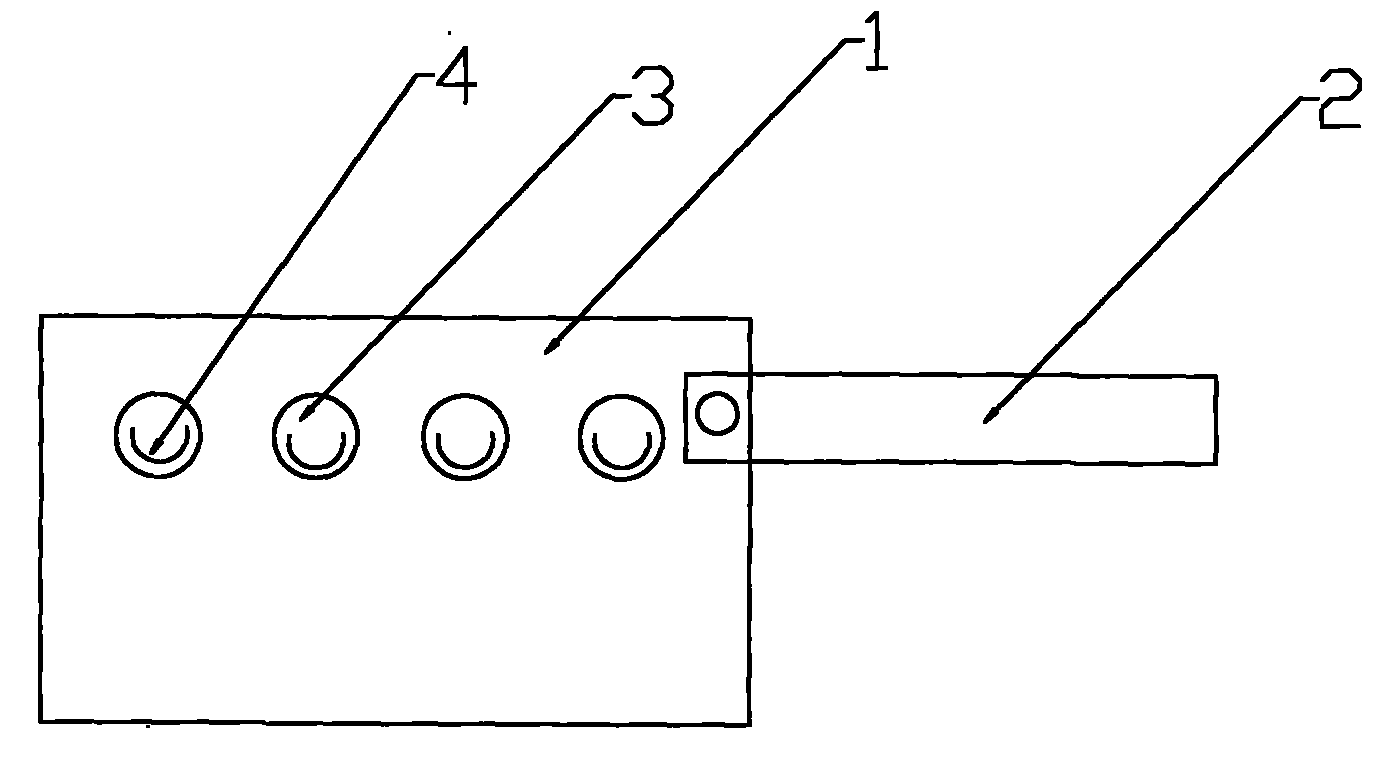

Fig. 1 has the schematic diagram of the cutter of circular hole for the utility model;

Fig. 2 has the side view of the cutter of circular hole for the utility model.

The specific embodiment

As depicted in figs. 1 and 2: a kind of cutter that has circular hole, comprise cutter hub 1 and handle of a knife 2, handle of a knife 2 is connected cutter hub 1 one ends, has circular hole 3 on the top of cutter hub 1.Interior bottom at circular hole 3 is provided with hole pad 4.The hole count of described circular hole 4 is not more than 4.

Cut meat or during other things, handle of a knife 2 can be pulled down at needs, utilize finger to pass circular hole 3 on the cutter hub 1, control cutter hub 1 and move downward, cut meat or the purpose of other things thereby reach to point downward power.

Those of ordinary skill in the art should recognize that the above specific embodiment is only to be used for illustrating the utility model, but not to qualification of the present utility model.Protection domain of the present utility model is when being limited by claims, and any identity property of the utility model being made according to present embodiment changes, replacement all will fall within the desired protection domain of the utility model claims.

Claims (3)

1. a cutter that has circular hole comprises cutter hub and handle of a knife, and handle of a knife is connected cutter hub one end, it is characterized in that having circular hole on the top of cutter hub.

2. the cutter that has circular hole according to claim 1 is characterized in that being provided with the hole pad in the interior bottom of circular hole.

3. the cutter that has circular hole according to claim 1 and 2 is characterized in that the hole count of described circular hole is not more than 4.
